CHEST FREEZER
CONGELADOR HORIZONTAL
PFR50600H
/
PFR70600H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PFR50600H and is the answer not in the manual?

Questions and answers

Related Manuals for Premium PFR50600H

Summary of Contents for Premium PFR50600H

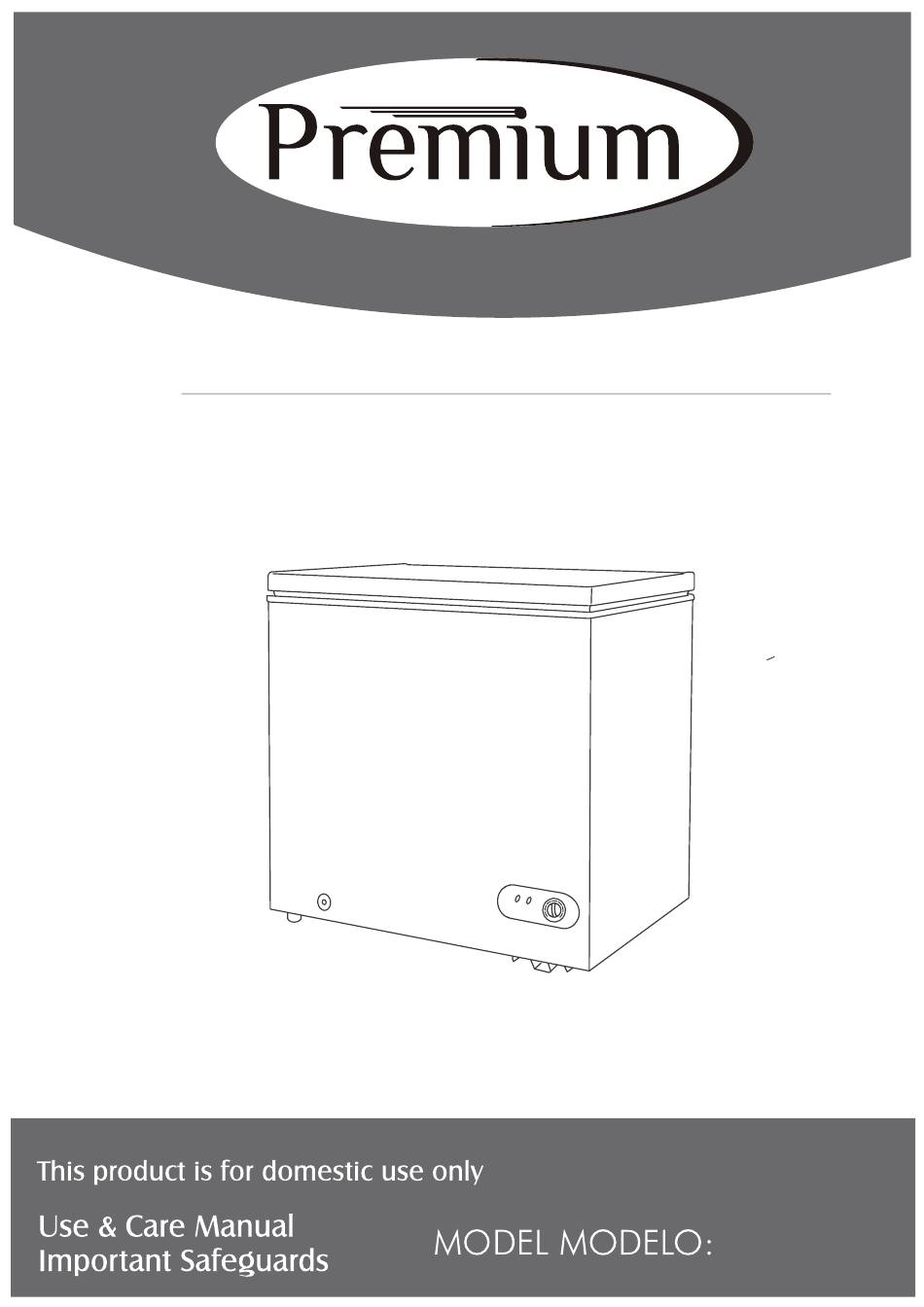

  • Page 1 CHEST FREEZER CONGELADOR HORIZONTAL PFR50600H PFR70600H...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electrical shock, or injury follow these basic precautions when using your refrigerator. WARNING----Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING----Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS NAMES OF THE PARTS IMPORTANT SAFETY INSTRUCTIONS INSTALLATION INSTRUCTIONS BEFORE USING YOUR FREEZER INSTALLING YOUR FREEZER 3 - 4 ELECTRICAL CONNECTION OPERATING YOUR FREEZER TEMPERATURE CONTROL .. 5 DEFROSTING YOUR FREEZER . .. 5 - 6 THE FREEZER COMPARTMENT CARE AND MAINTENANCE CLEANING YOUR FREEZER VACATION TIME...

  • Page 4: Names Of The Parts

    NAMES OF THE PARTS WARNING : Never touch the interior of the Freezer Chamber or frozen foods in the compartment with wet hands as this could result in frost bite.

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electrical shock, WARNING or injury when using your freezer, follow these basic precautions: Read all instructions before using the freezer. DANGER or WARNING: Risk of child entrapment. To avoid the possibility of child entrapment, please take the following precautions: Remove the freezer top and DO NOT remove the internal basket.

  • Page 6: Electrical Connection

    Plug the freezer into dedicated, properly installed-grounded wall outlet. Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized service center.

  • Page 7: Operating Your Freezer

    OPERATING YOUR FREEZER Temperature Control Once your freezer is in its proper place, plug the power cord into an electrical socket to turn on the unit. The “Power” light (red) will come on immediately. The “Run” light (green) will be lit if freezer compressor is in operation (if temperature control is set anywhere between 1-7) Your freezer will automatically maintain the temperature level you select.

  • Page 8: The Freezer Compartment

    Clean the interior of the freezer. Replace the plug on the inside floor. Plug the unit in and wait for the “Power” light to be lit (red light on). Adjust the temperature control knob to “7”. The “Run” indicator (green) should light up. Allow the cabinet to cool for one hour.

  • Page 9: Care And Maintenance

    CARE AND MAINTENANCE Cleaning Your Freezer Upon installation of your new appliance, it is recommended that it be cleaned thoroughly. Unplug the freezer; remove the food and storage basket. Wash the inside with a damp warm cloth soaked in lukewarm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.

  • Page 10: Troubleshooting Guide

    TROUBLESHOOTING GUIDE You can solve many common freezer problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling for service. PROBLEM POSSIBLE CAUSE Freezer does not operate. Not plugged in.
  • Page 11 See “Installation Instructions”. Moisture forms on inside freezer walls. Weather is hot and humid, which increases internal rate of frost build-up. This is normal. Door is slightly open. Door is kept open too long, or is opened too frequently. Open the door less often. The door is not sealed properly.
  • Page 12 INSTRUCCIONES DE SEGURIDAD IMPORTANTES Para reducir el riesgo de incendio, choque eléctrico o lesiones, siga estas precauciones básicas al usar su refrigerador. ADVERTENCIA: mantenga las aberturas de ventilación, en el mismo aparato o en la estructura integrada, libres de obstrucciones. ADVERTENCIA: no utilice dispositivos mecánicos u otros medios para acelerar la descongel- ación, más que los recomendados por el fabricante.
  • Page 15 Su congelador debe ser convenientemente localizado en un lugar seco , bien ventilado, lejos de la luz solar directa y de fuentes de calor ( estufa, calentador , radiador , etc. ) La luz solar directa puede afectar recubrimiento acrílico y fuentes de calor pueden aumentar el consumo eléctrico. No instale el congelador donde la temperatura esté...
  • Page 16 PELIGRO – Riesgo de incendios o explosiones. Se utiliza un refrigerante inflamable. Las reparaciones debe efectuarla solamente personal de servicio capacitado. No perfore las tuberías del refrigerante. PRECAUCIÓN – Riesgo de incendios o explosiones. Se utiliza un refrigerante inflamable. Consulte el manual de reparaciones o la guía del propietario antes de intentar darle servicio a este producto.

This manual is also suitable for:

Pfr70600h
