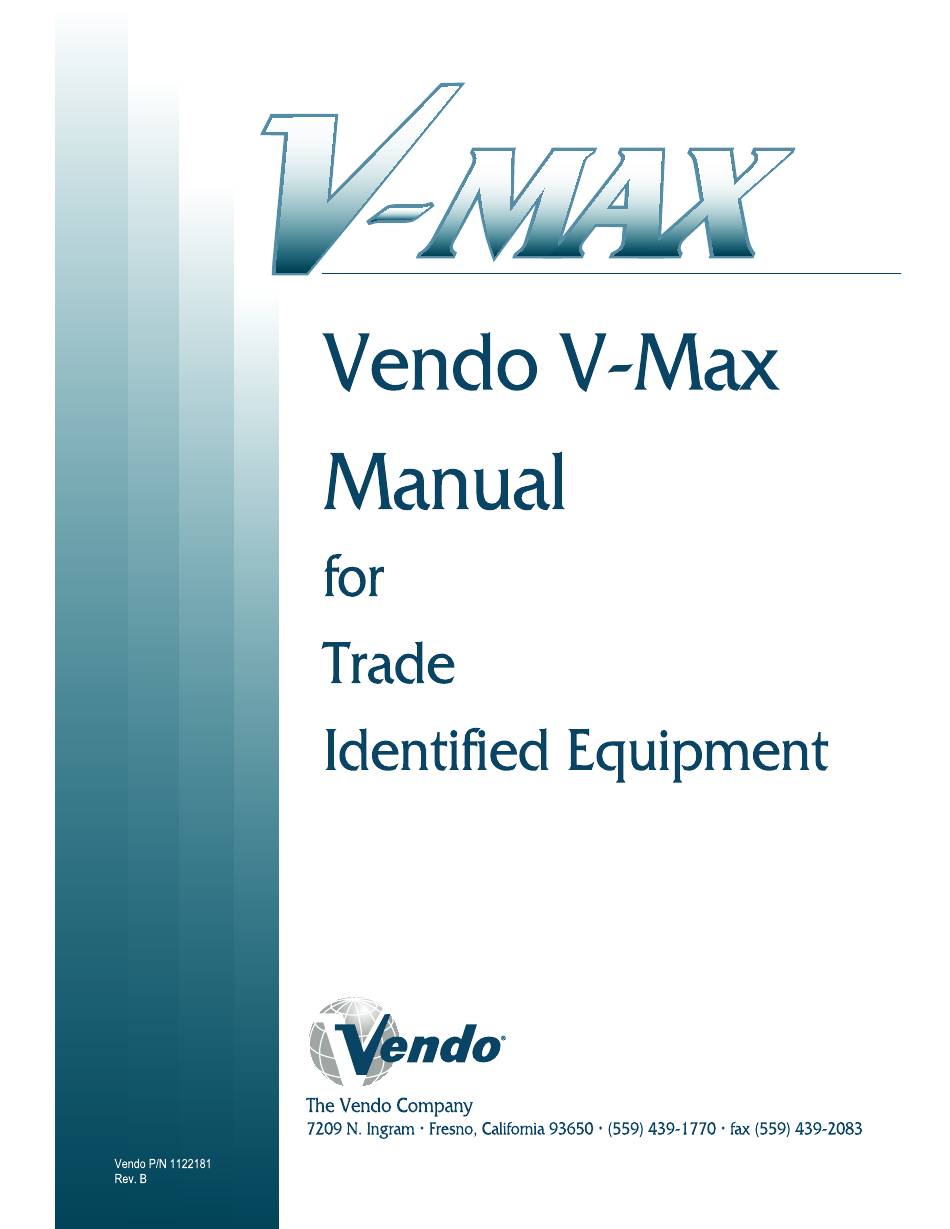

  • Page 2 PARTS AND SERVICE MANUAL P/N: 1122181 REV B: 5/2002 TCT-1...
  • Page 3 CONSUMER SAFETY WARNING............. Page S-13 GAS ISLAND VENDOR INSTALLATION PROTOCOL......Page S-14 MOUNTING TO PEDESTAL..............Page S-15 PARTS, SALES, AND SERVICE CENTERS OF VENDO/SANDEN CO. .. Pages S-16 - S-17 GENERAL INFORMATION................ Pages G1 - G12 GENERAL INFORMATION................ Page G-2 INITIAL SET-UP ..................
  • Page 4 REFRIGERATION OPERATION ............... Pages M-4 – M-6 REFRIGERATION PARTS DESCRIPTION ..........Pages M-7 - M-9 TROUBLESHOOTING ................Pages T-1 - T-8 VENDO WARRANTY ................Pages T-2 - T-3 PARTS RETURN PROCEDURE ............... Page T-4 TROUBLESHOOTING GUIDE ..............Pages T-5 - T-8...

  • Page 5: Safety Section

    SAFETY SECTION 3/2002...

  • Page 6: Safety Rules

    This will minimize the potential hazards that are inherent in electrical and mechanical devices. Vendo has no control over the machine once it leaves the premises. It is the owner or lessor’s responsibility to maintain the vendor in a safe condition. See Section I of this manual for proper installation procedures and refer to the appropriate service manual for recommended maintenance procedures.

  • Page 7: Section I: Vendor Installation

    SECTION I: VENDOR INSTALLATION Vendors are large, bulky machines of significant size and weight. Improper handling can result in injury. When moving a vendor, carefully plan the route to be taken and the people and equipment required to accomplish the task safely. Remove all tape, shipping sealant, and Styrofoam from the vendor.
  • Page 8 TYPE 1 STEP 3 LARGE SLOT-LINE 2 STEP 1 NEUTRAL CONTACT (WHITE) 0 - 5 VOLTS STEP 2 SMALL SLOT-LINE 1 LIVE CONTACT (BLACK) 110 VOLTS ROUND SOCKET EARTH CONTACT (GREEN) 0 VOLTS EARTH CONTACT SLOT TYPE 2 STEP 2 STEP 3 (GREEN AND YELLOW) 0 VOLTS...
  • Page 9 SECTION I: VENDOR INSTALLATION (CONTINUED) For Type 1 and Type 2 outlets, test for Grounding and Polarization as follows: With a test device (volt meter or test light), connect one probe to the receptacle’s neutral contact and the other to the live contact. The test device should show a reaction.

  • Page 10: Mounting Screw

    SECTION I: VENDOR INSTALLATION (CONTINUED) Door Support (Figure 2) The door support is to ensure that the outer door closes squarely to the cabinet. Raising the door can also ensure proper alignment of the door latch. FIGURE 2 Door Latch Alignment (Figure 3) After any door adjustment, the floating quicker lock assembly should align itself automatically.

  • Page 11: Section Ii: Electrical Hazards

    SECTION II: ELECTRICAL HAZARDS GENERAL Vendo vending machines are provided with the appropriate power supply setting for your area. Some models are equipped with step-down transformers, as required. This enables the vending machine to operate on different main voltages. Refer to Section I. E. for information to determine the main power requirements.

  • Page 12: Section Iii: Mechanical Hazards

    SECTION II: ELECTRICAL HAZARDS (CONTINUED) Servicing with “Power Off” For maximum safety, unplug the service cord from the wall outlet before opening the vendor door. This will remove power from the equipment and avoid electrical and mechanical hazards. Service personnel should remain aware of possible hazards from hot components even though electrical power is off.
  • Page 13 WARNING: THIS VENDING MACHINE INCLUDES MECHANICAL EQUIPMENT WHICH CAN BE HAZARDOUS IF IMPROPERLY HANDLED OR SERVICED. USE CAUTION AND CONSULT THE VENDO SAFETY MANUAL AND THE VENDO SERVICE MANUAL FOR ADDITIONAL SAFETY INFORMATION. WARNING WARNING RISK OF SHOCK RISK OF ENTRAPMENT...

  • Page 14: Section Iv: Refrigeration Hazards

    SECTION IV: REFRIGERATION HAZARDS GENERAL Refrigeration systems involve both electrical power and mechanical action. These systems may present any of the potential dangers shown in the sections on electrical and mechanical hazards contained in this manual. See Sections II and III for further information.

  • Page 15: Section Vi: Substitutions And Modifications

    If questions arise, contact the Technical Services Department of the Vendo office in your area. When servicing the vending machine, always reassemble all components to their original location and position. Maintain the correct routing for tubing, electrical wiring, etc.
  • Page 16 SECTION VI: SUBSTITUTIONS AND MODIFICATIONS (CONTINUED) WARNING: THIS APPLIANCE MUST BE EARTHED. IMPORTANT! The wires in the main leads are colored in accordance with the following code: 110v/120v 220v/240v Green Green and Yellow ......Earth White Blue........... Neutral Black Brown ..........Live 3/2002 S-12...

  • Page 17: Section Vii: Consumer

    (One such decal is supplied with the vending machine.) Vendo will supply sufficient decals to be placed on all machines, on request. If you have any questions, contact the Technical Services Department of the Vendo office in your area.
  • Page 18 GAS ISLAND VENDOR INSTALLATION PROTOCOL Vendo Gas Island Vending Machines have been evaluated by UL (Underwriters Laboratories Inc. ) for placement at service stations which the NFPA (National Fire ® Protection Association) considers a hazardous location. These vendors must be correctly installed and inspected per the following protocol before they are put into service.

  • Page 19: Important - Installation Requirements

    MOUNTING TO PEDESTAL VENDOR PEDESTAL FLAT WASHER LOCK WASHER HEX BOLT 1/2"-13x1 1/2" FRONT AND REAR COVER IMPORTANT - INSTALLATION REQUIREMENTS Electrical equipment, such as vending machines, installed within a 20-ft. radius of a gasoline dispensing unit must meet safety specifications of the National Electrical Code, NFPA 70 - Article 514 - Gasoline Dispensing and Service Stations, NFPA 30A - Automobile and Marine Service Station Code, and the Local Authority Having Jurisdiction.
  • Page 20 PARTS, SALES, & SERVICE CENTERS OF VENDO/SANDEN COMPANY AREA ADDRESS PHONE NUMBERS United States, The Vendo Company Tel: (559) 439-1770 Canada 7209 N. Ingram Fax: (559) 439-2083 Fresno, CA 93650 U.S.A. Japan Sanden International Corporation Tel: (81) 3-3835-1321 31-7 Taito 1-Chome...
  • Page 21 PARTS, SALES, & SERVICE CENTERS OF VENDO/SANDEN COMPANY FOR LATIN AMERICA AREA ADDRESS PHONE NUMBERS Mexico Vendo de Mexico Tel: (525) 515-9745 Camino Real de Toluca No. 154 Fax: (525) 277-0111 Col. Bellavista 01140 Mexico D.F. Mexico Central America The Vendo Company Tel: (559) 439-1770 7209 N.
  • Page 22 NOTES 3/2002 S-18...

  • Page 23: General Information

    GENERAL INFORMATION 3/2002...
  • Page 24 GENERAL INFORMATION This manual contains programming, operation, and complete parts and electrical wiring diagrams. The V-Max controller is a microprocessor which will permit pricing per selection from 0.00 to 99.99. This machine also has space-to-sales programming as well as energy savings modes.

  • Page 25: Initial Setup

    If the power requirements are not properly met, contact a licensed electrician and have the necessary correction made. Should you require additional information, contact the Technical Services Department of the Vendo office in your area. 3/2002...
  • Page 26 FIGURE 4 NOTE: The Model number of the vending machine is located on the top, left hand corner of the serial plate. Do Not use the “BASIC UNIT” number. BASIC UNIT number is the cabinet size, which is used on a number of different machines.

  • Page 27: Label Installation

    STYLE A COIN INSERT COIN INSERT STYLE B STYLE C COIN INSTRUCTION LABEL PRICE DISPLAY PRICE DISPLAY COIN INSTRUCTION LABEL FIGURE 5 FIGURE 6 LABEL INSTALLATION COIN INSTRUCTION LABEL & PRICE LABEL APPLICATION: Apply labels to a clean and dry surface. Peel backing from label and apply with firm, even pressure.

  • Page 28: Drain Tube

    COMPRESSOR DRAIN TUBE CONDENSATION PAN CONDENSER FAN BRACKET FIGURE 8 FIGURE 9 ALIGNMENT CHECKS DOOR ROLLER CHECK: The door support is to insure that the outer door closes squarely to the cabinet. Raising the door can also insure proper alignment of the door latch (see Figure 8). REFRIGERATION AREA CHECK: Check the position of the condensation pan (see Figure 9).

  • Page 29: Loading Instructions

    For specific information, refer to the product set-up label on the machine inner door or contact the Technical Services Department of the Vendo office in your area. Load product evenly. Bottles are loaded with crown end placed toward the back of the column.
  • Page 30 VEND MECHANISM PARTS DESCRIPTION The parts listed below are part of the vend motor mechanism (refer to Figure 10 on page G-9). One mechanism is required per column. The parts are interchangeable. Setting will differ between single, double, triple, and quadruple depth. VEND MOTOR ASSEMBLY: P/N 1115821 The motor is attached to the mech plate by three screws.
  • Page 31 GATE LINK: P/N 1120140 The rotation of the vend bucket moves the gate link. This opens the gate, allowing one layer of product to drop into the bucket. GAGE BAR: P/N 1111651 The gage bar holds the product(s) inside the bucket. It also regulates which product is vended first when double, triple or quadruple depth settings are used.
  • Page 32 VEND CYCLE Several operations take place during the vend cycle: When a selection is made, the cam and bucket rotate, product is dispensed and the bucket is then reloaded. The sequence of these operations change slightly when the column’ s depth setting is changed. With the single depth setting, one purchase is made and the bucket is reloaded.
  • Page 33 RELOADING SEQUENCE (See Figure 12) RS1. The gate link rests at a locked position in a cut out on the mech plate. This locked position prevents the gate from opening out of sequence. RS2. The gate link is guided by a slot in the mech plate and is actuated by a ridge on the bucket.
  • Page 34 NOTES 3/2002 G-12...

  • Page 35: Programming Section

    9.1 PROGRAMMING SECTION 3/2002 PC-1...
  • Page 36 All programming of the V-Max is done in the service mode as indicated in the following steps below. The main service modes are indicated in white text and the sub-modes are indicated in black text. Example: tIne Time/Date Setting Mode YeAr Year Setting Month Setting...
  • Page 37 THREE-BUTTON PROGRAMMING All programming of the V-Max options is done in the service mode. To enter the service mode open the vendor door, find the service mode button located on the control board, then press and release the service mode button which is located on the controller board. (See Figure 1.) To toggle though all the service modes you will need to use the service mode button or secondary service switch (Live Display models only).
  • Page 38 V-MAX CONTROLLER SERVICE MODE TEMPERATURE BUTTON SENSOR PORT DISPLAY VENDO SELECTION SWITCH RESERVED RELAY CONTROLS VEND USEABLE MOTOR AND CONTROL DOOR SWITCH BOARD SERIAL NUMBER LOCATED HERE POWER USEABLE MDB PORT Figure 1 3/2002 PC-4...
  • Page 39 SET-UP AND CODE DESCRIPTION Eror Error Display Mode If selection button two is pressed at the “Eror” prompt, the controller will enter the Error Display Mode. If no errors have occurred, the display will show ”nonE”. If an error has been detected since the last error reset, the display will show the first error summary code that has occurred.

  • Page 40: Error Codes

    ERROR CODES Open door error code status (as displayed) Detailed error codes are cleared by pressing selection button 2 for 2 seconds when displayed or Summary level error codes (as displayed) automatically by the following: Detail level error codes (as displayed) DESCRIPTION nonE No errors exist...
  • Page 41 SET-UP AND CODE DESCRIPTION (CONTINUED) tESt Test Mode If selection button one is pressed at the “tESt” prompt, the controller will enter the Test Mode. Upon entry into the test mode the display will show the first summary test, “CO 1”. Pressing selection button one or two will toggle through the column selections.
  • Page 42 SET-UP AND CODE DESCRIPTION (CONTINUED) OPt1 Option Group 1 Mode If selection button one is pressed at the “OPt1” prompt, the controller will enter the Option Group 1 Mode. The purpose of this mode is to allow the controller to select the group 1 configuration options desired.
  • Page 43 SET-UP AND CODE DESCRIPTION (CONTINUED) SSSS Space-to-Sales Setting Mode If any selection button is pressed at the “SSSS” prompt, the controller will enter the Space- to-Sales option. Upon entry into this setting the display will show the current option setting. Pressing any selection button for 3 seconds will change the space-to-sales configuration as listed below.
  • Page 44 SET-UP AND CODE DESCRIPTION (CONTINUED) Cddr Closed Door Data Retrieval Mode If selection buttons 1-4 are pressed at the “Cddr” prompt, the controller will enter the Closed Door Data Retrieval Mode by displaying “XXXX” where “XXXX” is the password. pressing button number one the controller will display the current password while the first digit is flashing.
  • Page 45 SET-UP AND CODE DESCRIPTION (CONTINUED) tIne Time/Date Setting Mode If selection button two is pressed at the “tinE” (time) prompt, the controller will enter the Time/Date Setting Mode and display “CLOC”. Only the first three selection buttons are used to step through the time/date options. Using selection button one will allow the controller to cycle through all available time selection options.
  • Page 46 SET-UP AND CODE DESCRIPTION (CONTINUED) Hour Hour Setting Option If selection button two is pressed at the “Hour” prompt, the display will show the current hour. By pressing selection button one the controller will allow you to increase or decrease the hour setting.
  • Page 47 SET-UP AND CODE DESCRIPTION (CONTINUED) CtL1 Control Blocking Option If selection button one is pressed at the “CtL1” prompt, the controller will enter the Control Blocking Option. Upon entry into this program the display will show the first summary level codes e.g.
  • Page 48 SET-UP AND CODE DESCRIPTION (CONTINUED) Hour Start Time Hour Setting If selection button one is pressed at “dAY” prompt, the controller will enter the “hour” prompt. Pressing selection button two will enter into the hour setting. Pressing selection button one will increase or decrease the start time.
  • Page 49 SET-UP AND CODE DESCRIPTION (CONTINUED) LItx Light Setting During Low Energy This feature is an additional sub-mode of nrG1/nrG2. This will let you choose if the lights are included or excluded from the low energy operation. If selection button two is pressed at the “LItX”...
  • Page 50 SET-UP AND CODE DESCRIPTION (CONTINUED) dISC Discount Setting Mode This feature is used to choose a group of selections that will be discounted, the amount of discount, and the time when the discount will occur. If selection button two is pressed at the “dISC”...
  • Page 51 SET-UP AND CODE DESCRIPTION (CONTINUED) LESS Set Discount Amount If selection button two is pressed at the “LESS” prompt, the controller will enter the Discount Amount Option. Upon entry into this program the display will show the current four-digit discount amount. If selection button one is pressed it will increase or decrease the lowest discount amount.
  • Page 52 SET-UP AND CODE DESCRIPTION (CONTINUED) bLCn Over-Ride Selection Blocking If selection button two is pressed at the “bLCn” prompt, the controller will enter the Selection Blocking Over-Ride Enable Option. Upon entry into this program the display will show the current setting “bLCn”. Pressing selection button one will toggle between “Y” for enable and “N”...

  • Page 53: Wiring Diagram

    9.1 WIRING DIAGRAM DISPLA Y VI O WH T SELECTION SWITCHE S 3 BLK SEL. # 1 MODE VI O SWITCH SOCKE T SEL. # 2 DOO R 12 2 SEL. # 3 VI O VEC 9.1 OR 9. 2 GR Y SHLD CONTROL BOARD...
  • Page 54 9.1 WIRING DIAGRAM (CONTINUED) SEE NEXT PAGE FOR VEND MOTORS AND SOLDOUT SWITCHES HARNESS DIAGRAM EVAP. FAN MOTORS CABINET DOOR TEMP. SWITCH SENSOR DOOR PLAIN RIBBED OPTIONAL HEATER SHLD RIBBED CAPACITOR START YEL 1 (110 VOLT OPTIONAL RELAY REFRIG UNITS COND.
  • Page 55 9.1 WIRING DIAGRAM (CONTINUED) VEND MOTORS & SOLDOUT SWITCHES MOTOR # 10 MOTOR # 9 MOTOR # 8 MOTOR # 7 MOTOR # 6 MOTOR # 5 MOTOR # 4 MOTOR # 3 MOTOR # 2 MOTOR # 1 CABINET DOOR DOOR CABINET...
  • Page 56 9.1 WIRING DIAGRAM (MINI V-MAX) VEND MOTORS & SOLDOUT SWITCHES MOTOR # 8 MOTOR # 7 MOTOR # 6 MOTOR # 5 MOTOR # 4 MOTOR # 3 MOTOR # 2 MOTOR # 1 CABINET DOOR SOLD OUT SWITCH DOOR CABINET O T T PINS 1 &...
  • Page 57 NOTES 1. If the outer door is left open for over an hour, the lights and compressor will become active. In order to over-ride this option, press the door switch one time. 3/2002 PC-23...
  • Page 58 CABINET PARTS SECTION 3/2002...
  • Page 59 The same number is in the parts lists and ties the two together. PART NUMBER is the part number that has been assigned to a specific part by Vendo, for easier identification. QUANTITY REQUIRED relates to the amount required of a part, or will be indicated by “A/R”...
  • Page 60 Hardware List PART NO. DESCRIPTION PICTORIAL ........V800762 #8 X 5/16" TAPPING SCREW ........V802139 #8 X 5/8" TAPPING SCREW ..V800586 #8 X 3/8" TAPPING SCREW W / LOCK WASHER ....#8 X 1/2" TAPPING SCREW (FOR PLASTIC) V801493 ........
  • Page 61 ..........V800267 1/4" X 3/8" .......... V800956 #8 NUT W / LOCK WASHER ........V800952 #10 NUT W / LOCK WASHER ............. V802111 #10 HEX NUT #10 LOCK NUT W / NYLON INSERT ......V802113 ........V800959 1/4" NUT W / LOCK WASHER ......
  • Page 62 THIS PAGE INTENTIONALLY LEFT BLANK 3/2002...
  • Page 63 3/2002...
  • Page 64 V-MAX INNER DOOR ASSEMBLY ITEM MODEL NUMBER DESCRIPTION PART NO. PART NO. PART NO. PART NO. INNER DOOR ASSEMBLY (FOAMED) 134302-54 134302-53 134302-44 134302-47 PROD. RETAINER UPPER 1120633-4 1120093 1120633-4 1120633-5 HINGE - FEMALE 1121286 1121286 1121286 1121286 PROD. DEFLECTOR 1120129 1120129 1120129...
  • Page 65 3/2002...
  • Page 66 V-MAX CABINET ASSEMBLY ITEM DESCRIPTION PART NO. CABINET ASSEMBLY - FOAMED TUNNEL FILLER BRACKET 1078791 HINGE PIN 389071 RAMP 1120387 AIR DAM - RIGHT 1122548 LEVELING LEG 1059902 CONDENSATE PAN 1120724 DRAIN TUBE 1088449 NUT - DRAIN TUBE 387925 DRAIN TUBE GASKET 387837 DRAIN TUBE FUNNEL 1068678...
  • Page 67 3/2002 C-10...
  • Page 68 V-MAX STACK ASSEMBLY ITEM MODEL NUMBER DESCRIPTION PART NO. PART NO PART NO. PART NO. STACK CHASSIS ASSEMBLY 1112694-01 1112694-03 1112694-01 1112694-02 MECH COVER 1076634 1117724 1076634 1076634 BACK SPACER ASSEMBLY 2009473-01 2009473-01 2009473-01 1113139-02 HOOK RACK RETAINER 1086813 1086813 1086813 1086813 LOADING RACK / PRODUCT...
  • Page 69 3/2002 C-12...
  • Page 70 V-MAX STACK ASSEMBLY ITEM MODEL NUMBER 720/840 DESCRIPTION PART NO. PART NO. PART NO. VEND MOTOR ASSEMBLY 1115821 1115821 1115821 RETAINER - CAM 1113244 1113244 1113244 TIMING CAM 1113236 1113236 1113236 SPRING 390326 390326 390326 SWITCH - SOLD-OUT 368299 368299 368299 SWITCH MOUNT - SOLD-OUT 1120037...
  • Page 71 MODEL 576 3/2002 C-14...
  • Page 72 V-MAX REFRIGERATION ASSEMBLY ITEM DESCRIPTION 110V PART REFRIGERATION ASSEMBLY D90 TE S 1/3 R134a CAP START 1120341 RIGHT EXTENSION - EVAPORATOR 1122351 LEFT EXTENSION - EVAPORATOR 1122350 SERVICE PLUG ASSEMBLY US 1120617 TOP COVER - EVAPORATOR 1121640 FAN BLADE 1113562 EVAPORATOR FAN MOTOR 42321-17 ORIFICE PLATE - EVAPORATOR FAN...
  • Page 73 3/2002 C-16...
  • Page 74 V-MAX AIR DAM ASSEMBLY ITEM DESCRIPTION PART NO. PART NO. GIV/720/840 POWER SWITCH 1084546 1084546 0.8 AMP FUSE 1053864 1053864 FUSE HOLDER 387966 387966 RAIN CURTAIN 1121660 1121660 RELAY - REFRIGERATION 1079724 1079724 RELAY - LIGHT 1089333 1089333 TRANSFORMER 1111201 1111201 PANEL - AIR DAM LEFT 1117783...
  • Page 75 NOTES 3/2002 C-18...
  • Page 76 DOOR SECTION TRADE TD-1 1/2003...
  • Page 77 TD-2 1/2003...
  • Page 78 V-MAX TRADE OUTER DOOR (CURVED) ITEM MODEL NUMBER DESCRIPTION PART NO. PART NO. OUTER DOOR ASSEMBLY 1112619-06 1112627-05 SIGN CAP - TOP 1014986 1014986 SIGN FACE BUSHING HINGE 388094 388094 FLAT WASHER 3/8” - BOTTOM (AD) V801491 V801491 SIGN TRIM - LEFT AND RIGHT 388125-2B 388125B SIGN CAP - BOTTOM...
  • Page 79 TD-4 1/2003...
  • Page 80 V-MAX TRADE OUTER DOOR CURVED (CONTINUED) ITEM MODEL NUMBER 720/840 DESCRIPTION QTY REQ PART NO. DOOR WELD - 72” 1121227 DOOR WELD - 79” 1121229 HINGE - INNER DOOR, MALE 1121287 MOUNTING BRACKET - CONTROLLER 1077716 STAND OFF 1121740 PCBA VEC 9.1 CONTROLLER 1121421-27 COVER PANEL 1077724...
  • Page 81 TD-6 1/2003...
  • Page 82 V-MAX TRADE OUTER DOOR (FLAT) ITEM MODEL NUMBER DESCRIPTION QTY REQ PART NO. OUTER DOOR ASSEMBLY SIGN TRIM - TOP/BOTTOM 388284-21 SIGN FACE BUSHING HINGE 388094 FLAT WASHER - BOTTOM V801491 SIGN TRIM - SIDE 388284-1B EYELET TRIM 387125 COIN RETURN CUP ASSEMBLY 1079546 DRAIN TUBE 1110619...
  • Page 83 TD-8 1/2003...
  • Page 84 V-MAX TRADE OUTER DOOR FLAT (CONTINUED) ITEM MODEL NUMBER DESCRIPTION QTY REQ PART NO. DOOR WELD - 72” 1121227 HINGE - INNER DOOR, MALE 1121287 MOUNTING BRACKET - CONTROLLER 1077716 STAND OFF 1121740 PCBA VEC 9.1 CONTROLLER 1121421-27 COVER PANEL 1077724 COIN DOOR ASSEMBLY 1081112...
  • Page 85 TD-10 1/2003...
  • Page 86 V-MAX TRADE OUTER DOOR (4/5 FLAT) ITEM MODEL NUMBER DESCRIPTION PART NO. OUTER DOOR ASSEMBLY SIGN FACE TRIM - LEFT 388284-19 LAMP SHADE 1114236 LIGHT PANEL - UPPER 1114244 DISPLAY BRACKET 1121702 DOOR WELD 1121228 RAIN GUARD 2000848 1089619 PLATE MOUNT UPPER - DBV (OPTIONAL) PLATE PLUG - DBV 1089597 DBV PLATE...
  • Page 87 TD-12 1/2003...
  • Page 88 V-MAX TRADE OUTER DOOR (4/5 FLAT) (CONTINUED) ITEM MODEL NUMBER DESCRIPTION PART NO. DOOR WELD ASSEMBLY - 72” 1121228 HINGE - INNER DOOR, MALE 1121287 MOUNTING BRACKET - CONTROLLER 1120286 STAND OFF 1121740 PCBA VEC 9.1 CONTROLLER 1121421-27 COVER PANEL 1077724 COIN DOOR ASSEMBLY 1081112...
  • Page 89 AB D TD-14 1/2003...
  • Page 90 V-MAX TRADE LOCK ASSEMBLY ITEM DESCRIPTION PART NO. LOCK ASSEMBLY - QUICKER LOCK 1002635 T-HANDLE 1002392 PIN - STUD 387601 LOCK STUD - QUICKER LOCK 1049724 SPRING 389691 E-RING RETAINER 388589 HEX WASHER 387600 SPRING - HEAVY 389691 FLAT WASHER 387718 FLANGE 1002384...
  • Page 91 TD-16 1/2003...
  • Page 92 V-MAX TRADE SELECTION PANEL ITEM DESCRIPTION PART NO. SELECTION PANEL ASSY – TRADE CURVE/FLAT 1011766-42 SELECTION PANEL ASSY – TRADE 4/5 LIVE DISPLAY 1011766-34 SELECTION WINDOW ASSEMBLY 133431 SELECTION WINDOW 388223 SELECTION WINDOW - BACK 388116 SELECTION BUTTON ASSEMBLY 1017128-1 BUTTON SELECTION 1116775 SPRING SELECTION...
  • Page 93 NOTES TD-18 1/2003...
  • Page 94 DOOR SECTION MINI V-MAX TRADE 4/2002 TDS-1...
  • Page 95 4/2002 TDS-2...
  • Page 96 MINI V-MAX TRADE MAIN DOOR ITEM MODEL NUMBER DESCRIPTION REQ. PART NO. OUTER DOOR ASSEMBLY 1120557-03 SIGN TRIM - TOP/BOTTOM 388284-20 SIGN FACE BUSHING HINGE 388094 FLAT WASHER - BOTTOM V801491 SIGN TRIM - SIDE 388284-1B EYELET TRIM 387125 COIN RETURN CUP ASSEMBLY 1079546 DRAIN TUBE 1110619...
  • Page 97 4/2002 TDS-4...
  • Page 98 MINI V-MAX TRADE MAIN DOOR ITEM MODEL NUMBER DESCRIPTION PART NO. DOOR WELD - 72” 1121225 HINGE - INNER DOOR 1121287 MOUNTING BRACKET - CONTROLLER 1077716 STAND OFF 1121740 PCBA VEC 9.1 CONTROLLER 1121421-27 COVER PANEL 1077724 COIN DOOR ASSEMBLY 1081112 LATCH - COINAGE DOOR 1085546...
  • Page 99 4/2002 TDS-6...
  • Page 100 MINI V-MAX TRADE SELECTION PANEL ITEM DESCRIPTION REQ. PART NO. SELECTION PANEL ASSEMBLY 1011766-43 SELECTION WINDOW ASSEMBLY 133431 SELECTION WINDOW 388223 SELECTION WINDOW - BACK 388116 SELECTION BUTTON ASSEMBLY 1036203 SELECTION BUTTON 1116775 SELECTION BUTTON SPRING 388858 SELECTION BUTTON HOUSING 1006932 SELECTION SWITCH 368299...
  • Page 101 AB D 4/2002 TDS-8...
  • Page 102 MINI V-MAX TRADE LOCK ASSEMBLY ITEM DESCRIPTION REQ. PART NO. LOCK ASSEMBLY - QUICKER LOCK 1002635 T-HANDLE 1002392 PIN - STUD 387601 LOCK STUD - QUICKER LOCK 1049724 SPRING 389691 E-RING RETAINER 388589 HEX WASHER 387600 SPRING - HEAVY 389691 FLAT WASHER 387718 FLANGE...
  • Page 103 NOTES 4/2002 TDS-10...
  • Page 104 PARTS SECTION GAS ISLAND VENDOR 4/2002 GIV-1...
  • Page 105 4/2002 GIV-2...
  • Page 106 V-MAX OUTER DOOR (CURVED) ITEM MODEL NUMBER DESCRIPTION QTY REQ PART NO. 1112619-10 OUTER DOOR ASSEMBLY SIGN CAP - TOP 1014986 SIGN FACE BUSHING HINGE TOP AND BOTTOM 388094 FLAT WASHER - BOTTOM V801491 SIGN TRIM – LEFT/RIGHT 388125-2B SIGN CAP - BOTTOM 1068988 EYELET TRIM 388271...
  • Page 107 4/2002 GIV-4...
  • Page 108 V-MAX OUTER DOOR CURVED (CONTINUED) ITEM MODEL NUMBER DESCRIPTION QTY REQ PART NO. DOOR WELD - 72” 1120280 HINGE - INNER DOOR, MALE 1121287 MOUNTING BRACKET - CONTROLLER 1077716 STAND OFF 1121740 PCBA VEC 9.1 CONTROLLER 1121421-27 COVER PANEL 1077724 COIN DOOR ASSEMBLY 1081112 LATCH - COINAGE DOOR...
  • Page 109 4/2002 GIV-6...
  • Page 110 V-MAX LOCK ASSEMBLY ITEM DESCRIPTION PART NO. LOCK ASSEMBLY - QUICKER LOCK 1002635 T-HANDLE 1002392 PIN - STUD 387601 LOCK STUD - QUICKER LOCK 1049724 SPRING 389691 E-RING RETAINER 388589 HEX WASHER 387600 SPRING - HEAVY 389691 FLANGE 1002384 FLAT WASHER 387718 FLAT WASHER ½”...
  • Page 111 GIV-8...
  • Page 112 V-MAX COIN INSERT ITEM DESCRIPTION PART NO. DECAL, COIN INSERT, GIV 1120346 PLATE – COIN INSERT 1120367-01 SECURITY PLATE - COIN INSERT 1120349 PIVOT BRACKET - COIN RETURN 1120345 BUSHING 385603-4 CRANK - COIN RETURN LEVER 1002244 LEVER - COIN RETURN 1052619 SPRING - COIN RETURN CRANK 1060023...
  • Page 113 GIV-10...
  • Page 114 V-MAX SELECTION PANEL ITEM DESCRIPTION PART NO. SELECTION PANEL ASSEMBLY 1011766-47 SELECTION WINDOW ASSEMBLY 133431 SELECTION WINDOW 388223 SELECTION WINDOW - BACK 388116 SELECTION BUTTON ASSEMBLY 1036203 SELECTION BUTTON 1116775 SPRING - SELECTION 388858 BUTTON HOUSING 1006932 SELECTION SWITCH 368299 SOLD OUT PLUG 1006975-1 SELECTION PANEL - 10 SELECT...
  • Page 115 AG AH GIV-12...
  • Page 116 V-MAX MOUNTING PEDESTAL ASSEMBLY ITEM DESCRIPTION PART NO. PEDESTAL 1120439 SAFETY SCREEN 1009729-6 LABEL - ON/OFF 1088287 GROMMET 1007319 PLASTIC PLUG, 1” (NOT ALL PLUGS SHOWN) 1121841 PLASTIC PLUG, .75” 1121841-1 PLASTIC PLUG, .56” (NOT ALL PLUGS SHOWN 1121841-2 PANEL, GIV BASE 1121671 GIV-13...
  • Page 117 GIV-14...
  • Page 118 V-MAX SWITCH MOUNT ASSEMBLY ITEM DESCRIPTION 110V PART NO. SWITCH BOX ASSEMBLY 1120274 SWITCH BRACKET 1120276 SERVICE CORD – W/O PLUG 1079708-4 SERVICE CORD W/PLUG (NOT PICTURED) 1070182 GIV-15...
  • Page 119 NOTES GIV-16...

  • Page 120: Maintenance Section

    MAINTENANCE SECTION 3/2002...

  • Page 121: Maintenance

    MAINTENANCE The following section is a basic guide for general maintenance and servicing of the vendor. This section is divided into three parts: (I) Preventative Maintenance, (II) Lubrication Guide, and (III) Care and Cleaning. PREVENTATIVE MAINTENANCE SUGGESTIONS: Whenever a vendor is visited on its site, the following service should be performed. Preventative maintenance will help prevent future problems with the vendor.
  • Page 122 III. CARE AND CLEANING DO NOT USE WATER JET FOR CLEANING. AVOID USING WATER OR ANY OTHER LIQUIDS NEAR ELECTRONIC COMPONENTS GENERAL PROCEDURE (painted metal areas) Wash vendor with soap and water. The exterior may be waxed with any good automobile wax.

  • Page 123: Refrigeration Operation

    REFRIGERATION OPERATION The refrigeration operation section is divided into three areas: Basic Refrigeration Principle, Detailed Vending Machine Refrigeration Cycle, and Parts Description. BASIC REFRIGERATION PRINCIPLE What a refrigeration system really accomplishes is the transfer of heat. A refrigeration system removes the excess heat from a refrigerated area and then transfers it to a condenser where it is dissipated.
  • Page 124 The following is a detailed refrigeration cycle as it applies to the refrigeration system installed in Vendo equipment. (Refer to the flow chart in Figure 1.) As the air temperature in the cabinet rises, the electronic temperature sensor reports the air temperature to the electronic controller.
  • Page 125 COMPRESSO R SUCTION DISCHARGE HIGH PRESSURE LOW PRESSURE SIDE A CCUMULATOR VAPOR VAPOR EVAPORATOR CONDENSE R EVAPORATOR CONDENSE R LIQUID LIQUID CAPILLARY RESTRICTION TUBE DRIER FIGURE 1 3/2002...
  • Page 126 REFRIGERATION PARTS DESCRIPTION The compressor, condenser, drier, capillary tube, evaporator, and accumulator are part of a sealed system (refer to Figure 2). These items are not available separately. COMPRESSOR The compressor takes in low pressure vapor and compresses it, increasing both the pressure and the temperature.
  • Page 127 TEMPERATURE SENSOR EVAPORATOR ACCUMULATOR EVAPORATOR FAN ASSEMBLY CONDENSER REFRIGERATION CONTROL COMPRESSOR RELAY CAPILLARY TUBE CONDENSER FAN ASSEMBLY STARTING RELAY AND CAPACITOR FIGURE 2 3/2002...
  • Page 128 The parts listed below are not part of the sealed refrigeration system and are available separately. START CAPACITOR - P/N: 1112805 The start capacitor is used to increase power during the start. This additional power will help get the compressor running in case there is any back pressure. STARTING RELAY –...
  • Page 129 NOTES M-10 3/2002...

  • Page 130: Troubleshooting

    TROUBLESHOOTING 4/2002...

  • Page 131: New Equipment

    This is a Limited Warranty. The Vendo Company warrants, to the original purchaser, each part of each new vending machine for a period of fifteen (15) months from the date of shipment, to be free from defects in material and workmanship. This Warranty DOES NOT include light bulbs, fluorescent tubes, fuses, finish, or operating supplies.
  • Page 132 This warranty benefits each current owner of a V-Max vending machine, whether that owner is the original purchaser or a transferee. The Vendo Company warrants each part of each new vending machine for a period of fifteen (15) months from the date of shipment, to be free from defects in material and workmanship.
  • Page 133 All refrigeration units returned must be accompanied by a material return tag (P/N 1122826). Tag must clearly state the reason for the return and the Return Goods Authorization Number received from your Vendo Customer Service Rep at 1- 800-344-7216. (Return tags are available from our parts department upon request).

  • Page 134: Troubleshooting Guide

    This guide is a general list of probable problems, causes, and solutions. For problems not listed or additional questions, contact the Technical Services Department at Vendo, 7209 N. Ingram Ave., Fresno, CA 93650 or call 1-800-344-7216, extension 3368. Please have the manufacturer’s date code and model number of the vendor when you call.
  • Page 135 POSSIBLE PROBLEM POSSIBLE CAUSE SERVICE SUGGESTION Money accepted, no Bad selection switch(es) Check selection switches, product vended replace as necessary. Bad selection switch harness Check harness connection. connection Sold-out switch (of column Check switch, replace as selected) inoperative necessary. Vend motor runs until two or Improper cam lobe Check cam for proper three products are vended...
  • Page 136 Loss of refrigerant Replace refrigeration unit. cabinet temperature warm (Note: Any work of this nature done without express permission from The Vendo Company can void refrigeration unit warranty.) Condenser fan not working Check circuit to run motor. Replace motor. Check for obstruction of fan blade.
  • Page 137 POSSIBLE PROBLEM POSSIBLE CAUSE SERVICE SUGGESTION Evaporator frosted over Water at base of evaporator Check for proper drainage unit (such as plugged drain, kinks in drain tube, etc.), check door seal. Product freezing up too cold Temperature setting too low Adjust temperature setting in electronic controller.
  • Page 138 NOTES...
