RTC DFC Series Installation, Operation And Maintenance Manual

24 Volt AC input
Built in 15 second low fire start timer
0-24 Volt DC modulating output
Remote temperature selection
Calibration trim pot
Fits ¼" wiring terminals
Mounting footprint matches other industry standard controls
Rated for -40°F (-40°C)

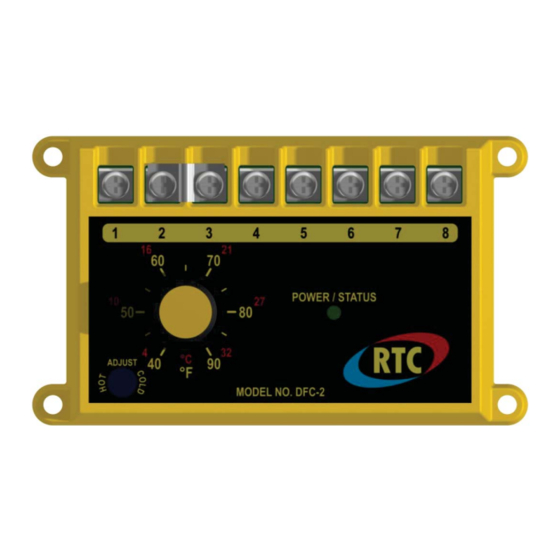

DFC-2 TEMPERATURE CONTROL w/ INTEGRAL 40°F-90°F SELECTOR
24 Volt AC input
Built in 15 second low fire start timer
0-24 Volt DC modulating output
Integral temperature selection
Calibration trim pot
Fits ¼" wiring terminals
Mounting footprint matches other industry standard controls
Rated for -40°F (-40°C)
5 Selectable temperature ranges with one dial
40°F-90°F (4°C-32°C)
80°F-130°F (26°C-54°C)
120°F-170°F (48°C-26°C)
160°F-210°F (71°C-99°C)
200°F-250°F (93°C-121°C)
Combine dials for dual temperature selection
Fits ¼" wiring terminals
Mounting footprint matches other industry standard controls
40°F-250°F (4°C-121°C) temperature range
Fits ¼" wiring terminals
Mounting footprint matches other industry standard controls
Galvanized construction
Mounting footprint matches other industry standard controls
Ph. 877.351.4702
Fax 919.845.8102
DFC-1 STANDARD TEMPERATURE CONTROL
DFTS
DFTD TEMPERATURE SELECTION DIAL
DAT
DFTS TEMPERATURE SENSOR
DAT DISCHARGE AIR TUBE
www.RTC-Solutions.com
RDU
DFC+
4380 Oakes Road, Suite 804
Davie, Florida 33314
