Instruction manual
10dBm repeaters
RF E10S, RF L10S, RF FB10S, RF A10-EW, RF EW10-L, RF EL10-L, RF 10F ED, RF LED10-A, RF EDW10-L,
RF EDW10-A
13dBm repeaters
RF ED13-L, RF EL13-L, RF EL13-H, RF E13-H, RF ED13-H, RF EW13-L, RF L13S, RF EW13-H
15dBm repeaters
RF E15-L, RF EL15-L, RF 15B ED, RF 15B EW, RF 15F ED, RF LED15-L, RF EDW15-L, RF EDW15-A, RF 15-
5B, RF L15S
17dBm repeaters
RF EL17-H, RF 17ED-H, RF E17-H, RF EW17-H
20dBm repeaters
RF E20-L, RF20B EGSM, RF20B ED, RF 20B EW, RF EL 20-L, RF 20-5B(-T), RF LED20-L, RF LED20L-T, RF
EDW-20L
23dBm repeaters
RF E23-L, RF EL 23-L, RF LED23-L, RF LED23L-T, RF EDW23-L
V.7.0 EN
1
© Copyright reserved
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GSM-Repeater RosenFelt F E10S: RosenFelt F RF L10S
Summary of Contents for GSM-Repeater RosenFelt F E10S: RosenFelt F RF L10S
- Page 1 Instruction manual 10dBm repeaters RF E10S, RF L10S, RF FB10S, RF A10-EW, RF EW10-L, RF EL10-L, RF 10F ED, RF LED10-A, RF EDW10-L, RF EDW10-A 13dBm repeaters RF ED13-L, RF EL13-L, RF EL13-H, RF E13-H, RF ED13-H, RF EW13-L, RF L13S, RF EW13-H 15dBm repeaters RF E15-L, RF EL15-L, RF 15B ED, RF 15B EW, RF 15F ED, RF LED15-L, RF EDW15-L, RF EDW15-A, RF 15- 5B, RF L15S...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Manual ............................3 2. The 6 golden rules for a succesful installation .................3 3. Installation in 5 steps (preferably done by 2 people) ...............4 3.1. Unpacking ........................4 3.2 Where is my base station located? ................. 11 3.3 Placing and aiming the outdoor antenna and installing the repeater ....... 12 3.4 Connection ........................ -
Page 3: Manual
1. - MANUAL Thank you for buying a repeater at our Shop. We sell high-quality, interference-free and energy- efficient equipment with CE markings. For quick and easy installation of your device, you can of course rely on the service of GSM Repeater Shop. You should be able to get coverage pretty much anywhere. -
Page 4: Installation In 5 Steps (Preferably Done By 2 People)
3. - INSTALLATION IN 5 STEPS (preferably done by 2 people) 3.1.1 - UNWRAPPING GSM REPEATERS MODEL 1: RF20B EGSM, RF 15B ED, RF 20B ED, RF 15B EW, RF 20B EW THE REPEATER SET CONSISTS OF 1. GSM Repeater. 2. - Page 5 3.1.2 - GSM REPEATERS MODEL 2: RF 10F-ED, RF 15F ED THE REPEATER SET CONSISTS OF 1. Repeater 2. Panel outdoor Antenna 3. Whip indoor Antenna 4. 10 metres of low loss coaxial cable 5. 220-240V Adapter 6. Power cord V.7.0 EN ©...
- Page 6 3.1.3 – GSM REPEATERS MODEL 3: RF EW10-L, RF EL10-L, RF LED10-A, RF EDW10-L, RF ED13-L, RF EL13-L, RF EW13-L, RF E15-L, RF EL15-L, RF LED15-L, RF EDW15-L, RF 15-5B, RF E20-L, RF EL 20-L, RF 20-5B(-T), RF LED20-L, RF LED20L-T, RF EDW-20L, RF E23-L, RF EL 23-L, RF LED23L-T, RF EDW23-L * Optional THE REPEATER SET CONSISTS OF...
- Page 7 3.1.4 – GSM REPEATERS MODEL 4: RF 10A-EW THE REPEATER SET CONSISTS OF 1. GSM Repeater 2. Outdoor panel antenna * 3. Indoor whip antenna * 4. Low loss coaxial cable (10 metres) 5. 220-240 V adapter V.7.0 EN © Copyright reserved...
- Page 8 3.1.5 – GSM REPEATERS MODEL 5: RF EL13-H, RF E13-H, RF ED13-H, RF EW13-H, RF EL17-H, RF E17-H, RF ED17-H, RF EW17-H THE REPEATER SET CONSISTS OF 1. GSM Repeater 2. Outdoor panel antenna * 3. Indoor whip antenna * 4.

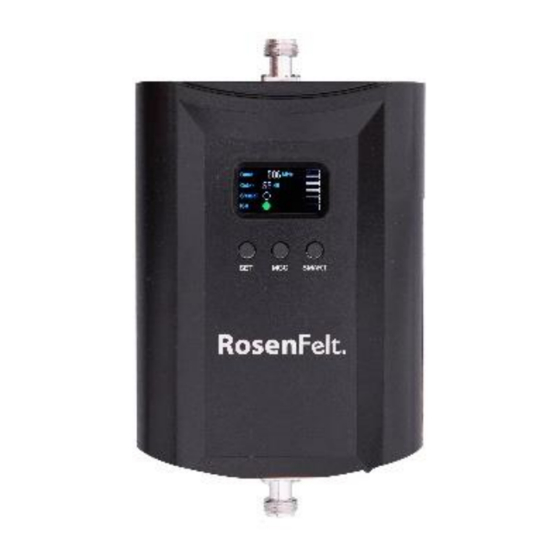

- Page 9 3.1.6 – GSM REPEATERS MODEL 6: RF E10S, RF L10S, RF FB10S THE REPEATER SET CONSISTS OF 1. GSM Repeater 2. Outdoor panel antenna * 3. Indoor whip antenna * 4. Low loss coaxial cable (10 metres) 5. 220-240 V adapter V.7.0 EN ©...
- Page 10 3.1.7 – GSM REPEATERS MODEL 7: RF EDW10-A, RF EDW15-A, RF LED10-A THE REPEATER SET CONSISTS OF 1. GSM Repeater 2. Outdoor panel antenna * 3. Indoor whip antenna * 4. Low loss coaxial cable (10 metres) 5. 220-240 V adapter V.7.0 EN ©...
-
Page 11: Where Is My Base Station Located
3.2 - WHERE IS MY BASE STATION LOCATED? There are a number of ways to determine the best place for the outdoor antenna. Below you will find several free apps that you can download which will measure the quality of the incoming signal in different locations on and around the building. -
Page 12: Placing And Aiming The Outdoor Antenna And Installing The Repeater
3.3 -PLACING AND AIMING THE OUTDOOR ANTENNA AND INSTALLING THE REPEATER PLACE YOUR ANTENNA AS HIGH UP AS POSSIBLE This part of the installation process is very important. If the reception isn’t good outdoors, it will not be good indoors. This is also the case if you live in a rural, wooded area. Trees absorb the GSM signal, which reduces the quality considerably. -
Page 13: Connection
3.4 – CONNECTION 1. Screw the whip indoor antenna into the ‘Output’ connection point on the repeater. 2. Run the cable from the outdoor antenna to the desired location of the repeater. Make sure that you have enough distance (at least 5 to 10 metres). There should be at least one brick/steel wall/floor in between the indoor and outdoor antenna. -
Page 14: Declaration Of Conformity, Permit, Warranty, Right Of Withdrawal
3.5 – CALIBRATING THE EQUIPMENT 3.5.1 - For the Model 1 repeaters: If an indicator light is green, the signal is at its best. You do not have to do anything. If an indicator lights is orange, you have a little too much signal. Please check under * what to do. If an indicator light is red and after a few seconds turns off, you need to adjust the setup. - Page 15 3.5.2 - For the Model 2 repeaters: 1. After switching on the repeater, "Power" and "ISO" (see display) must light up green. If "Power" is not lit green, the repeater is not receiving power. When “ISO” lights up in red or orange, the indoor and outdoor antenna must be placed farther away from each other or more mass (walls, cabinets - everything with weight) must be created between the two antennas.
- Page 16 3.5.3 - For the Model 3 repeaters: We advise you to always to use the smart function. Using the "Smart Function", the GSM repeater itself ensures the optimal settings. This is the starting position of the repeater. If not, press activate this function.
- Page 17 3.5.4 - For the Model 4 repeaters: The repeater has two modes: MANUAL and AUTO. In MANUAL mode, users can set the gain manually. In AUTO mode, the gain is controlled automatically. We recommend choosing the automatic setting. This is also the starting position. In section 2, using the UP and DOWN buttons, you can move the cursor to this section.
- Page 18 3.5.5 - For the Model 5 repeaters: The repeater model 5 is standard equipped with AGC (Automatic Gain Control). This allows the repeater to set itself as optimally as possible. Sometimes this is not possible, then - the “ISO” lamp flashes ”, press the“ SET ”button. You can then see which bands are causing the problem.
- Page 19 3.5.6 - For the Model 6 repeaters: 1. Shows the Up and Down Link of the frequency 2. Shows the maximum gain of Up and DownLink. 3. Smart function. The repeater sets the strength automatically to prevent the alarm. 4. Detection of antenna isolation. When the indoor and outdoor antenna are too close together, the repeater automatically detects this oscillation.
- Page 20 3.5.7 - For the Model 7 repeaters: A = connection for coaxial cable to outdoor antenna B = connection for the indoor antenna This repeater model has an Uplink Standby. When no device is in use, the repeater automatically decreases its power. I.S.O.
-
Page 21: Calibrating The Equipment
MATERIALS IN OUR WEBSHOP Extra or longer ‘low loss’ coaxial repeater cables. Splitters and couplers for the installation of more than one indoor antenna. Extra indoor antennas in many different shapes and sizes. Wall bracket for easy mounting of the outdoor antenna. Should your repeater not function properly despite this extensive manual, do not hesitate to contact our service desk. - Page 22 Huib Oosterveld Director Director Wormer, 18 June 2020 www.gsm-repeater-shop.com sales@gsm-repeater-shop.com Permit The sale of GSM Repeaters for mobile phones is permitted in Europe if the products comply with the conditions and requirements of the Radio Equipment Directive (RED) 2014/53/EU of THE EUROPEAN PARLIAMENT AND THE EU COUNCIL. The products of GSM REPEATER- SHOP comply with these standards.
