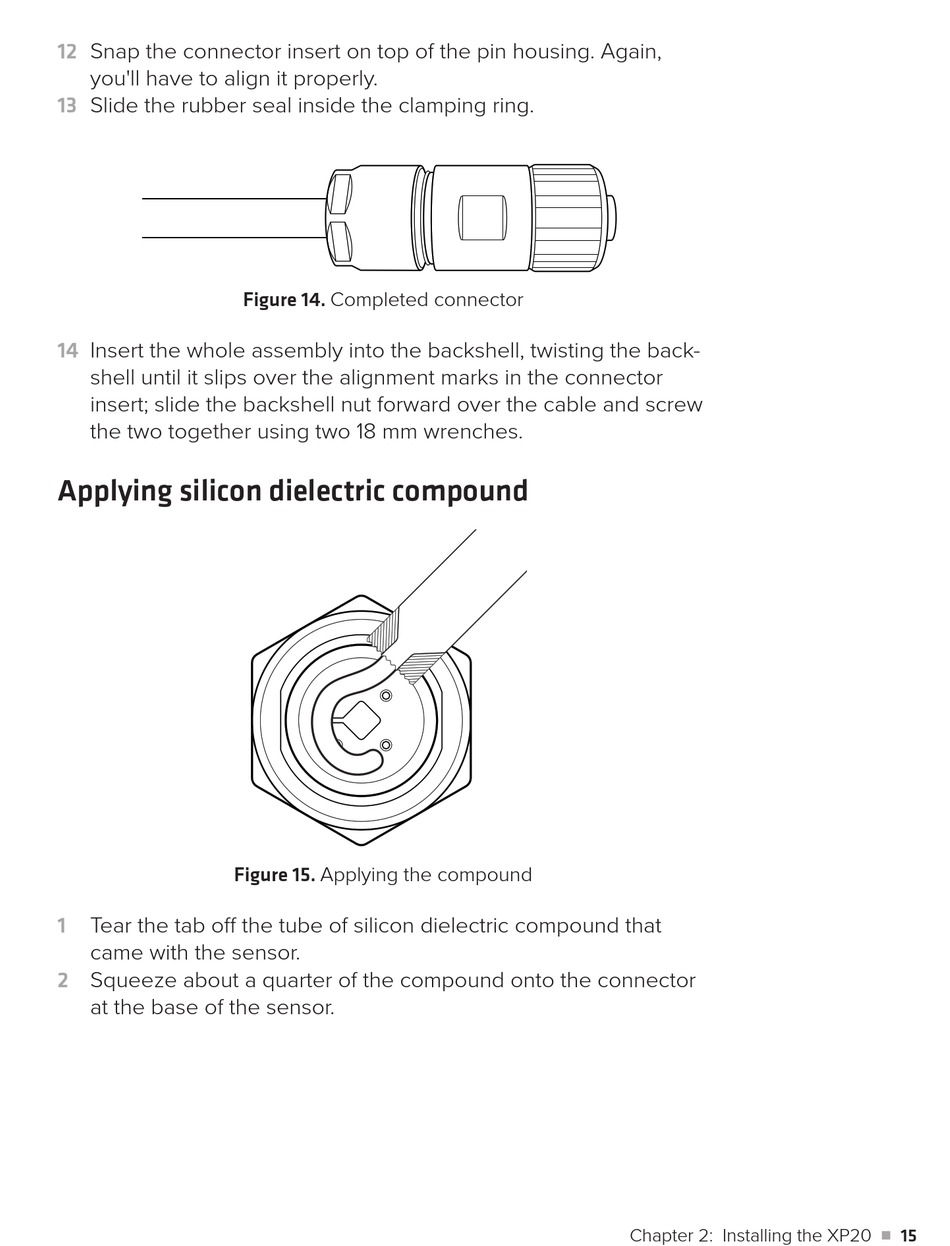

Applying Silicon Dielectric Compound - Wavetronix Expanse XP20 User Manual

Snap the connector insert on top of the pin housing. Again,
12
you'll have to align it properly.
Slide the rubber seal inside the clamping ring.
13
Insert the whole assembly into the backshell, twisting the back-
14
shell until it slips over the alignment marks in the connector
insert; slide the backshell nut forward over the cable and screw
the two together using two 18 mm wrenches.

Applying silicon dielectric compound

Figure 15. Applying the compound
Tear the tab off the tube of silicon dielectric compound that
1
came with the sensor.
Squeeze about a quarter of the compound onto the connector
2
at the base of the sensor.
Figure 14. Completed connector
Chapter 2: Installing the XP20
15
•
