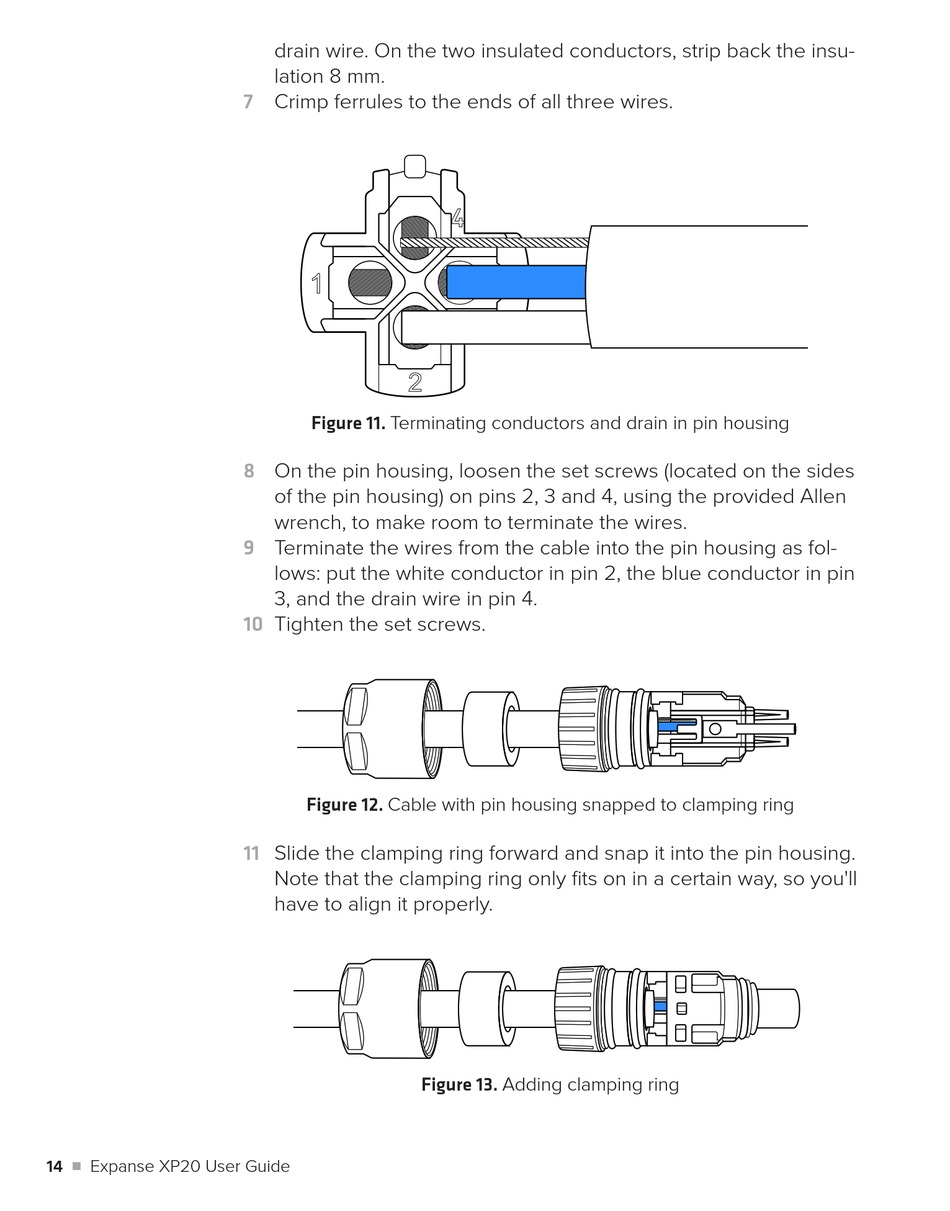

Expanse XP20 User Guide
14
•
drain wire. On the two insulated conductors, strip back the insu-
lation 8 mm.
Crimp ferrules to the ends of all three wires.
7
Figure 11. Terminating conductors and drain in pin housing
On the pin housing, loosen the set screws (located on the sides
8
of the pin housing) on pins 2, 3 and 4, using the provided Allen
wrench, to make room to terminate the wires.
Terminate the wires from the cable into the pin housing as fol-
9
lows: put the white conductor in pin 2, the blue conductor in pin
3, and the drain wire in pin 4.
Tighten the set screws.
10
Figure 12. Cable with pin housing snapped to clamping ring
Slide the clamping ring forward and snap it into the pin housing.
11
Note that the clamping ring only fits on in a certain way, so you'll
have to align it properly.
Figure 13. Adding clamping ring
