AAVIX A12101 Owner's Manual

3 gallon pancake air compressor oil free
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

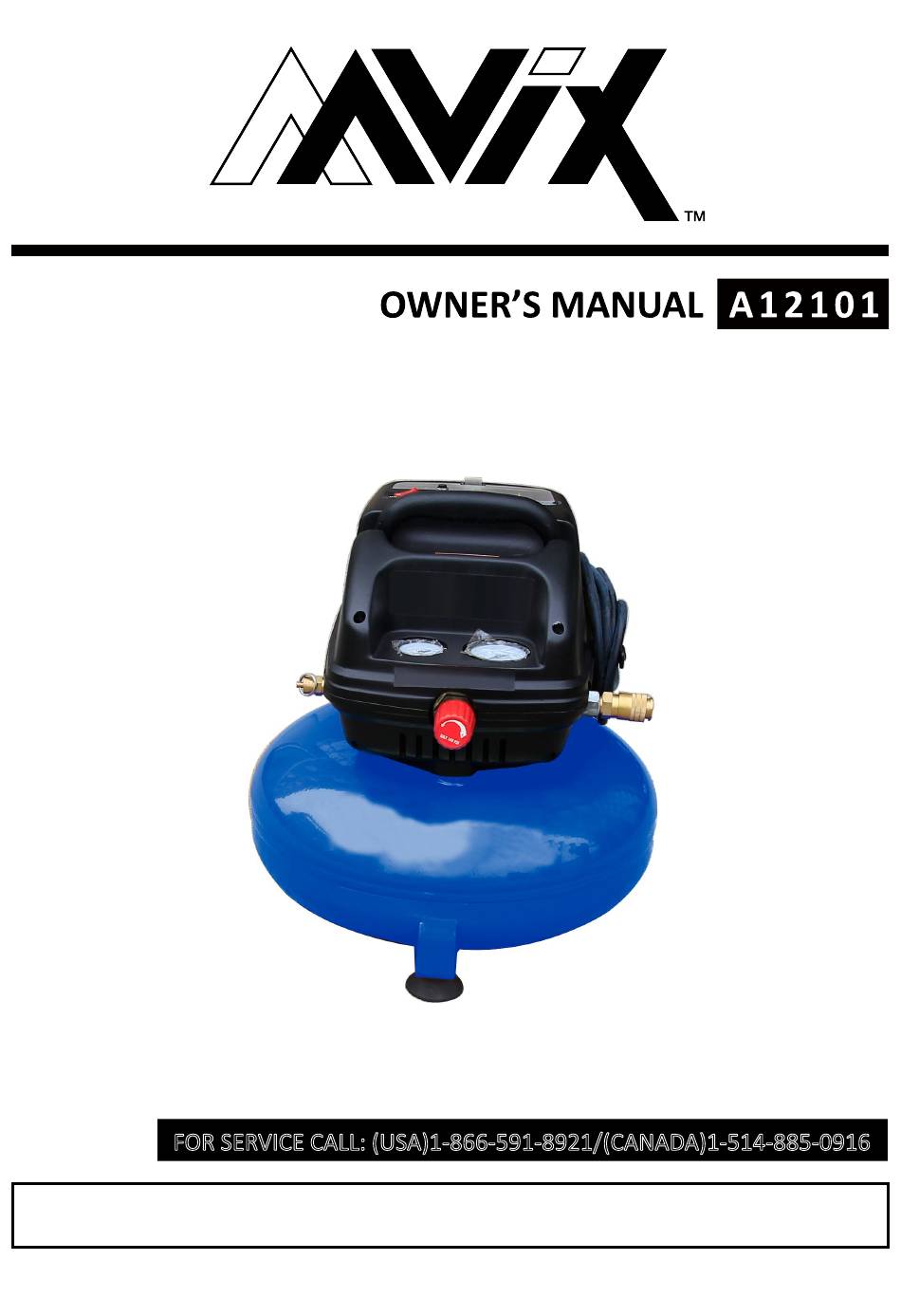

A A V I X
O U T D O O R S
3 GALLON PANCAKE AIR COMPRESSOR OIL FREE
FOR SERVICE CALL: (USA)1-866-591-8921/(CANADA)1-514-885-0916
WARNING : To reduce the risk of injury, user must read this manual before assembling, operating
and maintaining this unit. You are responsible for operating the product properly & safely.
Version: V1.20171222

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A12101 and is the answer not in the manual?

Questions and answers

Related Manuals for AAVIX A12101

Summary of Contents for AAVIX A12101

  • Page 1 A A V I X O U T D O O R S 3 GALLON PANCAKE AIR COMPRESSOR OIL FREE FOR SERVICE CALL: (USA)1-866-591-8921/(CANADA)1-514-885-0916 WARNING : To reduce the risk of injury, user must read this manual before assembling, operating and maintaining this unit.

  • Page 2: Table Of Contents

    WARNING! Read and understand this manual thoroughly before operating your compressor. Failure to follow instructions could result in electric shock, fire,serious injury or death ! Save all warnings and instructions for future reference. Please familiarize yourself with the following information to prevent damage to your compressor and injury to the operator.
  • Page 3 or wet conditions. Water entering a power Switch does not turn it on compressor will increase the risk of and off. Any compressor that cannot electric shock. be controlled with the power Switch c. Do not abuse the cord. Never use is dangerous and must be repaired.
  • Page 4 result in a hazardous situation. 11. Maintain labels and nameplates on the compressor. These carry important Service safety information. If unreadable or Have your compressor serviced by a missing, contact our customer service qualified repair person using only center for a replacement. identical replacement parts.
  • Page 5 not in use.Do not leave compressor well-ventilated.  Do not smoke while spraying or spray unattended for an extended period where spark or flame is present. while plugged in.  Keep compressor at least 20 feet away from explosive vapors, such as when spraying with a spray gun.
  • Page 6 construction activities may be harmful the year shown on your tank warning Sprayed materials such as paint, paint label. solvents, paint remover, insecticides, The following conditions could lead to weed killers, may contain harmful a weakening of the air tank, and result vapors and poisons.
  • Page 7 in serious injury. Never operate compressor with Follow the protective covers removed or HOW TO PREVENT IT: equipment manufacturers damaged. recommendation and never exceed Repairs WHAT CAN HAPPEN: the maximum allowable pressure attempted by unqualified personnel rating of attachments. Never use can result in serious injury or death compressor to inflate small low by electrocution.
  • Page 8 side shields when using the into contact with you or your compressor . clothing. Never point any nozzle or sprayer Never operate the HOW TO PREVENT IT: toward any part of the body or at compressor with guards or covers other people or animals.
  • Page 9  Keep children away from the air hearing loss. compressor at all times. Always wear HOW TO PREVENT IT:  Do not operate the product when proper hearing protection during use. fatigued or under the influence of 27. AIR RECEIVER alcohol or drugs.

  • Page 10: Glossary

    it is: reach of the air hose by attaching another length of hose to its end. Minimum gauge for extension cords Attach additional lengths of hose as Volts Total length of cord in feet needed. 120V GLOSSARY Ampere rating more Pounds per square inch of than-not more than...

  • Page 11: Specifications

    This air compressor DUTY CYCLE: pump is capable of running continuously. However, to prolong the life of your air compressor, it is recommended that a 50%-75% average duty cycle be maintained; that is, the air compressor pump should not run more than 30-45 minutes in any given hour.

  • Page 12: Installation

    drops below the factory set "cut-in" tank. Working air is not available until pressure. It stops the motor when the the compressor has raised the air air tank pressure reaches the factory tank pressure above that required at set "cut-out" pressure. the air outlet.
  • Page 13 compressor.  Route the power cord from the compressor to the grounded wall Proper care and maintenance NOTE: outlet, along a safe path without ensure longevity. Do not over tighten creating a tripping hazard or foot bolts as excessive vibration may exposing the power cord to possible occur.
  • Page 14 125 V~ 3-Prong Plug and Outlet (for equipment-grounding conductor can up to 125 V~ and up to 15 A) result in a risk of electric shock. Make sure the outlet being used The conductor with insulation has the same configuration as the having an outer surface that is green grounded plug.
  • Page 15 movement while working. NOTE: An in-line shutoff ball valve is an important safety device because it controls the air supply even if the air hose is ruptured. The shutoff valve should be a ball valve because it can be closed quickly. 2.
  • Page 16 B: Stationary Air Supply Setup A Vibration Pads: For noise and vibration reduction B Anchor Bolts: Secures air compressor in place C Ball Valve: Isolates sections of system for maintenance Isolation Hose: For vibration reduction Main Air Line - 3/4" minimum recommended: Distributes air to branch lines Ball Valve: To drain moisture from...

  • Page 17: Oparation

    rating for air tools and accessories. OPARATION The regulator outlet pressure must never exceed the maximum pressure rating. WARNING: Do not operate this unit until you read this instruction manual for safety, NOTE: Risk of property operation and maintenance damage. Compressed air from the unit instructions.
  • Page 18 b) Press reset button. WARNING: TO PREVENT c) Turn the Power Switch ON position. SERIOUS INJURY AND Allow the Air Compressor to build DEATH FROM EXPLOSION: up pressure until it cycles off. Do not adjust the internal pressure Motor will stop when tank pressure switch.

  • Page 19: Maintenance

    The larger the tire, the more time to automatically shuts off before reaching fill is needed. its normal cutoff pressure. 1. To restart: This product is designed for NOTE: a) Shut off all tools. inflation, stapling, brad nailing and b) Allow the motor to cool (about 10 air brushing.
  • Page 20 of use can affect how often you will TURN THE POWER SWITCH need to check the Air Compressor “OFF” AND UNPLUG POWER components and perform CORDbefore performing any maintenance procedures. inspection, maintenance, or cleaning DAILY OR BEFORE EACH USE procedures. Inspect the general condition of the air compressor.Check for: WARNING:...
  • Page 21 compressor with a clean cloth. body parts away from outlet of drain. WEEKLY Use ANSI Z87.1 eye protection (CAN/CSA Z94.3) when draining as 1. Turn off power disconnect electrical debris can be kicked up into face. supply. Clean dust and foreign matter from cylinder head, motor, fan blades, intercooler and air receiver.
  • Page 22 1. Set the ON/OFF power Switch to 1. Release all air pressure from air tank. "OFF". See To Drain Tank in the Maintenance 2. Turn the regulator knob section. counterclockwise to set the outlet 2. Unplug unit. pressure to zero. 3.

  • Page 23: Storage

    drained, water will corrode and STORAGE weaken the air tank causing a risk of Before you store the air compressor, air tank rupture. make sure you do the following: 3. Protect the electrical cord and air 1. Review the Maintenance section on hose from damage (such as being the preceding pages and perform stepped on or run over).

  • Page 24: Troubleshooting

    TROUBLESHOOTING WARNING: Risk of unsafe operation. Unit cycles automatically when power is on. When performing maintenance, you may be exposed to voltage sources，compressed air, or moving parts. Personal injuries can occur. Before performing any maintenance or repair, disconnect power source from the compressor and bleed off all air pressure and allow the air compressor to cool.
  • Page 25 7.Extension Cord wire size 7.Use larger diameter or shorter extension cord or is too small or cord is too eliminate extension cord. See RECOMMENDED long to properly power WIRE GAUGE FOR EXTENSION CORDS in “Safety compressor. rules” section. 8.Compressor needs 8.Have unit inspected by a qualified technician Motor stalls 1.Faulty unloader / check...
  • Page 26 Compressor is not supplying enough air to operate accessories 1.Clogged inlet and outlet 1.Clean inlet and outlet filters or replace as filters necessary 2.Leaks in air lines, air 2.Have technician clean or replace worn valves, fittings, etc components, as needed 3.Compressor is not large 3.Check the accessory air requirement.
  • Page 27 Regulator knob has continuous air leak Damaged regulator. Replace Regulator will not shut off air outlet Damaged regulator. Replace Overheating 1.Inlet and outlet filters 1.Check inlet and outlet filters. Clean and/or need cleaning / replacing replace as needed 2.Unusually dusty 2.Clean and/or replace filters more often or move environment unit to cleaner environment...
  • Page 28 3.Worn rods, wrist pin or 3.Check and replace worn parts main bearings Knocking Noise 1.Compressor valves loose 1.Check and replace worn or broken valves or broken 2.Inspect check valve, it 2.Remove and clean check valve may knock at low pressures 3.Possible defect in safety 3.Operate safety valve manually by pulling on ring.

  • Page 29: Part List

    Air leaks between head and valve plate Leaking seal Contact a Trained Service Technician PART LIST Refe# Description Stock# Refe# Description Stock# Bolt A12101-1 Plain Washer A12101-33 Foot Support A12101-2 Cylinder Head A12101-34 Quick Coupler A12101-3 Gasket A12101-35 Gasket A12101-4...

  • Page 30: Exploded View

    EXPLODED VIEW...
