Pin Descriptions

2.
There are altogether 16 pin counts, the definitions of which are described in Table 2 below.
Pin number
1
2
3
4
5
6
User Configuration

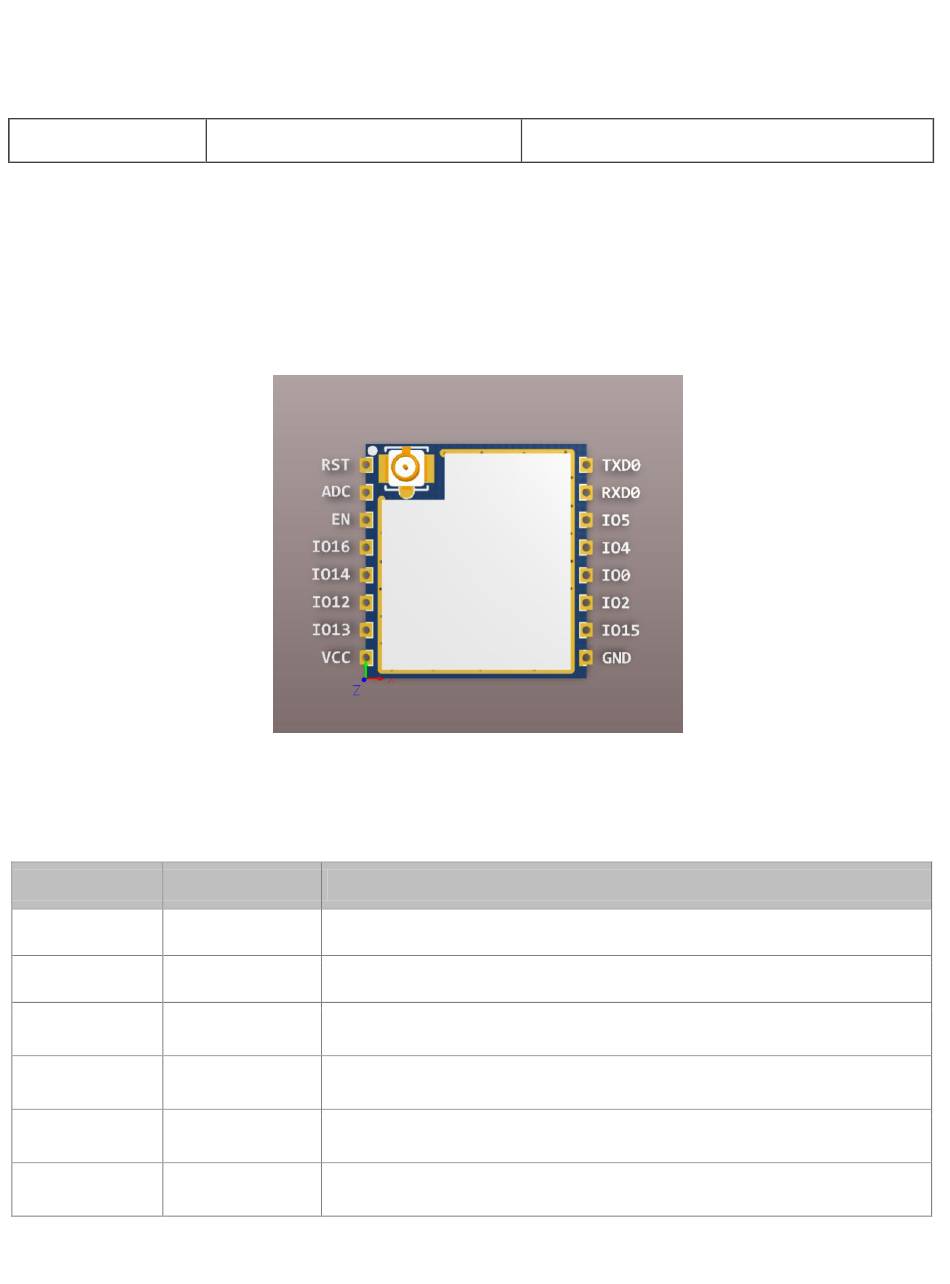

Figure 2 ESP-07S pinout
Table 2 ESP-07S pin description
Pin name
RST Reset module
ADC A/d conversion result. Input voltage range 0~1V, value range: 0~1024
EN Chip enable pin. Active high
GPIO16 GPIO16; can be used to wake up the chipset from deep sleep mode
GPIO14 GPIO14; HSPI_CLK
GPIO12 GPIO12; HSPI_MISO
AT Instruction Set, Cloud Server, Android/iOS APP
function
