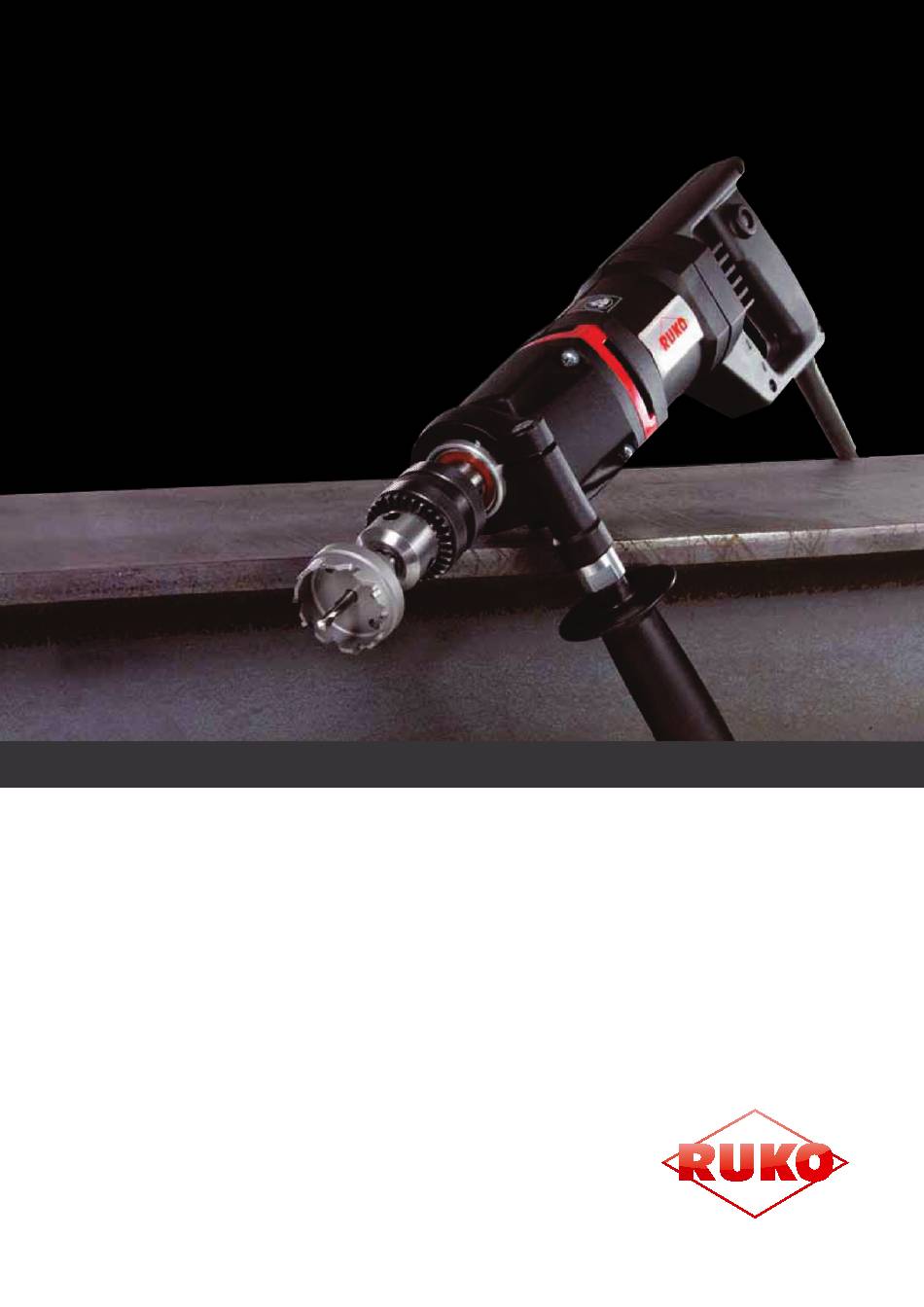

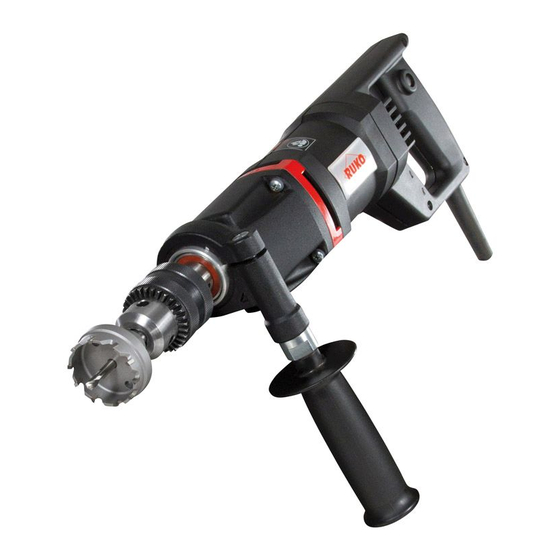

- Page 1 PREMIUMline PREMIUMline UsE InstRUctIon RSH 1300...
- Page 2 Declaration of conformity the RsH 1300 in summary: the high performance motor, optimally adjustable rotational speed and the handy design ensure perfect drilling results. the RUKo hand core drilling machine RsH 1300 is ideal for fast and flexible use. 1 Infinitely variable speed controlg...
-
Page 3: Technical Data
technical data total Power consumption: 1.300 Watt Power output: 800 Watt nominal speed: 0 - 2000 r.p.m. Idling speed: 3400 r.p.m. Weight: 3,4 kg Adapter: flexibel 5/8" x 16 Infinitely variable speed control: Right-left-handed rotation: torque slipping clutch: ... -
Page 4: Description Of Safety Symbols
Description of safety symbols symbol term, meaning Explanation Be absolutely sure to read and understand the Read documentation enclosed documentation such as Instruction Manual and the General safety Instructions. Wear ear protection Use ear protection during operation. Wear eye protection Use eye-protection(safety goggle) during operation. -
Page 5: General Safety Advice
General safety advice safe use of the tool is only possible if the user had studied the instruction manual and safety instructions completely and is strictly following the instructions contained therein. Additionally, the general safety instructions of the leaflet supplied with the tool must be observed. -
Page 6: Electrical Connection
Electrical connection the RsH 1300 is designed according to protective class II. Prior to putting the tool into operation, check the mains voltage for conformity with the requirements of the tool’s nameplate. Voltage variations between + 6 % and – 10 % are permissible. the tool includes a start-up speed limiter to prevent fast expulsion fuses from unindented responding. only use extension cables with a sufficient cross-section. -
Page 7: Overload Protection
overload Protection to protect the user, motor and drill bit, the RsH 1300 is equipped with a mechanical, electrical and thermal overload protection. Mechanical: n case of sudden jamming of the drill bit, the drilling spindle is unclutched from the motor by means of a slip clutch. Electrical: In case of overload due to too large feed force, the electronic will cut oFF the machine. -
Page 8: Noise Emission
RUKo service centre. - Page 9 Drawing of drilling mechanism RsH 1300 PREcIsIon tooLs...
-
Page 10: Spare Parts List
spare parts list Pos. Description Article no. Quantity connecting cable 2 x 1 mm² 6115001 Filler piece 6115002 suppression capacitor 6115003 Handle halves, mach. 6115004 cable version sleeve 6115005 Built-in switch 6115006 tapping screw Hc 4.2 x 22 6115007 strain relief clamp 6115008 tapping screw Hc 4.2 x 13 6115009... -
Page 11: Declaration Of Conformity
En 60 745, En 55 014, En 61 000 according to the regulations 2011/65/EU, 2004/108/Ec, 2006/42/Ec Josef Ruppert / Management RUKo GmbH Precision tools, Robert-Bosch-straße 7-11, D-71088 Holzgerlingen, Germany PREcIsIon tooLs... - Page 12 RUKO GmbH PREcIsIon tooLs Robert-Bosch-straße 7– 11 71088 Holzgerlingen Germany + 49 ( 0 ) 70 31 / 68 00 - 0 tel.: Export sales Internet: www.ruko.de tel.: + 49 ( 0 ) 70 31 / 68 00 - 54 / 84 / 85 / 790...
