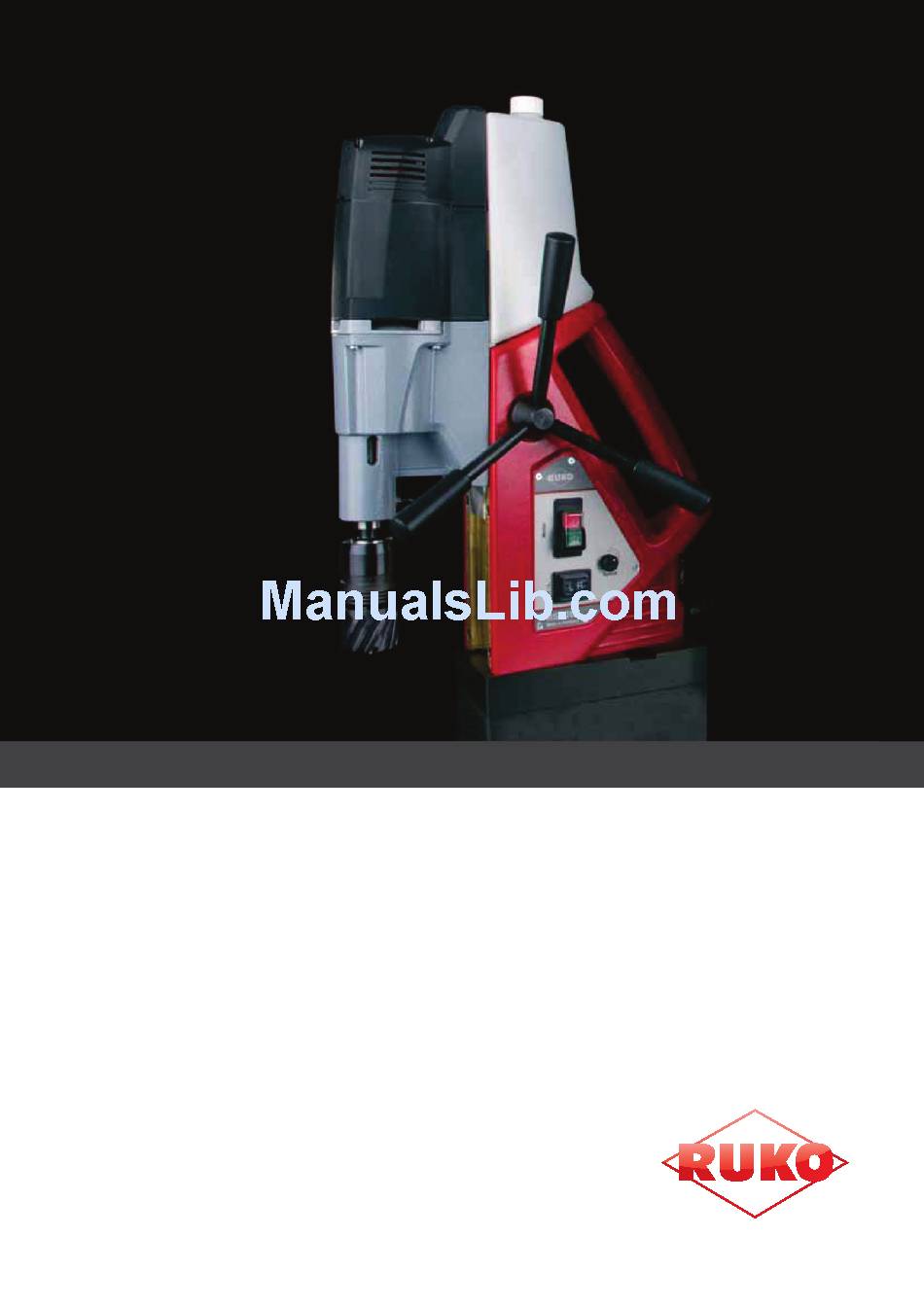

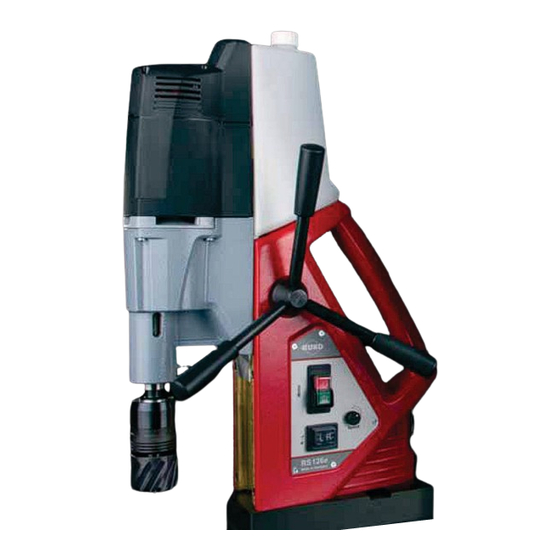

  • Page 1 PREMIUMline PREMIUMline UsE InstRUctIon 115V RS120e - RS140e...

  • Page 2: Table Of Contents

    contents Page technical data security instructions Assembling, Application, Maintenance Putting into operation Drilling unit Rs 140e Drawing of drilling unit Rs 120 Drawing of drilling mechanism Rs 120 Drawing of electrical system Rs 120 spare parts list Rs 120 11/12 Drawing of drilling unit Rs 125e Drawing of drilling mechanism Rs 125e Drawing of electrical system Rs 125e...
  • Page 3 Magnet with 18.000 n clamping force and larger carrying handle. contact surface in models Rs125e + Rs140e. the new RUKo plastic case with trolley enables a safe and easy transport of Rs125e + Rs140e machines. the trolley can be easily latched to the case and removed again.

  • Page 4: Technical Data

    technical data Technical data RS120 RS125e RS126e Article no. 108 0120 RS 108 0125 RS 108 0126 RS Mag. clamping force: 18.000 n 18.000 n 13.000 n Power consumption: 1.200 Watt 1.200 Watt 1.200 Watt Gears: 2 gear 2 gear 2 gear Rotation speeds r.p.m.: 250 / 450 r.p.m.
  • Page 5 technical data Rs120 Technical data RS130e RS140e Article no. 108 0130 RS 108 0140 RS Mag. clamping force: 18.000 n 18.000 n Power consumption: 1.840 Watt 1.840 Watt Gears: 2 gear 4 gear 40-120 / 70-180 / Rotation speeds r.p.m.: 40-120 / 160-450 U/min 160-450 / 300-700 U/min ...
  • Page 6 Attention: Please read this manual carefully before using the drilling unit the drilling units may only be used according to their determination. the use of the drilling unit as a lifting magnet is dangerous and absolutely inadmissible. the use for another purpose than what is determined endagers people and the machine. Please note also the following safety instructions for electric tools.
  • Page 7 Assembling the magnetic drilling units are supplied with a high powered electromagnet as well as a reclosure preventing device for the drilling mechanism. the magnetic drilling units correspond to protection class I with conductor according to IEc 745. the drilling mechanisms that have been developed according to DIn VDE 0740 and IEc 745-1 are radio screened according to En 55014 and En 61000 and are designed for continous operation: It is possible that the sound level exceeds 85 dB (A): In this case special sound protection is necessary for the user.

  • Page 8: Putting Into Operation

    Before putting into operation Plug the cable into a suitable supply. check the correct voltage! If you are using an extension cable please check if it is suitable for the machine`s rated input power! Attention: For vertical and overhead drilling work it is absolutely necessary to wear the enclosed safety belt. Putting into operation Position the drill bit over the drilling point.
  • Page 9 Drawing of drilling mechanism Rs120 2013 Toleranz nach Benennung Toleranzklasse Massstab Härte Datum Name 1: 2 ,5 All rights reserved. RS120 Without our consent it is not allowed to duplicate ISO 2768 T1 Mittel 06.02.2014 Weber erstellt the drawing nor to make it available for third Material Stand Änderung parties or to use it for different improper purposes.

  • Page 10: Drawing Of Drilling Unit Rs120

    Drawing of drilling unit Rs120 r RS Drawing of electrical system Rs120 ich! 2012 Benennung Teil-Nr. Toleranz nach Toleranzklasse Massstab Härte Datum Name 1: 4 All rights reserved. RS140/130/125/120 Without our consent it is not allowed to duplicate ISO 2768 T1 Mittel erstellt 06.02.2014...
  • Page 11 Drilling unit Rs120 Pos. Description Article no. Quantity Machined body + brass plate 711 2 200 spring plunger 711 4 007 Pinion shaft 711 3 217 star grip with threaded rod 711 4 003 Bearing bowl 711 3 212 safety ring 611 9 306 Balance plate 611 9 813...
  • Page 12 Drilling mechanism Rs120 Pos. Description Article no. Quantity Gear housing 711 2 008 t piece 711 4 002 cylinder head screw M3x20 711 4 001 spring plunger Ø 6 611 2 531 control button 711 2 006 Grooved ball bearing 6203 2Rs 611 1 508 Adjusting washer 15/22x0.2 611 2 521...

  • Page 13: Drawing Of Drilling Mechanism Rs125E

    Drawing of drilling mechanism Rs125e 2013 Toleranz nach Härte Benennung Name Toleranzklasse Massstab Datum 1: 2 ,5 All rights reserved. RS125e Without our consent it is not allowed to duplicate ISO 2768 T1 Mittel 06.02.2014 Weber erstellt the drawing nor to make it available for third Material Stand Änderung parties or to use it for different improper purposes.

  • Page 14: Drawing Of Electrical System Rs125E

    Drawing of drilling unit Rs125e e für RS Drawing of electrical system Rs125e gleich! 2012 Toleranz nach Härte Benennung Teil-Nr. Datum Name Toleranzklasse Massstab 1: 4 All rights reserved. RS140/130/125/120 Without our consent it is not allowed to duplicate ISO 2768 T1 Mittel Weber erstellt...
  • Page 15 Drilling unit Rs125e Pos. Description Article no. Quantity Machined body + brass plate 711 2 200 spring plunger 711 4 007 Pinion shaft 711 3 217 star grip with threaded rod 711 4 003 Bearing bowl 711 3 212 safety ring 611 9 306 Balance plate 611 9 813...
  • Page 16 Drilling mechanism Rs125e Pos. Description Article no. Quantity Work spindle 711 2 012 Feather key A5x5x12 611 2 518 Grooved ball bearing 6904 2Rs 611 2 529 connection cooling 611 3 515 Pt screw 50x35 711 2 003 Gear housing 711 2 008 t piece 711 4 002...

  • Page 17: Drawing Of Drilling Mechanism Rs126E

    Drawing of drilling mechanism Rs126e 2013 Toleranz nach Härte Benennung Name Toleranzklasse Massstab Datum 1: 2 ,5 All rights reserved. RS125e Without our consent it is not allowed to duplicate ISO 2768 T1 Mittel 06.02.2014 Weber erstellt the drawing nor to make it available for third Material Stand Änderung parties or to use it for different improper purposes.

  • Page 18: Drawing Of Electrical System Rs126E

    Drawing of drilling unit Rs126e Drawing of electrical system Rs126e 2014 Toleranz nach Benennung Teil-Nr. Name Toleranzklasse Massstab Härte Datum 1: 3 ,3 All rights reserved. RS125el RS120l Without our consent it is not allowed to duplicate ISO 2768 T1 Mittel Weber erstellt...
  • Page 19 Drilling unit Rs126e Pos. Description Article no. Quantity Machined body + brass plate 711 2 200 spring plunger 711 4 007 Pinion shaft 711 3 217 star grip with threaded rod 711 4 003 Bearing bowl 711 3 212 safety ring 611 9 306 Balance plate 611 9 813...
  • Page 20 Drilling mechanism Rs126e Pos. Description Article no. Quantity Work spindle 711 2 012 Feather key A5x5x12 611 2 518 Grooved ball bearing 6904 2Rs 611 2 529 connection cooling 611 3 515 Pt screw 50x35 711 2 003 Gear housing 711 2 008 t piece 711 4 002...

  • Page 21: Drawing Of Drilling Mechanism Rs130E

    Drawing of drilling mechanism Rs130e 2013 Benen Toleranz nach Toleranzklasse Härte Datum Name Massstab All rights reserved. 1: 3 ,3 Without our consent it is not allowed to duplicate ISO 2768 T1 Mittel erstellt 06.02.2014 Weber the drawing nor to make it available for third Material parties or to use it for different improper purposes.

  • Page 22: Drawing Of Electrical System Rs130E

    Drawing of drilling unit Rs130e ür RS Drawing of electrical system Rs130e eich! 2012 Toleranz nach Toleranzklasse Härte Benennung Teil-Nr. Datum Name Massstab 1: 4 All rights reserved. RS140/130/125/120 Without our consent it is not allowed to duplicate ISO 2768 T1 Mittel Weber erstellt...
  • Page 23 Drilling unit Rs130e Pos. Description Article no. Quantity Machined body + brass plate 711 2 200 spring plunger 711 4 007 Pinion shaft 711 3 217 star grip with threaded rod 711 4 003 Bearing bowl 711 3 212 safety ring 611 9 306 Balance plate 611 9 813...
  • Page 24 Drilling mechanism Rs130e Pos. Description Article no. Quantity sealing washer 711 3 015 shaft sealing ring 34x55x9 711 3 017 Work spindle 711 3 018 circlip 55/2 711 3 016 Feather key B6x6x20 711 3 019 Grooved ball bearing 6006 2Rs 611 3 540 connection cooling 611 3 515...
  • Page 25 Drawing of drilling mechanism Rs140e 2013 Toleranz nach Benennung Toleranzklasse Massstab Härte Datum Name 1: 3 ,3 All rights reserved. RS140e Without our consent it is not allowed to duplicate ISO 2768 T1 Mittel 06.02.2014 Weber erstellt the drawing nor to make it available for third Material parties or to use it for different improper purposes.

  • Page 26: Drawing Of Drilling Unit Rs140E

    Drawing of drilling unit Rs140e ür RS Drawing of electrical system Rs140e eich! 2012 Toleranz nach Toleranzklasse Härte Benennung Teil-Nr. Datum Name Massstab 1: 4 All rights reserved. RS140/130/125/120 Without our consent it is not allowed to duplicate ISO 2768 T1 Mittel Weber erstellt...
  • Page 27 Drilling unit Rs140e Pos. Description Article no. Quantity Machined body + brass plate 711 2 200 spring plunger 711 4 007 Pinion shaft 711 3 217 star grip with threaded rod 711 4 003 Bearing bowl 711 3 212 safety ring 611 9 306 Balance plate 611 9 813...
  • Page 28 Drilling mechanism Rs140e Pos. Description Article no. Quantity shaft sealing ring 34x55x9 711 3 017 Work spindle 711 3 018 circlip 55/2 7113016 Feather key B6x6x20 711 3 019 Grooved ball bearing 6006 2Rs 611 3 540 connection cooling 611 3 515 Pt screw 50x35 711 2 003 Gear housing...
  • Page 29 connection diagramm Rs10, Rs25e, Rs40e Netz / Net U < Bohrantrieb Drilling mechanism clamping force Haftmagnet PREcIsIon tooLs...

  • Page 30: Guarantee

    If a defect is noted the machine has to be sent to RUKo GmbH as quickly as possible for repair.
  • Page 31 PREcIsIon tooLs...
  • Page 32 RUKO GmbH PREcIsIon tooLs Robert-Bosch-straße 7– 11 71088 Holzgerlingen Germany + 49 ( 0 ) 70 31 / 68 00 - 0 tel.: Export sales Internet: www.ruko.de tel.: + 49 ( 0 ) 70 31 / 68 00 - 54 / 84 / 85 / 790...

This manual is also suitable for:

Rs126eRs140eRs125eRs130e
