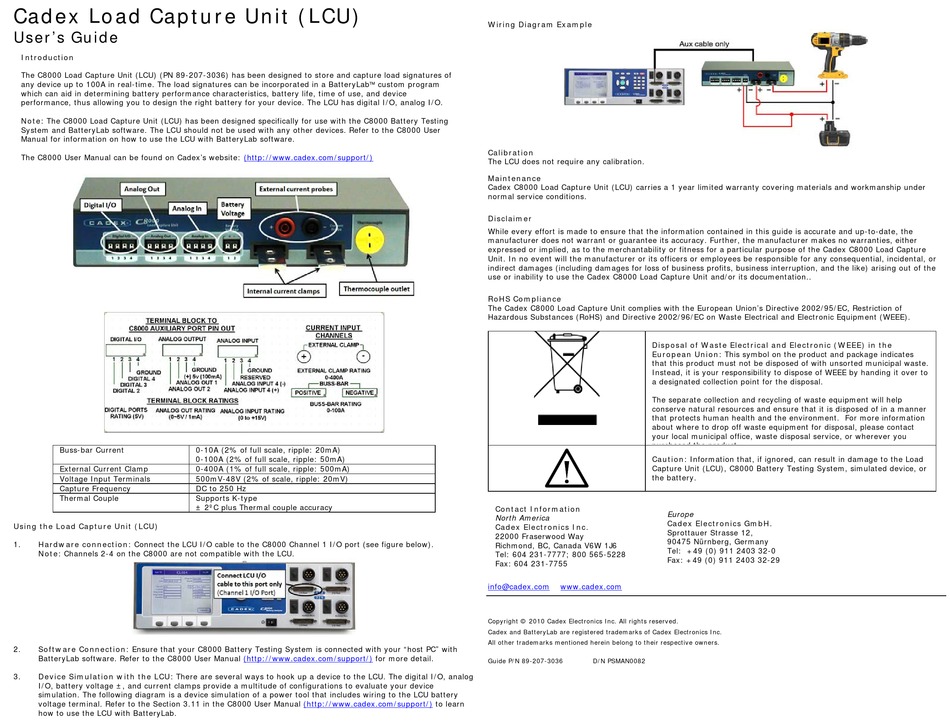

Cadex Load Capture Unit (LCU)
User's Guide
Introduction
The C8000 Load Capture Unit (LCU) (PN 89-207-3036) has been designed to store and capture load signatures of
any device up to 100A in real-time. The load signatures can be incorporated in a BatteryLab custom program
which can aid in determining battery performance characteristics, battery life, time of use, and device
performance, thus allowing you to design the right battery for your device. The LCU has digital I/O, analog I/O.
Note: The C8000 Load Capture Unit (LCU) has been designed specifically for use with the C8000 Battery Testing
System and BatteryLab software. The LCU should not be used with any other devices. Refer to the C8000 User
Manual for information on how to use the LCU with BatteryLab software.
The C8000 User Manual can be found on Cadex's website:
Buss-bar Current
External Current Clamp
Voltage Input Terminals
Capture Frequency
Thermal Couple
Using the Load Capture Unit (LCU)

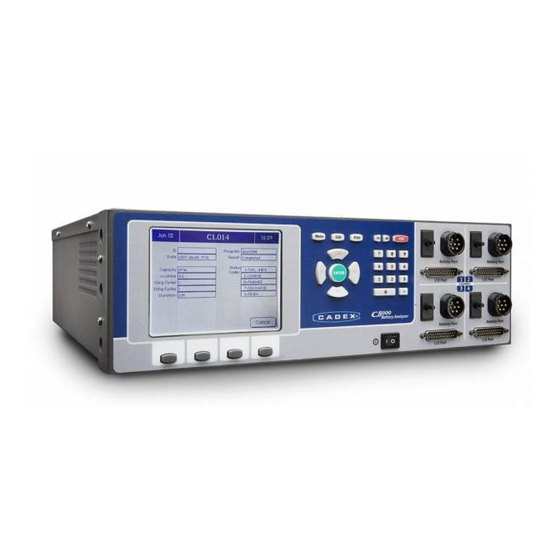

1. Hardware connection: Connect the LCU I/O cable to the C8000 Channel 1 I/O port (see figure below).
Note: Channels 2-4 on the C8000 are not compatible with the LCU.
2. Software Connection: Ensure that your C8000 Battery Testing System is connected with your "host PC" with
BatteryLab software. Refer to the C8000 User Manual
3. Device Simulation with the LCU: There are several ways to hook up a device to the LCU. The digital I/O, analog
I/O, battery voltage ±, and current clamps provide a multitude of configurations to evaluate your device
simulation. The following diagram is a device simulation of a power tool that includes wiring to the LCU battery
voltage terminal. Refer to the Section 3.11 in the C8000 User Manual
how to use the LCU with BatteryLab.
(http://www.cadex.com/support/)
0-10A (2% of full scale, ripple: 20mA)
0-100A (2% of full scale, ripple: 50mA)
0-400A (1% of full scale, ripple: 500mA)
500mV-48V (2% of scale, ripple: 20mV)
DC to 250 Hz
Supports K-type
± 2ºC plus Thermal couple accuracy
(http://www.cadex.com/support/)
(http://www.cadex.com/support/)
Wiring Diagram Example
Calibration
The LCU does not require any calibration.
Maintenance
Cadex C8000 Load Capture Unit (LCU) carries a 1 year limited warranty covering materials and workmanship under
normal service conditions.
Disclaimer
While every effort is made to ensure that the information contained in this guide is accurate and up-to-date, the
manufacturer does not warrant or guarantee its accuracy. Further, the manufacturer makes no warranties, either
expressed or implied, as to the merchantability or fitness for a particular purpose of the Cadex C8000 Load Capture
Unit. In no event will the manufacturer or its officers or employees be responsible for any consequential, incidental, or
indirect damages (including damages for loss of business profits, business interruption, and the like) arising out of the
use or inability to use the Cadex C8000 Load Capture Unit and/or its documentation..
RoHS Compliance
The Cadex C8000 Load Capture Unit complies with the European Union's Directive 2002/95/EC, Restriction of
Hazardous Substances (RoHS) and Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).
Contact Information
North America
Cadex Electronics Inc.
22000 Fraserwood Way
Richmond, BC, Canada V6W 1J6
Tel: 604 231-7777; 800 565-5228
Fax: 604 231-7755
info@cadex.com
Copyright © 2010 Cadex Electronics Inc. All rights reserved.
Cadex and BatteryLab are registered trademarks of Cadex Electronics Inc.
All other trademarks mentioned herein belong to their respective owners.
for more detail.
Guide P/N 89-207-3036
to learn
Disposal of Waste Electrical and Electronic (WEEE) in the
European Union: This symbol on the product and package indicates
that this product must not be disposed of with unsorted municipal waste.
Instead, it is your responsibility to dispose of WEEE by handing it over to
a designated collection point for the disposal.
The separate collection and recycling of waste equipment will help
conserve natural resources and ensure that it is disposed of in a manner
that protects human health and the environment. For more information
about where to drop off waste equipment for disposal, please contact
your local municipal office, waste disposal service, or wherever you
purchased the product
Caution: Information that, if ignored, can result in damage to the Load
Capture Unit (LCU), C8000 Battery Testing System, simulated device, or
the battery.
Europe
Cadex Electronics GmbH.
Sprottauer Strasse 12,
90475 Nürnberg, Germany
Tel: +49 (0) 911 2403 32-0
Fax: +49 (0) 911 2403 32-29
www.cadex.com
D/N PSMAN0082
