CHANCE® LADDER MONITOR KIT
Operating & Servicing Instructions:
For EHV Microampere Measurement on Bare hand Equipment
Introduction
The Chance Ladder Monitor Kit is used in connection
with EHV Bare hand maintenance procedures to detect
microampere leakage on the ladder before it is placed
into use. This is accomplished by connecting the meter
to the ladder, and taking readings as the ladder is
placed in contact with the conductor.
It is recommended that readings be taken periodically
during work progress to assure safe working
conditions, which could be altered by a change in the
atmosphere.

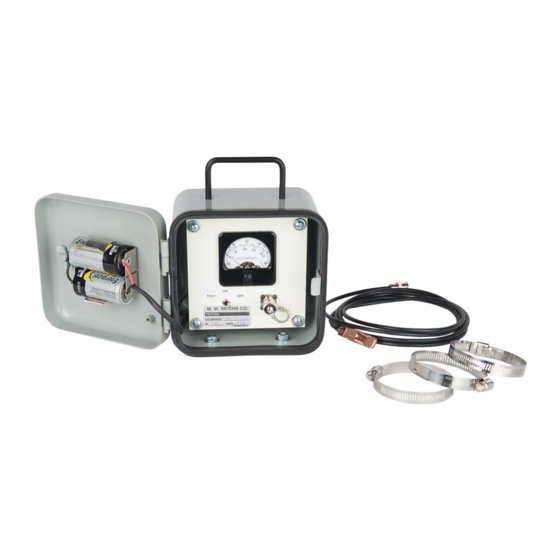

The kit consists of a 200 micro-amp ammeter, three
hose clamps, and connector cable assembly. The
mounting bracket serves to connect the meter to
ground. Instruction drawings for field assembly are also
included in the kit.
Note: Operating instructions included.
1
Hubbell Power Systems, Inc.
210 N. Allen St
Centralia, MO 65240
(573) 682-5521
www.hubbellpowersystems.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hubbell CHANCE C4020288
Summary of Contents for Hubbell CHANCE C4020288
- Page 1 The mounting bracket serves to connect the meter to ground. Instruction drawings for field assembly are also included in the kit. Note: Operating instructions included. Hubbell Power Systems, Inc. 210 N. Allen St Centralia, MO 65240 (573) 682-5521 www.hubbellpowersystems.com...
- Page 2 LADDER MONITOR KIT DIAGRAM...
- Page 3 INSTRUCTION MANUAL FOR LADDER MONITOR KIT INSTALLING LADDER MONITOR KIT PLACE LADDER ON LINE 2. INSTALL LADDER MONITOR KIT TO A GROUND OR GROUNDED STRUCTURE SUCH THAT WHEN THE SET SCREWS ARE TIGHTEND THE CASE WILL BE GROUNDED. 3. ATTACH CLIP TO LADDER TIE ROD. (CAUTION - BE SURE MONITOR IS IN THE "OFF" POSITION WHEN CONTACT IS MADE WITH LADDER ON ENERGIZED CONDUCTOR.) 4.
- Page 4 LADDER MONITOR KIT DRAWING...
- Page 5 For product inquiries, please contact your local sales representative or customer service representative. ©2019 Hubbell Incorporated. Because Hubbell has a policy of continuous product improvement, we reserve the right to change design and specifications without notice. Printed in the U.S.A. | TD_09_200_E...
