CHANCE

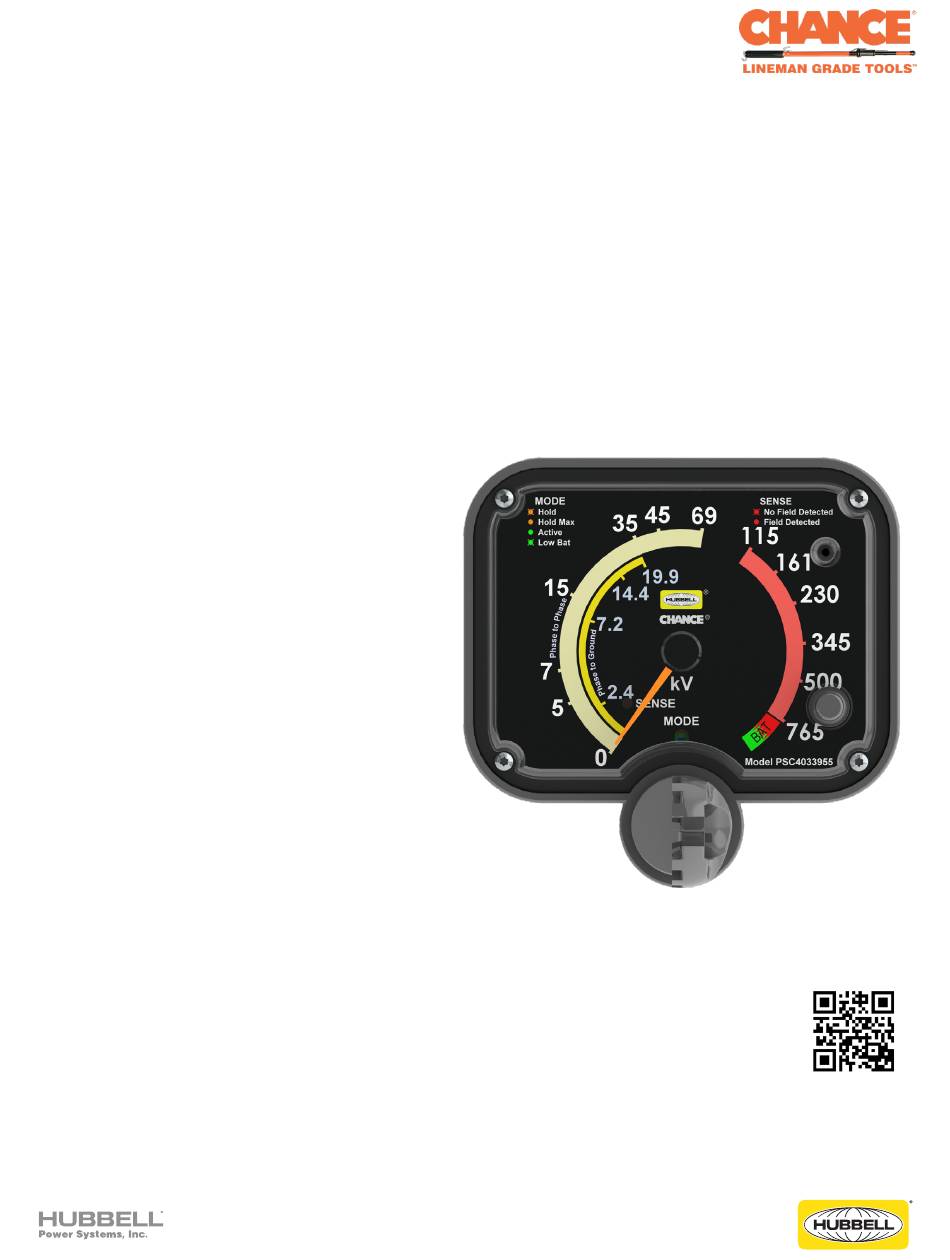

Operating Instructions Model No. PSC4033955
For use on Transmission voltages up to 765 kV AC
NOTICE: Before operating a Chance
Voltage Indicator (MRVI), thoroughly read, understand
and follow these instructions. Keep these instructions
with product for future reference.
Hubbell has a policy of continuous product improvement. Please visit hubbellpowersystems.com to confirm current design specifications.
Multi-Range Voltage Indicator
®
Multi-Range
®
©2018 Hubbell Incorporated | hpsliterature@hubbell.com | hubbellpowersystems.com
Advertisement
Table of Contents
Related Manuals for Hubbell CHANCE PSC4033955
Summary of Contents for Hubbell CHANCE PSC4033955
- Page 1 Voltage Indicator (MRVI), thoroughly read, understand and follow these instructions. Keep these instructions with product for future reference. Hubbell has a policy of continuous product improvement. Please visit hubbellpowersystems.com to confirm current design specifications. ©2018 Hubbell Incorporated | hpsliterature@hubbell.com | hubbellpowersystems.com...
- Page 2 A CAUTION refers to operating procedures, techniques, etc., that, if not followed carefully could RESULT IN DAMAGE TO EQUIPMENT or LOSS OF SERVICE to customers. NOTICE A NOTICE refers to information that is considered important but not hazard related. ©2018 Hubbell Incorporated | Chance Multi-Range Voltage Indicator Operating Instructions ®...
-
Page 3: Product Safety
Should additional information and details be desired or if situations arise which are not covered adequately for the user’s purpose, the specifics should be referred to Hubbell Power Systems. ©2018 Hubbell Incorporated | Chance Multi-Range Voltage Indicator Operating Instructions ®... - Page 4 Comes with a storage bag with a snaphook designed to attach to a lineman's belt • QR code located in the instructions, Quick Reference guide, and on the unit itself ©2018 Hubbell Incorporated | Chance Multi-Range Voltage Indicator Operating Instructions ®...
-
Page 5: Front Panel Information
To avoid such field distortions: keep the unit as far away as practical from all system components other than the specific conductor being tested. ©2018 Hubbell Incorporated | Chance Multi-Range Voltage Indicator Operating Instructions ®... - Page 6 The “Sense LED” may change from flashing to continuously illuminated at voltages less than 1 kV AC Phase-to-Phase due to the influences of other nearby energized conductors, static charges and other environmental conditions. ©2018 Hubbell Incorporated | Chance Multi-Range Voltage Indicator Operating Instructions...
-
Page 7: Hold Mode
"Mode LED" is continuously illuminated (orange color) and the audible alarm produces a continuous tone. To return to an active state, the indicator must be reset. ©2018 Hubbell Incorporated | Chance Multi-Range Voltage Indicator Operating Instructions ®... - Page 8 Both the electromagnetic action of current and electrostatic action of voltage can induce a high static condition on the de-energized circuit. Activity effects can exist between all conductor pairs. The MRVI indicates the combined field intensity from all other conductors, including ground wires. ©2018 Hubbell Incorporated | Chance Multi-Range Voltage Indicator Operating Instructions ®...
- Page 9 Phasing Set designed for this application will be required. WARNING Before and after each use, always test the unit on a known energized voltage source or with the Voltage Indicator Tester to verify proper operation. ©2018 Hubbell Incorporated | Chance Multi-Range Voltage Indicator Operating Instructions ®...
-
Page 10: Battery Replacement
After the battery drawer and screws are replaced in the housing, test the function of the unit on a known energized voltage source or with the Voltage Indicator Tester, model PSC4033582, for proper operation. ©2018 Hubbell Incorporated | Chance Multi-Range Voltage Indicator Operating Instructions ®... -
Page 11: Select Button
For safety reasons, the app only displays the information from the MRVI and does not control the operation of the MRVI. ©2018 Hubbell Incorporated | Chance Multi-Range Voltage Indicator Operating Instructions... -
Page 12: Maintenance
See page 14 "Specifications" for operating and storage temperatures and humidity ranges. CAUTION Do not drop tool as accuracy may be impaired. Repairs For Hubbell Power Systems authorized repair or factory calibration, please contact: M.W. Bevins Co. 9903 E. 54th St. Tulsa, OK 74146 (918) 627-1273 (918) 627-1294 (FAX) www.bevinsco.com... -
Page 13: Optional Accessories
Optional Accessories Indicator Tester - PSC4033582 15 kV Bushing Adapter - T4030428 15 kV, 25 kV, 35 kV Bushing Adapter - T4030857 Elbow Adapter - T4030856 ©2018 Hubbell Incorporated | Chance Multi-Range Voltage Indicator Operating Instructions ®... -
Page 14: Specifications
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ©2018 Hubbell Incorporated | Chance Multi-Range Voltage Indicator Operating Instructions ®... - Page 15 Notes ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ©2018 Hubbell Incorporated | Chance Multi-Range Voltage Indicator Operating Instructions ®...
- Page 16 Hubbell Power Systems, Inc. 210 N. Allen St Centralia, MO 65240 www.hubbellpowersystems.com Hubbell has a policy of continuous product improvement. Please visit hubbellpowersystems.com to confirm current design specifications. PSP4033799 TD_09_150_E Rev A. ©2018 Hubbell Incorporated | hpsliterature@hubbell.com | hubbellpowersystems.com...
