Summary of Contents for Memorex MPJ300

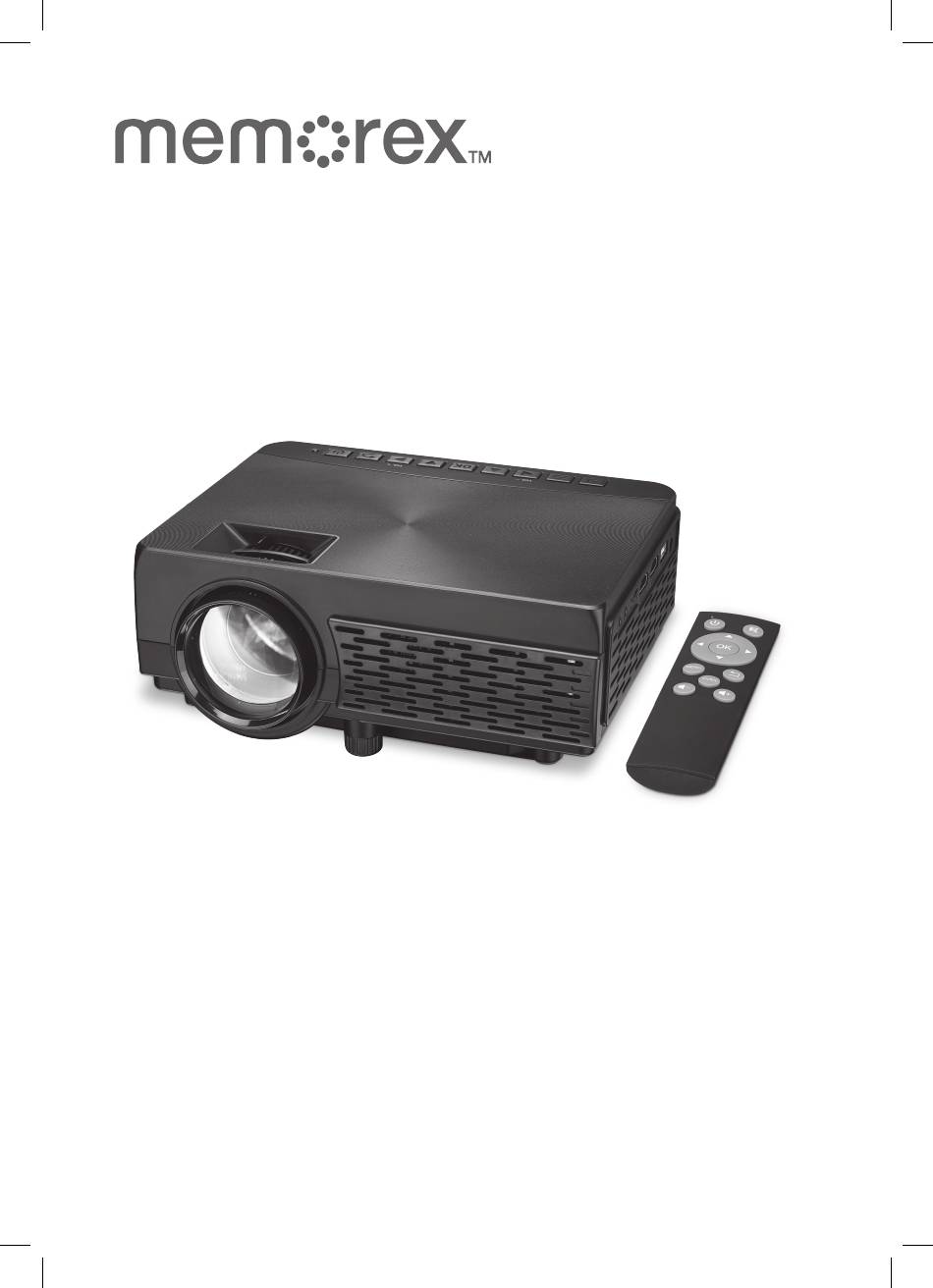

- Page 1 Mini Projector with Bluetooth User’s Guide for Model MPJ300 v2621-01...
- Page 2 Safety Instructions & Warnings Important Safety Instructions Battery Warnings • Read these Instructions. • WARNING: Do not ingest battery, Chemical Burn Hazard. • Keep these Instructions. • If the remote control supplied with this product contains a coin/button cell battery and the coin/button cell battery is • Heed all Warnings. swallowed, it can cause severe internal burns in just 2 hours • Follow all instructions. and can lead to death. • Do not use this apparatus near water. • Keep new and used batteries away from children. If the • Clean only with a dry cloth. battery compartment does not close securely, stop using the • Do not block any ventilation openings. Install in accordance product and keep it away from children. with the manufacturer’s instructions. • If you think batteries might have been swallowed or • Do not install near any heat sources such as radiators, heat placed inside any part of the body, seek immediate medical registers, stoves, or other apparatus (including amplifiers) attention.
- Page 3 • If the air vents become clogged or dirty, use a vacuum or air WArNINg: To reduce the risk of electric CAUTION compressor and nozzle to clean. Do not use canned air, as the shock, do not remove cover (or back). No RISK OF ELECTRIC SHOCK DO NOT OPEN gas may leave a residue inside the enclosure. user-serviceable parts inside. Refer servicing ATTENTION to qualified service personnel. • CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH RISQUE D' ÉLECTROCUTION NE PAS OUVRIR WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. The exclamation point within an equilateral • Mains plug is used as disconnect device and it should remain triangle is intended to alert the user to readily operable during intended use. In order to disconnect the presence of important operating and the apparatus from the mains completely, the mains plug maintenance (servicing) instructions in the should be disconnected from the mains socket outlet literature accompanying the appliance. completely. • CAUTION: Use of controls or adjustments or performance The lightning flash with arrowhead symbol, of procedures other than those specified may result in within an equilateral triangle, is intended to...
-
Page 4: Table Of Contents
Table of Contents Overview � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5 Features Includes Projector �... -
Page 5: Overview
Overview Features Includes • Supports 480p, 720p, 1080i, 1080p • Remote control: requires 2 AAA batteries (not included) • Native Resolution: 800 x 480 • 3.5mm to 3 x RCA audio/video cable • Aspect Ratio: 16:9, 4:3 • AC/DC power adapter • LED bulb • User's Guide • Brightness: 42 ANSI lumens... -
Page 6: Projector
Projector Features & Inputs... -
Page 7: Controls
1. Projector Lens 8. Height Adjustment Peg 2. Focus Adjustment 9. Micro SD Card Port 3. Keystone Adjustment 10. HDMI Input 1 & 2 4. Controls/Power Indicator 11. USB Port 5. VGA/PC Input 12. 3.5mm Audio Output 6. Remote Sensor (duplicated on the front of the 13. -
Page 8: Remote
Remote Functions Power Return Press to power ON/OFF. Press to exit the current on-screen menu. Mute Source Press to mute volume. Press to select media source Arrows/OK (VGA, HDMI, AV, USB, SD). Press to navigate and confirm VOL+ / VOL− selections in Settings and other menus. -
Page 9: Menu Options
Menu Options Change projector settings by pressing the Menu button and selecting the Setup icon. Note: Not all Settings are user adjustable. Picture Menu 1. Picture Mode Select Vivid, User (custom), Soft, or Standard. 2. Contrast, Brightness, etc Set Picture Mode to "User" to adjust these settings. 3. -
Page 10: Sound Menu
Sound Menu 1. Sound Mode Select Music, Movie, User (custom), Sports, or Standard. 2. Treble, Bass Set Sound Mode to "User" to adjust these settings. 3. Balance Adjust the audio balance. 4. Bluetooth Speaker ON/OFF Turn Bluetooth capability ON/OFF. -
Page 11: Options Menu
Options Menu 1. OSD Language Select English, French, or Spanish for the On Screen Display. 2. Restore Factory Default Reset the projector and restore all of the default settings. 3. Rotate Flip and mirror the screen image. 4. OSD Duration Set how long the menu will be displayed after you stop using the menu. -
Page 12: Projector Setup
Projector Setup Power Plug the AC/DC power adapter (included) into a standard wall outlet and the DC power input on the rear of the unit. After connecting power, please allow approximately 5 seconds to pass before powering the unit ON. Projector Placement For best results, place the projector in a dark room or other dimly lit area. -
Page 13: Viewing Options
FRONT TABLE Viewing Options The projector can be used to project onto a wall or screen, mounted from the ceiling or on a FRONT CEILING table. When projecting from the rear position, a special screen will be needed (not included) to display the image. -
Page 14: Ceiling Mount
Ceiling Mount To mount the projector from the ceiling, you will need mounting hardware recommended by a professional. Mounting hardware and instructions are not included. Before mounting, be sure the ceiling structure can support the weight of the projector and the mount itself. -
Page 15: Angle Adjustment
Angle Adjustment Use the Angle Adjustment Knob to fine tune the projector's height. Image Adjustment 1. Focus Adjustment Increase or reduce to image size to sharpen image. 1. Keystone Adjustment Adjust image corners to reduce image distortion. -
Page 16: Connecting Your Projector
Connecting Your Projector HDMI HDMI offers superior sound and picture quality, and is the easiest way to play media from a computer, Blu-Ray player, or other device with an HDMI output. Requires an HDMI cable (not included) and a device with an HDMI output. 1. -
Page 17: Audio/Video Input
Audio/Video Input Requires a 3.5mm to RCA audio/video cable (included). 1. Connect the 3.5mm to RCA audio/video cable to the AV input on the unit. 2. Connect the 3.5mm to RCA audio/video cable to the RCA stereo audio outputs and composite video output on the media player. -
Page 18: Micro Sd & Usb Storage Devices
Micro SD & USB Storage Devices Supports Micro SD cards and USB drives up to 32GB. Supports AVI, MOV file formats. 1. Load a USB drive into the USB Port or Load MicroSD card into the SD Card Slot. 2. Set the Source to Media Player, then use the Arrow buttons to select "C:Drive". 3. -
Page 19: External Audio
External Audio The MPJ300 has a built-in speaker. However, you can also connect external speakers for more sound options. Bluetooth - Pairing to Wireless Speakers or a Sound Bar NOTE: Bluetooth is OFF by default when the projector first powers ON� Bluetooth can be turned ON or OFF from the Sound Menu�... -
Page 20: Customer Support
Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas frecuentes, visite la sección de apoyo en: www�memorex�com Pour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour obtenir des réponses à...
