EZ-ACCESS Portable Partition Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Instructions
Portable Partition

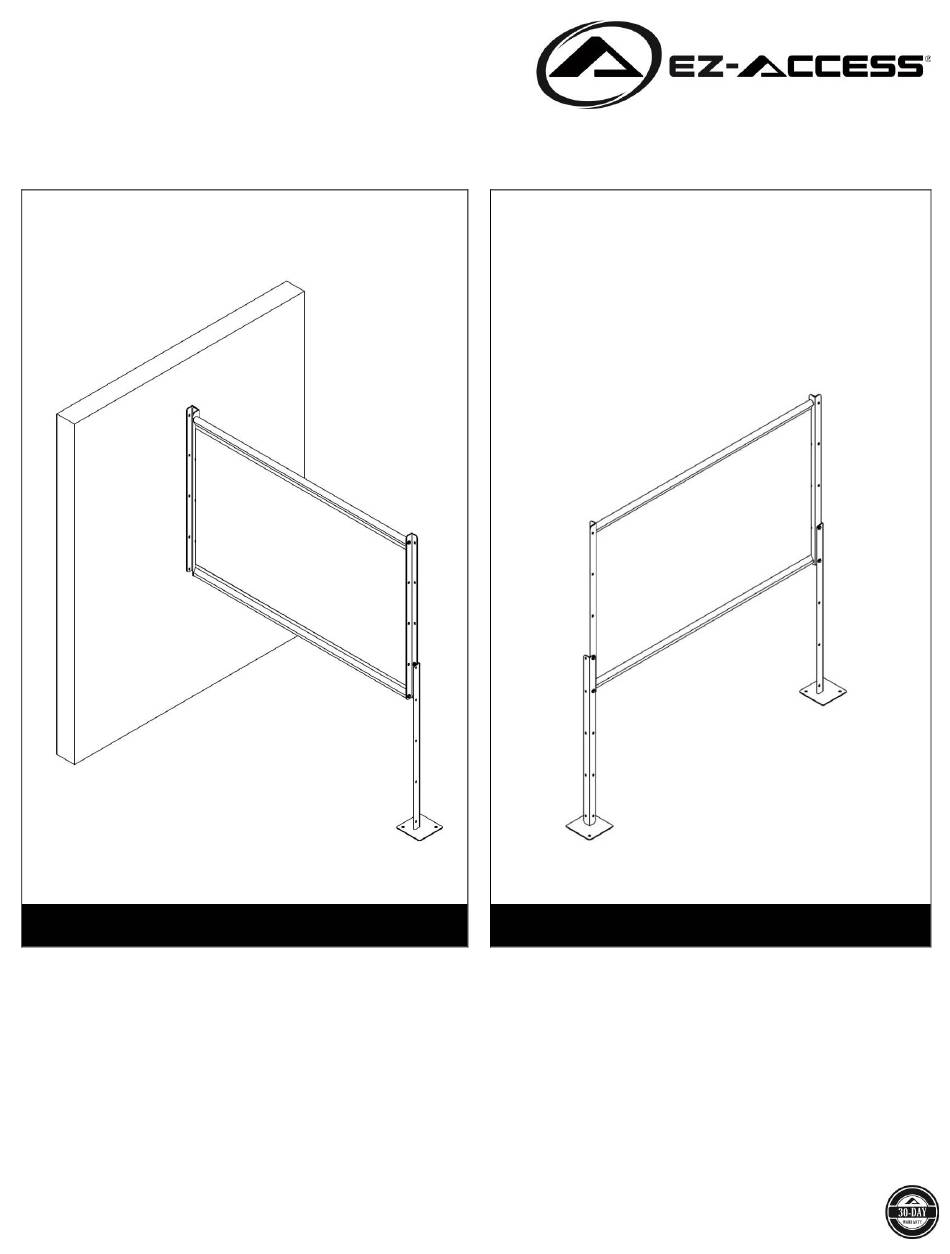

WALL MOUNT
FLOOR STAND
Base anchoring and wall mounting hardware is not included.
30-day Limited Warranty
®
© EZ-ACCESS
, a division of Homecare Products, Inc. All rights reserved.
All text and images contained in this document are proprietary and may not be shared, modified,
19903 10-19-2020
distributed, reproduced, or reused without the express written permission of EZ-ACCESS.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Portable Partition and is the answer not in the manual?

Questions and answers

Related Manuals for EZ-ACCESS Portable Partition

Summary of Contents for EZ-ACCESS Portable Partition

  • Page 1 © EZ-ACCESS , a division of Homecare Products, Inc. All rights reserved. All text and images contained in this document are proprietary and may not be shared, modified, 19903 10-19-2020 distributed, reproduced, or reused without the express written permission of EZ-ACCESS.

  • Page 2: Symbols And Warnings

    Ensure all anchoring/mounting locations are substantial and of sound construction. Consult with a professional contractor if you need assistance or additional information. Before each use, check the portable partition for worn, loose, missing, unstable, or damaged parts. If you find any of these conditions, do not use.
  • Page 3 1.2. Confirm that all components are present and inspect the shipment for damaged or missing parts. If damaged or missing parts are noted, do not install or use the portable partition. When planning for the installation, note that the portable partition is adjustable in heights of 4’, 5’, 6’, and 7’.
  • Page 4 ASSEMBLE PANEL FRAME 4.1. The 36” and 48” panel tubes and vinyl panels come in a standard width of 72”. If trimming is needed to obtain a narrower width, refer to ‘SECTION 8’ and complete steps 8.2 through 8.5 before proceeding to next steps.
  • Page 5 2-each nylon insert locknuts, bolt the panel frame to either a single or quad base (FIG. 5.1). 5.1.1. Single and quad bases have a series of adjustability holes to accommodate portable partition heights of 4’, 5’, 6’, and 7’. Ensure that the proper holes are used to attain the desired height.
  • Page 6 ATTACH WALL BRACKET TO WALL 6.1. ATTACHING TO WOOD WALL STUDS 6.1.1. Bolt one side of the panel frame to a single base (see ‘SECTION 5’ for instructions). 6.1.2. Bolt the other side of the panel frame to the wall bracket (FIG. 6.1). 6.1.2.1.
  • Page 7 FIG. 6.3 FIG. 6.4 Page | 7...
  • Page 8 6.2. ATTACHING TO CONCRETE WALL Concrete wall must be 4” minimum thickness and of sound construction. 6.2.1. Bolt one side of the panel frame to a single base (see ‘SECTION 5’ for instructions). 6.2.2. Bolt the other side of the panel frame to wall bracket (FIG. 6.1). To determine the correct orientation of the wall bracket, match the angle tube support positioning as described in ‘SECTION 4’, step 4.3.
  • Page 9 ATTACH PANEL FRAME TO WALL BRACKET 7.1. Using 2-each 5/16"-18 X 1" hex bolts, 4-each flat washers (1 under each bolt and one under each nut), and 2-each nylon insert locknuts, reattach panel frame to wall bracket using the uppermost and lowermost holes (FIG.
  • Page 10 TRIM/CUT PANEL WIDTHS 8.1. The panel tubes and vinyl panel come in a standard width of 72”. If trimming is needed to obtain a narrower width, the panel tubes and vinyl panel can be cut to the desired width (FIG. 8.1). 8.2.

  • Page 11: Various Configurations

    VARIOUS CONFIGURATIONS Portable partitions can be assembled in various configurations. For reference purposes only, FIG. 9.1 shows an angled assembly and FIG. 9.2 shows a standard assembly with the addition of an optional lower panel frame. FIG. 9.1 FIG. 9.2 Page | 11...
  • Page 12 ANCHOR SINGLE AND QUAD BASES 10.1. ATTACHING TO WOOD FLOOR JOISTS 10.1.1. Anchor single and quad bases into floor joists of sound construction. 10.1.1.1. Locate the floor joist, then place base plate mounting holes over floor joist centerline (FIG. 10.1). Using holes in base plate as a template, mark drill locations on floor.

  • Page 13: Care And Maintenance

    FIG. 10.2 CARE AND MAINTENANCE 11.1. Before each use, check the portable partition for worn, loose, missing, unstable, or damaged parts. If you find any of these conditions, do not use. 11.2. Store the portable partition in a cool, dry place when not in use.
