- Page 1 Owner’s Manual 11.6” Capacitive Touch Screen Display TSD-101 w ww.havis.com 1-800-524-9900...
- Page 2 Before Beginning (Original Instructions) Havis is pleased to provide this Owner’s Manual to aid in the proper installation and use of the TSD-101, 11.6” Capacitive Touch Screen Display. For questions regarding the set-up of your TSD-101, please contact Havis at 1- 800-524-9900 or visit www.havis.com...
- Page 3 Bruce Jonik, Director of Engineering , Havis, Inc. FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modifications to the model TSD-10X not expressly approved by Havis, Inc. could void the user's authority to operate this equipment.

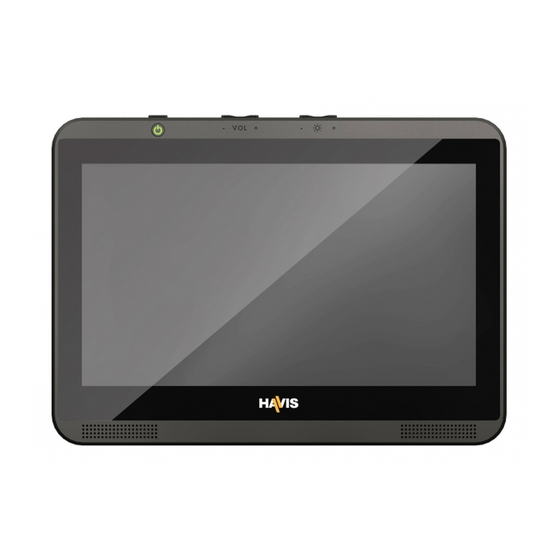

- Page 4 Parts Included 11.6” LCD Screen Power Brightness Volume Button Control Control (- and +) (- and +) Power Indicator 2-Point Multi-Touch Capacitive Screen Speaker (left) VESA 75 Mounting (4x M4 thread) Strain Relief Anchor Points...
- Page 5 4. Washers, M4 (5) Tools required for installation: • #2 Phillips (For M4 Pan Head Screws) Power Supply, Cables, & Mounting Hardware (LPS-168) (Havis Part # HW-EL-0079) (Havis Part # HW-EL-0006) (Havis Part # HW-EL-0078) Power Supply Hardware includes: 1. Zip Ties (2) 2.
- Page 6 Port Replication Capability Side view Power 12.0 VDC-IN USB 3.0 USB 3.0 (to Vehicle Docking Station) (to Optionial Keyboard) HDMI 1.3 (to Vehicle Docking Station) BE CERTAIN TO CONNECT USB CABLESTO THE CORRECT USB PORT ON THETSD-101 AS OUTLINED IN SIDE VIEW. Bottom view USB 3.0...
- Page 7 Plug into cigarette lighter receptacle connected to vehicle power. The LED on the Lind Power Supply will illuminate green and the power indicator on the Touch Screen Display will illuminate amber to indicate that power is connected. www.havis.com • 1-800-524-9900...
- Page 8 Vehicle BE CERTAIN TO CONNECT USB CABLES TO Docking THE CORRECT USB PORT ON THE TSD-101 AS OUTLINED IN SIDE VIEW ON PAGE 6. Station Connect one end of the USB 2.0 cable (male-female) to Touch Screen Display and the other end to the optional keyboard (not included).
- Page 9 (not included with TSD-101)(continued) Use provided ZipTies to secure each cable at both strain relief points. Vehicle Mounting Havis provides vehicle-specific mounting solutions for the TSD-101. To check availability of a mounting solution for your vehicle, go to www.havis.com or call 1-800-524-9900 and search for C-DMM-2000 Series products.
- Page 10 Operating Basics Turning On/Off With the Touch Screen Display connected to the Lind Power Supply and the vehicle docking station, press the Power Button. The Power Indicator will illuminate to a green light (Powered ON Mode). The Touch Screen Display receives data from the system and displays the output on the screen.
- Page 11 Operating Basics (continued) Using Control Buttons Volume: Press and hold either button (VOL+ or VOL-) until the volume OSD appears on the screen. Then, press (+) to increase, or (-) to decrease the volume. Brightness: Press and hold either button (+ or -) until the brightness OSD appears on the screen.
- Page 12 KB-108 Havis Rugged Backlit USB Keyboard with Integrated Touch Pad and Emergency Key. DS-DA-603 HAVIS USB-C Hub is designed to work with devices equipped with Samsung DeX technology, and supports mobile devices with full HD screen mirroring technology. Havis, Inc.
