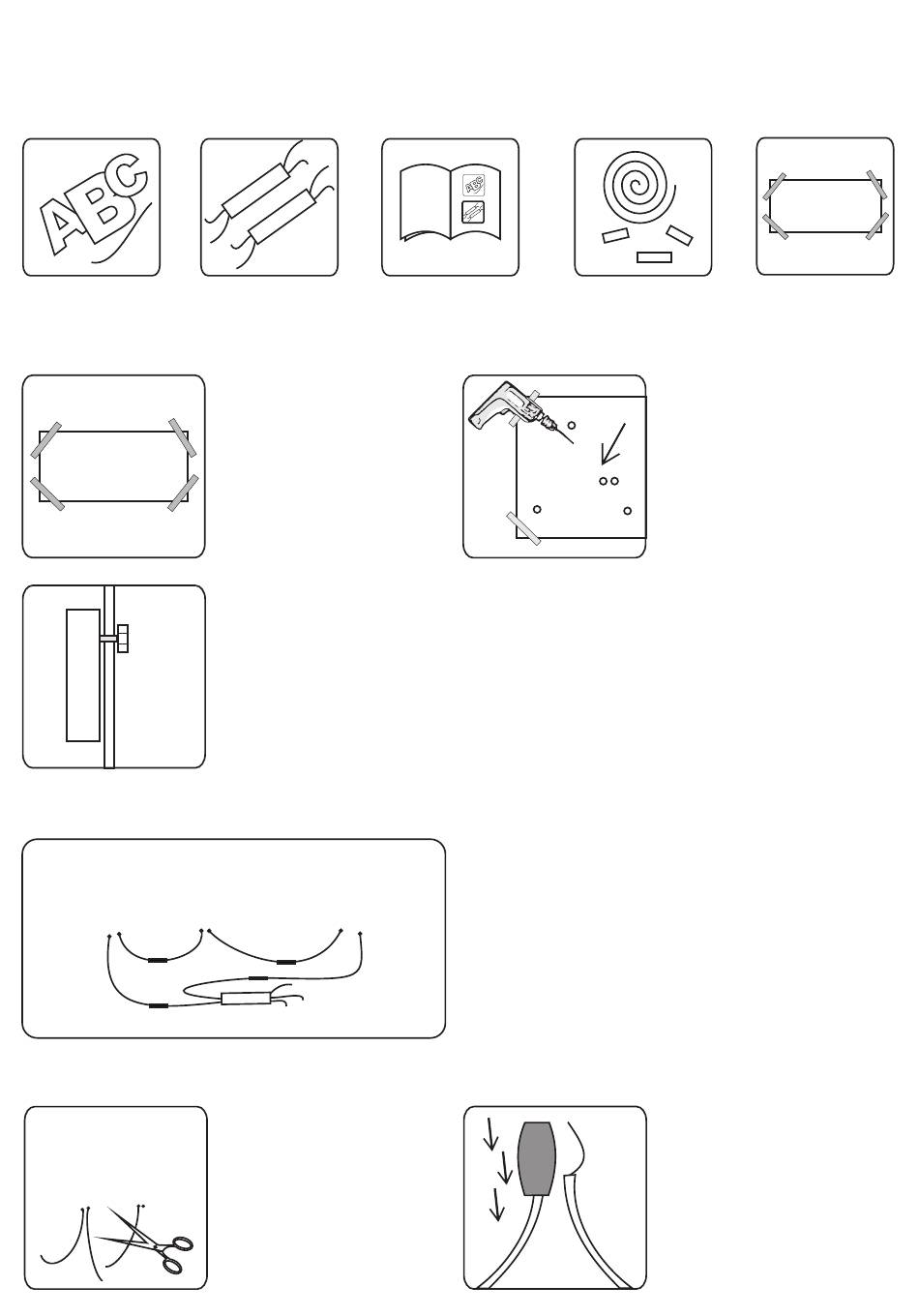

Installation instruction SF letters –
Single letters with single converters
1., Purchased parts package
letters with cable
connection
2., Fastening of the letters
B
A
C
3., Wiring of letters to converters
B
A
red
black
black
black
red
4., Proper connection of wires
B
A
converters
1., Adjust the drawing
3., Fix the letters
C
black
red
red
1., Cut wires to length
B
A C
wiring diagram and
assembling aid
A
S-E-R-I-E-S C-O-N-N-E-C-T-I-O-N!
Always connect a red wire to a black one as shown
in the picture.
Attention!
Inversion of the wires can cause damages and
malfunction!
incidentals
2., Drill the fixing and cable
holes according to the
drawing
2., Impose shrink hose on
B
A
C
installation drawing
Advertisement
Table of Contents
Related Manuals for Scan Sign SF Series
Summary of Contents for Scan Sign SF Series
- Page 1 Installation instruction SF letters – Single letters with single converters 1., Purchased parts package letters with cable converters wiring diagram and installation drawing incidentals connection assembling aid 2., Fastening of the letters 2., Drill the fixing and cable 1., Adjust the drawing holes according to the drawing 3., Fix the letters...
- Page 2 4 ., Tu r n w i r e s d o w n a n d 3., Strip 2-3cm of insulation position middle of the hose and twist wires 5 cm over the twisted wires 2 cm Heat hose with hot air or fire until the joint has been completely closed 5., Installation of converters and power connection...
