Woo Audio WA11 topaz Quick Start Manual

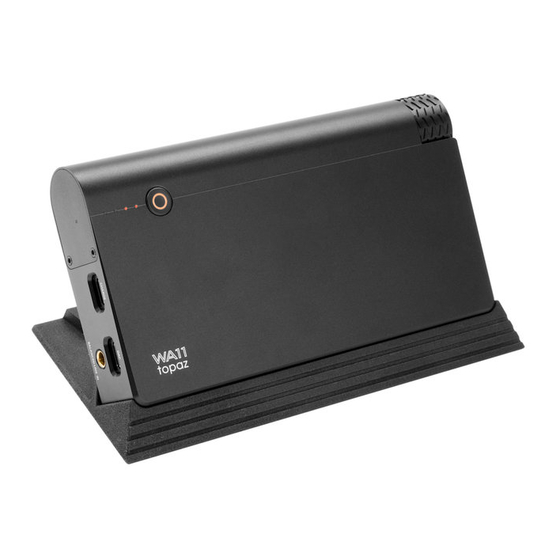

WA11 topaz
Headphone Amplifier / DAC
Quick Start Guide
In the box
o
WA11 topaz headphone amplifier / DAC (1)
o USB 2.0 type-A to type-C cable (1)
o USB 2.0 type-C to type-C OTG cable (1)
o Alcantara ® protection pouch (1)
o USB Charger (1)
o Wall plug adapter for
UK, EU, Australia (3)
Quick
o Start Guide (1)
Overview
Charge indicator light
RED- charging
GREEN- fully charged
USB type-C
charge port
Analog 4.4mm
balanced LINE input
USB type-C
Audio port
Input select switch
DAC or LINE IN
Volume control
Note: normal to hear some
noise briefly when the volume
knob is rotated from the
minimum position.
Headphone output:
4.4mm balanced
For use with full-sized headphones
!
Do not place the unit near heat or water
sources, or in a place subject to direct sunlight.
Avoid cleaning with abrasive pads or solvents,
such as thinner, benzene, or rubbing alcohol.
The aluminum case can dent, scratch, or
deform if mishandled or dropped. Incorrect
storage or use of your WA11 may void the
factory warranty.
Power button:
Press and hold for 2 seconds
to turn ON / OFF
Level select switch
HI or LO output
Video tour
Keep the product away from children.
Battery State LEDs
Recharge the battery by
connecting the WA11 to the
supplied USB charger, whether
it is on or off. However, the
battery recharges more quickly
if the unit is off. When it is on,
you can monitor the battery
charge level using the Battery
State LEDs.
When all four LEDs are not lit,
the battery is low and should
be charged.
Level indicator (minimum)
Headphone output:
6.3mm unbalanced
