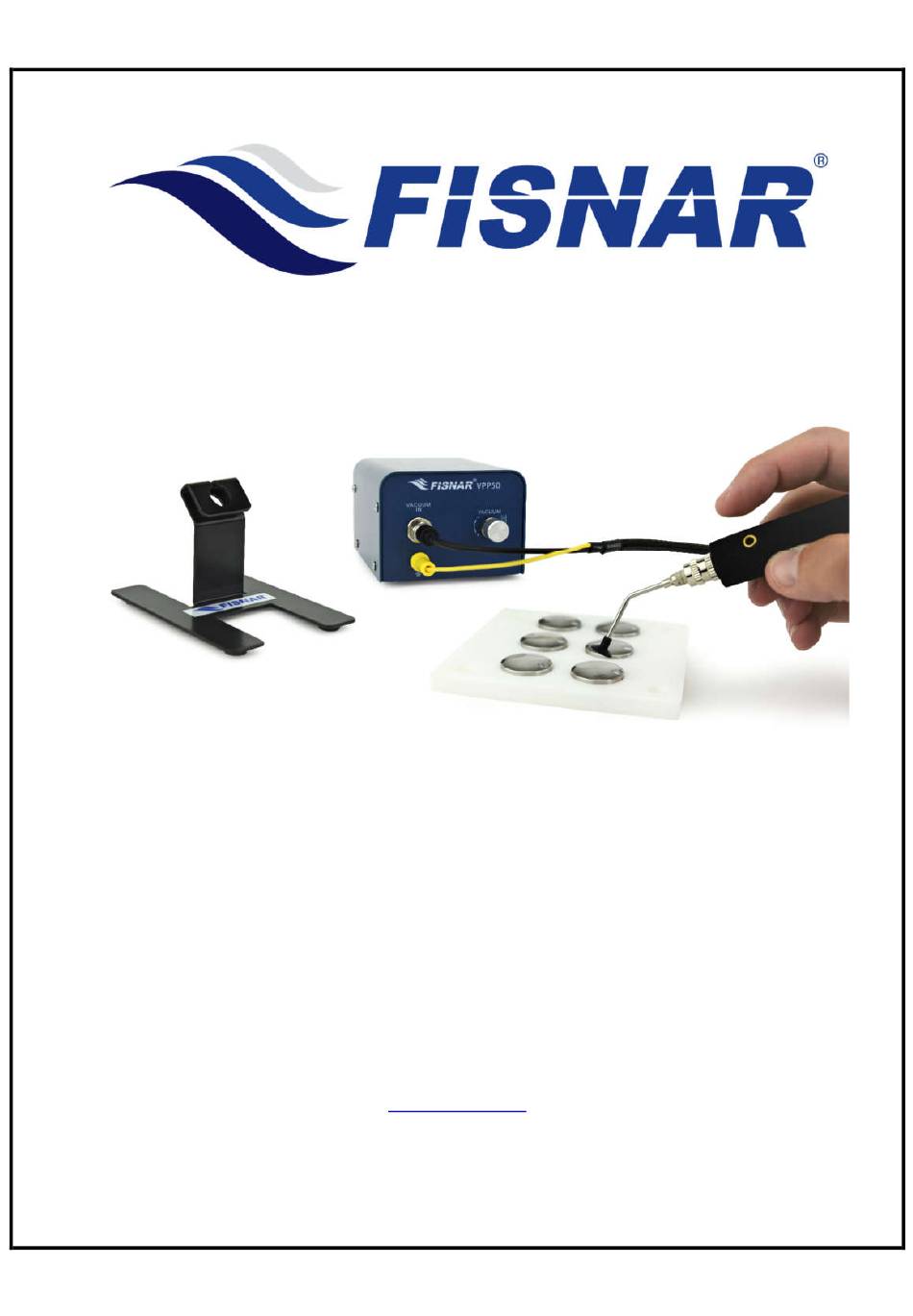

- Page 1 VPP50 Vacuum Pickup System Operating Manual info@fisnar.com www.fisnar.com...
-
Page 2: Table Of Contents
VPP50 Vacuum Pickup System Operating Manual Table of Contents Machine Overview Product Safety Statements Specifications Accessories External Controls Machine Setup Vacuum Pickup Pen Setup Operation Mode External Machine Actuation Spare Parts List © 2020 Fisnar - 2 - VPP50 Rev 01... -
Page 3: Machine Overview
OVERVIEW Model VPP50 Vacuum Pick System The VPP50 Vacuum Pickup System is designed for safely and efficiently picking up and placing delicate lightweight components with ease. Unlike conventional tweezers, the use of a rubber suction cup prevents possible accidental damage or contamination to the component during the lifting and positioning process. -
Page 4: Product Safety Statements
VPP50 Vacuum Pickup System Operating Manual SAFETY General Precautions Do not operate the machine in excess of its maximum ratings / settings. Make sure that the input air supply is clean and dry. A 5 micron air filter/regulator (item number 560567) is recommended to ensure the input air supply is clean and dry. - Page 5 Do not smoke or use near an open flame. Do not expose the machine directly to sunlight. Maintenance The VPP50 is generally a maintenance free machine. However, to ensure smooth operation please follow the below instructions. Only use non-woven cleaners on the machine.
-
Page 6: Specifications
VPP50 Vacuum Pickup System Operating Manual SPECIFICATIONS Dimensions (W x D x H): 3.78” x 5.04” x 3.00” (96 x 128 x 76 mm) Weight: 0.84 lbs (0.38 kg) Relative Humidity: 20 – 90% (No Condensation) Operating Temperature: 50 – 104℉ (10 – 40℃) -
Page 7: External Controls

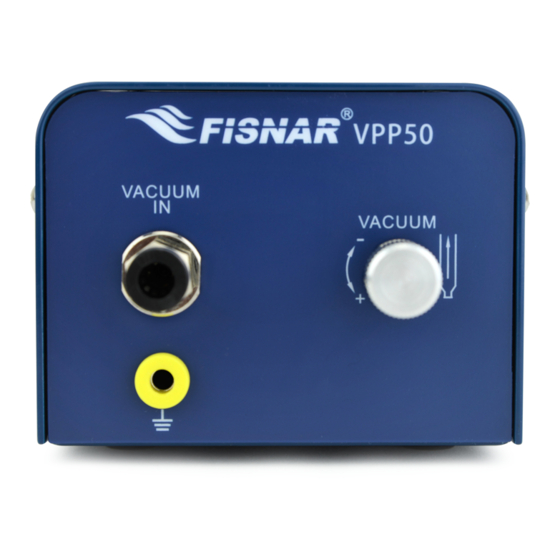

VPP50 Vacuum Pickup System Operating Manual EXTERNAL CONTROLS FRONT REAR FIG. 1: External Controls – Overview Item Illustration Item Illustration Vacuum Inlet Port ESD Grounding Point ESD Input Connector Air Inlet Port Vacuum Control Exhaust Port © 2020 Fisnar - 7 -... - Page 8 VPP50 Vacuum Pickup System Operating Manual EXTERNAL CONTROLS FIG. 2: External Controls – Front Vacuum Inlet Port The air connector on the vacuum pickup pen is connected here. The electrical plug on the vacuum pickup pen is connected here. ESD Input Connector This does not apply if using optional vacuum pickup pen (#580046).
- Page 9 VPP50 Vacuum Pickup System Operating Manual EXTERNAL CONTROLS FIG. 3: External Controls - Back When the machine is in use, air will be exhausted from this connector. Exhaust A muffler (#560024) can be fitted into the exhaust outlet port to reduce the emitted noise of the exhausted air.
-
Page 10: Machine Setup
VPP50 Vacuum Pickup System Operating Manual MACHINE SET UP FIG. 4: Machine Setup Connect air hose (1) from compressed air 70-100 psi (5-7 bar) to the air inlet port on the back of the machine. See FIG. 4. Insert the air connector and ESD grounding plug (2) from the vacuum pickup pen to the ports on the front of the machine. -
Page 11: Vacuum Pickup Pen Setup
VPP50 Vacuum Pickup System Operating Manual VACUUM PICKUP PEN SETUP FIG. 5: Vacuum Cup Attachment Select the correct size vacuum cup based on the size and weight of the component to be picked up. Select the correct size pickup tip, by choosing one which has a larger outside diameter, than the internal hole on the stem of the chosen vacuum cup. -
Page 12: Operation Mode
VPP50 Vacuum Pickup System Operating Manual OPERATION MODE FIG. 6: Operation Mode Place the suction cup installed on the pick-up pen over the component and apply a light force so there is no gap between the surface of the suction cup and surface of the component. -
Page 13: External Machine Actuation
5601906 Vacuum Transducer (inc. fittings) 561851 Air Inlet Hose Assembly 5601947 ESD Grounding Cable Assembly 5601948 Vacuum Pickup Pen Holder 580046-ESD Vacuum Pickup Pen (VPP50) – ESD Safe *Item Not Shown © 2020 Fisnar - 13 - VPP50 Rev 01... -
Page 14: Spare Parts List
VPP50 Vacuum Pickup System Operating Manual SPARE PARTS LIST – QK-VTK Ref. Item Number Description QK-VTK Vacuum Tip Selection Kit 14ga 45° Vacuum Pickup Tip 580052 18ga 45° Vacuum Pickup Tip 580053 5601942 14ga Vacuum Pickup Tip 5601941 18ga Vacuum PickupTip 580047 Vacuum Cup –... - Page 15 In no event shall manufacturer be liable for consequential or incidental damages. A return authorization is required prior to shipping a defective machine to the factory. Manufacturer reserves the right to make engineering or product modifications without notice. info@fisnar.com www.fisnar.com...
