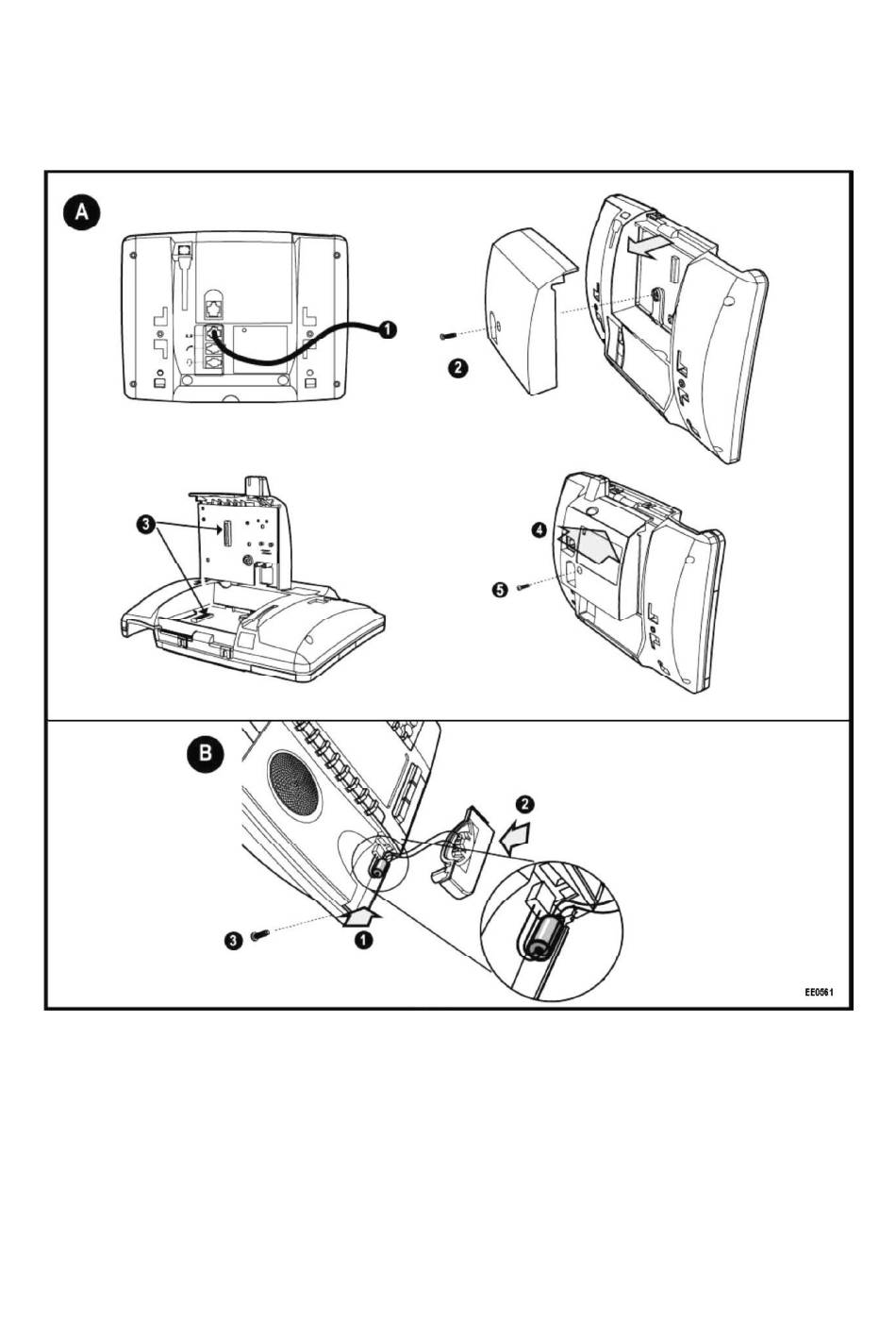

- Page 1 BT Quantum Bluetooth Module Installation for the 5330 or 5360 IP Phone Note: For the 5360 IP Phone the jacks in the diagrams below are oriented horizontally.
- Page 2 • A Bluetooth Cordless Handset and Charging Plate • A 3rd-party Bluetooth headset The 5330/5360 IP Phones are LAN-powered. They supply power to the Bluetooth Module and also provide power to charge the Bluetooth handset. NOTE: The Bluetooth Module cannot be installed on a phone set that has a Line Interface Module, IP PKM Module, or 5310 Conference Unit installed.
- Page 3 Attaching the Bluetooth Handset and Charging Plate to the 5330/5360 IP Phone (See Figure B) • Disconnect the LAN power supply cable from the back of the phone if you have not already done so. Detach the corded handset from the phone if installed.
- Page 4 Pairing a Bluetooth Headset Device NOTE: 3rd-party Bluetooth headset devices do not physically attach to a 5330/5360 IP Phone, nor can they be powered by the phone. Follow the Bluetooth headset manufacturer’s instructions for pairing the device. Ensure that the battery of the Bluetooth Headset Device is at least partially charged.
