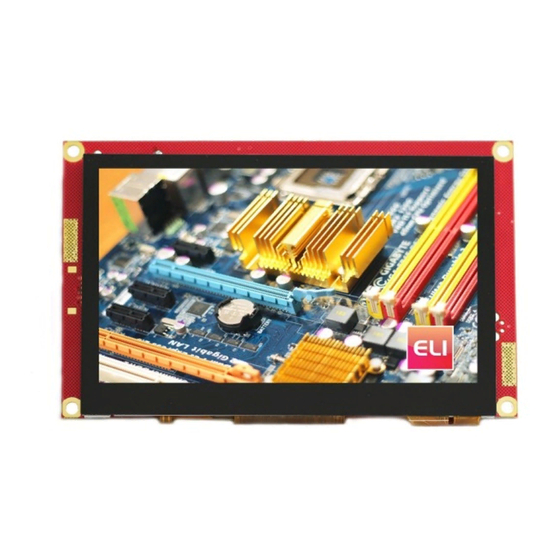

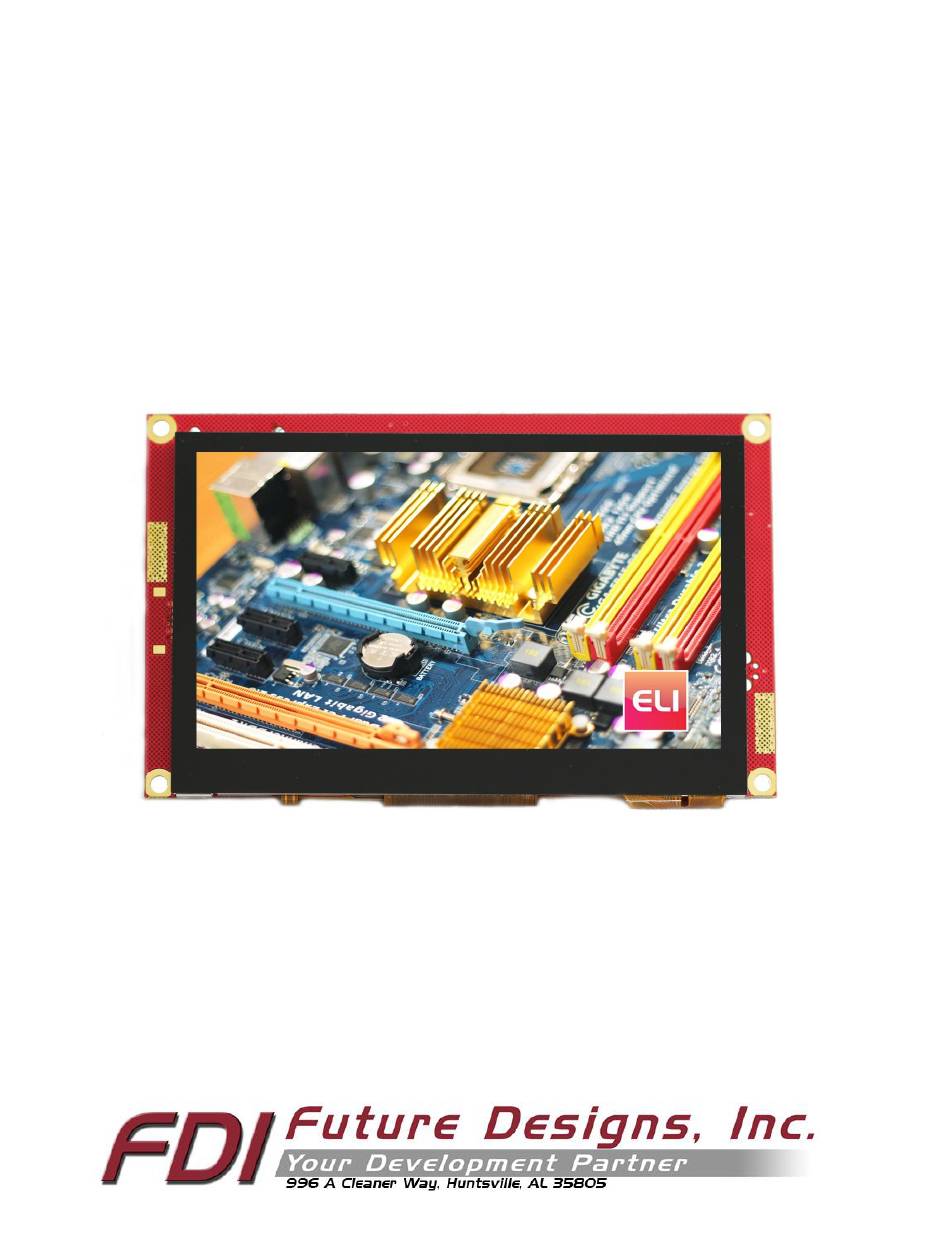

- Page 1 User’s Manual ELI43-CR Revision 1.04 Copyright ©2018, Future Designs, Inc., All Rights Reserved...
-
Page 2: Important Legal Information
ELI43-CR Important Legal Information Information in this document is provided solely to enable the use of Future Designs, Inc. (FDI) products. FDI assumes no liability whatsoever, including infringement of any patent or copyright. FDI reserves the right to make changes to these specifications at any time, without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Future Designs, Inc. -
Page 3: Table Of Contents
User’s Manual ELI43-CR Important Legal Information .......................... 2 Introduction ............................4 ELI43-CR Box Contents ........................4 Optional Accessories Recommended for Use (Purchased Separately) ..........4 ESD Warning ............................5 Determining the Revision of your ELI ....................5 Technical Specifications ........................6 Connectors ............................ -
Page 4: Introduction
HDMI or DVI output. To submit a question about ELI’s compatibility with a platform or operating system that is not included in the table, contact a member of the FDI support team at Support@teamfdi.com. -
Page 5: Esd Warning
User’s Manual ELI43-CR ESD Warning Figure 1. Electrostatic Sensitive Device Our ELI units are shipped in a protective anti-static package. Do not subject the module to high electrostatic potentials. Exposure to high electrostatic potentials may cause damage to the boards that will not be covered under warranty. General practice for working with static sensitive devices should be followed when working with this device. -
Page 6: Technical Specifications
User’s Manual ELI43-CR Technical Specifications Table 1. Technical Specifications Screen Size (inches): Display Technology: TFT LCD TN panel anti-glare Resolution: 480 x 272 (WQVGA) Brightness (nits typical): Contrast Ratio (typical): 500:1 Aspect Ratio: 16:9 Interface Input Mode: HDMI/DVI Colors: 16M (24 bit) Horizontal Viewing Angle: 70/70°... -
Page 7: Connectors
- PTSM 0,5/ 2-2,5-H SMD WH R24 – 1814634) can be found at http://tinyurl.com/1814634. On ELI43-CR units of Revision ≥3.0 and above, the input power range is expanded from +5 to 24V DC ± 5% (2.0A) for greater design flexibility. -
Page 8: Extended Display Information Data (Edid)
User’s Manual ELI43-CR To verify that the ELI43-CR unit is correctly powered you may check the 12VDC input with a Fluke meter or scope by probing the +12V and GND contacts, shown below. Please verify that the +12VDC is present, is within the +/- 5% tolerance and is free from excessive noise or AC ripple. -
Page 9: Pwm Control Of Backlight
User’s Manual ELI43-CR PWM Control of Backlight Figure 4. PWM Backlight Control J5 mating connector housing information: • Manufacturer: Hirose • Part Number: DF12-3S-1.25C • Digi-Key Link: https://www.digikey.com/products/en?keywords=H2180-ND • Pre-terminated wires https://www.digikey.com/products/en?PPV=1811-9-566967 ELI provides an input so an external processor can control the display backlight to vary the display brightness or to reduce power consumption (the display backlight is typically one of the larger sources of power consumption in the system). - Page 10 PWM Dimming Input. If the external system is capable of directly driving the PWM dimming signal at 3.3VDC, there is no need to connect pin 1 to the cable. Figure 5. ELI43-CR Backlight Curve in Nits Copyright ©2018, Future 04/23/2018 Designs, Inc.
- Page 11 ELI43-CR Figure 6. Raspberry Pi Signal and Ground The ELI backlight can be controlled from a Raspberry Pi. See Figure 6 for a wiring diagram. Our software is available on the FDI website at https://www.teamfdi.com/product-details/eli43-cr#software or you may copy the code from here:...
- Page 12 User’s Manual ELI43-CR #include<iostream> #include<bcm2835.h> #include<string> using namespace std; #define LED RPI_GPIO_P1_12 // PWM pin number for backlight control #define RANGE 20 // Range for PWM steps #define CLOCK 192 // Clock rate int main(int argc, char *argv[]){ data = 0;...
- Page 13 User’s Manual ELI43-CR Figure 7. Backlight Control for Raspberry Pi Figure 8. Renesas Synergy S7G2 Signal and Ground The ELI backlight can also be controlled from a Renesas Synergy S7G2 wired as shown in Figure 8Error! Reference source not found.. The software for Synergy can be found on our website at https://www.teamfdi.com/product-details/eli43-cr#software.
-
Page 14: Mechanical View
● Tape used to secure the LCD to the PCB is: 3M VHB 4956 ½” width ● 4 screw holes on the ELI43-CR accept up to #4 size screws to mount ELI43-CR into an enclosure and to connect to the system ground. - Page 15 User’s Manual ELI43-CR Figure 10. Side and Back Views with Measurements Copyright ©2018, Future 04/23/2018 Designs, Inc. Page 15 of 16...
-
Page 16: Support
12.1 Where to Get Help Online technical support is available at http://www.teamfdi.com/support/ 12.2 Useful Links • Future Designs, Inc. Forums: http://www.teamfdi.com/forum • ELI43-CR Product Page: https://www.teamfdi.com/product-details/eli43-cr • ELI Software User’s Manual: http://www.teamfdi.com/wp-content/uploads/ELI-Software- Users-Manual.pdf • Tell us about your ELI experience: http://www.teamfdi.com/edid/#edidform...
