Tyco 3002 Quick Start Manual

Model 3002
CPVC Sprinkler Head Adapter Fitting
Holdback Wrench
General
Description

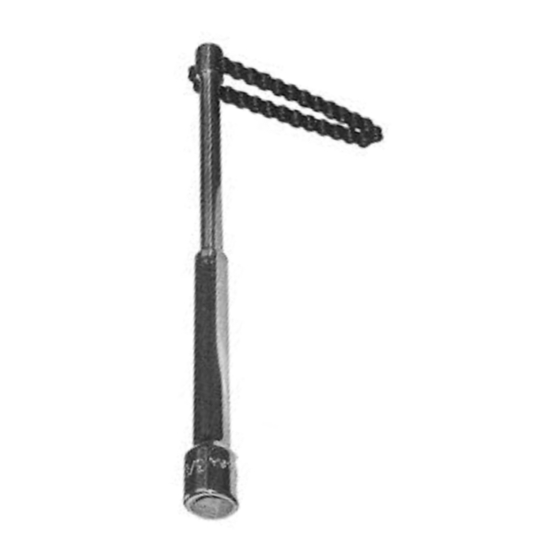

The TYCO Model 3002 CPVC Sprinkler
Head Adapter (SHA) Fitting Holdback
Wrench is designed to aid in the service
of CPVC fire sprinkler piping systems.
The SHA Fitting Holdback Wrench is
used to assist with the removal of a
sprinkler installed in finished ceilings
by applying a holdback on the sprinkler
head adapter fitting, while a sprinkler
wrench removes the sprinkler.
The wrench is specifically designed to
work with TYCO CPVC sprinkler head
adapter fittings. Since CPVC pipe and
fittings are inherently flexible, caution
must be taken to insure the pipe and
fittings are properly restrained when
removing a sprinkler.
The SHA Holdback Fitting Wrench is
furnished complete with 3/8 in. drive
socket extension and roller chain, see
Figure 1. Two replacement chains are
provided with each wrench. Replace-
ment chain kits are separately available.
CAUTION
The user of the TYCO Model 3002
CPVC Sprinkler Head Adapter Fitting
Holdback Wrench must read all direc-
tions and user precautions presented
in this data sheet.
Failure to follow all printed instructions
for this product may cause injury to the
user or damage to the piping system
and structure being worked on.
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 2
As with use of all tools, proper training,
safety equipment and OSHA require-
ments must be sought, worn and
observed at all times.
Johnson Controls assumes no liability
for the use or misuse of this product.
NOTICE
The Model 3002 SHA Holdback
Wrench described herein must be uti-
lized and maintained in compliance
with this document, as well as with the
applicable standards of the NATIONAL
FIRE PROTECTION ASSOCIATION, in
addition to the standards of any other
authorities having jurisdiction (AHJ).
Failure to do so may impair the integ-
rity of this device.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
Technical
Data
Construction
The TYCO Model 3002 CPVC Sprinkler
Head Adapter Fitting Holdback Wrench
is comprised of a 3/8 in. drive socket
extension, roller chain, cap and button
head screw.
Care and
Maintenance
The TYCO Model 3002 CPVC Sprinkler
Head Adapter Fitting Holdback Wrench
must be maintained and serviced in
accordance with this section.
A worn or broken roller chain must be
replaced to prevent damage to CPVC
fittings and pipe or personal injury. To
replace a roller chain see Figure 1 for
reference and perform the following
steps:
Step 1. Loosen and remove Button
Head Cap Screw using 1/4 in. hex bit
or allen wrench.
Step 2. Remove End Cap.
APRIL 2019
Worldwide
www.tyco-fire.com
Contacts
D
C
B
A

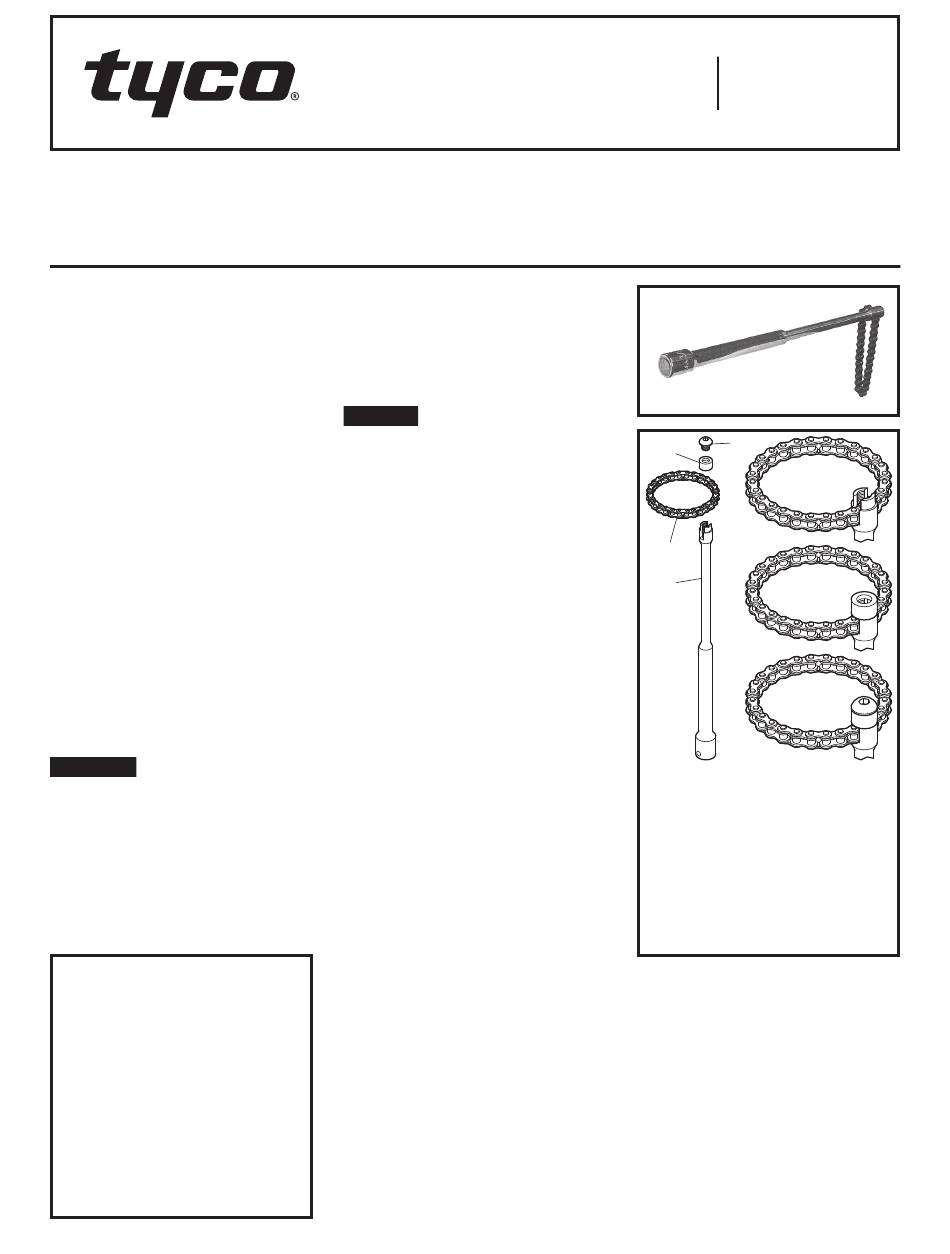

A. 3/8 in. Drive Socket Extension,
customized 9-1/2 in.
B. Roller Chain
C. End Cap
D. Button Head Cap Screw,
1/4-28 x 1/4 in. long
FIGURE 1
MODEL 3002
HOLDBACK WRENCH
ASSEMBLY
Step 3. Remove Roller Chain from
Drive Socket Extension.
Step 4. Align and inser t link of
replacement Roller Chain into recessed
end of Drive Socket Extension, ensur-
ing link is fully seated.
Step 5. Align and fully seat End Cap
onto end of Drive Socket Extension.
Step 6. Install Button Head Cap
Screw into Drive Socket Extension,
tightening using 1/4 in. hex bit or allen
wrench. Do not over-tighten to avoid
causing damage to threads.
TFP1950
