Hydraulic connection mod. 150/220

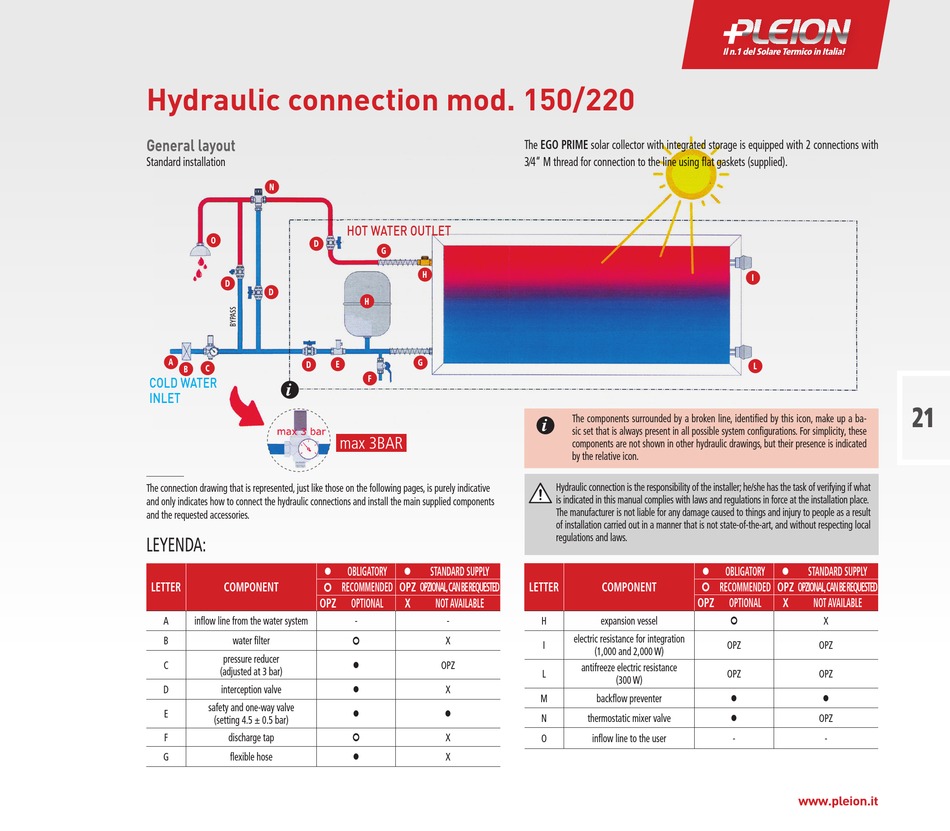

General layout

Standard installation
N
O
D
D
D
A
D
C
B
i
COLD WATER
INLET
The connection drawing that is represented, just like those on the following pages, is purely indicative
and only indicates how to connect the hydraulic connections and install the main supplied components
and the requested accessories.
LEYENDA:

LETTER COMPONENT  RECOMMENDED OPZ OPZIONAL, CAN BE REQUESTED
OPZ
A inflow line from the water system
B water filter
pressure reducer
C
(adjusted at 3 bar)
D interception valve
safety and one-way valve
E
(setting 4.5 ± 0.5 bar)
F discharge tap
G flexible hose
HOT WATER OUTLET
G
H
H
G
E
F
max 3BAR
OBLIGATORY STANDARD SUPPLY

OPTIONAL X NOT AVAILABLE
- -
X

OPZ

 X
 
 X
X

The EGO PRIME solar collector with integrated storage is equipped with 2 connections with
3⁄4" M thread for connection to the line using flat gaskets (supplied).
i
The components surrounded by a broken line, identified by this icon, make up a ba-
sic set that is always present in all possible system configurations. For simplicity, these
components are not shown in other hydraulic drawings, but their presence is indicated
by the relative icon.
Hydraulic connection is the responsibility of the installer; he/she has the task of verifying if what
is indicated in this manual complies with laws and regulations in force at the installation place.
The manufacturer is not liable for any damage caused to things and injury to people as a result
of installation carried out in a manner that is not state-of-the-art, and without respecting local
regulations and laws.

LETTER COMPONENT  RECOMMENDED OPZ OPZIONAL, CAN BE REQUESTED
OPZ
H expansion vessel
electric resistance for integration
I
(1,000 and 2,000 W)
antifreeze electric resistance
L
(300 W)
M backflow preventer
N thermostatic mixer valve
O inflow line to the user
I
L
OBLIGATORY  STANDARD SUPPLY
OPTIONAL X NOT AVAILABLE
X

OPZ OPZ
OPZ OPZ
 
OPZ
