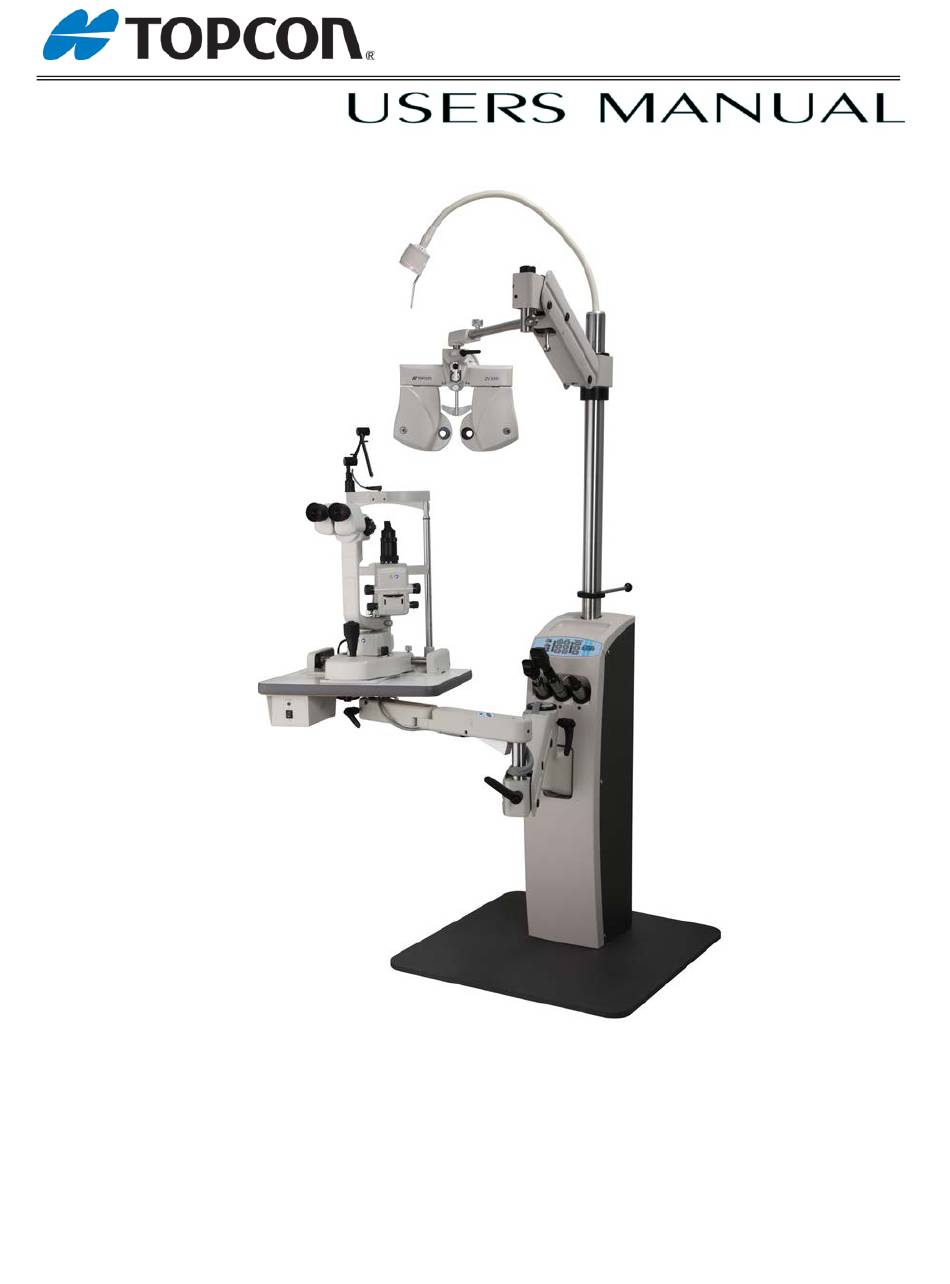

- Page 1 IS-5500 INSTRUMENT STAND...
-
Page 2: Introduction
1. INTRODUCTION Thank you for purchasing the TOPCON IS-5500 Instrument Stand. 1.1 INTENDED USE / INDICATIONS FOR USE This IS-5500 stand is used to support and deliver Ophthalmic and Optometric instruments. It will provide many years of service. 1.2 FEATURES This instrument stand features the following: •... - Page 3 Do not lean or push onto the stand during usage. SAFETY CONCERNS The IS-5500 Stand conforms to IEC 60601-1 3rd Ed, AAMI ES 60601-1 and CSA C22.2 No. 60601-1 certifications. Any of the optional equipment defined in this manual can be added to the IS- 5500 without introducing any additional safety hazards.
-
Page 4: Table Of Contents
FEATURES ..........................i PURPOSE OF THIS MANUAL ..................... i PRECAUTIONS ........................i NOMENCLATURE .................... 1 IS-5500 Instrument Stand Main Components ................ 1 PERFORMANCE & SPECIFICATIONS ............2 Specifications ......................... 2 Symbols on IS-5500 Stands ....................3 INSTRUMENT ATTACHMENTS ..............4 Refractor .......................... -
Page 5: Nomenclature
2. NOMENCLATURE 2.1 IS-5500 Instrument Stand Main Components Figure 1 shows the primary components and key features of the IS-5500 Instrument Stand. Use this figure as a reference only. Overhead Lamp Refractor Arm Labels, See Note 4 Pole Indirect BIO Hanger... -
Page 6: Performance & Specifications
3. PERFORMANCE & SPECIFICATIONS 3.1 Specifications Instrument Stand • Base Size: 25.5 inch x 27.0 inch (648 mm x 686 mm) • Stand Size: 8.0 inch x 10.0 inch x 34.0 inch (203 mm x 254 mm x 864 mm) •... -
Page 7: Symbols On Is-5500 Stands
3.2 Symbols on IS-5500 Stands Protective Earth ground location ON/OFF Power on Control Panel Refer to Instruction Manual/Booklet Operating instructions UP Symbol DOWN Symbol Alternating Current Direct Current Fuse Pushing prohibited Warning ETL Mark (ETL Recognized product) 2031005680 Rev. C, 06/2016... -
Page 8: Instrument Attachments
4.5 Chart Projector – Optional The chart projector may be mounted on the wall or on the IS-5500. If it is mounted on the IS-5500, the chart projector arm supports any automatic chart projector. The arm has a 0.75-inch diameter socket for mounting a projector. The maximum extension of the arm with load, is 7 inches, and has a capacity of 22 lbs. -
Page 9: Ophthalmic Chair (Topcon Oc-2200/2300/2400) - Optional
4.6 Ophthalmic Chair (Topcon OC-2200/2300/2400) – Optional Connect the chair power cable to a wall outlet. Connect the Ophthalmic Chair to the stand using the provided low voltage control cable onto the back of its bottom shroud. This will allow the chair to go up/down using the stand control panel. -
Page 10: Auxiliary Receptacle Button
Figure 3: BIO Control and Hanger 5.8 Roomlights The Roomlight kit allows the IS-5500 to be an independent control of the room light environment. Once it has been wired and roomlight cable has been plugged in and set-up by a qualified technician, use Roomlight functions on the control panel (Figure 2) to control the room light. -
Page 11: System Programming Button
This button is used to initialize the IS-5500 programming mode in which desired environment settings can be stored into the IS-5500's memory for activation by one of the system activators. The overhead lamp, room lights, and auxiliary receptacles 1 and 2 can be programmed to change to a preset state when the appropriate activator is triggered. -
Page 12: Adjustments
6. ADJUSTMENTS The refractor and slit lamp arms may require adjustment depending upon the weight of the instrument in use. 6.1 Refractor and Slit Lamp Arm 6.1.1 Counterbalance Adjustment To adjust the counterbalancing of the instrument arm, remove the black plastic panel located at the instrument end of the arm by unscrewing the (2) round-head Hex screws, and then lock the instrument arm at its maximum elevated position. -
Page 13: Drift Elimination
6.1.4 Drift Elimination Occasionally during regular use the arms may tend to drift slightly. Increasing the drag on the arm will eliminate a slight drift. Drag is adjusted by turning the larger of the two (2) set screws located at both ends of the arm. If drifting persists, use a level and check that the stand pole is vertical. -
Page 14: Maintenance
If problems arise please refer to the Troubleshooting section of this manual. It is recommended that the exterior surfaces of the IS-5500 be cleaned with a mild soap, water, and clean cloth to maintain a like-new and sanitary appearance. - Page 15 If a problem develops with an instrument used with the IS-5500 system, plug the instrument into a wall receptacle and check its proper function before troubleshooting the IS-5500. WARNING: All replacement parts or optional equipment shall be genuine TOPCON parts.
- Page 16 ELECTROMAGNETIC COMPATIBILITY (EMC) TABLES for RF emissions class B Guidance and Manufacturer’s Declaration - Electromagnetic Emissions The IS-5500 is intended for use in the electromagnetic environment specified below. The customer or the user of the IS- 5500 should assure that it is used in such an environment.
- Page 17 ELECTROMAGNETIC COMPATIBILITY (EMC) TABLES for RF emissions class A Guidance and Manufacturer’s Declaration - Electromagnetic Emissions The IS-5500 is intended for use in the electromagnetic environment specified below. The customer or the user of the IS- 5500 should assure that it is used in such an environment.
- Page 18 Guidance and Manufacturer’s Declaration - Electromagnetic Immunity The IS-5500is intended for use in the electromagnetic environment specified below. The customer or the user of the IS-5500 should assure that it is used in such an environment. Immunity IEC 60601...
- Page 19 Recommended separation distances between portable and mobile RF communications equipment and the IS-5500 The IS-5500 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the IS-5500 can help prevent electromagnetic interference by...
- Page 20 If problems persist, call your dealer or Topcon for assistance. Please provide the following information when contacting us with questions about this instrument: • Model Name: IS-5500 • Serial Number: This is provided in the product rating label on the back of the base assembly •...
- Page 21 Topcon Medical Systems, Inc. 111 Bauer Drive Oakland, NJ 07436 800-223-1130 www.topconmedical.com Copyright © 2015-2016 Topcon Medical Systems, Inc. All rights reserved.
