Highnovate RAFA Manual

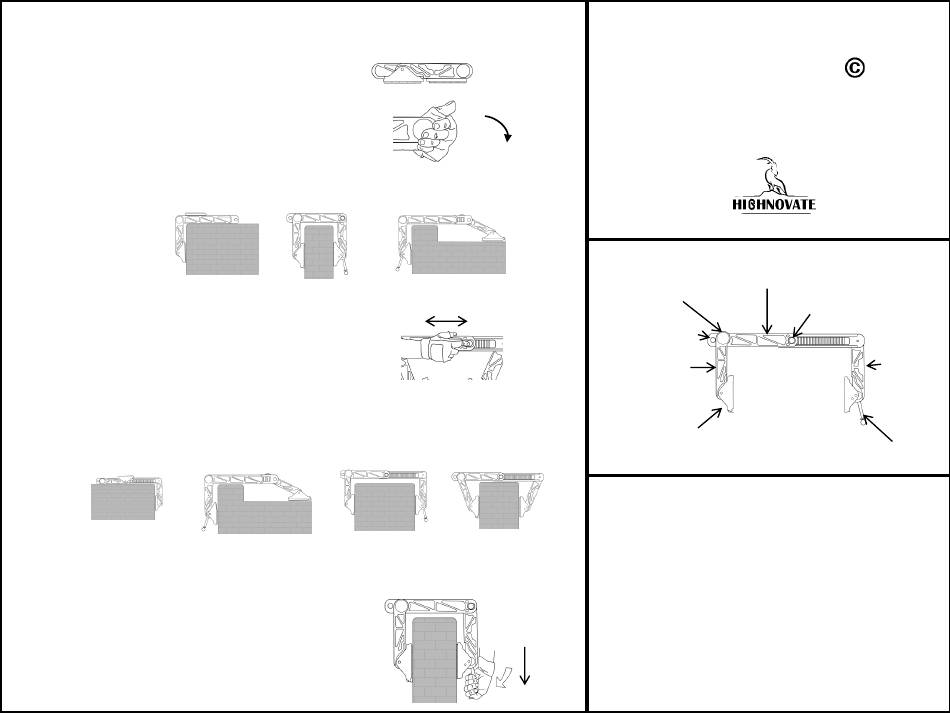

INSTALLATION OF THE ANCHOR

1. Start with a folded RAFA
2. Press the leg buttons (1) in order to
change the leg's angle to the desired
position. Start with the rear leg to set an
"L" anchor (1.a) , clamp (1.b) or "L" with a
supportive leg (1.c)
1.a
3. Press the slider button (2) in order to
extend the length of the anchor . You can
get an extended "L" anchor (2.a), an
extended "L anchor with a supportive leg
(2.b), an extended clamp (2.c) or an
extended clamp with angles to avoid
large edges or surfacing (2.d)
2.a 2. b
4. Press the leg handle down (3) to lock
the anchor firmly in a clamp position
1.
1.b 1.c
2.
2. c
3.
ROOF ACCESS FAST ANCHOR

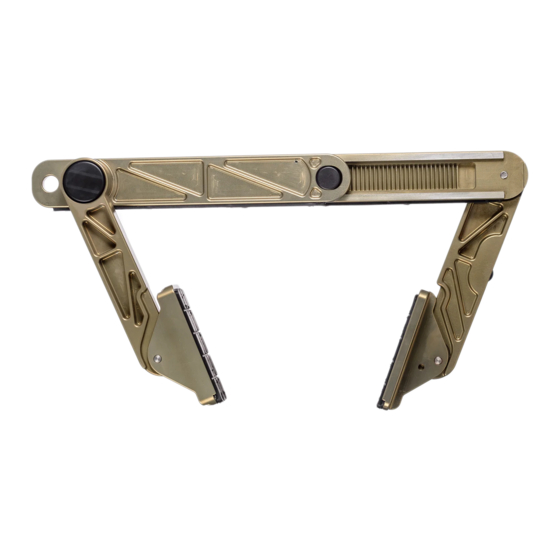

RAFA PARTS
LEG BUTTON
CONNECTION EYE
FRONT LEG
LEG JOINT
GENERAL INSTRUCTIONS:
- Use only standard gear, checked by a certified person
2. d
- Use the product only after proper training from a
certified guide.
- Do not use the product without reading the
instructions.
- Check the product functionality before every use. If
there is any doubt, do not use it until consulting with
the manufacturer.
RAFA
SLIDER BEAM
SLIDER BUTTON
LEG HANDLE
REAR LEG
