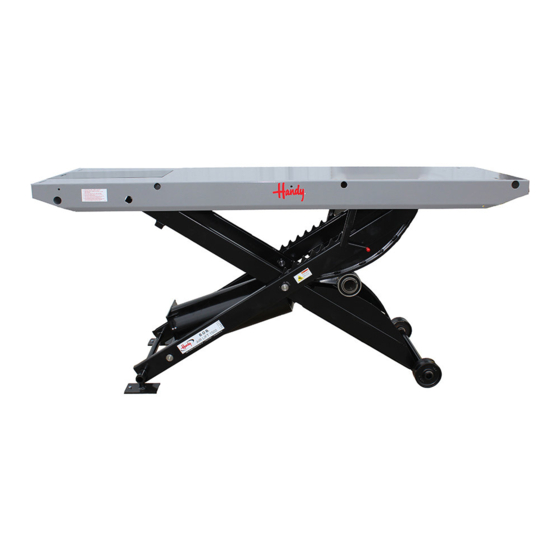

B.O.B. 1500 AIR LIFT
INSTRUCTIONS
PART NUMBERS: 14472 - 16759 - 17008
WARNING: READ INSTRUCTIONS BEFORE OPERATING
1. Center load on table - 1500 lb. maximum.
2. Connect to 100 psi maximum shop air.
3. Keep safety bar in position at all times - except
when lowering.
4. Keep hands and tools from under carriage.
5. Do not mount table when in elevated position.
6. Do not ride vehicle onto lift.
7. Lift must be in the lowered position when moving.
8. Only trained persons should operate Air Lift.
9. The working area should be sufficiently lit.
10. Foot controller should be at least 3 feet away from
Air Lift during raising and lowering operation
11. Recommended for indoor use only.
401 South 2nd. Marshalltown, IA 50158 Ph: 855-752-5446
PARTS DRAWING
l
HANDY DIVISION OF JADEIM, LLC
l
.
Fax 641-752-1205
www.handyindustries.com
PARTS LIST
Advertisement
Related Manuals for Jadeim Handy B.O.B. 1500 AIR LIFT
Summary of Contents for Jadeim Handy B.O.B. 1500 AIR LIFT
- Page 1 10. Foot controller should be at least 3 feet away from Air Lift during raising and lowering operation 11. Recommended for indoor use only. HANDY DIVISION OF JADEIM, LLC 401 South 2nd. Marshalltown, IA 50158 Ph: 855-752-5446 Fax 641-752-1205 www.handyindustries.com...
- Page 2 B.O.B. 1500 AIR LIFT NOTE: READ ENTIRE MANUAL TO COMPLY WITH ALL SAFETY AND SERVICE PRECAUTIONS. DEATH, PERSONAL INJURY AND/OR PROPERTY DAMAGE MAY OCCUR UNLESS INSTRUCTIONS ARE FOLLOWED CAREFULLY. INSTRUCTIONS UNPACKING AND SET-UP 1. Open carton, the n remove ramp and shipping boards. 2.
- Page 3 B.O.B. 1500 AIR LIFT PARTS DRAWING - PARTS LIST 15687 11305 11304 Part # Description Part# Description 10819 detent clip 15607 top assembly 11086 valve hose w/fitting 15411 inside frame assembly 11250 screw 3/4 -10 x 1-3/4 15431 outside frame assembly 11253 retaining ring 1-5/16 15446...
- Page 4 HANDY LIMITED WARRANTY Handy Industries Division of Jadeim LLC, warrants to the original purchaser of this product, all parts to be free from defects in manufacture for a period of one (1) year from date of delivery. Notice of a defective part must be received in writing at Handy Industries within one (1) year of purchase.
