RELSIB WT51 Instructions For Use

Instructions for use
1

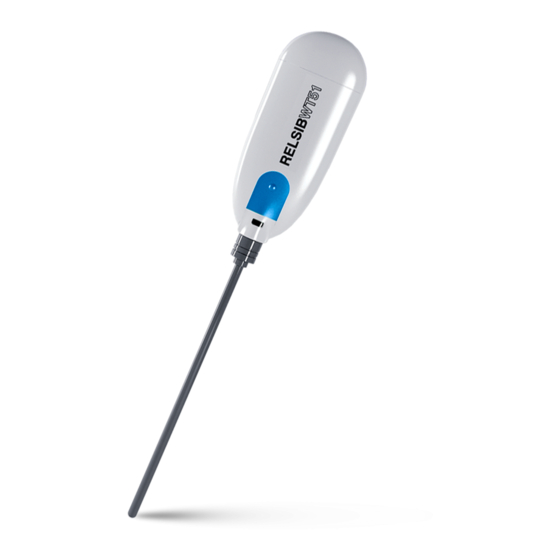

The thermometer RELSIB WT51 is a modern, accurate and safe device for
temperature measurement. Before working with the thermometer read carefully the
recommendations for use. This will allow to avoid mistakes during operation and
Measurements, and become familiar with its capabilities.
The thermometer is designed to measure temperature of liquid, granular and gaseous
media in a wide range, with the capability of signaling, monitoring and data
presentation in the form of a graph, data archiving and sending them via e-mail.
The compact size of the thermometer allows it to be always with you and solve all the
problems with measuring temperature at work and at home.
The thermometer can only be used in conjunction with a mobile device having the
wireless interface Bluetooth 4.0 and running under the operating system iOS or
Android. As a rule, a smartphone or a tablet is used in the role of the mobile device to
operate with the thermometer. Special software - a Mobile Application is used to
display the measured temperature. The Application is used for linking the thermometer
up to the mobile device and its control.
2

Designation

The thermometer can be used:
In industry and
In R&D
agriculture
3

Set

1. Electronic thermometer RELSIB WT51;
2. Case for storage and transportation of the thermometer;
3. Lithium battery CR2032;
4. Coloured markers - 6 pcs;
5. Key for the battery replacement;
6. Holder for mounting the thermometer;
7. Instructions for use;
8. Warranty card.
4

Security measures

Protect the thermometer from overheating, undercooling and moisture penetration
inside the thermometer. Do not heat the thermometer over 70⁰C .
The power level of the signal radiated by the thermometer does not exceed the
established norms. But the thermometer may be sensitive to electromagnetic
interference generated by other devices. It is therefore recommended to avoid working
in close proximity to the thermometer electronic devices that generate strong
electromagnetic field.
Do not attempt to repair the thermometer by yourself. This can result in inaccurate
readings or thermometer failure.
If the thermometer is not used for a long time the battery should be removed and
stored separately.
Observe polarity when replacing the battery.
Lithium battery and the device itself should be disposed off in accordance with local
regulations and not be thrown away with household waste.
5

Preparation for work

Download the Mobile Application "Thermometer Relsib" or "Thermometer
Smart Family" (universal mode) either from the manufacturer's website or the
Internet resource App Store or Google Play.
Install the Application on your mobile device.
Insert the lithium battery CR2032 in the thermometer.
Attach a marker of a preferred colour to the cap of the thermometer. Marker is
required for identification of the thermometer when several thermometers are used
at the same time.
Make sure that Bluetooth is turned on at the mobile device ( for Android version 6.0
and higher turn on Geolocation)
www.relsib.com
installing/replacing the lithium battery
In R&D
Run the Application by clicking on the button in the center
of the screen.

Turning on/off the thermometer:

To turn the thermometer on press the button "on/off" on
the thermometer.
To turn off the thermometer press the button "on/off" on
the thermometer once again or in the Mobile Application.

Operational modes of the thermometer:

"Device search"- the Indicator emits double light impulses
of the green colour.
"Measurement mode and data transmission" – the
Indicator emits short single impulses of the green color.
Operational time in the "Device search mode" till automatic
switching-off equals 180 seconds.
оn

Connecting the thermometer to a mobile device:

Connect the thermometer to a smartphone in the following way: click on the " + "
button and then on the settings screen of the thermometer select "Thermometer".
Select the Search ID on the options screen of the thermometer, and then in the search
box click on the right thermometer.
In everyday life, including
for measuring the
temperature of food
If the thermometer is successfully connected, a screen with the factory settings of the
connected device will be displayed on the smartphone.
By clicking on the return icon, go to the thermometer settings screen.
Cannot connect to the device?
Possible causes and their solutions:
1. The battery has failed - replace the battery.
2.The thermometer works with another device or the other Mobile Application in your
device - turn off all other running Applications and devices.
3. Bluetooth or Geolocation is not enabled - turn on Bluetooth and Geolocation.
6
Enter a name of the thermometer and choose a color for the marker.
If necessary, set the upper and lower temperature limits and enable the signaling.
installation of the marker
ELECTRONIC
THERMOMETER
RELSIB WT51
Instructions for use
РЭЛС.421413.042 И1
In everyday life, including
for measuring the temperature
of food
Turning on Connection with a
by pressing the mobile device
button
180 sec оff

The settings of the thermometer

In industry and
agriculture
Automatic
switching-off the
thermometer
