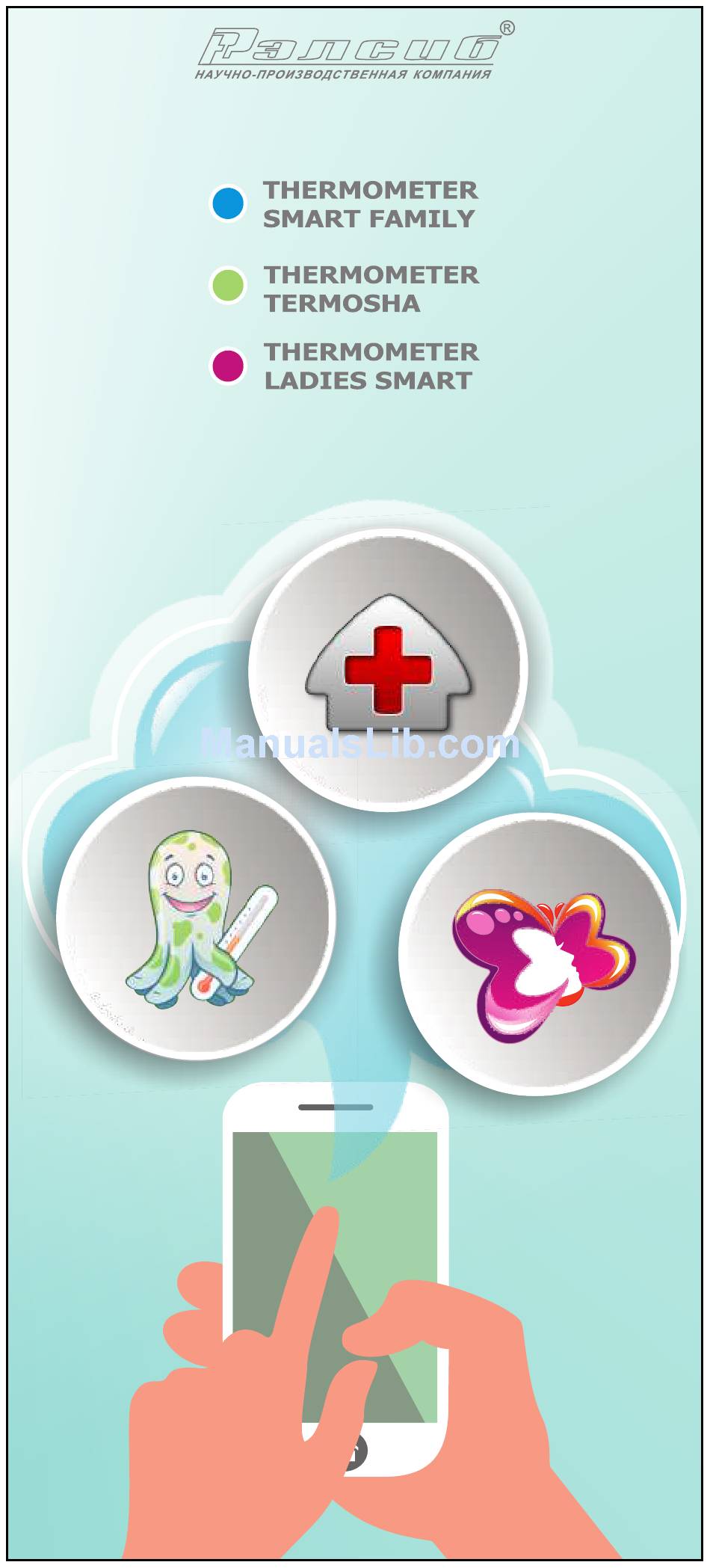

- Page 1 THERMOMETER RELSIB WT50 USER INSTRUCTIONS FOR APPLICATIONS...
- Page 2 RELSIB WT50, their f u n c t i o n s a n d exa m p l e s o f t h e thermometer use.
- Page 3 Description of the medical thermometer RELSIB WT50 The thermometer RELSIB WT50 is a modern approach to temperature measuring with maximal usage of the last achievements in the field of microelectronics and technologies of d a t a t r a n s m i s s i o n . T h e n e w...
- Page 4 Several thermometers can work simultaneously with one smartphone. Thanks to this the new thermometer can be used in hospitals and polyclinics. And that is not all yet. The medical thermometer RELSIB WT50 has a special design.
- Page 5 The thermometer can be easily cleaned and disinfected since its probe is made as a single whole. The thermometer RELSIB WT50 is a very precise device. The thermometer has a wide measurement range from minus 20 to +70 °С, that means you can use it not only for medical purposes.
- Page 6 Mobile application THERMOMETER SMART FAMILY It is a universal application having maximum of functions which can be used for various cases of application. Functional capabilities and technical characteristics Maximum number of the thermometers which can be simultaneously operated with is 6. Capability to assign to each thermometer a name and a color (corresponding to a color marker installed into the...
- Page 7 Data transmission to a computer. Representation of data of measurements on the screen as figures in Celsius and Fahrenheit degrees and in a mnemonic way as a glass thermometer accustomed to everyone. Indication of battery charge level and signal level. Capability to change the color background of the screen.
- Page 8 Connect up the thermometer Activate the application and proceed to the page “Temperature”. On this page you can watch the operation of all thermometers connected to this smartphone. Here you can also add or delete a thermometer. At the first switching on of the application this page is empty.
- Page 9 Attention! For connection with the thermometer it must be switched on! If the connection was successful you will see all factory settings for the connected thermometer on the screen.
- Page 11 Adjust the thermometer Return to the page of setting the operational parameters (”New monitor”). Assign to the thermometer a name and a marker color corresponding to a marker color of a new thermometer. Select a measuring mode: medical or universal. In the universal mode set a minimal and maximal value of the temperature for notification actuation.
- Page 12 Temperature measuring Te m p e ra t u r e m e a s u r i n g i n t h e universal and medical mode has some peculiarities. Let’s consider them separately. On the page “New monitor” press the arrow to the left at the upper part of the screen and proceed to the page of measuring with this thermometer.
- Page 13 Medical mode of measuring If your thermometer is switched on and you wish to measure your temperature in axilla switch it off and clear the readings by passing your finger over two buttons in the lower part of the screen. The thermometer will switch off.
- Page 15 Put the thermometer to a place of measuring. At t e n t i o n ! W h e n y o u m e a s u r e temperature in axilla place the thermometer as deeply as possible and d o n o t c h a n g e i t s p o s i t i o n a t measuring.
- Page 16 While measuring you can watch the dynamics of temperature changing on a diagram (press the button Switch off the thermometer having passed your finger from left to right over the button “OFF”. At this time the data will be recorded in the smartphone memory.
- Page 17 Universal mode of measuring This mode can be used for measuring temperature in a room, in the street, in a refrigerator, water in a bath as well as for prolonged temperature monitoring including body temperature. On the screen there are current temperature, values of set lower and upper limit temperatures.
- Page 18 To look through data, recorded on a definite day press twice on the corresponding date in the Calender. In a pop up list of files titled with the time of record beginning choose a necessary one and activate it.
- Page 19 On the opened page with a diagram you can analyze the course temperature measuring, changing with the corresponding buttons the diagram scale.
- Page 20 The icon is intended for data transmission as a table by e‐mail. The icon is intended for downloading data from a smartphone to a PC. Some usage examples ‐ temperature measuring for adults and children; ‐ temperature monitoring under clothes of newborns during a walk; ‐...
- Page 21 Mobile application THERMOMETER TERMOSHA This application is intentionally developed for children’s temperature measuring. Functional capabilities and technical characteristics Indication of temperature for a little child as animation where little octopus TERMOSHA shows the child with his appearance and behavior what temperature the child has and what you need to do at it.
- Page 23 Connect up the thermometer Activate the application. Switch on the thermometer. Shift the switch the extreme right position. The connection of the thermometer up to the smartphone will begin. Press the icon . From a pop up list select a thermometer you wish.
- Page 24 To the temperature value equaling 37.2°С the little octopus TERMOSHA smiles and jumps merrily as if talking to a child that everything is ok, the temperature is not high. The meaning of the screen pictures at different temperature As soon as the temperature value exceeds 37.2°С, T E R M O S H A will become sad and stop jumping as if talking to a child that he or she should...
- Page 25 Т>37.2°С Т>38.0°С Т>39.0°С Т>39.5°С...
- Page 26 Ending of measurement After the ending of measurement you will hear an audio signal. In order to clear the measured values press the button in the lower left corner of the screen. Examples of usage ‐ temperature measuring that is easy and exciting for children;...
- Page 27 Mobile application THERMOMETER LADIES SMART It is a special application developed for measuring basal temperature of women. Basal temperature is the lowest temperature reached by a body at rest (ususally while sleeping). Ovulation causes 0.25‐0.5°С increase of basal temperature that allows to determine the ovulation beginning as well as the d ev i at i o n s i n m e n st r u a l c yc l e s reporting about possible diseases.
- Page 28 Alarm clock for daily reminding about measurement time coming. Capability to transmit data via e‐mail. Archiving of month’s cycles. Capability to compare several diagrams. Using the application Download the application Download the application to your smartphone from the App Store or from the web site of the manufacturer.
- Page 29 day the application will remind you about the necessity to take a measurement.
- Page 30 Temperature measuring After creation of your account return on the main page of the application. Put the thermometer to the place of measurement. Press the button pass to the page of temperature measuring. At first measuring on the opened page press the icon and add a discovered thermometer.
- Page 31 IMPORTANT The first measuring should be executed on the first day of menstruation (the beginning of the cycle). In the process of measuring there is a temperature in Celsius degrees, time from the beginning of measuring and current temperature displayed on the screen.
- Page 32 Adding comments After accomplishment of measuring the m e a s u r e d t e m p e ra t u r e w i l l b e automatically added to the diagram and the page of adding a comment will be opened.
- Page 33 Data processing You can look through the data on the page History, having pressed the button on the main page of the application. You can open the data recorded on a definite day with a single hit on the corresponding date in the calendar.
- Page 34 For data export press the icon the diagram page, then in the opened dialog box select: transmit data by e‐ mail or send to a PC.
- Page 35 In order to set auxiliary guidelines ‐ projections on the coordinate axes press the icon The icon is used for extension / reduction of the diagram scale. Help on the application For help press the icon on the main page of the application. Usage examples ‐...
- Page 36 For inquiries and offers: relsibhealth.com NPK “Relsib” Novosibirsk, Russia...
Need help?
Do you have a question about the WT50 and is the answer not in the manual?
Questions and answers

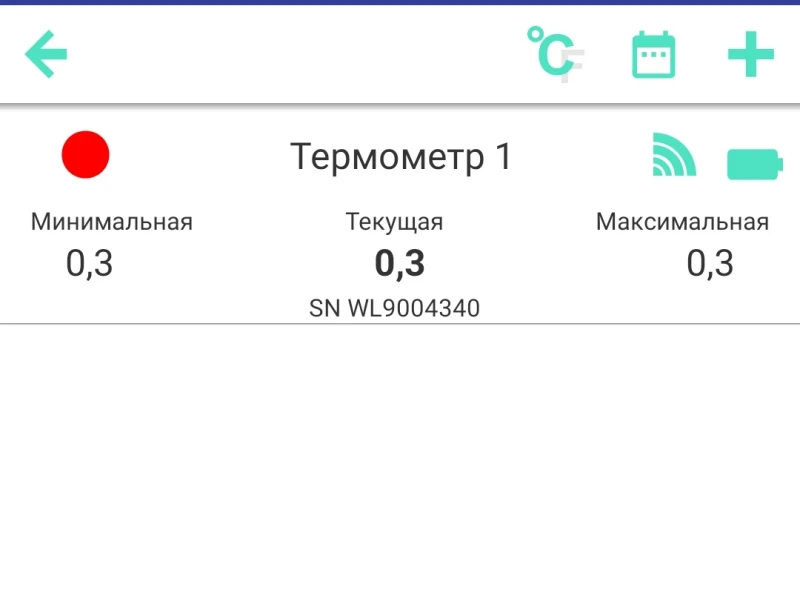

Здравствуйте. На термометра wt51 начало показывать значение 0.3с и не меняется. Батарейку менял
