3Jtech DWR Quick Installation Manual

Dedicated wifi router

Download this manual

Ver 1.0.0.0

Quick Installation Guide for Dedicated Wifi Router (DWR)

1. DWR packing list :

Before you start installing DWR, please verify that the package contains the following items:

One Set of DWR

1x Power Adapter

RJ-45 Network Cable

Quick Installation Guide and User's Guide

NOTE: Please notify your sales representative immediately if any items listed above is missing or damaged.

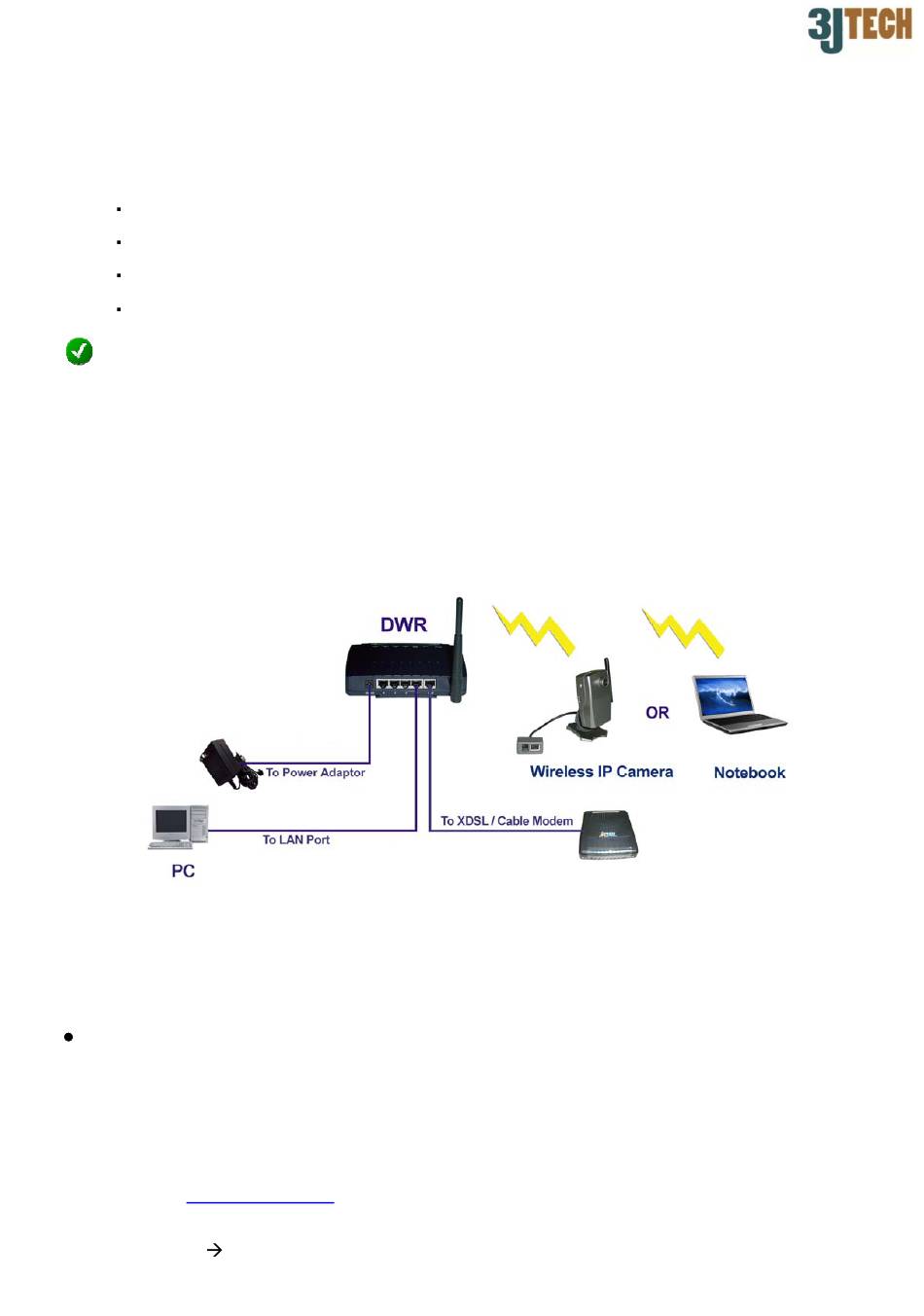

Hardware connection settings for DWR

1) Connect XDSL/Cable to the WAN port of your DWR using a RJ-45 cable.

2) Connect PC to LAN port of your DWR using a RJ-45 cable.

3) Connect the power cable to the power connector of your DWR.

4) Please refer to section 3 about WIFI settings to have DWR connect to your desired wireless

devices wirelessly.

Software configuration for DWR

Before the setup, please confirm that the LAN port of the DWR has been connected with the PC

via RJ-45 cable.

Set up the DWR for ADSL / cable modem

Connect the WAN port on the DWR to your DSL modem, cable modem or to your

Ethernet Hub if you have the fixed IP.

Determine your provider's IP scheme: fixed IP, DHCP or PPPoE. (Please ask your

Internet Service Provider for the connection details and information.)

Type

http://192.168.8.1

Please input "cameras" as the user name and the password for the DWR.

PPPoE

Set up the PPPoE account (User Name and Password) on the DWR.

into IE browser to enter the setup for the DWR.

Page 1 4) Please refer to section 3 about WIFI settings to have DWR connect to your desired wireless devices wirelessly. Software configuration for DWR Before the setup, please confirm that the LAN port of the DWR has been connected with the PC via RJ-45 cable. Set up the DWR for ADSL / cable modem Connect the WAN port on the DWR to your DSL modem, cable modem or to your Ethernet Hub if you have the fixed IP.
Page 2 3JTech’s Dedicated Wifi Router (DWR). Please follow the procedures below to set up your wifiCAMit IP camera or other wireless devices with the DWR. For more details on WIFI settings, please also refer to the DWR user’s manual.
Page 3 (Please skip this section if you would like to use our wireless IP camera series.) 1) Connect the power cable to the power jack of DWR. 2) Connect the wireless device to a LAN port of DWR via the RJ-45 cable. 3) Power on the wireless device.
