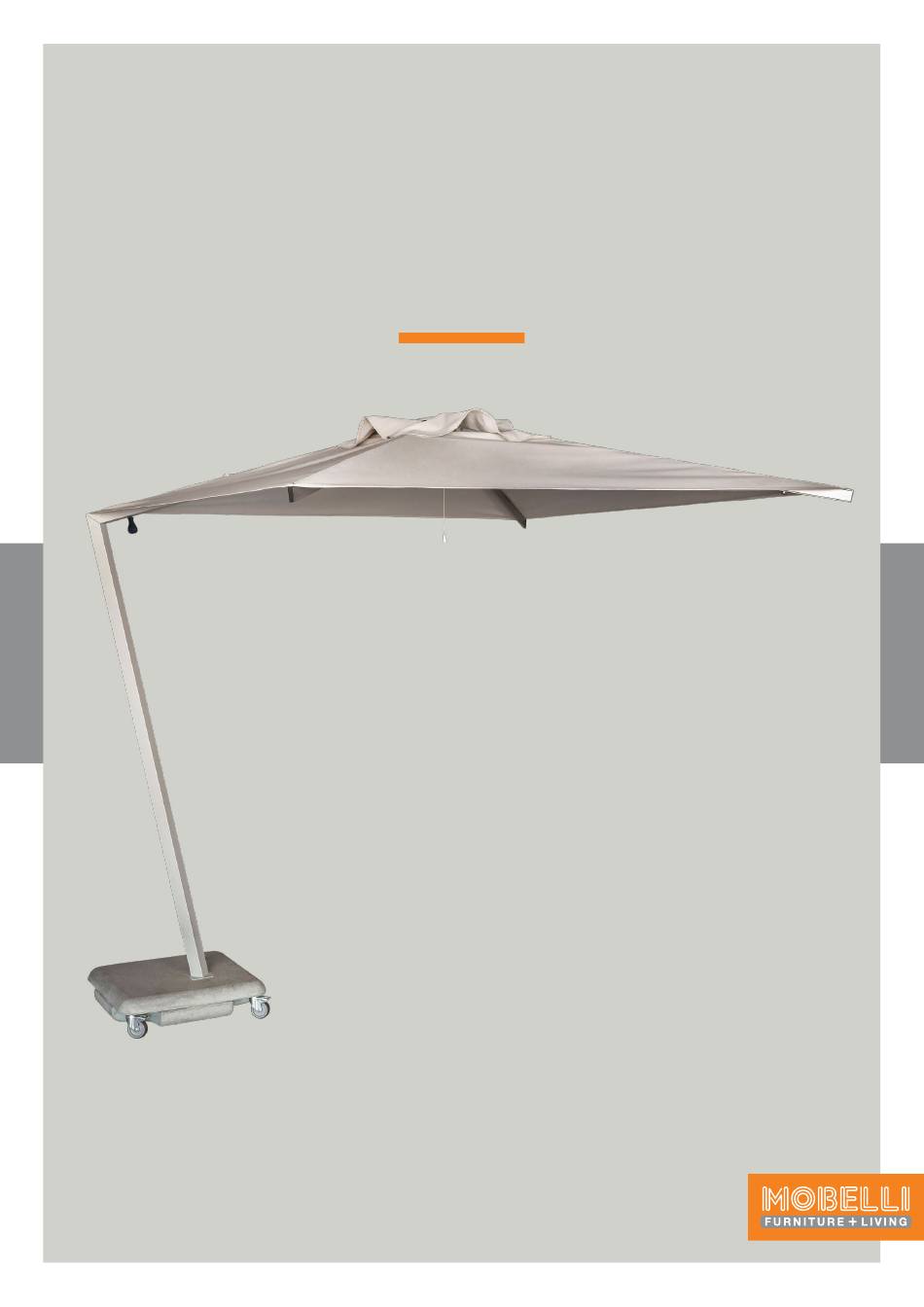

- Page 1 TRAVELLER COMPANION Assembly & Operating Instructions...
-
Page 2: Base Assembly
BASE ASSEMBLY WHEN ASSEMBLING THE BASE, TAKE CARE, AS INDIVIDUALLY Bottom Stone STONES ARE HEAVY. Stud WE RECOMMEND TWO PEOPLE Top Stone TO ASSEMBLE THE BASE SAFELY. Nut and Washer TO B EGIN : FIGURE 1 You will need a M16 socket spanner or an offset spanner. -
Page 3: Post Assembly
N EXT: Post M10 Cap Screw Place the post plate in position. This is marked out by the slight indentation in the concrete (the straight corners on the base plate and the Top Stone indentation in the base stone must line up). Securely bolt the post onto the base using the M10 cap screws and the Allen key provided. - Page 4 ▷ Lift and slide the tilt handle towards the the same direction and the brush-finish). stainless steel post. ▷ Your Traveller Companion must be kept in the ▷ Holding it in this position, pull down on the protective cover when not in use.
-
Page 5: Important Notes
SAFELY. G UAR A N T EE: SA F ETY NOT FOR WINDY CO N D IT IO NS Do not leave your Traveller Companion open We guarantee that your Traveller Companion when unattended or in windy conditions. against any manufacturing defects for 5 years. - Page 6 I L L O V O S Q U A R E P A A R D E N E I L A N D S E A P O I N T U M H L A N G A @mobelliliving mobelli.co.za 0861 66 23 55...
