ASSEMBLY INSTRUCTIONS
One Touch Umbrella

Advertisement

loading
Need help?

Need help?

Do you have a question about the One Touch Umbrella and is the answer not in the manual?

Questions and answers

Related Manuals for Mobelli One Touch Umbrella

Summary of Contents for Mobelli One Touch Umbrella

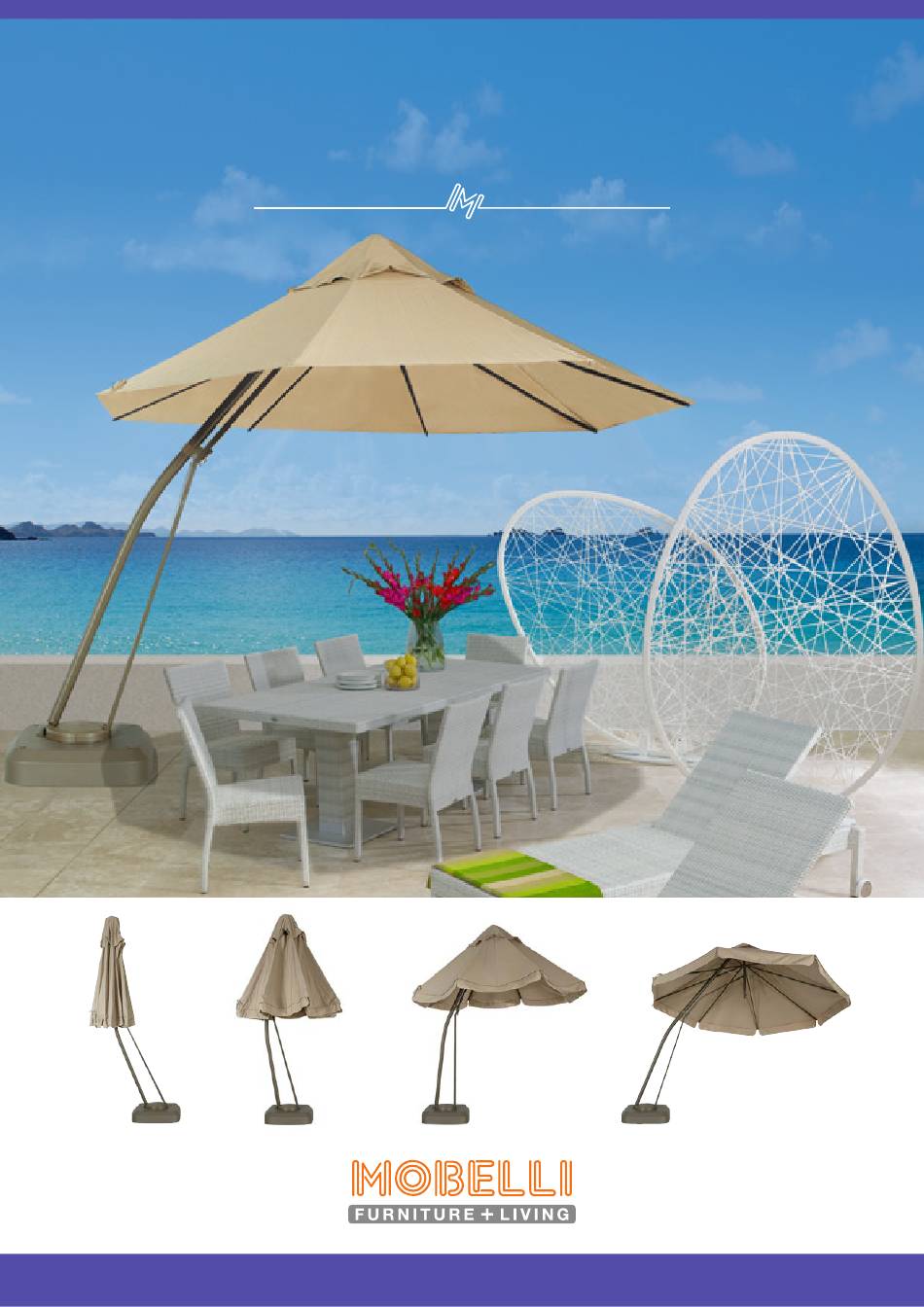

  • Page 1 ASSEMBLY INSTRUCTIONS One Touch Umbrella...

  • Page 2: Protection Cover

    ASSEMBLY INSTRUCTIONS One Touch Umbrella ACCESSORIES Screw 1 B 1 Set Screw 2 A 1 Set Umberlla Top Screw 3 G 4 Sets Screw 5 F 1 Set Screw 6 K 1 Set Screw 1 Screw 7 K 1 Set...
  • Page 3 BASE PREPARATION Sand Sand Fill up the plastic base with at least 100kg of sand. Add water and small stones for further stability. Stopper cap M WARNING: Do not pour sand into the 4 screw wells.

  • Page 4: Arm Assembly

    ARM ASSEMBLY Arm connection detail Base plate connection A x 1 C x 2 E x 3 B x 1 D x 2 F x 1 Connecting the arm to the plastic base G x 4 H x 4 J x 4...
  • Page 5 Tilt the arms of the umbrella forward and connect the remaining bolts to the base plate. K x 2 E x 2...
  • Page 6 SMALL BASE COVER Place the screw caps on exposed screw head L x 4 OPENING Open the umbrella top. Push the umbrella slowly to open.
  • Page 7 ROTATING TILTING LOOSE FIXED Push the lever in the centre of Always pull the lever to the the umbrella to the horizontal fixed position when the position. Take the end of a rib umbrella is in use. and push or pull the cover to desired tilt position.
  • Page 8 Place protective cover when not in use. MOVING Rotate the handle bar to lift and lower wheels. Redef ining the value of style mobelli.co.za | 0861 66 23 55 Paarden Eiland | Sea Point | Illovo | Fourways | Umhlanga Ridge...
