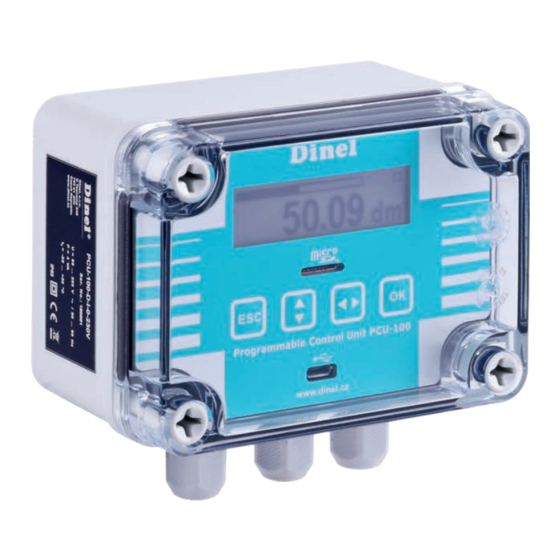

Dinel PCU-100 Series User Manual

Programmable control unit
Hide thumbs Also See for PCU-100 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
PROGRAMMABLE CONTROL UNIT
PCU–100
Firmware version 2.0.2. or higher
Before the first use of the unit, read the instructions in this manual and keep it
carefully. The manufacturer reserves the right to do alteration without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCU-100 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Dinel PCU-100 Series

Summary of Contents for Dinel PCU-100 Series

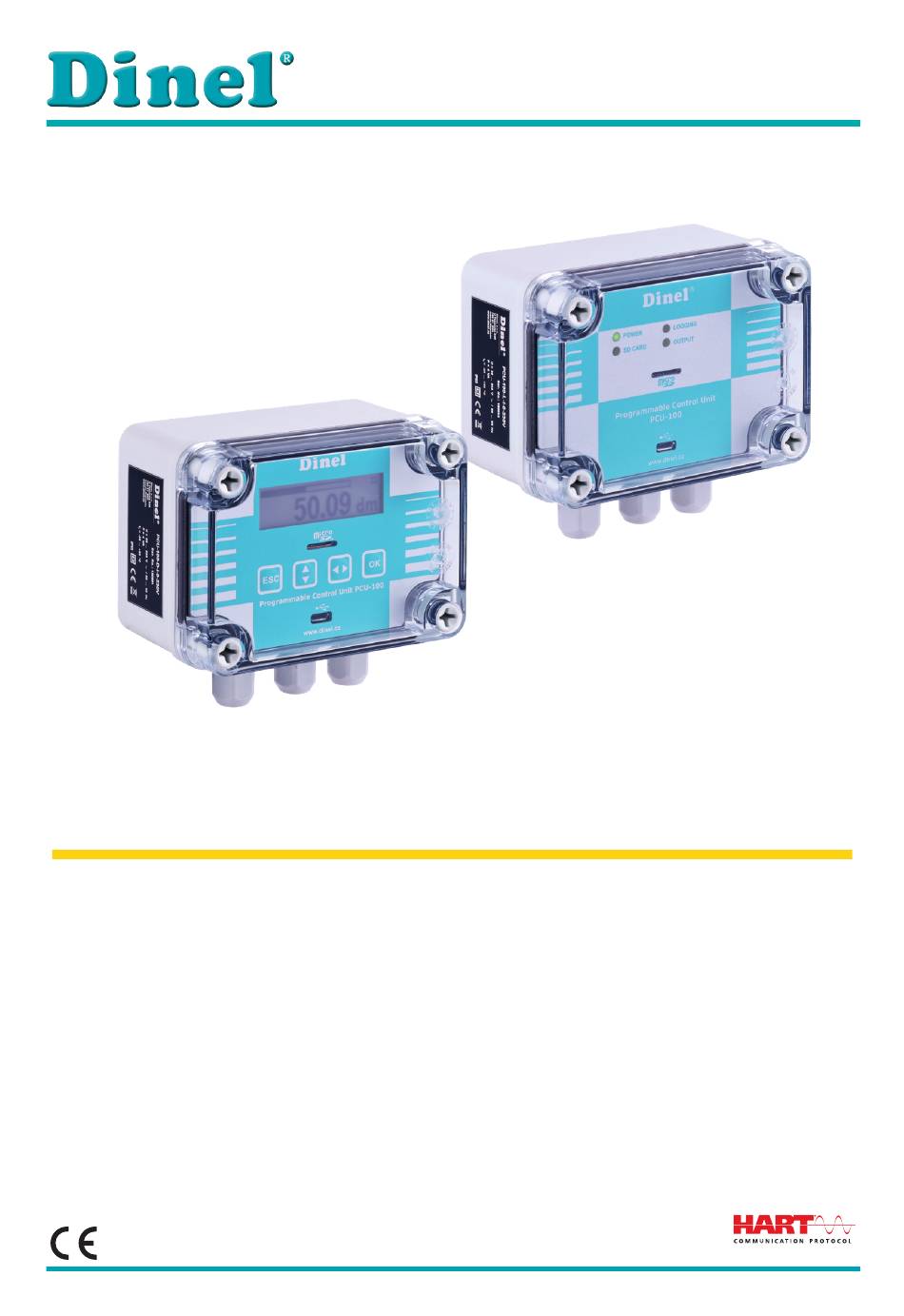

  • Page 1 USER MANUAL PROGRAMMABLE CONTROL UNIT PCU–100 Firmware version 2.0.2. or higher Before the first use of the unit, read the instructions in this manual and keep it carefully. The manufacturer reserves the right to do alteration without prior notice.

  • Page 3: Table Of Contents

    CONTENT 1  .   Basic description  ........................4 2  .   Range of application   ......................5 3  .   Variants of sensors  ........................ 5 4  .   Dimensional drawings  ......................5 5  .   The front panel and terminal block   ..................6 6  .   Installation and putting into operation  ................... 6 7  .   Mechanical mounting  ......................6 8 ...

  • Page 4: Basic Description

    1 . Basic description Programmable control unit PCU–100 is used for measurement, displaying and archiving of the  physical value (liquid level, pressure, flow, temperature, etc.). One transducer of physical magni- tude with an analogue 4-20 mA output can be connected to the unit. Different types of conversion (converting) characteristics (linear, square, root and user defined),  may be selected, also the tank dimensions for conversion to the volume of the media may be speci- fied. The unit is also available in the version without graphic LCD display that is replaced with the  status LEDs. The unit has a battery backed real-time circuit. Archiving with user-defined period  takes place on the internal flash memory with a capacity sufficient for more than 500,000 samples.  Data can be exported to a micro SD card for additional processing. User  configuration  is  possible  through  a  regular  desktop  application  after  connecting  a  PC  via    a micro USB connector located on the front panel of the unit. For the version fitted with an LCD  display the configuration is also possible using the graphical menu and four membrane keys. The unit is equipped with one input settings in the hardware configuration according to the type of  unit. One relay output is fully user-configurable, including the possibility of two-state control. The  functionality of the unit is expandable with optional modules. The units are built into the ABS / PC  instrument boxes intended for wall mounting. Connection terminal is located inside the device. PCU–100 © Dinel, s.r.o.

  • Page 5: Range Of Application

    The  unit  is  available  in  two  versions.  The  makes  are  different  by  the  front  panel  appearance.  Both versions have a micro USB connector to connect a computer to configure the unit via the  configuration application and micro SD card slot for the purposes of exports of the recorded data. • PCU–100–D Front panel with a graphic LCD display and a membrane keypad. The en- try depending on configuration (for connecting one sensor), one relay output. • PCU–100–L The front panel without an LCD display with status LEDs. The  entry  depending on configuration (for connecting one sensor), one relay output 4 . Dimensional drawings the earthing contact © Dinel, s.r.o. PCU–100...

  • Page 6: The Front Panel And Terminal Block

    At bad settlement, these protrusions may prevent the full engagement of the seal and the achievement of full coverage. PCU–100 © Dinel, s.r.o.

  • Page 7: Electrical Connection

    IEC60947-1 and IEC60947-3, must be marked and must not be in the network inlet. •  The used connecting cables must be of circular cross-section of the prescribed diameter (2.5 - 6.5  mm). The connection cable must be according to the specifications of the manufacturer rated to  the operating voltage (85 - 253 VAC) and the current load corresponding to the rated wattage (6  VA) at this voltage. The insulation material must comply with the operating voltage and endure the  ambient temperatures of up to 70 °C. In the case, there is no cable in the penetration, the penetra- tion must be fitted with a plug. Cable grommets must be tightened to the specified torque (3 Nm). Wiring Connections power supply AC lead “L” to the terminal No.1 and lead “N” to the  Power supply inlet terminal No.2. Connections of input device current loop “+” to terminal No. 4 and “-” to No. 5 Relay output (galvanically sepa- the connection to the terminals No.6 and No.7. rated solid state relay - SSR) The external power supply is not connected © Dinel, s.r.o. PCU–100...
  • Page 8 Example connection: An example of the PCU–100-_-I unit connection with the level sensor ULM-53-_ _-I is shown here. Legend: BN – brown BU – blue The level transmitter ULM-53-_ _-I may be replaced by any other measuring device with current output. (RD (+U)(1)) Example of a circuit with shielded cable: (BK (0V)(3)) An example of the PCU–100-_-I unit connection with the level sensor -HLM-35N-_K is shown here. Legend: RD – red BK – black ---- – shielding PCU–100 © Dinel, s.r.o.
  • Page 9 The ULM-70N-_ _-_-I level meter can be replaced by any other mesuring device with current output and the HART protocol support (such as GRLM-70 or CLM-70 from Dinel s.r.o.). The devices can ® also be combined and do not have to be of the same type.

  • Page 10: Settings

    Functionality: •  The shift in the menu •  Shift between the characters on the screen for entering the values •  Change the value of the check mark at the menu item •  Change the value on the screen with the values selection The symbol used in the manual: [OK] Functionality: •  Entering the main menu •  Entering the sub-menu •  Confirming changes when editing If no key is pressed within 5 minutes in the menu, the unit automatically switches back to the display mode. PCU–100 © Dinel, s.r.o.

  • Page 11: Setting Of The Input Channel In The Unit

    The Micro USB cable must be connected to the unit on the fly; it must not be connected before connecting the unit to the power supply. The layout of the application is intuitive and respects the layout of the graphical menu of the unit  (user manual). A more detailed description can be found in the user manual for the application. The application is free to download at www.dinel.cz/download-1 9.1. Setting of the input channel in the unit 9.1.1. Measuring range setting of the input channel For a correct display of bar graph and for the purpose of the transfer characteristics configuration ...
  • Page 12 Example: The level meter GRLM-70N-10-_-I-_-_-E2000 is connected to the unit PCU-100-_-H-_-_. In case that we want to read the distance digitally to the level in millimetres, we set the MIN RANGE = 100 and MAX RANGE = 2000. PCU–100 © Dinel, s.r.o.
  • Page 13 The following types of the input channel can be set for this unit: • Analogue  The measured magnitude is read from the value of current in the current loop. – primary variable • HART ® The measured magnitude is determined by the primary variable received   from the measuring device. • HART – secondary variable ® The measured magnitude is determined by the secondary variable received   from the measuring device. • HART – tertiary variable ® The measured magnitude is determined by the tertiary variable received   from the measuring device. • HART – quaternary variable ® The measured magnitude the quaternary variable received   from the measuring device. © Dinel, s.r.o. PCU–100...
  • Page 14 ® standard. Their values depend on the type of connected level meter. For ULM-54, ULM-70, GRLM-70, and CLM-70 level meters from Dinel s.r.o., the individual variables are described in chapter. Menu: INPUT T YPE ( ID 054 ) •...
  • Page 15 The  sensor  with  the  relevant  polling  address  can  then  be  parametrized  (procedure in chapter 9.6.) or the digitally measured value can be read from it, see chapter 9.1.3. Menu: DEVICE POLLING ADDRESS ( ID 056 ) • • Default: 0 • Configuration range: 0-15 • [↕] - Value change CONFIGURATION INPUT SETTINGS DEVICE ADDRESS © Dinel, s.r.o. PCU–100...

  • Page 16: Display Configuration

    The detailed display mode works with a fixed number of decimals and this configuration is not reflected. • Menu: DECIMAL PLACES ID (021) • Default value: 2 • Configuration range: 0-5 • [↕] - Change of value PCU–100 © Dinel, s.r.o.
  • Page 17 Menu: DISPLAYED UNIT (ID 023) • • Default: Percentage • [↔] - Changing the unit 9.2.5. Defining the user unit It is possible to enter any 4 characters. The here defined unit is then offered the selection of dis- played physical units. Menu: USER UNIT ID (024) • • [↔] - Movement between characters [↕] - Change of the character © Dinel, s.r.o. PCU–100...
  • Page 18 However,  in  extreme  cases,  it  is  possible  for  the  user  to  increase  (positive values configuration) or decrease the contrast (negative value settings). The value can  be configured in the range from -9 to +9. Menu: CONTRAST (ID 027) • • Default value: 0 • Configuration range: -9 to 9 • [↕] - Change of value PCU–100 © Dinel, s.r.o.

  • Page 19: Conversion Rules

    SPHER. Vertical cylindrical tank with el- VERT. CYL. TANK ELLIP. lipsoidal terminations TANK DIMENSIONS (ID0 35)  Horizontal cylindrical tank with flat  HOR. CYL. TANK FLAT terminations Horizontal cylindrical tank with  HOR. CYL. TANK ASME ASME type terminations Horizontal cylindrical tank with  HOR. CYL. TANK E2:1 ellipsoidal terminations 2:1 Horizontal cylindrical tank with half  HOR. CYL. TANK K1/2 spheric type terminations User defined table USER TABLE USER TABLE (ID 036) Menu: CONVERSION TYPE (ID 033) • • Default: Linear curve • [↔] - Change of value © Dinel, s.r.o. PCU–100...
  • Page 20 × ( �������� ) + �������� �������� = � � − �������� �������� ���������������� �������� ���������������� �������� ���������������� �������� �������� �������� = � × ( �������� ) + �������� − �������� �������� PCU–100 © Dinel, s.r.o. ���������������� �������� ���������������� �������� ���������������� ��������...
  • Page 21 The above formula is valid only for non negative value of the input magnitude. If the input value is �������� less than 0, the resulting user value “W” corresponds to the value of the “User minimum”. ℎ = × �������� �������� �������� �������� ℎ�������� �������� �������� ℎ �������� �������� © Dinel, s.r.o. PCU–100...
  • Page 22 For  each  type  of  fuel  tank,  it  is  necessary  to  specify  its  width  and  height.  Furthermore,  it  is  necessary to specify up to three specific dimensions of the given tank as parameters A, B and  C. The drawings of individual types of tanks with the specific dimensions are shown at the end  of this chapter. Menu: TANK DIMENSIONS (ID 035) • • [↔] - Movement between the characters [↕] - Change of Value Fig. 1: Horizontal cylindrical tank - adjustable termination 0 ... Horizontal cylindrical tank with flat terminations 1 ... Horizontal cylindrical tank with ASME type terminations 2 ... Horizontal cylindrical tank with ellipsoidal terminations 2:1 3 ... Horizontal cylindrical tank with half spheric type terminations PCU–100 © Dinel, s.r.o.
  • Page 23 Fig. 2: Vertical rectangular tank with a hopper Fig. 3: Vertical cylindrical tank - tapered bottom termination Fig. 4: Vertical cylindrical tank - Fig. 5: Vertical cylindrical tank - spherical termination (ball) ellipsoidal termination © Dinel, s.r.o. PCU–100...
  • Page 24 ℎ = × �������� �������� �������� �������� ℎ�������� �������� �������� ℎ �������� �������� a). Display of table points The unit allows to view stored user points. The individual points are numbered from zero to 31.    The x coordinate (input value in percent) and the y coordinate (user value) are always displayed. Menu: BROWSE POINTS ( ID 044 ) • • [↕] - Display of the next point PCU–100 © Dinel, s.r.o.

  • Page 25: Output Relay

    • [↔] - Change of selection YES/NO d). Deleting the complete table Another alternative is the deleting of the entire user table (all points).  The unit requires confirma- tion of this option by means of a dialogue. Menu: DELETE TABLE ( ID 047 ) • • [↔] - Change of selection YES / NO 9.4. Output Relay The unit processes the user value in accordance with the selected processing type. The user has  the choice of five options listed in the table below. The evaluation works with the desired value  specified by the user. The control process also requires specification of the hysteresis. © Dinel, s.r.o. PCU–100...
  • Page 26 Evaluation turned off ALARM - OVER Alarm - signalling of exceeding the desired value ALARM - UNDER Alarm - signalling of fall under the desired value 2-POS REGULATION Two-state control by the desired value and hysteresis Two-state control by the desired value and hysteresis and inverse  2-POS REGULATION  output INV. The behaviour of the relay output depending on the user value and on the selected processing type  is shown on the following graph. If the evaluation is turned off, the output relay is permanently open. PCU–100 © Dinel, s.r.o.

  • Page 27: The Archiving And Data Export Configuration

    [↔] - Movement between the characters [↕] - Increase of the marked digit value 9.5.2. The automatic data export to the SD card The unit in default configuration exports internal memory to a file on an SD card immediately after  its inserting into the unit's slot. This function can be disabled in the unit's menu. If the automatic  export is prohibited, it can be called up in the unit's menu (see chapter 10.3. Data Export).  Menu: WHEN INSERTED ID ( 051 ) • • The check mark - change using [↔] directly in the menu. © Dinel, s.r.o. PCU–100...

  • Page 28: Parametrization Of Connected Measuring Devices Using The Hart® Protocol

    ® The  PCU-100  unit  with  the  HART   input  (PCU-100-_-H-_-_)  allows  parametrization  of  basic  ® parameters  of  the  measuring  device  according  to  the  HART   standard  specification.  These  ® parameters are common to all measuring devices that support the HART  protocol. Therefore,  ® they can also be set up for third-party devices if they comply with the relevant HART  standard  ® specification. PCU–100 © Dinel, s.r.o.
  • Page 29 Menu: END OF RANGE ( ID 064 ) • • [↔] - Movement between characters, [↕] - Increase in the value of the marked digit (at marked decimal point, a shift by one order occurs) CONFIGURATION HART BASIC SETUP UPPER RANGE VALUE © Dinel, s.r.o. PCU–100...
  • Page 30 Restarts the measuring device. Menu: RESET ( ID 067) • • [↔] - Change of the YES / NO option CONFIGURATION HART BASIC SETUP RESET 9.6.2. Parametrization of Dinel level meters with the HART protocol support ®  This part of the menu is intended only for setting the ULM-54, ULM-70, GRLM-70, and CLM-70  level meters from Dinel, s.r.o. It is not displayed when a different device is connected. The basic  settings for these probes can also be carried out in the BASIC PARAMETRIZATION (see chap.  9.6.1.). In the mentioned menu, however, it is possible to set, in addition to the basic parameters,  also some other parameters that are specific for the mentioned devices. The individual items in  this menu correspond to same items in the ULM-54, ULM-70, GRLM-70, and CLM-70 level meters ...
  • Page 31 [↔] - Movement between characters, [↕] - Increase in the value of the marked digit (at marked decimal point, a shift by one order occurs) CONFIGURATION HART DINEL DEVICE MENU BASIC SETUP MIN LEVEL Upper range setting of the measured magnitude in the level meter The ...
  • Page 32 • [↕] - Changing the unit CONFIGURATION HART DINEL DEVICE MENU BASIC SETUP UNITS Averaging setting of the measured magnitude in the level meter Setting  of  measurement  response  rate.  It  is  useful  to  use  the  function  for  the  suppression  of ...
  • Page 33 Always read the instruction manual for the level meter before changing the setting. Menu: SENSITIVITY ( ID 076 ) • • [↕] - Sensitivity change CONFIGURATION HART DINEL DEVICE MENU BASIC SETUP SENSITIVITY Sensitivity setting of the level meter defined by user It is possible to set full sensitivity by entering a numerical value from one to eight. Preset sen- sor sensitivity levels are LOW (1), MEDIUM (3), and HIGH (5). Setting parameters outside these  values is recommended only for experienced users or after consultation with the manufacturer.
  • Page 34 • [↔] - Change of the YES / NO option CONFIGURATION HART DINEL DEVICE MENU BASIC SETUP TEACHING Setting of the medium temperature in the level meter This menu is only accessible after connecting the ULM-54 or ULM-70 level meters.
  • Page 35 The type is represented by two digits following “E:” and the length by 5 digits follow- ing “L:” and is entered in millimetres; [↕] - Change of value CONFIGURATION HART DINEL DEVICE MENU SERVICE ELECTRODE Factory default of the level meter It allows you to delete all user-set changes and return the level meter to the factory default set-...
  • Page 36 LIMIT values. • DAMPING An averaging value that allows you to suppress unwanted fluctuations at fast and jump  changes in the measured quantity. It can be changed in menu [link to menu 9.6.4] • SERIAL NUMBER Device serial number. Info about device From the connected measuring device it is possible to display information about the level meter  type, measured quantities, serial number, etc. Menu: ( ID 060 ) • • [↕] - Changing of the display of individual info about device. CONFIGURATION HART DEVICE INFO PCU–100 © Dinel, s.r.o.

  • Page 37: Other Settings Of The Control Unit

    [↔] - Movement between the characters, [↕] - Increase in the marked digit value CONFIGURATION DATE-TIME CHANGE 9.7.2. Password change To change the password for the unit configuration, the actual valid password must be re-entered  and then the new password. The password may have up to 9 digits. The default password for entry into the configuration part 000012345 It is strongly recommended that you change the default password in the operated units. © Dinel, s.r.o. PCU–100...
  • Page 38 The action will not affect the data saved in the internal FLASH memory. This action is irreversible. Menu: FACTORY DEFAULT SETTINGS ( ID 017 ) • • [↔] - Change of the YES / NO option CONFIGURATION FACTORY DEFAULT PCU–100 © Dinel, s.r.o.
  • Page 39 Menu: RESTART DEVICE ( ID 018 ) • • [↔] - Change of the YES / NO option CONFIGURATION RESTART DEVICE 9.7.6. Lock the control unit For the immediate abolition of the access to the adjustment part of the menu, the user can use  the following item in the menu. After selecting the item, exiting of the menu takes place and, at the  next entry into the menu, the password will be again required for the adjustment part. Menu: EXIT SETUP ( ID 019 ) • CONFIGURATION EXIT SETUP © Dinel, s.r.o. PCU–100...

  • Page 40: Menu Structure

    EXTEN. RANGE MIN return EXTEN. RANGE MAX FILTRATION INPUT TYPE 055 MASTER TYPE 056 DEVICE ADDRESS parameter settings 033 CONVER- SION TYPE 011 CONVER- SION RULES return PCU–100 © Dinel, s.r.o. parameter 037 MIN. settings INPUT-VALUE 034 CURVE PARAMETERS 038 MAX.
  • Page 41 051 WHEN settings INSERTED 014 SD CARD EXPORT 052 BACKUP return MODE 063 POLLING ADDRESS 069 BASIC SETUP 057 HART 064 UPPER RANGE VALUE parameter 065 LOWER settings RANGE VALUE © Dinel, s.r.o. PCU–100 066 DAMPING return 067 RESET...
  • Page 42 065 LOWER settings RANGE VALUE 066 DAMPING return 067 RESET 068 MESSAGE 072 MIN LEVEL 069 BASIC SETUP 073 MAX 059 DINEL LEVEL DEVICE MENU UNITS DAMPING RESET SENSITIVITY 077 USER SENSITIVITY TEACHING 080 MEDIUM TEMP. ELECTRODE 082 FACTORY...
  • Page 43 060 DEVICE INFO 015 DATE- return TIME CHANGE PASSWORD CHANGE parameter 017 FACTORY settings DEFAULT 053 ERASE FLASH MEM. return 018 RESTART DEVICE 019 EXIT SETUP 008 DATE- TIME VIEW parameter settings DIAGNOSTIC return ABOUT UNIT © Dinel, s.r.o. PCU–100...

  • Page 44: Functions Of The Device

    10.1. Description of the front panel PCU–100–D Indication of the  Indication of the  SD card insertion Bar graph (optional) value logging time Indication of the  output relay status Measured value  (8px, 24px, 32px) Slot of micro  SD card Control buttons Micro USB connector  for the configuration  from your PC PCU–100–L Indication of unit   in operation Indication of   Status LEDs 4× SD card insert Slot of micro  Indication of logging  SD card data ito memory Indication status  of the output relay Micro USB connector  for the configuration  from your PC PCU–100 © Dinel, s.r.o.

  • Page 45: Signalling Functions

    At bad settlement, these protrusions may prevent the full engagement of the seal and the achievement of full coverage. © Dinel, s.r.o. PCU–100...

  • Page 46: Displaying Functions Of The User Menu

    [↔] - A shift by a position back, [↕] - A shift by a position forward 10.4.2. Display of the real date and time of the unit Even without entering the password for the unit configuration, it is possible to display the current  real date and time of the unit on the screen. Its change is possible only in the configuration (see  chapter 9.6.1). Menu: DATE - TIME VIEW ( ID 003 ) • PCU–100 © Dinel, s.r.o.

  • Page 47: Unit Firmware Updates

    For units with a display, the firmware update mode will be visually indicated by the maximum brightness of display backlight, whereas nothing is displayed. For units without a display, all status LEDs are permanently lit. © Dinel, s.r.o. PCU–100...

  • Page 48: Order Code

    11 . Order code PRODUCT PCU-100 DISPLAY TYPE with LCD display without LCD display UNIT'S INPUT current input current input (with HART  communication) ® OPTIONAL EXPANDABLE MODULE without the expanding I/O module SUPPLY VOLTAGE 230 V AC power supply 85 ÷ 253V AC / 50 ÷ 60Hz PCU-100 - D 230V AVAILABLE PRODUCT ALTERNATIVES PCU–100 © Dinel, s.r.o.

  • Page 49: Correct Specification Examples

    The assembly, installation, commissioning, operation and maintenance of the PCU-100 must be carried out in accordance with this manual and must comply with the provisions of the standards in force for the installation of electrical device. © Dinel, s.r.o. PCU–100...

  • Page 50: General, Conditions And Warranty

    16. Marking of labels Data on the plate of the unit of PCU–100 series títek PCU-100 verze 230 V AC PCU-100-_-_-_-230V PCU-100-_-_-_-230V Ser. No.: ______ Ser. No.: ______ Dinel, s.r.o. Dinel, s.r.o. U Tescomy 249 U Tescomy 249 760 01 Zlín 760 01 Zlín U = 85-253 V U = 85-253 V...

  • Page 51: Technical Specifications

    Control Foil keypad - 4 buttons, PC program - connect the micro USB Internal memory size min. 500,000 records Archiving Period user adjustable (1 sec to 8 hours) The menu language Czech, English Dimensions 110 × 80 × 65 mm Weight 320 g Housing - material ABS/PC Protection class IP 65 Ambient working tem- -25°C to +50°C perature Electrical parameters of the relay output Maximum switched voltage  ±50 V DC / 230 V AC Max. switched current  ±120 mA DC / 80 mA AC Maximum resistance is in the closed state 30 Ω The maximum current flowing through the opened  1 µA (U = 100 V) contacts Insulating Voltage 5 kV AC (RMS) © Dinel, s.r.o. PCU–100...

  • Page 52: Packing, Shipping And Storage

    18. Packing, shipping and storage The PCU–100 is wrapped in a polyethylene bag and the whole consignment is placed in a card box.  In the carton box, appropriate padding is used to prevent mechanical damage during transport. Remove the device from the packaging just before its use, you may avoid possible damage. The  transport  to  the  customer  is  realized  by  means  of  a  forwarding  company.  After  a  prior  agreement, personal taking of the ordered goods from headquarters is also possible. When taking  over, please make sure that the consignment is complete and corresponds to the extent of the  order, and that no damage occurred to the device when transporting. Do not use a device obviously  damaged during transport, but contact the manufacturer in order to address the situation. If the device is to be transported further, then only wrapped in the original packaging and protected  against shocks and weather conditions. Store the device in the original packaging in dry areas covered from the weather conditions, with  a moisture up to 85 % without any effects of Chemically active substances. Storage temperature  range is -10 °C to +50 °C. PCU–100 © Dinel, s.r.o.
  • Page 53 Note © Dinel, s.r.o. PCU–100...
  • Page 56 Dinel, s.r.o. U Tescomy 249 760 01 Zlín Czech Republic phone: +420 577 002 002 email: obchod@dinel.cz www.dinel.cz The current version of the manual can be found on www.dinel.cz Version: 08/2017...
