Manual of Operation and Instruction
Model 2701-B
PaveTracker™ Plus
Troxler Electronic Laboratories, Inc.
3008 Cornwallis Rd. • P.O. Box 12057
Research Triangle Park, NC 27709 U.S.A.
Phone: 1.877.TROXLER
Outside the U.S.A.: +1.919.549.8661
Fax: +1.919.549.0761
www.troxlerlabs.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PaveTracker Plus 2701-B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Troxler PaveTracker Plus 2701-B

Summary of Contents for Troxler PaveTracker Plus 2701-B

  • Page 1 Manual of Operation and Instruction Model 2701-B PaveTracker™ Plus Troxler Electronic Laboratories, Inc. 3008 Cornwallis Rd. • P.O. Box 12057 Research Triangle Park, NC 27709 U.S.A. Phone: 1.877.TROXLER Outside the U.S.A.: +1.919.549.8661 Fax: +1.919.549.0761 www.troxlerlabs.com...
  • Page 2 Troxler gauges are protected by U.S. and foreign patents. The Model 2701-B PaveTracker Plus is protected by U.S. Patents 6,400,161 and 6,677,763. Copyright  2004 – 2020 Troxler Electronic Laboratories, Inc. All Rights Reserved No part of this manual may be reproduced or transmitted in...
  • Page 3 SAFETY ALERT SYMBOL The Safety Alert Symbol shall appear within this manual. Wherever it appears in this manual or on safety signs affixed to the machine, this is to make all aware of the potential for personal injury and to be cautious when these images are present.
  • Page 4 Waldstrasse 4, D.82239 Alling nr. (Zhangjiagang) Munich, Germany 1F, Bldg G, No. 1 Guotai North Road Phone: ++ 49.8141.71063 ZJG, China, 215600 Fax: ++49.8141.80731 Phone: 0086.512.56793702 troxler@t-online.de Fax: 0086.512.56793701 kjin@troxlerlabs.cn To locate an independent, Troxler-authorized service partner near you, call 1.877.TROXLER (1.877.876.9537).
  • Page 5 HOW TO USE THIS MANUAL Congratulations on the purchase of the Troxler Model 2701- B PaveTracker Plus. Troxler, the leader in density gauge technology, now offers the PaveTracker Plus, an electromagnetic sensing device that quickly gives an indication of the density of asphalt pavement.
  • Page 6 CONVENTIONS USED IN THIS MANUAL Throughout this manual the following symbols and special formatting are used to reveal the purpose of the text. WARNING Warnings indicate conditions or procedures that, if not followed correctly, may cause personal injury. CAUTION Cautions indicate conditions or procedures that, if not followed correctly, may cause equipment damage.
  • Page 7 ABOUT THIS MANUAL The Model 2701-B Manual of Operation and Instruction provides detailed information about the PaveTracker Plus gauge. The manual includes product safety information, as well as instructions for the proper installation and use of the PaveTracker Plus. This manual is organized as follows: Chapter 1, Introduction –...
  • Page 8 Standards to which Conformity is Declared: EN 55011:1998+A1:1999+A2:2002 – Industrial, Scientific, and Medical (ISM) Radio Frequency Equipment EN 61326:1997+A1:1998+A2:2001+A3:2002 – Electrical Equipment for Measurement, Control, and Laboratory Manufacturer: Troxler Electronic Laboratories, Inc. P.O. Box 12057, 3008 Cornwallis Road Research Triangle Park, North Carolina 27709 U.S.A.
  • Page 10 FCC REGULATIONS Troxler’s Model 2701-B PaveTracker Plus has been tested and found to comply with the limits for Industrial, Scientific, and Medical Devices pursuant to Part 18 of Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 11: Table Of Contents

    TABLE OF CONTENTS CHAPTER 1. INTRODUCTION Introduction..................... 1–2 Features ....................1–4 Gauge Parts and Accessories ............1–6 Unpacking and Inspection ..............1–7 CHAPTER 2. GETTING STARTED Keypad....................... 2–2 Turning the PaveTracker Plus On ............ 2–4 Status ......................2–6 Setup Menu ..................... 2–7 Target ......................
  • Page 12 APPENDIX A. TROUBLESHOOTING AND SERVICE Troubleshooting ..................A-2 Internal Gauge Temperature............. A-4 Batteries ....................A-5 Cleaning the Base and Top Shell............. A-7 Replacing the Protective Cover............A-8 Replacement Parts................A-10 Returning the Gauge for Service...........A-11 APPENDIX B. MENU MAP Menu Map Description ................B-2 APPENDIX C.
  • Page 13 This chapter covers the following topics and tasks: An introduction to your new PaveTracker Plus  Included parts and accessories  Inspection and unpacking  Assembly and first-time use  Model 2701-B 1–1...

  • Page 14: Introduction

    The user should: ♦ Keep the unit clean and free of all road debris. ♦ Return the unit to Troxler for yearly re-calibration and inspection. ♦ Ensure that the unit remains sealed at all times. There are no field-serviceable components inside the unit.

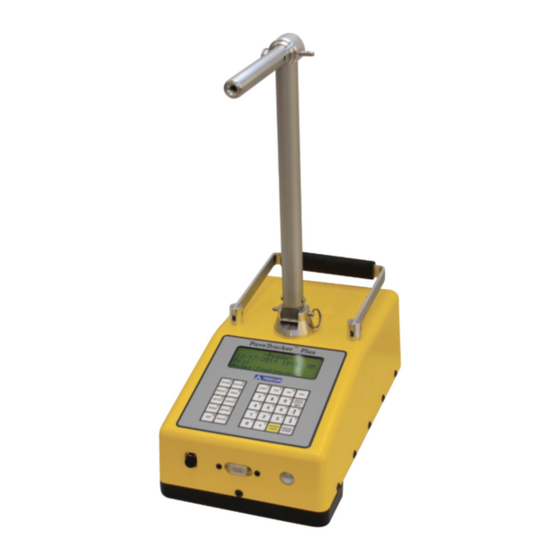

  • Page 15: Figure 1-1. Model 2701-B Pavetracker Plus

    HANDLE CARRYING HANDLE DISPLAY KEYPAD POWER SWITCH SERIAL BATTERY PORT CHARGER INPUT Figure 1–1. Model 2701-B PaveTracker Plus Model 2701-B 1–3...

  • Page 16: Features

    Features The PaveTracker Plus (see Figure 1–1) incorporates a number of features that provide unmatched efficiency, usability, and flexibility. The PaveTracker Plus takes density measurements using electromagnetic sensing technology, eliminating the need for government licenses or special training. Measurements are completed within two seconds, saving time and money.
  • Page 17 The PaveTracker allows the operator to specify the layer thickness; the value entered is stored with other measurement data. Measurements can be adjusted using a density offset or mix calibration (which includes slope and intercept values) to increase accuracy on specific materials. Both an ac charger and a dc adapter are included with the PaveTracker Plus, enabling the unit to be recharged from an ac outlet or a 12 V dc system.

  • Page 18: Gauge Parts And Accessories

    Gauge Parts and Accessories 1. The gauge is the portable electromagnetic sensing device containing all electronic modules and a rechargeable battery pack. 2. The carrying case for the Model 2701-B includes a built- in reference standard, which provides a density measurement standard for taking reference readings.

  • Page 19: Unpacking And Inspection

    Unpacking and Inspection NOTE To ensure the safe return of the PaveTracker Plus to Troxler for repair or maintenance, please keep the original shipping boxes and all packing materials. Upon receipt of the gauge from the factory: 1. Perform a complete inspection and inventory. If the...
  • Page 20 NOTES 1–8...

  • Page 21: Chapter 2. Getting Started

    This chapter covers the following topics and tasks: Getting started with the PaveTracker Plus  Using the keypad  Turning the gauge on  Setting up the gauge  Checking the Status of the gauge  Using Target and Mode ...

  • Page 22: Keypad

    Keypad The Model 2701-B keypad (Figure 2–1) allows the operator to access the gauge software. Troxler designed the keypad for ease of use, with large keys and an anti-glare coating. Note that the function keys are available only when the Ready screen is displayed.

  • Page 23: Table 2-1. Model 2701-B Keypad Functions

    Table 2–1. Model 2701-B Keypad Functions FUNCTION PAGE 〈STORE〉 Store the most recent data in the current 5-10 project file. 〈STATUS〉 Displays gauge status information. 2–6 〈RECALL〉 Display the most recent data. 4–12 〈PROJ〉 Select or create a project file and view, output, or erase project data file.

  • Page 24: Turning The Pavetracker Plus On

    Turning the PaveTracker Plus On To turn on the PaveTracker Plus, press the power switch located on the front panel next to the serial port (see Figure 1–1). NOTE To turn off the PaveTracker Plus, press and hold the power switch for two seconds.
  • Page 25 〈LIGHT〉 key. NOTE The keypad and display backlights increase the power consumption of the unit. To conserve battery life, Troxler recommends that the backlights be used only when necessary. To conserve power, the PaveTracker Plus provides a sleep mode, as well as an automatic shutdown.

  • Page 26: Status

    Status The gauge Status display enables the operator to view gauge status information, including the battery voltage, internal temperature, selected measurement units (see page 2–8), the time and date of the last reference reading (see page4–2), and GPS satellite and fix status. To access this information, press the 〈STATUS〉...

  • Page 27: Setup Menu

    Setup Menu After turning the gauge on for the first time, set up the software. The gauge stores the software setup, so the operator does not need to enter a new setup each time the gauge is turned on. The gauge setup includes the measurement units (Metric or English), date and time, temperature, customer name, external beeper setup, GPS, user ID, mix calibration, and the layer thickness function.
  • Page 28 Set Units The gauge can display measurement results in either metric (SI) or English units. To set the units, press 〈1〉 at the Setup menu shown on page 2–7. The gauge displays: - Uni t s- 1. Engl i sh 2.
  • Page 29 Change Time To change the time, press 〈1〉 at the Date/Time menu. The gauge displays: hh: mm AM Ar r ows t oggl e AM/ PM I nput Ti me and Pr ess <ENTER> (Note that in this example, the time is displayed in AM/PM format.
  • Page 30 Time Format The gauge can display the time in either AM/PM or 24-hour format. To select the desired time format, press 〈3〉 at the Date/Time menu. The gauge displays: - Ti me For mat - 1. AM/ PM 2. 24- Hour Use the numeric keys to select the desired time format.
  • Page 31 Temperature Option An infrared sensor that measures the temperature of the mat is available as an option for the gauge. If this option is installed, press 〈3〉 at the Setup menu shown on page 2–7 to display the temperature reading. Press the 〈ESC〉 key to return to the Setup menu.
  • Page 32 External Beeper The PaveTracker Plus is equipped with an external beeper mounted on its underside. The external beeper can be enabled or disabled as desired. To control the external beeper, press 〈5〉 from the Setup menu shown on page 2–7. The gauge displays: - Ext er nal Beeper - 1.
  • Page 33 User ID The PaveTracker Plus stores a three-character user ID with each measurement. To enter or change the user ID, press 〈7〉 from the Setup menu shown on page 2–7. The gauge displays: Us er I D Do You Want To Change Us er I D? To change the user ID, press 〈YES〉.
  • Page 34 Layer Thickness The Layer Thickness function enables the operator to enter the thickness of the material being measured. When this function is enabled, the gauge prompts the operator to enter a thickness value when creating a new project as described on page 5-3.

  • Page 35: Target

    Target The Model 2701-B can store up to four Gmb (Marshall) and four Gmm (Voidless density) target values. A Gmb value is the bulk density of a material, often determined using the Marshall method. A Gmm value is the maximum theoretical density for a test material as obtained in laboratory tests.
  • Page 36 Enable or Disable a Target Value To enable a displayed target value, press the corresponding numeric key on the target value menu. The gauge enables the target value and returns to the Ready screen. Enter a New Target Value To enter a new target value, press 〈5〉 at the target value menu.
  • Page 37 Disable a Target Value To disable the current target value, press 〈6〉 at the target value menu. The gauge disables the target value, displays a brief confirmation message, and returns to the Ready screen. Model 2701-B 2–17...

  • Page 38: Mode

    Mode The Model 2701-B provides three measurement modes: ♦ In continuous mode, the gauge takes a measurement and updates the display every second. This mode is used for typical quality control measurements. ♦ In averaging mode, the operator can take up to 30 measurements at selected locations.
  • Page 39 This chapter covers the following topics and tasks: Adjust gauge measurements using offsets  Using mix calibration (slope and intercept)  Model 2701-B 3–1...

  • Page 40: Introduction

    Introduction Troxler recommends referencing the gauge each day that the gauge is in use and periodically while taking measurements. The reference reading consists of placing the gauge on the reference standard contained in the gauge carrying case and pressing the 〈Ref〉 key.

  • Page 41: Offset

    Offset To improve the accuracy of the PaveTracker Plus for a specific material of known density, the unit can be calibrated using a density offset. A density offset is determined by taking in- place measurements using the PaveTracker Plus, then comparing the measured density to an alternative density, as determined using a nuclear gauge reading or road core extraction and analysis.
  • Page 42 3. Determine the alternative density of the material using a nuclear gauge reading or road core extraction and analysis. Be sure to conduct the gauge measurements or core extraction in the same location as the PaveTracker Plus reading. 4. Subtract the measured density from the alternative density to determine the density offset to be entered into the PaveTracker Plus software.
  • Page 43 To enter a new density offset, press 〈3〉. The gauge prompts for the density offset as shown below: Dens i t y Of f set #. ## pcf Sel ect ( +/ - ) To change the offset, use the arrow keys to select the offset sign (positive or negative).

  • Page 44: Mix Calibration

    Also, the difference between the minimum and maximum reading must be at least 3 pcf. For best results, Troxler recommends taking measurements at seven to ten locations.
  • Page 45 Enable a Mix Calibration To enable a displayed mix calibration, press the corresponding numeric key. The gauge enables the mix calibration and returns to the Setup menu. New Mix Calibration To determine a new mix calibration or to manually enter the slope and intercept values, press 〈5〉...
  • Page 46 Using the numeric and decimal keys, enter the measured density (the density as measured by the gauge) at the first test location. Press the 〈ENTER/START〉 key. The gauge displays: I nput Cor e Val ue 1: 0. 0 Pr ess <ENTER> Enter the actual density (the density as determined from an alternate method) and press the 〈ENTER/START〉...
  • Page 47 Press the 〈ALPHA LOCK〉 key to enable the alphabetic keys on the gauge. When the alphabetic keys are enabled, the symbol appears in the upper right of the display, as shown above. Enter a unique mix calibration ID and press 〈ENTER/START〉. The gauge displays: Sel ect Memor y Cel l 1.
  • Page 48  To return to the Setup menu without saving the mix calibration, press the 〈NO〉 key.  To save the mix calibration, press the 〈YES〉 key. The gauge requests a mix calibration ID as shown: Mi x Cal i b. I D <ALPHA>...
  • Page 49 This chapter covers the following topics and tasks: Referencing the gauge  Preparing measurement sites  Setting measurement mode  Taking measurements  Model 2701-B 4–1...

  • Page 50: Referencing The Gauge

    Referencing the Gauge To ensure the accuracy of gauge measurements, Troxler recommends referencing the gauge each time it is powered on and periodically while taking measurements. Referencing the gauge consists of placing the gauge on material of known density located inside the case. The gauge...
  • Page 51  Repeat the referencing process. If the reference result still does not pass, contact Troxler technical support (see the front of this manual for a list of service centers and their contact information).

  • Page 52: Preparing A Test Site

    Preparing a Test Site To ensure measurement accuracy, properly prepare the test site before taking gauge measurements. 1. Locate a smooth site on the asphalt. 2. To ensure accurate readings, the gauge sensor must be completely in contact with the test material. If the gauge rocks, then find a more suitable test site.
  • Page 53 CAUTION High internal temperatures may damage the gauge’s electronic components. To reduce the risk of damage, DO NOT allow the gauge to sit on hot asphalt for extended periods. If the internal temperature of the gauge reaches a level that is considered excessive, the beeper will sound and the warning message Internal temp.
  • Page 54 Continuous Mode In continuous mode, the gauge takes a measurement and updates the display every second. This mode is used for typical quality control measurements. Extend the telescoping handle (see Figure 1–1) to reduce the bending required while taking measurements. 1.
  • Page 55 NOTE The latitude and longitude display, showing the location of the measurement, is available only on the PaveTracker Plus gauges equipped with the GPS option and is shown only when this option is enabled. The latitude and longitude value denote the quality of the location fix.
  • Page 56 Averaging Mode In averaging mode, you can take up to 30 measurements at selected locations. The gauge will calculate the average of these measurements, allowing you to determine the average density over a larger area. 1. Extend the telescoping handle (see Figure 1–1) to reduce the bending required while taking measurements.
  • Page 57 5. Press 〈ENTER/START〉 to continue. Repeat the steps above to take a measurement at up to 30 test locations. When all locations are complete, press the 〈STORE〉 or 〈ESC〉 key to continue. If the 〈ESC〉 key is pressed, the gauge displays: End of Meas ur ement Do You Want To St or e ?
  • Page 58 NOTE The gauge stores only the data shown in the last display . It does not store the results of each individual reading. Segregation Mode In segregation mode, the operator can take up to 30 measurements at selected locations. The gauge then displays the high, low, and average density of the readings.
  • Page 59 NOTE If the Temperature option (see page 2–11) is installed, the mat temperature is also shown in the upper right corner of the display. 5. Press 〈ENTER/START〉 to continue. Repeat the previous steps to take a measurement at up to 30 test locations. When all locations are complete, press the 〈STORE〉...

  • Page 60: Recall

    Enter any desired information (up to eight characters) and press 〈ENTER/START〉. The gauge stores the last displayed results and notes under the active project and returns to the Ready screen. For more information on storing measured data, see the Storing Data section on page 5-10. NOTE The gauge stores only the data shown in the last display .
  • Page 61 This chapter covers the following topics and tasks: Using the Projects function  Storing data  Model 2701-B...

  • Page 62: Handling Project Data

    Handling Project Data The Model 2701-B can store approximately 1000 readings. The Project and Store functions allow handling of measurement data. Measurement results are stored in files (memory locations) called projects, which are named by the operator. The Project function allows the operator to create a new project, view project data, select a project (make an existing project active so that additional data may be added to it), output the data stored in the project, or erase projects.
  • Page 63 Creating a Project 1. To create a new project, press 〈3〉 at the Project menu shown on page 5-2. The gauge displays: Pr oj ect Name <ALPHA> f or Let t er s <ENTER> t o Exi t 2. Press the 〈ALPHA LOCK〉 key to enable the alphabetic keys on the gauge.
  • Page 64 Selecting a Project 1. To select an existing project, press 〈1〉 at the Project menu shown above. If no projects have been created, the gauge displays the message No Projects are stored. If a project has been created, the gauge displays: Pr oj ect XXX Ar r ows f or Scr ol l <ENTER>...
  • Page 65 Viewing Project Data The Model 2701-B offers two methods of viewing data. You can view either the last measurement results using the Recall function described on page 4–12, or any measurement results, including project notes, stored in a project file using the View function available from the Project menu.
  • Page 66 Erasing Projects To erase either a selected project file or all project files, press 〈4〉 at the Project menu shown on page 5-2. The gauge displays: Er ase: 1. One Pr oj ect 2. Al l Pr oj ect s Pr ess # t o Sel ect ...
  • Page 67 Ensure that the serial cable meets the pinout shown on page C–3. An optional serial cable, PN 106514.0002, is available from Troxler. 2. Connect the serial cable to the printer (or computer) serial port.
  • Page 68 Use the arrow keys to scroll through the project names displayed on the first line. When the gauge displays the desired project, press 〈ENTER/START〉. For either selection, the gauge displays: Out put : 1. 32 Col umn Repor t 2. Spr eadsheet Pr ess # t o Sel ect The 32 Column Report option is formatted for a standard printer width.
  • Page 69 Printing Project Data The Print function within the Project menu allows the operator to print project data stored in the gauge to a printer at the correct speed, ensuring that all the data is included in the hard copy. To print project data, press 〈6〉 at the Project menu shown on page 5-2.

  • Page 70: Storing Data

    Storing Data The Model 2701-B can store approximately 1000 readings. As described in the previous section, the gauge stores readings under the project name that has been enabled. For more information on selecting a project, see page 5-3. Project data can be output as described on page 5-7. When using the Spreadsheet option, the gauge outputs the following information for each reading: ♦...
  • Page 71 ♦ User ID ♦ Location (right or left) of centerline – This value is blank if not in continuous mode. ♦ Distance from centerline – This value is 0.0 if not in continuous mode. ♦ Latitude ♦ Longitude ♦ GPS Fix Note that the station number, distance from centerline, and location with respect to centerline fields are available only for continuous mode measurements.
  • Page 72 Enter the station number (up to eight characters) and press 〈ENTER/START〉. The gauge displays: St at i on Di st ance Fr om Cent er Li ne? #. # Pr ess <ENTER> Enter the distance from the centerline and press 〈ENTER/START〉.
  • Page 73 Storing Data in Averaging or Segregation Mode After taking a measurement in averaging or segregation mode, the operator can store the data in the selected project by pressing the 〈STORE〉 key when the gauge displays the test results or after returning to the Ready screen. The gauge displays: Do You Want To Add Not es?
  • Page 75 This appendix provides details for troubleshooting and servicing the Model 2701-B PaveTracker Plus. For further details, contact the nearest Troxler Service Center or your Troxler representative. Model 2701-B Appendix A–1...

  • Page 76: Troubleshooting

    COMPUTER 1. Inspect the contents of the shipping case. If the shipping case or any other part or accessory appears damaged, notify the carrier and your Troxler representative immediately. 2. Check that the correct cable is being used. 3. Ensure that the printer/computer baud rate is 9,600 bps.
  • Page 77 SHORT BATTERY LIFE AFTER RECHARGING 1. NiMH batteries may be charged up to 500 or more full charge/discharge cycles, and typically have a 4-year life. The batteries may be reaching the end of their life cycle, and should be replaced. 2.

  • Page 78: Internal Gauge Temperature

    Internal Gauge Temperature High internal temperatures may damage the gauge’s electronic components. To reduce the risk of damage, DO NOT allow the gauge to sit on hot asphalt for extended periods. If the internal temperature of the gauge reaches a level that is considered excessive, the beeper will sound and the following warning message is displayed: I nt er nal t emp.

  • Page 79: Batteries

    If the voltage falls below 5.5 V dc, the gauge powers down automatically after completing any memory store functions already in progress. Troxler recommends that the operator recharge the NiMH batteries. The NiMH batteries can be fully recharged in only 2.5 hours.
  • Page 80 Replacing the Batteries To replace the NiMH battery pack (PN 110374): 1. Turn the gauge off. 2. Using a 1/8-inch Allen wrench, remove the two screws that secure the battery cover to the base of the unit. 3. Clean the screws and set them aside. 4.

  • Page 81: Cleaning The Base And Top Shell

    Cleaning the Base and Top Shell To clean the gauge base, use a putty knife to scrape away any built-up accumulations of soil or asphalt. CAUTION Be careful not to scrape or scratch the round sensor, as damage to the sensor may cause erroneous readings. Also be careful not to damage the gauge base.

  • Page 82: Replacing The Protective Cover

    NOTE Additional bottom cover discs can be purchased from Troxler by ordering PN 113103, Cover Replacement Kit, which includes three discs. To remove the old protective cover disc: 1. Turn the gauge over so that its bottom surface is exposed.
  • Page 83 3. Align the replacement cover disc with the sensor and press it into place. Smooth out the disc to eliminate air bubbles. NOTE Do not remove and re-install the same cover disc, as the adhesive will be weakened. Model 2701-B Appendix A–9...

  • Page 84: Replacement Parts

    Replacement Parts PART # DESCRIPTION 113210 Handle assembly, L shaped 113006 Locking pin 113034.1000 Transit case assembly 113103 Bottom cover replacement kit (includes three replacement bottom cover discs) 110374 NiMH battery assembly Accessories PART # DESCRIPTION 104156 DC charger 110403 AC adapter 106514.0002 Serial cable...

  • Page 85: Returning The Gauge For Service

    Returning the Gauge for Service All shipments within the United States to the factory must be accompanied by the following information. This information is used by Troxler shipping and service personnel to expedite the repair work. ♦ Gauge model and serial number.
  • Page 86 NOTES Appendix A-12...
  • Page 87 This appendix provides a map of the various menus in the Model 2701-B PaveTracker Plus control software. Model 2701-B Appendix B:–1...

  • Page 88: Menu Map Description

    Menu Map Description Figure 5–1 is a map of the menus of the PaveTracker Plus control software and each of its submenus. The menu map shows the function key that accesses each menu. The map uses indentation to indicate submenus that result from selection of a menu item.

  • Page 89: Figure 5-1. Model 2701-B Menu Map

    Figure 5–1. Model 2701-B Menu Map 〈PROJ〉 - Pr oj ect - 1. Sel ect 2. Vi ew 3. Cr eat e 4. Er ase Er ase: 1. One Pr oj ect 2. Al l Pr oj ect s 5. Out put Out put : 1.
  • Page 90 Figure 5–1. Model 2701-B Menu Map (Continued) - Set up- 6. GPS 1. ON 2. OFF 7. Us er I D 8. Mi x Cal i br at i on Items 1 through 4 represent memory cells used to store mix calibrations. 5.
  • Page 91 Figure 5–1. Model 2701-B Menu Map (Continued) 〈MODE〉 - Mode- 1. Cont i nuous 2. Aver agi ng 3. Segr egat i on 〈OFFSET〉 Dens i t y Of f set 1. Enabl e 2. Di sabl e 3. Change Of f set Model 2701-B Appendix B:–5...
  • Page 92 NOTES Appendix B:–6...
  • Page 93 This appendix contains gauge and measurement specifications for the Model 2701-B PaveTracker Plus. Model 2701-B Appendix C–1...

  • Page 94: Measurement Specifications

    Measurement Specifications Measurement capability Pavement density in lb/ft kg/m Precision 0.2 lb/ft (3.2 kg/m ) at 1-Sigma on reference standard Probe Non-nuclear, non-capacitance, measuring field Probing depth Up to 4.45 cm (1.75 in.) Measurement time 1 second Measurement modes Continuous, averaging, and segregation Appendix C-2...

  • Page 95: Electrical Specifications

    Electrical Specifications Power Source 5 C NiMH (Rechargeable Pack) batteries Charging Source Power Supply 100–240 V ac, 47–63 Hz, 0.7 A (AC charger) PaveTracker Plus 12 V dc ± 5%, 1.8 A minimum Battery Recharge Time 2.5 hours maximum, automatic cutoff (may be charged incrementally without damaging the batteries)

  • Page 96: Mechanical Specifications

    Mechanical Specifications Gauge Size, Without 22.9 W × 40.6 D × 19.1 H cm Telescoping Handle (9.0 W × 16.0 D × 7.5 H in.) Carrying Case Size 53.34 W × 44.45 D × 24.13 H cm (21.0 W × 17.5 D × 9.5 H in.) Weight, Without 4.8 kg (10.5 lb) Telescoping Handle...
  • Page 97 This appendix gives an overview of how the optional GPS receiver operates and its accuracy. Model 2701-B Appendix D–1...
  • Page 98 GPS Accuracy As described earlier, the PaveTracker Plus gauge can be equipped with an optional GPS receiver that determines the location (latitude and longitude) of the gauge. This information is stored with each gauge measurement. The GPS receiver used has Wide Area Augmentation System (WAAS) capabilities, which provides accuracy to within 3 m (10 ft).
  • Page 99 The reference stations determined a measured distance to each satellite using the signals received from the satellites. For each satellite, the stations compare the measured distance to the actual range (as calculated from its known position) to determine a differential correction for each satellite. Two master stations, located on either coast, collect data from the reference stations to create a GPS correction message.

  • Page 100: Table D-1. Gps Position Accuracy

    Table D-1. GPS Position Accuracy Quality of Accuracy Fix Quality GPS Data GPS reading Within 3 m Latitude and longitude displayed (10 ft) with WAAS to nearest 1/100 second GPS reading Within 15 m Latitude and longitude displayed (50 ft) without WAAS to nearest 1/10 second No GPS...

  • Page 101: Index

    INDEX AC charger ....................1–6 Accessories .................. 1–6, A–10 Adapter, dc ....................1–6 Automatic shutdown ..............2–6, C–3 Averaging mode ..................4–8 Backlight ....................2–6 Battery ....................... A–5 Charge ....................A–5 Replace ....................A–6 Beeper, external ................... 2–12 Bottom cover disc ................. 1–4 Replacing .....................
  • Page 102 Disable Density offset ..................3–4 Mix calibration ................. 3–10 Target ....................2–18 Electrical specifications ............... C–3 Enable Density offset ..................3–4 Mix calibration ................... 3–7 Target ....................2–17 Enter target .................... 2–17 Erase projects ................... 5-6 Format, project output ................. 5-8 Gauge temperature, internal .............
  • Page 103 Mechanical specifications ..............C–4 Menu Map ......................B–1 Setup ..................... 2–8 Mix calibration ................2–14, 3–6 Data Pairs function ................3–7 Disable ....................3–10 Enable ....................3–7 New ......................3–7 Mode Averaging .................... 4–8 Continuous ..................4–6 Measurement ................... 2–18 Segregation ..................
  • Page 104 Select ...................... 5-4 View ......................5-5 Ready screen ................... 2–5 Recall data ....................4–12 REF key ...................... 4–2 Reference reading ................. 4–2 Reference standard............1–4, 1–6, 4–2 Replace Battery pack ..................A–6 Bottom cover disc ................A–8 Segregation mode ................4–10 Select project ...................
  • Page 105 Taking measurements ................. 4–4 Target Disable ....................2–18 Enable ....................2–17 Enter ....................2–17 Values ....................2–16 TARGET key ................... 2–16 Temperature ..................2–11 Test site preparation ................4–4 Time ......................2–10 Format ....................2–11 Troubleshooting ..................A–2 Units, measurement ................2–9 Unpacking ....................
  • Page 106 _, against defects in material and workmanship for a period of twelve (12) months from date of shipment. For gauges sold through authorized TROXLER representatives, the date of shipment will be as of the transfer from representative to purchaser. During the applicable warranty period, TROXLER’s obligation under this warranty shall be limited exclusively to the repair at no charge, except for shipping to and from TROXLER’S plant, of any instrument which may prove defective under normal use and which...
