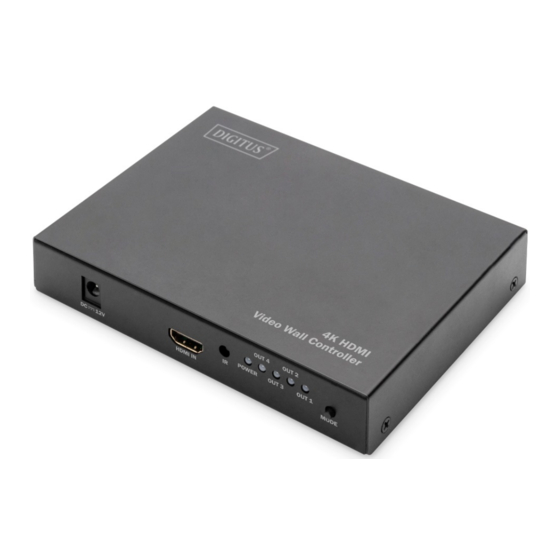

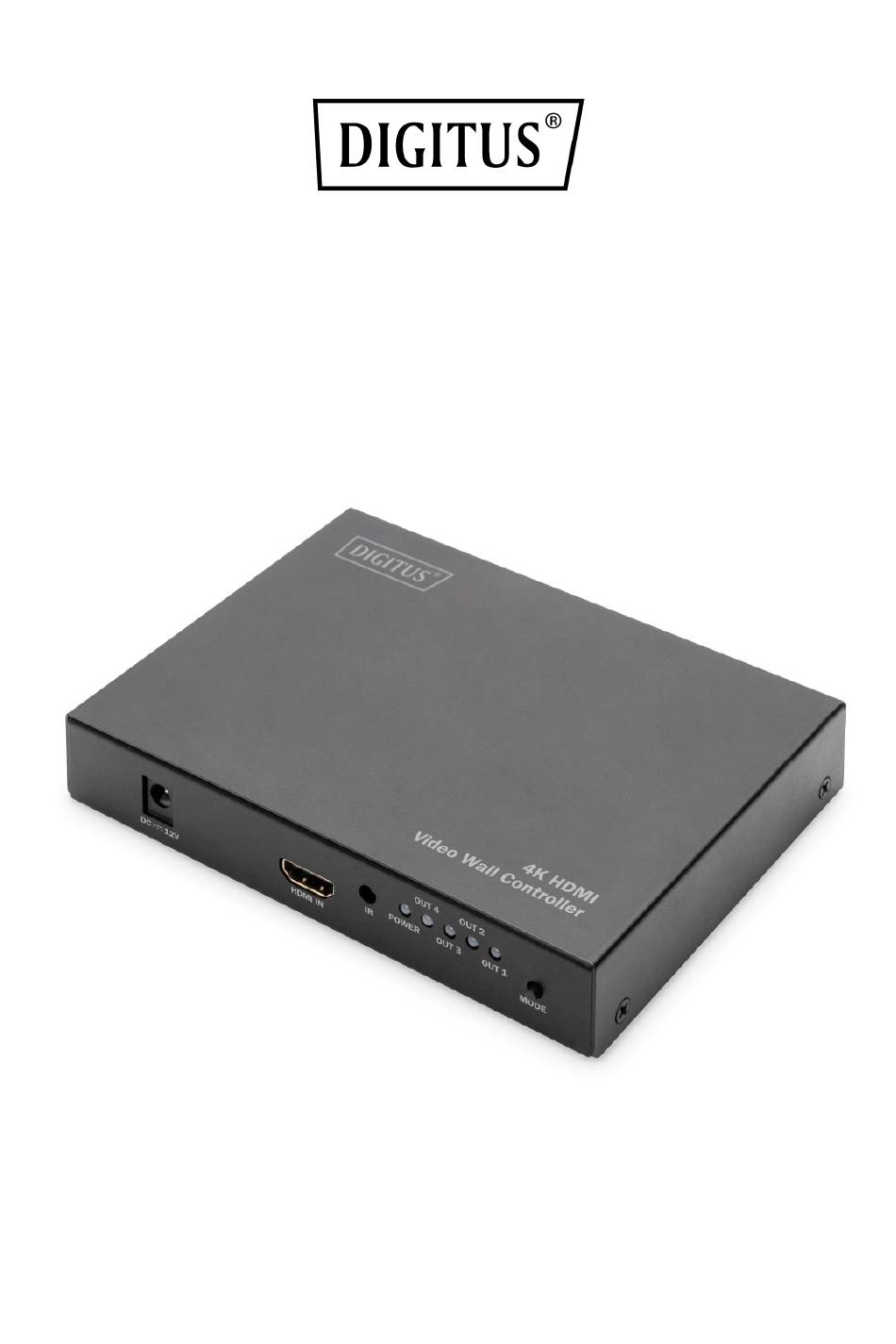

- Page 1 4K HDMI VIDEO WALL CONTROLLER, 2 x 2 User Manual DS-43309...
-
Page 2: Table Of Contents
Power Adapter Information ..................7 Introduction With the DIGITUS® Video Wall Controller 2x2, you can transform a total of 4 TV sets or monitors with HDMI® into a large-format video wall. The controller enables you to distribute a high-resolution 4K signal across 4 Full HD displays to create a large image. -
Page 3: Features
Features • Support one HDMI input resolution up to 4K@60Hz YUV 4:4:4 • Support four HDMI outputs resolution fixed to 1080p@60Hz • Support various display modes selectable via front button and remote control to combine up to 4 flat panel LCD TVs into one larger display •... -
Page 4: Ports And Interfaces
Ports And Interfaces Remote Control : Press the button to select the previous mode : Press the button to select the next mode Main unit DC/12V: DC 12V Input OUT 1-4: HDMI Output 1-4 HDMI IN: HDMI Input port LED Indicators IR: IR Receiver Port MODE: Video Wall Mode Selector POWER: Power LED... -
Page 5: Mode Description
Mode Description Mode 1 2x2 video wall mode Mode 2 1x2 video wall mode Mode 3 2x1 video wall mode Mode 4 1x3 video wall mode Mode 5 3x1 video wall mode Mode 6 1x4 video wall mode Mode 7 4x1 video wall mode Mode 8 1x4 Splitter mode... -
Page 6: Connection Diagram
Connection Diagram Front view Back view Power Supply HDMI Display (OUT 1-4) HDMI Source (PC) Specification Input Ports HDMI x 1 Output Ports HDMI x 4 Vertical Frequency Range 50/60Hz Video Amplifier Bandwidth 6.0Gbps/600MHz per channel (18Gbps all channels) Interlaced (50&60Hz) 480i,576i,1080i Progressive (50&60Hz) 480p, 576p, 720p, 1080p, 4K@24/25/30Hz,... -
Page 7: Troubleshooting
Troubleshooting Problems Causes Solutions Power light is off Is the power adapter properly Please check if the power and product is not connected and the power adapter is connected working on/off button is on properly and switch on the power on/off button The product Maybe the customers setup Please change the resolution... - Page 8 Output voltage DC, 12V V Nameplate output voltage. Shall indicate whether is AC or DC. In cases where more than one physical output or more than one output voltage at load condition 1 are measured, the sets of available Output voltage — Output current –...
- Page 9 Efficiency at low load % Declared by the manufacturer (10 %) based on the value calculated at load condition 5. External power supplies with a nameplate output power of 10 W or less shall be exempted from this requirement. In cases where multiple average active efficiencies are declared for multiple output voltages available at load condition 1, the value...
