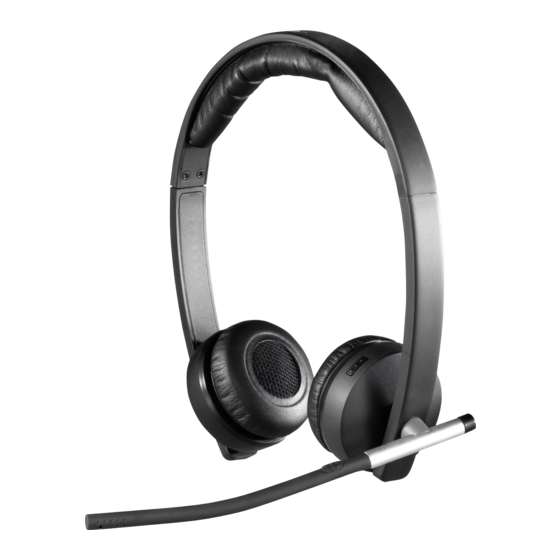

Logitech H820e Setup Manual
Wireless headset mono/dual
Hide thumbs
Also See for H820e:
- Setup manual (72 pages) ,
- Setup manual (72 pages) ,
- Setup manual (2 pages)
Related Manuals for Logitech H820e
Summary of Contents for Logitech H820e

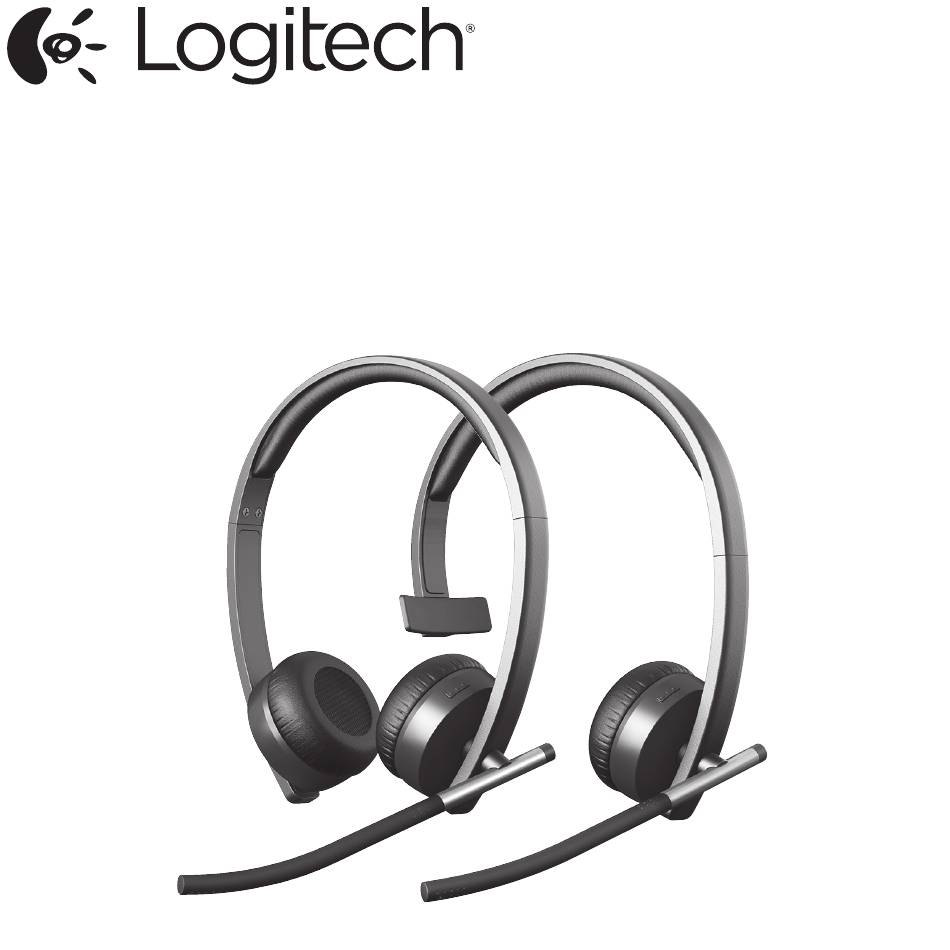

- Page 1 Logitech® Wireless Headset Mono H820e (A-00058) Logitech® Wireless Headset Dual H820e (A-00059) Setup Guide Logitech for Business...
- Page 2 Logitech Wireless Headset Mono H820e/Dual H820e Logitech® Wireless Headset Mono H820e (A-00058) Logitech® Wireless Headset Dual H820e (A-00059) Setup Guide Logitech for Business...
- Page 3 Logitech Wireless Headset Mono H820e/Dual H820e Features 1. Volume up 2. Volume down 3. Call answer/end button • LED lit when on a call (supported by Microsoft Lync) 4. Battery icon • Solid white: full charge • Blinking white: charging • Solid red: very low 5.
- Page 4 1. Connect the base to power using the Class 2 power source provided. 2. Connect the base to the PC using the USB connection. 3. Use only adaptor supplied by Logitech, model list: – KSAS0060510100D5D, 5.1VDC, 1A – AD631MC, 5.15VDC, 1A 4.
-
Page 5: Troubleshooting
Ensure the microphone • Check if USB cable is fully inserted is not muted. into the computer’s USB port. • If you have several H820e headsets in Using a non-powered USB hub may close proximity you may experience poor degrade headset performance. - Page 6 Logitech Wireless Headset Mono H820e/Dual H820e Windows 8: Mac OS X: • Close all media/voice applications • Close all media/voice applications • From the Start Menu, • Open System Preferences. select “Desktop” tile. • Select Sound/ Output tab, • From the Charms menu, and then select either “Logitech Dual select Settings >...
