INSTALLING THE PRE-PHASE
This manual describes the installation of the add-on
version of the Pre-Phase in an acoustic guitar. You
might want to put it in a different instrument, in
which case you would have to adapt some
installation techniques.

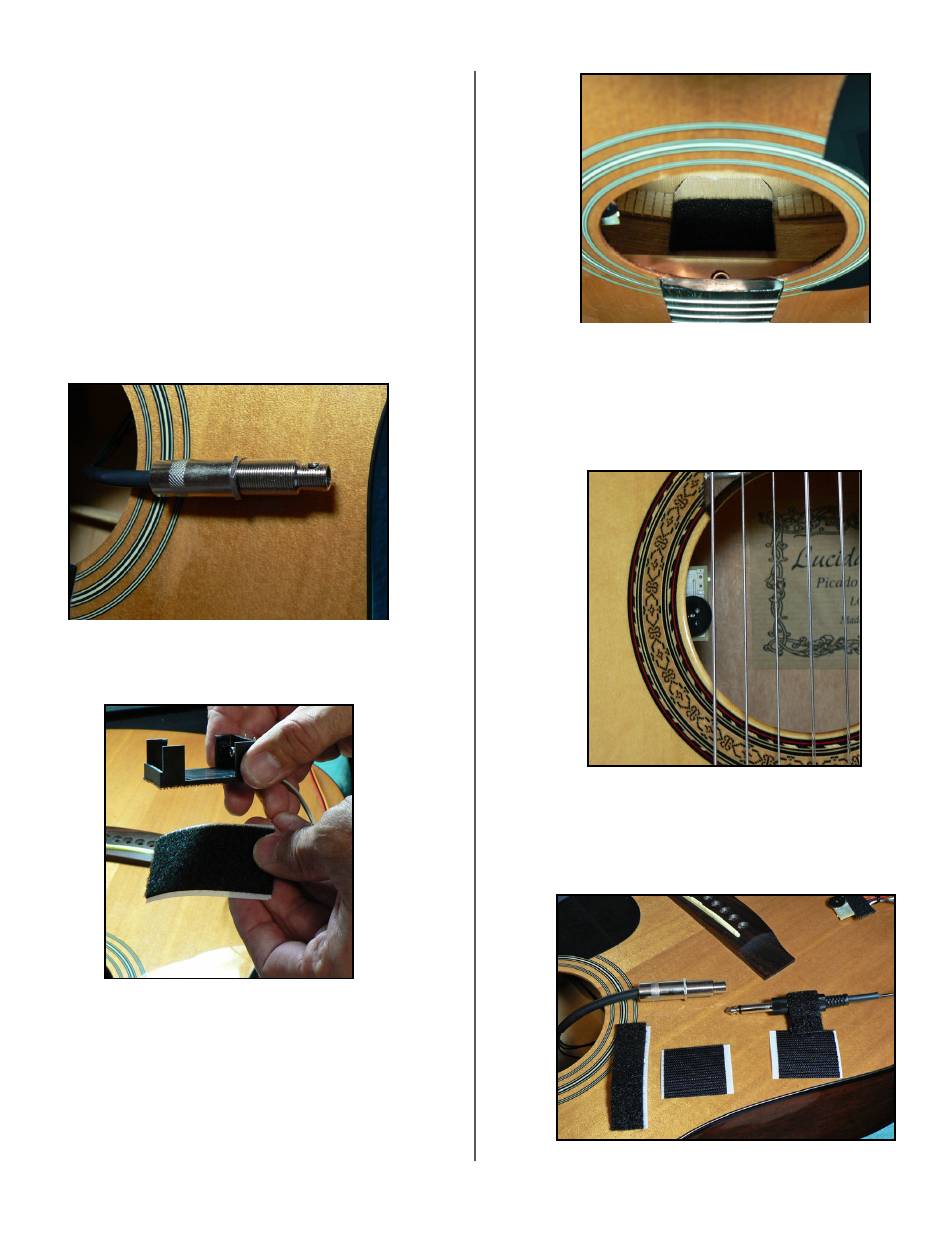

1. Unscrew the existing endpin jack (of the pickup in
your guitar) and pull it out of the sound hole. Screw
the screw cap (the cap over the terminal end)
inward as far as it will go. Remove all nuts and
washers except the counter nut for the screw cap.
2. Pull the big soft Velcro piece off the battery
holder and stick it to the neck-block.
3. The preamp attaches with a peel-and-stick
adhesive to the inner edge of the sound-hole (see
picture). The adhesive is already attached to the
unit, simply peel off the backing and attach where
desired.
4. Locate the 3 Velcro strips (the loose ones)
provided in the package. There are 2 pieces hard
Velcro, and one longer piece of ¾" wide (20mm)
soft Velcro.
