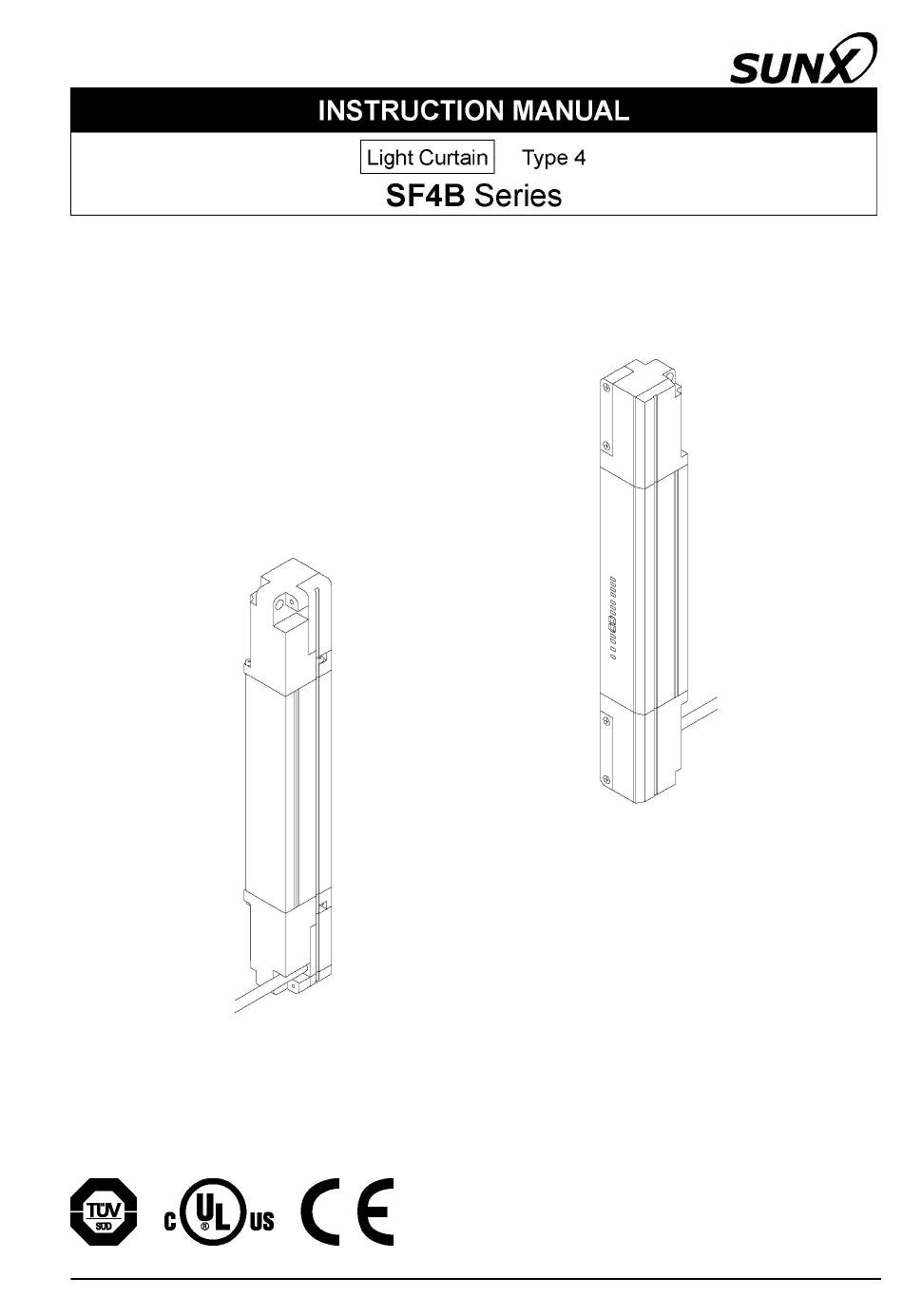

Sunx SF4B Series Instruction Manual

Type 4 light curtain
Hide thumbs Also See for SF4B Series:
Table of Contents

Advertisement

Quick Links

Download this manual
SUNX Limited MJE-SF4B No.0012-72V
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF4B Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunx SF4B Series

Summary of Contents for Sunx SF4B Series

  • Page 1 SUNX Limited MJE-SF4B No.0012-72V - 1 -...
  • Page 2 (MEMO) SUNX Limited MJE-SF4B No.0012-72V - 2 -...
  • Page 3 Thank you for purchasing SUNX’s Light Curtain, SF4B series (hereinafter called ‘this de- vice’). Please read this instruction manual carefully and thoroughly for the correct and optimum use of this product. Kindly keep this manual in a convenient place for quick reference.

  • Page 4: Table Of Contents

    3-4 Interference Prevention Function ···········································65 3-5 Auxiliary Output (Non-safety Output) ·····································66 3-6 External Device Monitor Function ··········································66 3-7 Muting Function ·····································································68 3-8 Override Function ··································································71 3-9 Functions Using Handy Controller (SFB-HC) (Optional) ········72 SUNX Limited MJE-SF4B No.0012-72V - 4 -...
  • Page 5 Bracket (MS-SFB-3)································································· 92 6-3-4 Side Mounting with Dead Zoneless Mounting Bracket (MS-SFB-3)································································· 93 6-3-5 Mounting Brackets···································································· 94 Chapter 7 Others······························································ 97 7-1 Glossary ················································································ 97 7-2 CE Marking Declaration of Conformity ·································· 99 SUNX Limited MJE-SF4B No.0012-72V - 5 -...

  • Page 6: Chapter 1 Introduction

    The engineer would be a person who is appropriately educated, has widespread knowledge and experience, and can solve various problems which may arise during work, such as a machine designer, or a person in charge of installation or operation etc. SUNX Limited MJE-SF4B No.0012-72V - 6 -...
  • Page 7 This device starts the performance after 2 seconds from the power ON. Have the control system started to function with this timing. SUNX Limited MJE-SF4B No.0012-72V - 7 -...
  • Page 8 Do not use this device to detect objects flying over the sensing area. Do not use this device to detect transparent objects, translucent objects or objects smaller than the specified minimum sensing objects. SUNX Limited MJE-SF4B No.0012-72V - 8 -...

  • Page 9: Applicable Standards / Regulations

    In Japan, never use this device as a safety equipment for any press machine or shearing machine. When this device is used in a place other than the places shown above, be sure to confirm the standards or regulations applicable in each region or country before use. SUNX Limited MJE-SF4B No.0012-72V - 9 -...

  • Page 10: Confirmation Of Packed Contents

    SF4B-A … Sensor with 32 to 40 beam channels 3 sets : SF4B-H … Sensor with 88 to 96 beam channels SF4B-A … Sensor with 44 to 48 beam channels Instruction Manual (this manual) 1 pc. SUNX Limited MJE-SF4B No.0012-72V - 10 -...

  • Page 11: Chapter 2 Before Using This Device

    Each function setting is available by using the handy controller (SFB-HC) (optional) Refer to ‘3-9 Functions Using Handy Controller (SFB-HC) (Optional)’ for details. Refer to ‘6-2 Options’ for details of options. Part Description SUNX Limited MJE-SF4B No.0012-72V - 11 -...
  • Page 12 This bracket is to be used for mounting the sensor having 79 beam channels or more for SF4B-F , 40 beam channels or more for SF4B-H , 20 beam channels or more for SF4B-A . SUNX Limited MJE-SF4B No.0012-72V - 12 -...
  • Page 13 3) The status ‘when light is blocked’ refers to the status that the some obstacle is existed in the sensing area. 4) The blanking function is set by using the handy controller (SFB-HC) (optional). Please purchase the handy controller separately. 5) The description given in [ ] is marked on the sensor. SUNX Limited MJE-SF4B No.0012-72V - 13 -...

  • Page 14: Protection Area

    (FC-SFBH- ) (op- tional). Take care that if the sensing range is less than 0.3m, malfunction may occur due to the optical structure. <Example of Correct Installation> <Example of Incorrect Installation> SUNX Limited MJE-SF4B No.0012-72V - 14 -...

  • Page 15: Safety Distance

    85mm (20mm beam channel pitch type) SF4B-A 45mm 85mm 125mm 165mm (40mm beam channel pitch type) Note: Refer to ‘3-9 Functions Using Handy Controller (SFB-HC) (Optional)’ for details of the floating blanking function. SUNX Limited MJE-SF4B No.0012-72V - 15 -...
  • Page 16 : Maximum halting time of device (s) : Response time of this device (s) SF4B C: Additional distance calculated from the size of the minimum sensing object of the sensor (mm) C = 850 (mm) SUNX Limited MJE-SF4B No.0012-72V - 16 -...
  • Page 17 Since this value matches with Case 3) above, S = 1,600 x T + 22.4 = 1,600 x 0.4 + 22.4 = 662.4 Since this value matches with Case 5) above, S is 662.4 (mm). SUNX Limited MJE-SF4B No.0012-72V - 17 -...
  • Page 18 Since the calculation above is performed by taking 1 (inch) = 25.4 (mm), there is a slight difference between the representation in (mm) and that in (inch). Refer to the relevant standard for the details. SUNX Limited MJE-SF4B No.0012-72V - 18 -...
  • Page 19 Since the calculation above is performed by taking 1 (inch) = 25.4 (mm), there is a slight difference between the representation in (mm) and that in (inch). Refer to the relevant standard for the details. SUNX Limited MJE-SF4B No.0012-72V - 19 -...

  • Page 20: Influence Of Reflective Surfaces

    61496-2. However, install this device away from reflective surfaces considering an effective aperture angle of ±3° to take care of beam misalignment, etc. during installation. Allowable Distance from Sensor Beam Channel to Reflective Surface SUNX Limited MJE-SF4B No.0012-72V - 20 -...

  • Page 21: Sensor Placement

    <Example of sensor placement> <Reference> The above figures are just examples of sensor placement. If there are any questions or problems, please contact our office. SUNX Limited MJE-SF4B No.0012-72V - 21 -...

  • Page 22: Mounting

    30 degrees. Set and fix both emitter and receiver using the marks so that they face to each other. Refer to ‘2-6-1 Beam-axis Alignment’ for details of the beam-axis alignment. SUNX Limited MJE-SF4B No.0012-72V - 22 -...
  • Page 23 (MS-SFB-2) (accessory)>. <Reference> Mounting method of the M8 mounting bracket (MS-SFB-1-T), the pitch adapter bracket (MS-SFB-4) and the M8 pitch adapter bracket (MS-SFB-4-T) is the same as the standard mounting bracket (MS-SFB-1). SUNX Limited MJE-SF4B No.0012-72V - 23 -...
  • Page 24 Note: For the models that the intermediate supporting bracket (MS-SFB-2) is enclosed with, be sure to use the intermediate supporting bracket (MS-SFB-2). For details, refer to <In case of using intermediate supporting bracket (MS-SFB-2) (accessory)>. SUNX Limited MJE-SF4B No.0012-72V - 24 -...
  • Page 25 3. After aligning the beam axis, mount the intermediate supporting bracket to the mounting surface using two hexagons-socket head bolts [M5 (please arrange separately)]. For the details of beam axis alignment, refer to ‘2-6-1 Beam-axis Alignment’. SUNX Limited MJE-SF4B No.0012-72V - 25 -...
  • Page 26 [M8 (please arrange separately)]. 8. Adjust the intermediate supporting bracket and protect bar intermediate supporting bracket, and then tighten the hexagon-socket bolt [M8 (please arrange separately)]. SUNX Limited MJE-SF4B No.0012-72V - 26 -...
  • Page 27 SUNX Limited MJE-SF4B No.0012-72V - 27 -...

  • Page 28: Mounting Of The Bottom Cap Cable (Optional)

    1. Insert the connector of the bottom cap cable (optional) into the connector of this device. When inserting the connector, fit the cable to the groove of this device. 2. Tighten the two M2.6 screws. The tightening torque should be 0.3N·m or less. SUNX Limited MJE-SF4B No.0012-72V - 28 -...

  • Page 29: Extension And Dismantling Of Sensor (Series Connection)

    2. Insert the connector of the cable for series connection (SFB-CSL ) (optional) into the connector. When inserting the connector, fit the cable into the groove of this device. 3. Tighten each two M2.6 screws. The tightening torque should be 0.3N·m or less. SUNX Limited MJE-SF4B No.0012-72V - 29 -...
  • Page 30 SFB-CSL05 SFB-CSL1 1,000 SFB-CSL5 5,000 <Dismantling the cable for series connection> 1. For dismantling the cable for series connection, follow the above procedure of <Mounting method of cable for series connection> in reverse. SUNX Limited MJE-SF4B No.0012-72V - 30 -...

  • Page 31: Wiring

    6) In case a surge is generated, take countermeasures such as connecting a surge absorber to the origin of the surge. 7) Power supply unit corresponding to CLASS 2 (only for requiring UL Listing Mark / C-UL US Listing Mark conformation). SUNX Limited MJE-SF4B No.0012-72V - 31 -...

  • Page 32: I/O Circuit Diagrams And Output Waveform

    2) The circuit diagram shown above is for 12-core cable to be used. For 8-core cable, red, yellow, grey, grey / black, sky-blue / white, sky-blue / black, there is no lead wire. <Reference> K1, K2: External device (Forced guided relay or magnetic contactor) SUNX Limited MJE-SF4B No.0012-72V - 32 -...
  • Page 33 Note: The circuit diagram shown above is for 12-core cable to be used. For 8-core cable, red, yellow, grey, grey / black, sky-blue / white, sky-blue / black, there is no lead wire. <Reference> K1, K2: External device (Forced guided relay or magnetic contactor) SUNX Limited MJE-SF4B No.0012-72V - 33 -...

  • Page 34: Wiring · Connecting Procedure And Connector Pin Arrangement

    When the synchronization cable is extended with a cable other than exclusive cable, use 0.2mm or more shielded twist pare cable. When this device is used in conformity with the Korean S-mark, the power wire to be connected to this device should be less than10m. SUNX Limited MJE-SF4B No.0012-72V - 34 -...
  • Page 35 Connector for emitter: gray, connector for receiver: black For details of the bottom cap cable, the cable with connector on one end, and the cable with connector on both ends, refer to ‘6-2 Options’. SUNX Limited MJE-SF4B No.0012-72V - 35 -...

  • Page 36: Basic Wiring

    Note: The circuit diagram shown above is for 12-core cable to be used. For 8-core cable, red, yellow, grey, grey / black, sky-blue / white, sky-blue / black, there is no lead wire. SUNX Limited MJE-SF4B No.0012-72V - 36 -...
  • Page 37 Note: The circuit diagram shown above is for 12-core cable to be used. For 8-core cable, red, yellow, grey, grey / black, sky-blue / white, sky-blue / black, there is no lead wire. SUNX Limited MJE-SF4B No.0012-72V - 37 -...

  • Page 38: Wiring For Manual Reset (Interlock Is Valid)

    2) The circuit diagram shown above is for 12-core cable to be used. For 8-core cable, red, yellow, grey, grey / black, sky-blue / white, sky-blue / black, there is no lead wire. 3) For resetting, refer to ‘3-2 Interlock Function’. SUNX Limited MJE-SF4B No.0012-72V - 38 -...
  • Page 39 Notes: 1) The circuit diagram shown above is for 12-core cable to be used. For 8-core cable, red, yellow, grey, grey / black, sky-blue / white, sky-blue / black, there is no lead wire. 2) For resetting, refer to ‘3-2 Interlock Function’. SUNX Limited MJE-SF4B No.0012-72V - 39 -...

  • Page 40: Series Connection

    2) The circuit diagram shown above is for 12-core cable to be used. For 8-core cable, red, yellow, grey, grey / black, sky-blue / white, sky-blue / black, there is no lead wire. 3) For resetting, refer to ‘3-2 Interlock Function’. SUNX Limited MJE-SF4B No.0012-72V - 40 -...
  • Page 41 Notes: 1) The circuit diagram shown above is for 12-core cable to be used. For 8-core cable, red, yellow, grey, grey / black, sky-blue / white, sky-blue / black, there is no lead wire. 2) For resetting, refer to ‘3-2 Interlock Function’. SUNX Limited MJE-SF4B No.0012-72V - 41 -...

  • Page 42: Parallel Connection

    For parallel connection, connect the one receiver to the other connection using the interfer- ence prevention line as shown in the figure on the next page. Wrong connection could gen- erate the non-sensing area, resulting in serious injury or death. SUNX Limited MJE-SF4B No.0012-72V - 42 -...
  • Page 43 Notes: 1) If the interference prevention wire is extended, use a 0.2mm , or more, shielded twisted pair-cable. 2) Vs is the applying supply voltage. 3) For resetting, refer to ‘3-2 Interlock Function’. SUNX Limited MJE-SF4B No.0012-72V - 43 -...
  • Page 44 Incorrect wiring may cause the lockout state. Notes: 1) If the interference prevention wire is extended, use a 0.2mm , or more, shielded twisted pair-cable. 2) For resetting, refer to ‘3-2 Interlock Function’. SUNX Limited MJE-SF4B No.0012-72V - 44 -...

  • Page 45: Series And Parallel Mixed Connection

    For parallel connection, connect the one receiver to the other connection using the inter- ference prevention line as shown in the figure on the next page. Wrong connection could generate the non-sensing area, resulting in serious injury or death. SUNX Limited MJE-SF4B No.0012-72V - 45 -...
  • Page 46 Notes: 1) If the interference prevention wire is extended, use a 0.2mm , or more, shielded twisted pair-cable. 2) Vs is the applying supply voltage. 3) For resetting, refer to ‘3-2 Interlock Function’. SUNX Limited MJE-SF4B No.0012-72V - 46 -...
  • Page 47 Incorrect wiring may cause the lockout state. Notes: 1) If the interference prevention wire is extended, use a 0.2mm , or more, shielded twisted pair-cable. 2) For resetting, refer to ‘3-2 Interlock Function’. SUNX Limited MJE-SF4B No.0012-72V - 47 -...

  • Page 48: Wiring For Auto-Reset (Interlock Is Invalid)

    2) The circuit diagram shown above is for 12-core cable to be used. For 8-core cable, red, yellow, grey, grey / black, sky-blue / white, sky-blue / black, there is no lead wire. 3) For resetting, refer to ‘3-2 Interlock Function’. SUNX Limited MJE-SF4B No.0012-72V - 48 -...
  • Page 49 Notes: 1) The circuit diagram shown above is for 12-core cable to be used. For 8-core cable, red, yellow, grey, grey / black, sky-blue / white, sky-blue / black, there is no lead wire. 2) For resetting, refer to ‘3-2 Interlock Function’. SUNX Limited MJE-SF4B No.0012-72V - 49 -...

  • Page 50: Monitor Function

    2) The circuit diagram shown above is for 12-core cable to be used. For 8-core cable, red, yellow, grey, grey / black, sky-blue / white, sky-blue / black, there is no lead wire. SUNX Limited MJE-SF4B No.0012-72V - 50 -...
  • Page 51 Note: The circuit diagram shown above is for 12-core cable to be used. For 8-core cable, red, yellow, grey, grey / black, sky-blue / white, sky-blue / black, there is no lead wire. SUNX Limited MJE-SF4B No.0012-72V - 51 -...

  • Page 52: 2-5-11 Connection Configuration For Valid Muting Function

    Notes: 1) The incandescent lamp with 3 to 10W shall be connected to the muting lamp output. If the muting lamp is not connected, the muting function does not operate. 2) Vs is the applying supply voltage. SUNX Limited MJE-SF4B No.0012-72V - 52 -...
  • Page 53 0 to +1.5V (source current 5mA or less): Valid, Open: Invalid Note: The incandescent lamp with 3 to 10W shall be connected to the muting lamp output. If the muting lamp is not connected, the muting function does not operate. SUNX Limited MJE-SF4B No.0012-72V - 53 -...

  • Page 54: Adjustment

    / receiver so that the beam-axis alignment indicators in the display of the emitter and receiver light up. The emitter and the receiver can be fine-adjusted by ±15 degrees. SUNX Limited MJE-SF4B No.0012-72V - 54 -...
  • Page 55 The tightening torque should be 2N m or less. 8. Tighten the two intermediate supporting brackets [M5 (please arrange separately)]. Check, once again, that the beam-axis alignment indicators in the display of the emitter and receiver do light up. SUNX Limited MJE-SF4B No.0012-72V - 55 -...

  • Page 56: Operation Test

    <Reference> If the indicators show reception of the light even though the test rod blocks the light, check whether there is any reflective object or extraneous light source near this device or not. SUNX Limited MJE-SF4B No.0012-72V - 56 -...

  • Page 57: Operation

    2) The status of the emitter / receiver indicators during operation above shows the case in PNP output setting mode. In case of NPN output setting mode, the NPN indicator (orange) lights up. SUNX Limited MJE-SF4B No.0012-72V - 57 -...
  • Page 58 2) The status of the emitter / receiver indicators during operation above shows the case in PNP output setting mode. In case of NPN output setting mode, the NPN indicator (orange) lights up. SUNX Limited MJE-SF4B No.0012-72V - 58 -...
  • Page 59 2) The status of the emitter / receiver indicators during operation above shows the case in PNP output setting mode. In case of NPN output setting mode, the NPN indicator (orange) lights up. SUNX Limited MJE-SF4B No.0012-72V - 59 -...
  • Page 60 3) The status of the emitter / receiver indicators during operation above shows the case in PNP output setting mode. In case of NPN output setting mode, the NPN indicator (orange) lights up. SUNX Limited MJE-SF4B No.0012-72V - 60 -...
  • Page 61 2) The status of the emitter / receiver indicators during operation above shows the case in PNP output setting mode. In case of NPN output setting mode, the NPN indicator (orange) lights up. 3) Vs is the applying supply voltage. SUNX Limited MJE-SF4B No.0012-72V - 61 -...
  • Page 62 2) The status of the emitter / receiver indicators during operation above shows the case in PNP output setting mode. In case of NPN output setting mode, the NPN indicator (orange) lights up. 3) Vs is the applying supply voltage. SUNX Limited MJE-SF4B No.0012-72V - 62 -...
  • Page 63 (Source of error): The control output (OSSD 1, OSSD 2) short-circuit, extraneous light de- tection, sensor failure, etc. Refer to ‘Chapter 5 Troubleshooting’ and remove the source of error. SUNX Limited MJE-SF4B No.0012-72V - 63 -...

  • Page 64: Chapter 3 Functions

    If this device is used with the auto-reset, avoid an auto-restart after the safety output stop of the system by using a safety relay unit etc. (EN 60204-1) <Reference> It is possible to change the conditions for interlocking by using the handy controller (SFB-HC) (optional). SUNX Limited MJE-SF4B No.0012-72V - 64 -...

  • Page 65: Emission Halt Function

    Do not use the emission halt function for the purpose of stopping the machine in which the SF4B series is installed. Failure to do so could result in death or serious injury. Interference Prevention Function It is possible to construct the system to prevent malfunction due to interference of the light between SF4B series devices.

  • Page 66: Auxiliary Output (Non-Safety Output)

    [Set through the handy controller (SFB-HC) (optional)]. The auxiliary output cannot be connected to external devices. <Reference> It is also possible to set the external device monitor function into ‘invalid’ by using the handy controller (SFB-HC) (optional). SUNX Limited MJE-SF4B No.0012-72V - 66 -...
  • Page 67 The setting time of the device monitor is 300ms or less. Exceeding 300ms turns the device into lockout status. It can be set within 100 to 600ms (unit: 10ms) by using the handy con- troller (SFB-HC) (optional). SUNX Limited MJE-SF4B No.0012-72V - 67 -...

  • Page 68: Muting Function

    Note: The muting lamp diagnosis function can be set with the handy-controller Ver.2 (SFB-HC) (optional). If the muting lamp function is set to be invalid, the muting function is maintained even if a lamp blows or a lamp is not connected. SUNX Limited MJE-SF4B No.0012-72V - 68 -...
  • Page 69 3) The time of the sensing object to be passed through the muting sensors C to D shall be under 3 sec. Distance between C and D (m) < S (m/sec.) × 3 (sec.) S: The moving speed (m/sec.) of the sensing object. SUNX Limited MJE-SF4B No.0012-72V - 69 -...
  • Page 70 (SFB-HC) (optional). It is recommended that two muting lamps should be connected in parallel. In this case, take care not to exceed SUNX Limited MJE-SF4B No.0012-72V - 70 -...

  • Page 71: Override Function

    Using override function, make sure that there exist no operator in the dangerous zone, which may result in death or serious injury. SUNX Limited MJE-SF4B No.0012-72V - 71 -...

  • Page 72: Functions Using Handy Controller (Sfb-Hc) (Optional)

    The two modes, normal mode and short mode, can be set / changed by controlling the emission intensity. The factory setting is set to the normal mode for the emission intensity control function. Auxiliary output switching function (non-safety output) The following outputs are switchable as the auxiliary output. SUNX Limited MJE-SF4B No.0012-72V - 72 -...
  • Page 73 The function cannot be set with the handy controller having Ver.1 software. Protect function Unless the password is not input, any setting change of the sensor cannot be allowed. The factory setting is set to invalid for the protect function. SUNX Limited MJE-SF4B No.0012-72V - 73 -...

  • Page 74: Chapter 4 Maintenance

    In case external noise affects the operation, remove its cause and re-inspect. Be sure to check the operation of the muting function before its use. Furthermore, check the state of the muting lamp (cleanliness or brightness etc.) SUNX Limited MJE-SF4B No.0012-72V - 74 -...

  • Page 75: Periodic Inspection (Every Six Months)

    4) When the device installation place or environment is changed. 5) When the wiring method or wiring layout is changed. 6) When FSD (Final Switching Device) parts are replaced. 7) When FSD (Final Switching Device) setting is changed. SUNX Limited MJE-SF4B No.0012-72V - 75 -...

  • Page 76: Chapter 5 Troubleshooting

    (0V: PNP output, +V: NPN output) lamp output are not cor- Wire the muting lamp output wire (red) correctly. rectly wired. Refer to ‘2-5 Wiring’. Output circuit error Output circuit is damaged. Replace this device. SUNX Limited MJE-SF4B No.0012-72V - 76 -...
  • Page 77 Note: Since the color of the operation indicator changes according to ON / OFF status of the control output (OSSD 1, OSSD 2), the operation indicator is marked as ‘OSSD’ on the sensor. If the device does not work normally after checking the items above, please consult SUNX. SUNX Limited MJE-SF4B No.0012-72V...

  • Page 78: Troubleshooting Of Receiver

    Wire the output polarity setting wire (shield) cor- [Digital error indicator: wires. rectly. (0V: PNP output, +V: NPN output) Shield wire error Shield wire connection of Wire the shield wire of the receiver correctly. emitter / receiver is incor- rect. SUNX Limited MJE-SF4B No.0012-72V - 78 -...
  • Page 79 The beam channels are not correctly aligned. Align the top / bottom direction of the beam channel between emitter and receiver. If the device does not work normally after checking the items above, please consult SUNX. SUNX Limited MJE-SF4B No.0012-72V - 79 -...

  • Page 80: Chapter 6 Specifications · Dimensions

    Chapter 6 Specifications · Dimensions Specifications Model Example: SF4B-F55 Beam pitch: 10mm No. of beam channels: 55 channels Model-wise specifications <10mm pitch type> PFHd: Probability of dangerous failure per hour, MTTFd: Mean time to dangerous failure. SUNX Limited MJE-SF4B No.0012-72V - 80 -...
  • Page 81 <20mm pitch type> PFHd: Probability of dangerous failure per hour, MTTFd: Mean time to dangerous failure. SUNX Limited MJE-SF4B No.0012-72V - 81 -...
  • Page 82 <40mm pitch type> PFHd: Probability of dangerous failure per hour, MTTFd: Mean time to dangerous failure. SUNX Limited MJE-SF4B No.0012-72V - 82 -...
  • Page 83 3) The cable can be extended within 30m (for emitter / receiver) when two sensors are connected with series connection, within 20m when three sensors are connected with series connection. Furthermore, when the muting lamp is used, the cable can be extended within 40m (for emitter / receiver). SUNX Limited MJE-SF4B No.0012-72V - 83 -...
  • Page 84 The corresponding emitter and receiver must have the same serial No. and be correctly ori- ented. The serial No. is indicated on the plates of both emitter and receiver. (Under the model represents the serial No.) SUNX Limited MJE-SF4B No.0012-72V - 84 -...

  • Page 85: Options

    Cable length Remarks Discrete SFB-CCB3-MU This 12-core bottom cap cable is used when the muting function is wire applied. SFB-CCB7-MU For emitter: 12-core shielded cable SFB-CB05-MU Connector 0.5m For receiver: 12-core shielded cable SUNX Limited MJE-SF4B No.0012-72V - 85 -...
  • Page 86 Cable for series connection: 2 pcs./set (Common for emitter and receiver) Model No. Cable length Remarks SFB-CSL01 0.1m SFB-CSL05 0.5m Used to connect sensor in series. SFB-CSL1 Common for emitter and receiver. SFB-CSL5 SUNX Limited MJE-SF4B No.0012-72V - 86 -...
  • Page 87 Remarks Model No. Remarks This mounting bracket is for replacing This mounting bracket is for replacing the other SUNX light curtains (protec- the other SUNX light curtains (protec- MS-SFB-4 tive height 200mm or more) by SF4B MS-SFB-4-T tive height 200mm or more) by SF4B series.
  • Page 88 The muting control function and the emergency stop input etc., SF-C14EX01 are incorporated, which expand the (Note) applications of the light curtain. Note: SF-C14EX-01 cannot be used in combination with the handy-controller (SFB-HC) (optional). SUNX Limited MJE-SF4B No.0012-72V - 88 -...
  • Page 89 SF4B-H88, SF4B-A44 MC-SFBH-96 SF4B-H96, SF4B-A48 Note: The protect bar intermediate supporting bracket (optional) is for the protect bar longer than MC-SFBH-48 in length. Use the bracket when the protect bar bends a lot. SUNX Limited MJE-SF4B No.0012-72V - 89 -...

  • Page 90: Dimensions

    Dimensions 6-3-1 Rear Mounting with Standard Mounting Bracket (MS-SFB-1) SUNX Limited MJE-SF4B No.0012-72V - 90 -...

  • Page 91: Side Mounting With Standard Mounting Bracket (Ms-Sfb-1)

    6-3-2 Side Mounting with Standard Mounting Bracket (MS-SFB-1) SUNX Limited MJE-SF4B No.0012-72V - 91 -...

  • Page 92: Rear Mounting With Dead Zoneless Mounting

    6-3-3 Rear Mounting with Dead Zoneless Mounting Bracket (MS-SFB-3) SUNX Limited MJE-SF4B No.0012-72V - 92 -...

  • Page 93: Side Mounting With Dead Zoneless Mounting

    6-3-4 Side Mounting with Dead Zoneless Mounting Bracket (MS-SFB-3) SUNX Limited MJE-SF4B No.0012-72V - 93 -...

  • Page 94: Mounting Brackets

    6-3-5 Mounting Brackets (Unit: mm) 1) Standard mounting bracket / MS-SFB-1 Material: ZDC2 2 M8 Mounting bracket MS-SFB-1-T Material: ZDC2 SUNX Limited MJE-SF4B No.0012-72V - 94 -...
  • Page 95 3 Pitch adapter bracket / MS-SFB-4 Material: ZDC2 4 M8 Pitch adapter bracket / MS-SFB-4-T Material: ZDC2 SUNX Limited MJE-SF4B No.0012-72V - 95 -...
  • Page 96 5 Intermediate supporting bracket / MS-SFB-2 Material: ZDC2 6 Dead zoneless mounting bracket / MS-SFB-3 Material: ZDC2 SUNX Limited MJE-SF4B No.0012-72V - 96 -...

  • Page 97: Chapter 7 Others

    It is the area over which intrusion by people or objects can be detected by Sensing area one set of sensor. It is given by the product of the protective height and the operating range. SUNX Limited MJE-SF4B No.0012-72V - 97 -...
  • Page 98 0V (+V for NPN output). The abbreviation for the Presence Sensing Device Initiation. PSDI The safety device that restarts automatically without any operation by the operator after the device detects danger status and halts for a while. SUNX Limited MJE-SF4B No.0012-72V - 98 -...

  • Page 99: Ce Marking Declaration Of Conformity

    EC Representative’s Name: Panasonic Electric Works Europe AG EC Representative’s Address: Rudolf-Diesel-Ring 2, 83607 Holzkirchen, Germany Product: Active Opto-electronic Protective Device (Light Curtain) Model Name: SF4B Series Trade Name: SUNX Application of Council Directive: - 98/37/EC Machinery Directive (Valid until 29 Dec. 2009) - 2006/42/EC Machinery Directive (Valid from 29 Dec.
  • Page 100 First edition: October 27, 2004 Second edition: December 10, 2004 Third edition: January 31, 2005 Fourth edition: October 20, 2005 Fifth edition: March 15, 2006 Sixth edition: July 31, 2007 Seventh edition: October 20, 2009 SUNX Limited MJE-SF4B No.0012-72V - 100 -...
  • Page 101 (2) Any Products found to be defective must be shipped to SUNX with all shipping costs paid by Purchaser or offered to SUNX for inspection and examination. Upon examination by SUNX, SUNX will, at its sole discretion, repair or replace at no charge, or refund the purchase price of, any Products found to be defective.
