Identify network ports

Locate the network ports on your appliance. Unlabeled ports are not used.

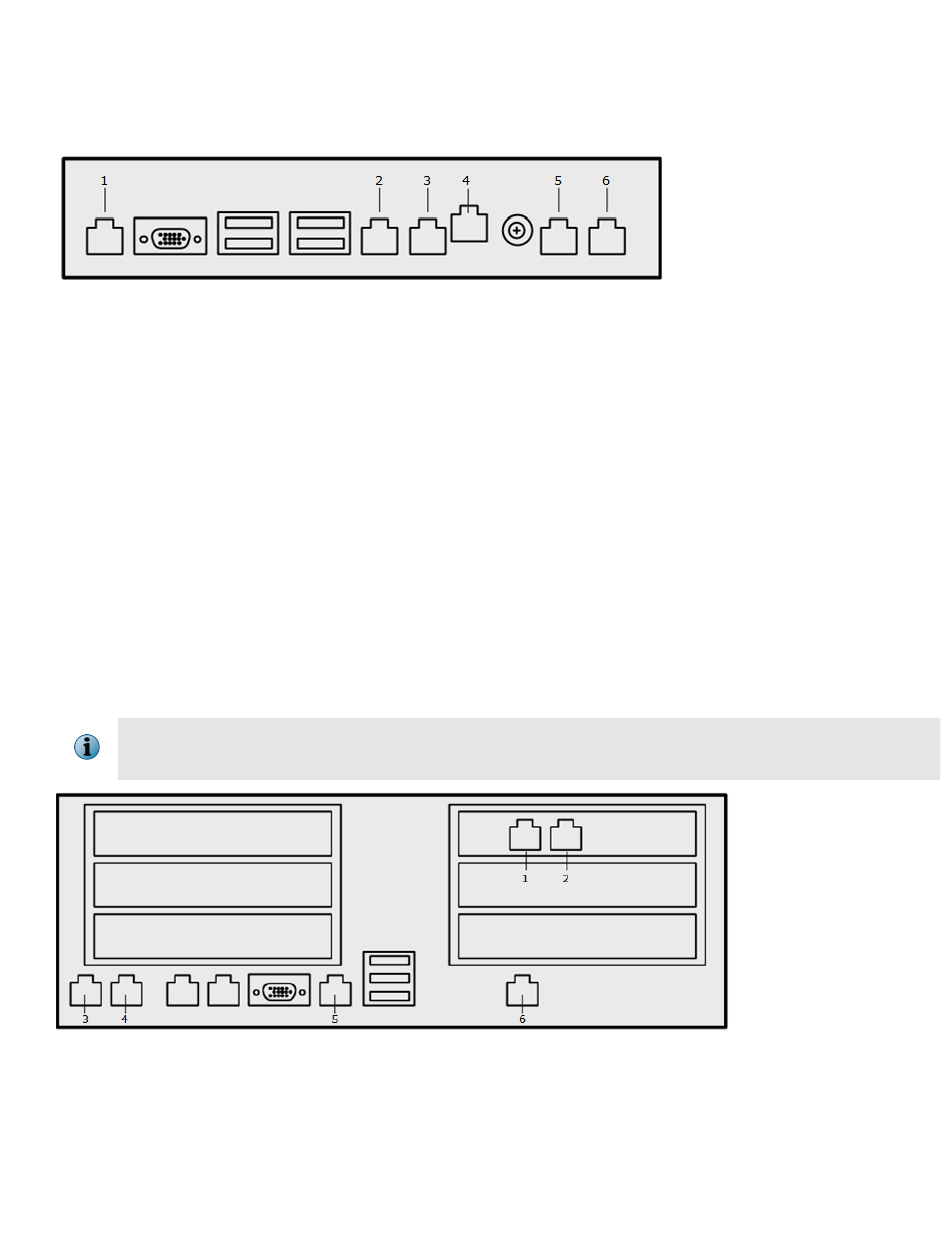

Figure 1 Model 4400 appliance port configuration
Serial port
1
OOB port
2
LAN1 port
3
Remote access port (RMM)
4
Ethernet port or fiber port *
5
• McAfee DLP Prevent — Unused
• McAfee DLP Monitor — Capture port 1
Ethernet port — Unused
6
* If the appliance has a fiber NIC:
• For McAfee DLP Prevent, the fiber port becomes LAN1.
• For McAfee DLP Monitor, the fiber port becomes Capture port 1.
On some 4400 models, the capture ports might be on a slotted NIC instead of on the motherboard.
In this case, these two ports are swapped over.
Figure 2 Model 5500 appliance port configuration
Ethernet port or fiber port — Unused
1
Ethernet port or fiber port *
2
• McAfee DLP Prevent — Unused
• McAfee DLP Monitor — Capture port 1
2
