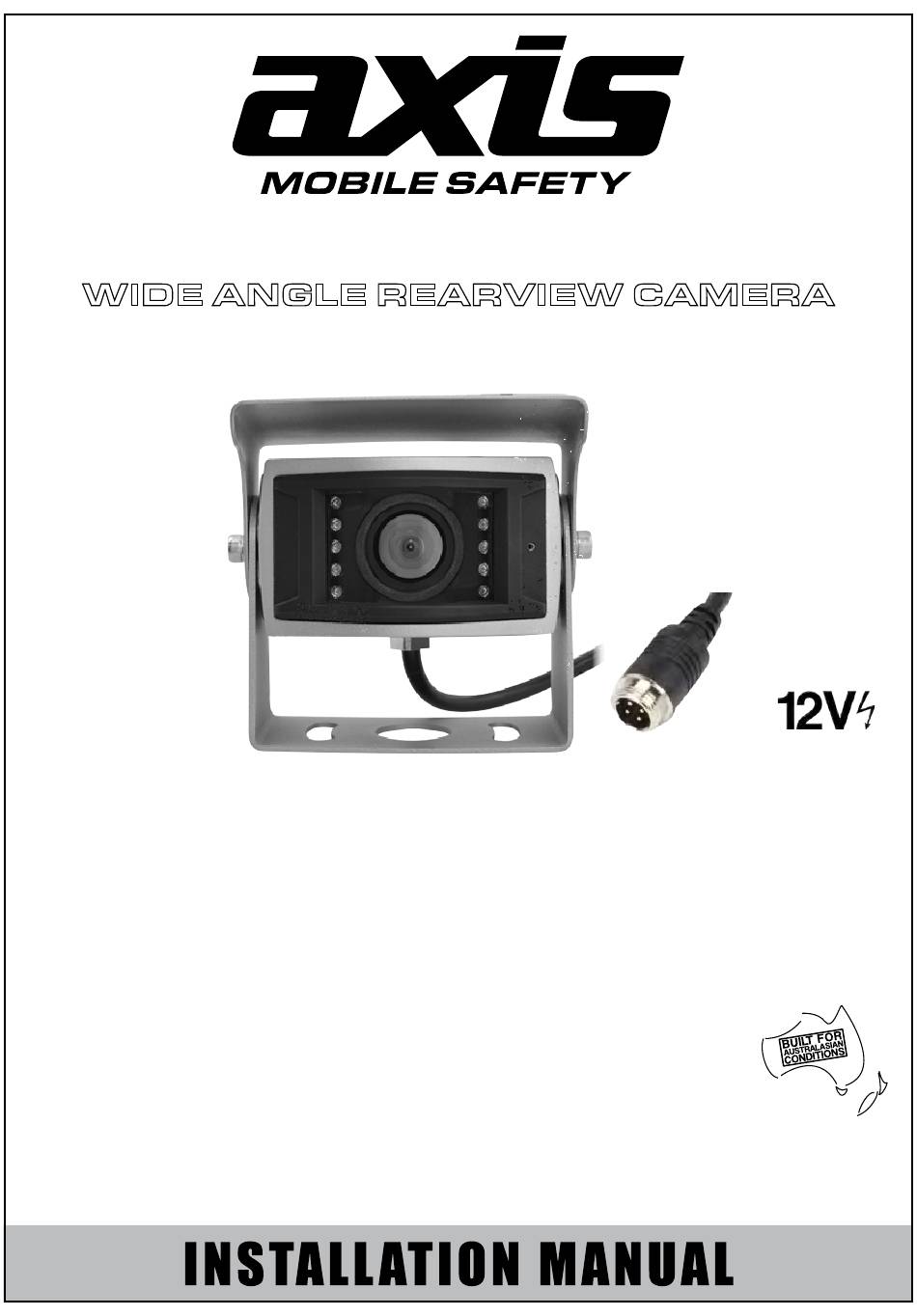

WIDE ANGLE REARVIEW CAMERA
1/3" CCD COLOUR CAMERA
• WATERPROOF (IP69K) • NIGHT VISION • DIECAST CHASSIS • 12 VOLT
SPECIFICATIONS
- Image Device:
- Diagonal Viewing Angle:
- Horizontal Viewing Angle:
- Signal System:
- Effective Pixels:
- Resolution:
- Sync System:
- Orientation:
- Night Vision:
- Illumination:
- Ingress Protection:
- Integrated Microphone:
- Operating Temp:
- Dimensions:
- Connection:
- Power Supply:
CC20
1/3" Sony CCD
170°
155°
PAL
752H x 582V
600 TV Lines
Internal
Mirror/Normal (Selectable)
Yes, 9 LED
0.1 Lux with IR on
IP69K
Yes
-20 to +70°C
69W x 41H x 50D mm (Excluding Bracket)
77W x 72H x 55D mm (Including Bracket/Visor)
Terminated 4 Pin Male
12V DC
SERIES 2
INCLUDED:
- 15m 4-Pin (Male) to 4-Pin (Female) Extension Cable
- 20cm Adapter Cable 4-Pin(F) to 2RCA/12V/Earth
- Mounting Bracket
- Stainless Steel Screws
- Installation Manual
2
YEAR
WARRANTY
Advertisement
Table of Contents
Related Manuals for Audioxtra axis CC20 Series
Summary of Contents for Audioxtra axis CC20 Series
- Page 1 CC20 SERIES 2 WIDE ANGLE REARVIEW CAMERA 1/3” CCD COLOUR CAMERA • WATERPROOF (IP69K) • NIGHT VISION • DIECAST CHASSIS • 12 VOLT SPECIFICATIONS INCLUDED: - Image Device: 1/3” Sony CCD - 15m 4-Pin (Male) to 4-Pin (Female) Extension Cable - Diagonal Viewing Angle: 170°...
- Page 2 GENERAL: INSTALLATION: • Powered by DC 12 volts, negative ground • Developed for use with buses, caravans, trailers and most vehicles • Universal heavy duty applications with a 155° horizontal wide angle view • A high quality sharp CCD image sensor is utilized •...
- Page 3 CC20...
