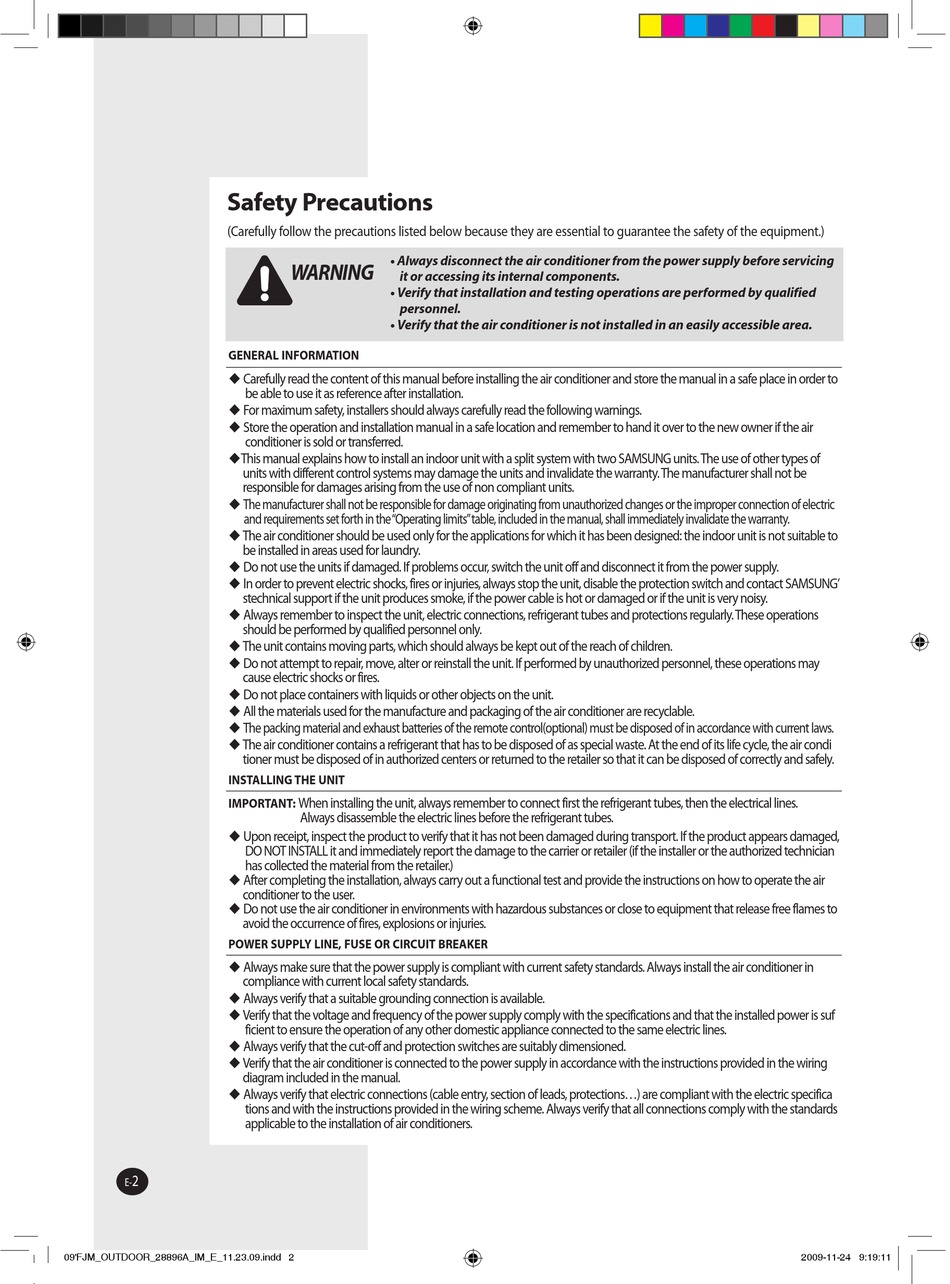

Safety Precautions

(Carefully follow the precautions listed below because they are essential to guarantee the safety of the equipment.)
GENERAL INFORMATION
This manual explains how to install an indoor unit with a split system with two SAMSUNG units. The use of other types of
units with different control systems may damage the units and invalidate the warranty. The manufacturer shall not be
responsible for damages arising from the use of non compliant units.
The air conditioner should be used only for the applications for which it has been designed: the indoor unit is not suitable to
be installed in areas used for laundry.
stechnical support if the unit produces smoke, if the power cable is hot or damaged or if the unit is very noisy.
should be performed by qualified personnel only.
The unit contains moving parts, which should always be kept out of the reach of children.
cause electric shocks or fires.
The air conditioner contains a refrigerant that has to be disposed of as special waste. At the end of its life cycle, the air condi
tioner must be disposed of in authorized centers or returned to the retailer so that it can be disposed of correctly and safely.
INSTALLING THE UNIT
IMPORTANT:
conditioner to the user.
avoid the occurrence of fires, explosions or injuries.
POWER SUPPLY LINE, FUSE OR CIRCUIT BREAKER
compliance with current local safety standards.
Verify that the voltage and frequency of the power supply comply with the specifications and that the installed power is suf
Verify that the air conditioner is connected to the power supply in accordance with the instructions provided in the wiring
diagram included in the manual.
2
E-
09'FJM_OUTDOOR_28896A_IM_E_11.23.09.indd 2
• Always disconnect the air conditioner from the power supply before servicing
WARNING
it or accessing its internal components.
• Verify that installation and testing operations are performed by qualified
personnel.
• Verify that the air conditioner is not installed in an easily accessible area.
Carefully read the content of this manual before installing the air conditioner and store the manual in a safe place in order to
be able to use it as reference after installation.
For maximum safety, installers should always carefully read the following warnings.
Store the operation and installation manual in a safe location and remember to hand it over to the new owner if the air
conditioner is sold or transferred.
The manufacturer shall not be responsible for damage originating from unauthorized changes or the improper connection of electric
and requirements set forth in the "Operating limits" table, included in the manual, shall immediately invalidate the warranty.
Do not use the units if damaged. If problems occur, switch the unit off and disconnect it from the power supply.
In order to prevent electric shocks, fires or injuries, always stop the unit, disable the protection switch and contact SAMSUNG'
Always remember to inspect the unit, electric connections, refrigerant tubes and protections regularly. These operations
Do not attempt to repair, move, alter or reinstall the unit. If performed by unauthorized personnel, these operations may
Do not place containers with liquids or other objects on the unit.
All the materials used for the manufacture and packaging of the air conditioner are recyclable.
The packing material and exhaust batteries of the remote control(optional) must be disposed of in accordance with current laws.
When installing the unit, always remember to connect first the refrigerant tubes, then the electrical lines.
Always disassemble the electric lines before the refrigerant tubes.
Upon receipt, inspect the product to verify that it has not been damaged during transport. If the product appears damaged,
DO NOT INSTALL it and immediately report the damage to the carrier or retailer (if the installer or the authorized technician
has collected the material from the retailer.)
After completing the installation, always carry out a functional test and provide the instructions on how to operate the air
Do not use the air conditioner in environments with hazardous substances or close to equipment that release free flames to
Always make sure that the power supply is compliant with current safety standards. Always install the air conditioner in
Always verify that a suitable grounding connection is available.
ficient to ensure the operation of any other domestic appliance connected to the same electric lines.
Always verify that the cut-off and protection switches are suitably dimensioned.
Always verify that electric connections (cable entry, section of leads, protections...) are compliant with the electric specifica
tions and with the instructions provided in the wiring scheme. Always verify that all connections comply with the standards
applicable to the installation of air conditioners.
2009-11-24 9:19:11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MH040FXEA2C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Samsung MH040FXEA2C

  • Page 1: Safety Precautions

    Store the operation and installation manual in a safe location and remember to hand it over to the new owner if the air conditioner is sold or transferred. This manual explains how to install an indoor unit with a split system with two SAMSUNG units. The use of other types of ...
  • Page 2: Table Of Contents

    Contents REPARING THE NSTALLATION  Deciding on Where to Install the Air Conditioner    Air Conditioner and Accessories    NSTALLING THE NDOOR  Installing and Connecting the Outdoor Unit Drain Hose    ........14 Cutting/Extending the Piping ...
  • Page 3: Deciding On Where To Install The Air Conditioner

    PREPARING THE INSTALLATION Deciding on Where to Install the Air Conditioner When deciding on the location of the air conditioner with the owner, the following restrictions must be taken into account. General Do NOT install the air conditioner in a location where it will come into contact with the following elements: Combustible gases ...
  • Page 4 MH040FXA2B/MH040FXA2C  Indoor unit Outdoor unit MH040FX  020/023/026/035 MH040FX  A2B/MH040FX A2C outdoor unit cannot be connected to the following indoor unit combination. MH040FX   A/MH      100 mm or more CAUTION: 3 m as minimum pipe length: It will reduce noise and vibration.
  • Page 5 PREPARING THE INSTALLATION Deciding on Where to Install the Air Conditioner (Continued) MH050FXA2B/MH050FXA2C  Indoor unit 020/023/026/035/052 A2B/MH050FX MH050FX  -MH052FMEA/MH052FUEA 100 mm or more CAUTION: 3 m as minimum pipe length: It will reduce noise and vibration. This value must be increased at 7.5 meters in case it is connected just one indoor unit.
  • Page 6 MH060FXA3B  Indoor unit Outdoor unit MH060FX  020/023/026/030/035/052 100 mm or more CAUTION: 3 m as minimum pipe length: It will reduce noise and vibration. This value must be increased at 7.5 meters in case it is connected just one indoor unit. 600 mm minimum 300 mm...
  • Page 7 PREPARING THE INSTALLATION Deciding on Where to Install the Air Conditioner (Continued) MH070FXA4B / MH080FXA4B  Indoor unit 020/023/026/030/035/052 CAUTION: 3 m as minimum pipe length: It will reduce noise and vibration. This value must be increased at 7.5 meters in case it is connected just one indoor unit.
  • Page 8 MH18VF1X/MH19VF1X  Indoor unit Outdoor unit MH18VF1-09 MH18VF1X MH19VF1-07 MH19VF1X MH19VF1-12 Respect the clearances and maximum lengths indicated in the diagram below when installing the unit. CAUTION: 3 m as minimum pipe length: It will reduce noise and vibration. This value must be increased at 7.5 meters in case it is connected just one indoor unit.
  • Page 9 PREPARING THE INSTALLATION Deciding on Where to Install the Air Conditioner (Continued) When installing 1 outdoor unit 09'FJM_OUTDOOR_28896A_IM_E_11.23.09.indd 10 Space Requirements for Outdoor Unit  W hen the air outlet is opposite the wall  150 or more 600 or more ...
  • Page 10 When installing more than 1 outdoor unit  When the air outlet is towards the wall 300 or more 600 or more 600 or more  When 3 sides of the outdoor unit are blocked by the wall 600 or more ...
  • Page 11: Air Conditioner And Accessories

    PREPARING THE INSTALLATION Air Conditioner and Accessories The following accessories are supplied with the air conditioner. Accessories in the Outdoor Unit Case  MH040FXA2B/MH040FXA2C/MH050FXA2B/MH050FXA2C/MH060FXA3B/MH18VF1X/MH19VF1X 3-wire Power Cable (option) Rubber Leg Attach Energy Label to the outdoor unit properly when installing. ...
  • Page 12: Installing And Connecting The Drain Hose Of The Outdoor Unit

    Installing and Connecting the Drain Hose of the Outdoor Unit While heating, ice may accumulate. During the process of defrosting, check if condensation draining is adequate. For adequate draining, do the following: Insert the drain plug into the drain hole on the underside of the outdoor unit. Connect the drain hose to the drain plug.
  • Page 13: Cutting/Extending The Piping

    INSTALLING THE INDOOR UNIT Cutting/Extending the Piping 09'FJM_OUTDOOR_28896A_IM_E_11.23.09.indd 14 Make sure that you have the required tools available (pipe cutter, reamer, flaring tool and pipe holder). If you wish to shorten the piping, cut it using a pipe cutter, taking care to ensure that the cut edge remains at a 90°...
  • Page 14: Connecting The Cables To The Outdoor Unit

    Connecting the Cables to the Outdoor Unit When you install the unit, make first refrigerant connections and then elec- trical connections.Connect the air conditioner to grounding system before performing the electrical connection.If unit is uninstalled first disconnect electrical cables, then refrigerant connections. 2 electric cables must be connected to the outdoor unit: The assembly cable connecting the indoor unit to the outdoor unit.
  • Page 15 INSTALLING THE OUTDOOR UNIT Connecting the Cables to the Outdoor Unit(Continued) MH060FXA3B A-unit 1(L) 2(N) Earth terminal Earth terminal 1(L) 2(N) 1(L) 2(N) 1(L) 2(N) Power cable to indoor units � Cable Typeυ: A � Cable Type: B � Cable Type: C The specification for cables : Main Power Supply Cable Indoor Power Supply Cable Communication Cable Model...
  • Page 16 MH070FXA4B / MH080FXA4B A-unit 1(L) 2(N) 1(L) 2(N) F1 F2 Earth terminal F1 F2 Earth terminal 1(L) 2(N) 1(L) 2(N) 1(L) 2(N) 1(L) 2(N) Power cable to indoor units � Cable Type: A � Cable Type: B � Cable Type: C The specification for cables : Main Power Supply Cable Indoor Power Supply Cable Model...
  • Page 17 INSTALLING THE OUTDOOR UNIT Connecting the Cables to the Outdoor Unit (Continued) L(mm)  The designs and shape are subject to change according to the model. 09'FJM_OUTDOOR_28896A_IM_E_11.23.09.indd 18 Preparation of cables for outdoor unit terminal block  Main power supply cable: L(mm) Cable of indoor unit Main Power...
  • Page 18: Transmitter Installation (Optional)

    Transmitter Installation (Optional)  MH040FXA2B/MH040FXA2C/MH18VF1X/MH19VF1X Accessories (Transmitter: MIM-B13A) Transmitter MAIN Transmitter SUB 485 Communication �� �� �� �� �� �� Turn the power off and take off the cover of the outdoor units. Fix the case with bolts to the side of the control box referring to the figure on the right side.
  • Page 19 INSTALLING THE OUTDOOR UNIT Transmitter Installation (Optional) (Continued)  MH050FXA2B/MH050FXA2C/MH060FXA3B/MH070FXA4B / MH080FXA4B Accessories (Transmitter: MIM-B13A) Transmitter MAIN Transmitter SUB 485 Communication �� �� �� �� �� �� MH050FXA2B/MH050FXA2C Terminal side Transmitter 7seg. LED Display side Bolts spec. Fix the case with bolts (Control Box in the outdoor unit) MH060FXA3B/MH070FXA4B / MH080FXA4B Terminal...
  • Page 20 INSTALLING THE OUTDOOR UNIT DC 12V (Blue) (Blue) DC 12V supply DC 12V (Blue) �� �� CN01(Blue) MH050FXA2B/MH050FXA2C MH040FXA2B/MH040FXA2C Transmitter MAIN PCB /MH060FXA3B/MH070FXA4B /MH18VF1X/MH19VF1X /MH080FXA4B Outdoor unit PCB Terminal Block in the outdoor unit Terminal Block in the outdoor unit Terminal Block in the outdoor unit MH040FXA2B/MH040FXA2C/ MH070FXA4B/MH080FXA4B...
  • Page 21: Checking Correct Earthing

    INSTALLING THE OUTDOOR UNIT Checking Correct Earthing Carbon Steel plastic core PVC-insulated green/ earthing screw yellow wire, 2mm x 3.5 m 50 cm Fixing the Unit in Position ‘ X’ mm Rubber leg Model MH040FX  MH040FX  MH18VF1X MH19VF1X MH050FX ...
  • Page 22: Connecting Up And Purging The Circuit

    Connecting Up and Purging the Circuit WARNING  When installing, make sure there is no leakage. When recovering the refrigerant, ground the compressor first before removing the connection pipe. If the refrigerant pipe is not properly connected and the compressor works with the service valve open, the pipe inhales the air and it makes the pressure inside of the refrigerant cycle abnormally high.
  • Page 23: Adding Refrigerant

    COMPLETING THE INSTALLATION Connecting Up and Purging the Circuit(Cont.) Vacuum Pump Valve stem Stem cap Service port Adding Refrigerant 09'FJM_OUTDOOR_28896A_IM_E_11.23.09.indd 24  MH060FXA3B/MH070FXA4B / MH080FXA4B Check the piping connections. Connect the charging hose of low pressure side of manifold gauge to the packed valve having a service port (5/8”...
  • Page 24: Performing Leak Tests

    Important information regulation regarding the refrigerant used This product contains fluorinated greenhouse gases covered by the Kyoto Protocol. Do not vent gases into the atmosphere. CAUTION Inform user if system contains 3 kg or more of fluorinated greenhouse gases. In this case, it has to be checked for leakage at least once every 12 months, according to regulation n¢X842/2006.
  • Page 25: Outdoor Unit

    COMPLETING THE INSTALLATION Pipe Installation with Indoor Units OUTDOOR UNIT A unit B unit C unit D unit 09'FJM_OUTDOOR_28896A_IM_E_11.23.09.indd 26  MH070FXA4B / MH080FXA4AB Follow different orders depending on the capacity of indoor units. MH020/023/026/030/035FEA  Install pipes between indoor and outdoor units orderly as[AB CD]. MH052FEA ...
  • Page 26: Switch Setting And Testing Operation

    Switch Setting and Testing Operation To complete the installation, perform the following checks and tests to ensure that the air conditioner is operating correctly. Step 1 Review all the following elements in the installation:  Installation site strength  Piping connection tightness to detect any gas leakage ...
  • Page 27 COMPLETING THE INSTALLATION Switch Setting and Testing Operation(Cont.) TYPE PICTURE 1 WAY CASSETTE SLIM 1 WAY MINI 4 WAY SLIM DUCT MSP-DUCT CONSOLE 09'FJM_OUTDOOR_28896A_IM_E_11.23.09.indd 28 TO SET ADDRESSING MANUALLY BY MODEL ROTARY SWITCH “SW02” MH020FV(N/A)EA MH023FBEA MH026FB(V/N/A)EA MH035FB(V/N/A)EA MH052FB(V/N/A)EA MH026FKEA MH035FKEA MH026FSEA MH035FSEA...
  • Page 28 ROTARY SWITCH “SW02” POSITION ACCORDING TO REFRIGERANT CIRCUIT CONNECTED ( 0=A; 1=B; 2=C; 3=D ) OUTDOOR UNIT A unit B unit OUTDOOR UNIT A unit B unit C unit OUTDOOR UNIT A unit B unit C unit D unit INSTALLATION TEST MODE (with all indoor units functioning) Please do cool mode try-run or heat mode try run.
  • Page 29 COMPLETING THE INSTALLATION Switch Setting and Testing Operation (Cont.) The designs and shape are subject to change according to the model. SW02 SW01 Switch DIS01 DIS02 Indoor unit address View data display Outdoor PCB Display 09'FJM_OUTDOOR_28896A_IM_E_11.23.09.indd 30 It could take maximum 60 minutes to operate for the protection of the compressor ...
  • Page 30: Pipe Checking Operation (Auto Addressing Mode)

    Pipe Checking Operation (Auto Addressing Mode) Switch the system on and wait for code " the external unit (this requires approximately 60 seconds **). As soon as code " "displays, press once the red button (K1) shown on the figure on the side of the page: WARNING !! If the quantity of indoor units connect- ed is lower than maximum connectable...
  • Page 31 COMPLETING THE INSTALLATION Switch Setting and Testing Operation (Cont.) SW02 SW01 Switch DIS01 DIS02 Indoor unit address View data display Outdoor PCB Display 09'FJM_OUTDOOR_28896A_IM_E_11.23.09.indd 32 Settings of PCB Display of the Outdoor unit Key Options of PCB Display - K1 : pipe checking operation button - K3 : Reset button Push Pipe Checking Operation...
  • Page 32: Troubleshooting

    Troubleshooting The table below give indication about self diagnostic routine. Some of error code requires activities exclusively for Authorise Service Center. The error indicated on the PCB display of outdoor unit DISPLAY EXPLANATION (The error indicated on the PCB display of outdoor unit) Communiaction error(indoor unable to receive data) Outdoor unit communication error (Abnormal data from indoor unit over 60 packet)
  • Page 33: Explaining Operations To The Owner

    COMPLETING THE INSTALLATION Troubleshooting (Cont.) The table below give indication about self diagnostic routine. Some of error code requires activities exclusively for Authorise Service Center. The error indicated on the PCB display of outdoor unit DISPLAY EXPLANATION (The error indicated on the PCB display of outdoor unit) Outdoor unit freezing(Compressor stop) Outdoor unit overload - Safety control(Compressor stop) Outdoor unit high discharge temperature - Safety control...
  • Page 34: Pump Down Procedure (When Removing The Product)

    Pump Down Procedure (When removing the product) Turn on the air conditioner and select Cool mode to run the compressor for 3 minutes. Release the valve caps on High and Low pressure side. Use L wrench to close the valve on the high pressure side. Approximately 2 minutes after, close the valve on the low pressure side.
  • Page 35 "EEE Yönetmeliğine Uygundur" "This EEE is compliant with RoHS" 09'FJM_OUTDOOR_28896A_IM_E_11.23.09.indd 36 2009-11-24 9:21:02...
  • Page 36 Free Joint Multi & Multi-Split Type Room Air Conditioner F I P D G DB98-28896A(7) 09'FJM_OUTDOOR_28896A_IM_E_11.23.09.indd 37 INSTALLATION MANUAL Free Joint MH040FX  MH050FX  MH040FX  MH050FX  MH060FX  MH070FX  MH080FX  (Cooling and Heating) Fixed MH18VF1X MH19VF1X 2009-11-24 9:21:03...
