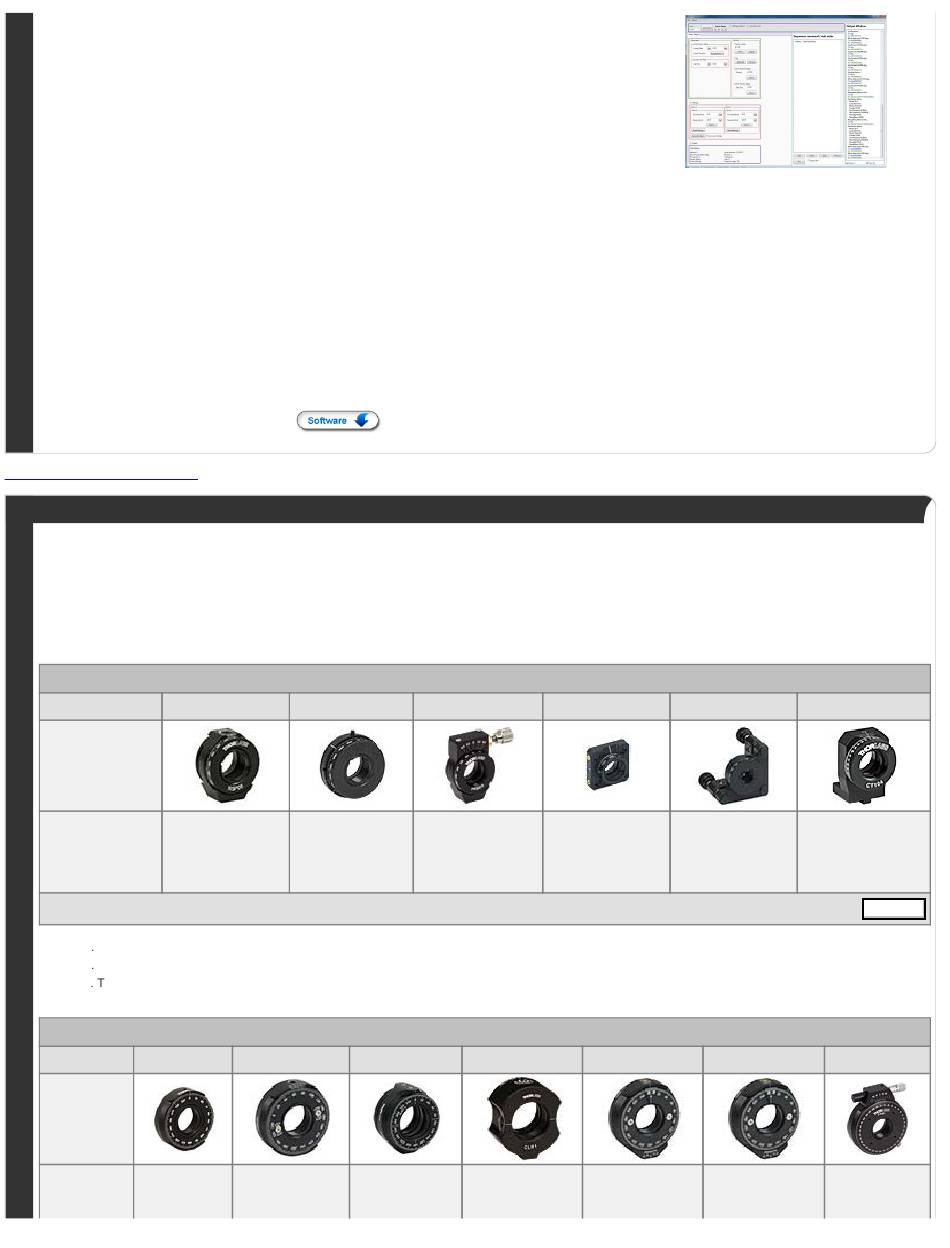

which features an intuitive graphical user interface (GUI). The source code, in C# format, is included in
software bundle available for download, and custom applications can be created in any language. The image
at right shows a screen capture of the GUI, and the button that follows links to the download page.
Commands are entered in the Sequencer command / wait order section located at the center-left of the GUI.
An example of a sequence of commands that might be sent to the device is "Aho0" to move to the rotation
stage at address "A" to the home position in the clockwise direction, and then "Afw" to move the stage at
address "A" forward by the jog increment. The command "As1" is used to perform the frequency search that
will identify the optimal resonant frequencies, for the current operating conditions, for Motor 1 at adddress "A."
Software
Version 1.4.3
Includes the Elliptec System Software, with an easy-to-use GUI. Also available for download is the
Communications Protocol manual, which details the communication commands for the Elliptec software
package.
Hide Rotation Mounts and Stages
R O T A T I O N M O U N T S A N D S T A G E S & N B S P ;
Rotation Mount and Stage Selection Guide
Thorlabs offers a wide variety of manual and motorized rotation mounts and stages. Rotation mounts are designed with an inner bore to mount a Ø1/2", Ø1",
or Ø2" optic, while rotation stages are designed with mounting taps to attach a variety of components or systems. Motorized options are powered by a DC
Servo motor, 2 phase stepper motor, or an Elliptec
Manual Rotation Mounts
Item #
Click Photo to
Enlarge
Features
Additional Details
This mount is available in the PRM05GL5 bundle, which includes the PRM05 rotation mount with the SM05PM5 polarizing prism mount.
The CT104 is complatible with the 1/4" translation stages using our MS103(/M) adapter plate.
he CT104 is compatible with the CT1 cage translation stage, which is designed for use with 30 mm cage systems.
Item #
RSP1(/M)
Click Photo to
Enlarge
Features
Standard
resonant piezo motor. Each offers 360° of continuous rotation.
RSP05(/M)
CRM05
External SM1
Standard
(1.035"-40) Threads
RSP1D(/M)
Adjustable Zero
Independently
Rotation Mounts for Ø1/2" Optics
a
PRM05(/M)
Micrometer
Rotation Mounts for Ø1" Optics
DLM1(/M)
CLR1(/M)
Rotates
Two
Optic Within
Click to Enlarge
The Elliptec Piezoelectric Resonant Motor
Control Software GUI
SRM05
KS05RS
±4° Kinematic Tip/Tilt
16 mm Cage-
Adjustment Plus
Compatible
Rotation
RSP1X15(/M)
RSP1X225(/M)
Continuous 360°
Continuous 360°
Rotation
Rotation
CT104
Compatible with CT1
Cage Translator
Stage and 1/4"
b
Translation Stages
More [+]
a
PRM1(/M)
Micrometer
