- Page 1 BrightEye NXT Routers Quick Start Guide Clean and Quiet Video and Audio Routing Switchers Models 430-X, 430, 415, 410-H, 410...
-

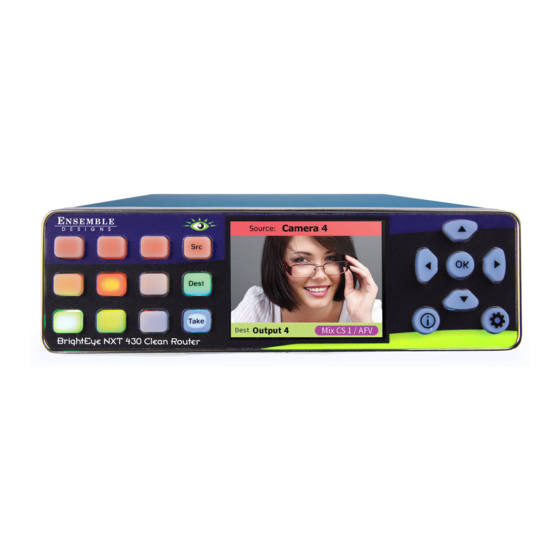

Page 2: Front Panel Controls
BrightEye NXT 430-X, 430, 415, 410-H, 410 Compact Routers Front Panel Controls Page 2... - Page 3 Quick Start Guide Models 410-H and 410 Rear Connectors www.ensembledesigns.com Page 3...
- Page 4 BrightEye NXT 430-X, 430, 415, 410-H, 410 Compact Routers Models 430-X, 430 and 415 Rear Connectors Page 4...
- Page 5 BrightEye NXT 430-X, 430 and 415 Default Port Configuration The default port configurations for the BrightEye NXT 430-X, 430 and 415 are shown below. Ports that are Unassigned, such as Port 3, can be configured from the front panel either as a Source or Destination, as described on page 8. The two Clean Switches (CS) can be assigned to Destinations as described on pages 10 and 11.
-
Page 6: Front Panel Navigation
BrightEye NXT 430-X, 430, 415, 410-H, 410 Compact Routers Selecting Sources and Destinations and Making a Cross Point Switch Preset/Take Panel Mode Use the Dest button to step through the router’s Destinations. The router’s LCD will show the signal on each Destination. Stop on the Destination you want to use. - Page 7 Quick Start Guide Front Panel Router Configuration Menus Panel Config Assign shortcut buttons, adjust mix transition durations, select preset/take or direct take mode, adjust panel brightness, number of audio meters, meter reference level, peak display, disable live video Ports Name Sources and Destinations, define ports as inputs or outputs as needed TSG1 Select a test signal, choose its standard, adjust test signal...
-
Page 8: Configuring Ports
BrightEye NXT 430-X, 430, 415, 410-H, 410 Compact Routers Configuring Ports Some of the BrightEye NXT Router ports are fixed as inputs or outputs, whereas the flexible I/O ports are configured as inputs or outputs from the Ports menu. Naming the ports can make router operation more intuitive. -
Page 9: Adjusting Audio Levels
Quick Start Guide Adjusting Audio Levels When the signal is output through a Clean Switch, you can adjust audio levels on a per-input and per-channel basis. The BrightEye NXT compact routers can apply gain or attenuation from +12.0 dB to -70 dB. When the Clean Switch is in Mix mode, the audio output will properly mix between the adjusted settings of one input to the adjusted settings of the new source. - Page 10 BrightEye NXT 430-X, 430, 415, 410-H, 410 Compact Routers Clean Switching on Models 430 and 410 The BrightEye NXT 430 and 410 have two clean switches that are useful when switching between asynchronous sources or taking a router output directly to air. To switch cleanly between different sources, the sources and the clean switch must share the same format and standard.
- Page 11 Clean Switching and Up/Down/Cross Converting on Models 430-X and 410-H The BrightEye NXT 430-X and 410-H have two clean switches with which you can switch between asynchronous sources without glitches or pops. Both clean switches also have up/down/cross converters. Simply by setting the output standard of each clean switch, configured independently, they automatically convert any SMPTE broadcast resolution source to your chosen output standard, regardless of the signal’s incoming format.
- Page 12 BrightEye NXT 430-X, 430, 415, 410-H, 410 Compact Routers Web Control and Ethernet Interface Your BrightEye NXT Router has a built-in web server providing control from a web browser. Plug an Ethernet cable into the BrightEye NXT Router to connect directly to a computer or to your Ethernet network.
- Page 13 Quick Start Guide Requesting the Web Control Point After you have set the BrightEye NXT’s IP address to be compatible with your network, you can connect to the BrightEye NXT with a web browser to establish a web control point. Navigate to the BrightEye NXT’s new IP address with your web browser.
- Page 14 BrightEye NXT 430-X, 430, 415, 410-H, 410 Compact Routers Web Browser Router Control Window You can control the router through its web browser user interface to perform takes, direct takes, dissolves, gang, and gang combined with direct takes. Thumbnail representations of the router’s Sources are shown in the upper area, Destinations in the lower area.
- Page 15 Quick Start Guide Settings Menu > Profiles The web browser Settings menus provide complete control of the router, including a software update interface, network settings, timing and automation control. Of special interest is the Profiles menu which allows you to define which Sources and Destinations can be accessed from a Control Point other than the router itself.
-
Page 16: Factory Reset
For additional assistance, see the complete manual available through our website, or contact us at +1 530.478.1830 or service@ensembledesigns.com. All Ensemble Designs products have a 5-year warranty. Avenue and BrightEye products are designed and built in California at Ensemble Designs. Come visit us! www.ensembledesigns.com...
