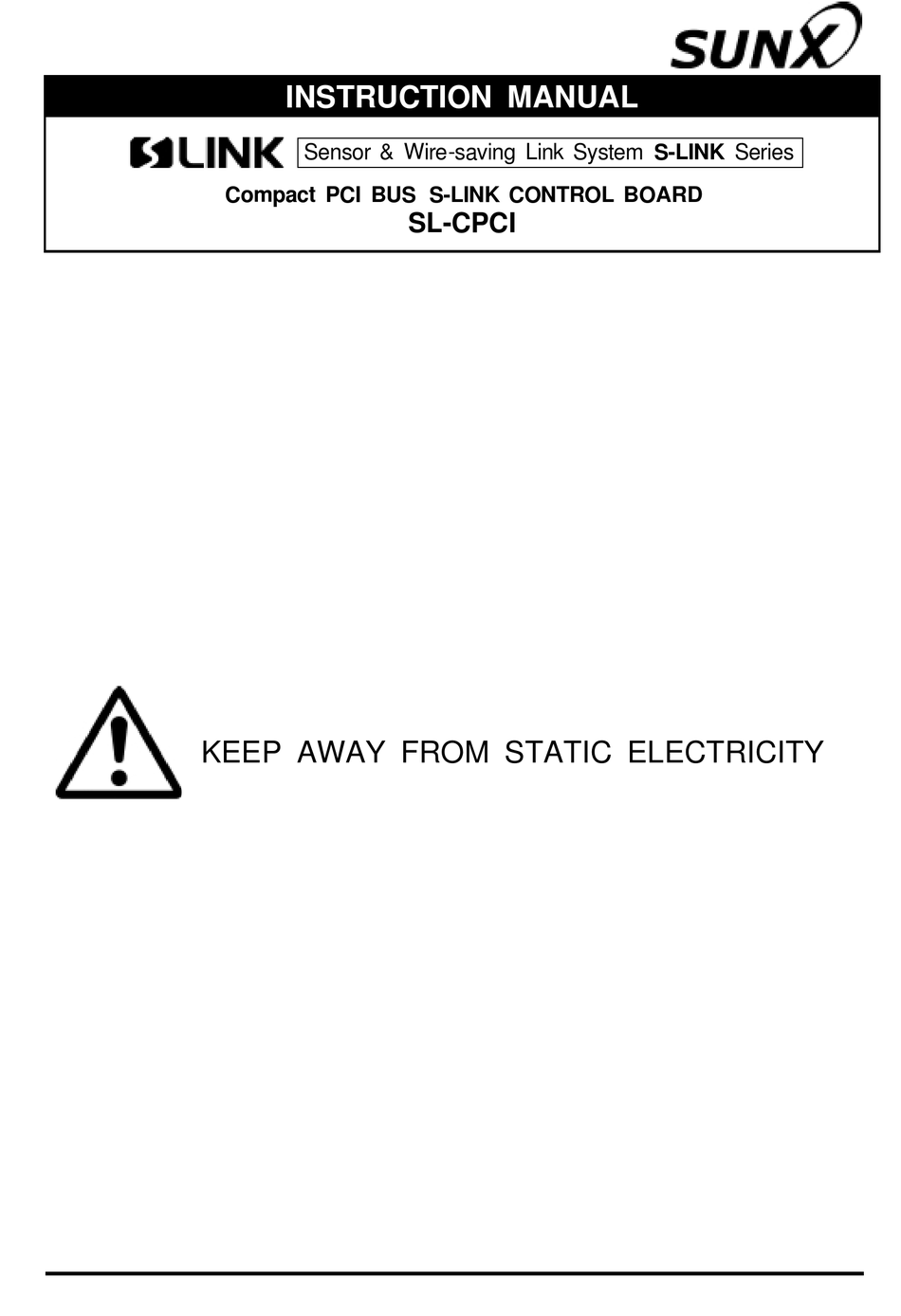

- Page 1 INSTRUCTION MANUAL Sensor & Wire-saving Link System S-LINK Series Compact PCI BUS S-LINK CONTROL BOARD SL-CPCI KEEP AWAY FROM STATIC ELECTRICITY...
-
Page 2: Specifications
PREFACE Thank you very much for using SUNX products. Please read this Instruction Manual carefully and thoroughly for the correct and optimum use of this product. Kindly keep this manual in a convenient place for quick re- feence. This product does not possess control functions needed for accident prevention or safety maintenance. - Page 3 5) It is necessary to load the driver program before using this board. Please download the driver program from our internet home page (http://www.sunx.co.jp/). [Driver program is available for DOS, Windows 95/98 and Windows NT.] If you cannot access our internet home page, please contact our sales office.
-
Page 4: Warranty
During the above mentioned period, if a failure of the product occurs under normal use and operation, and if it is found by SUNX that it is responsible for the failure, it shall remedy the defect or tender substitution for exchange at its cost and expense. -
Page 5: Functional Description
20.2 S-LINK terminal block connector Main cable and power supply of the S-LINK system are connected. The S-LINK terminal block is connector type and it is possible to wire it after removing it from SL-CPCI. Description External power supply Color... - Page 6 Mode switch Perform setting of the S-LINK system. I/O setting switches (I/O SET0 to 3) are for setting input/output. System address length setting switches (SA0 and SA1) are for setting system/address length. Setting is read in only once when power is supplied to the computer. Changing the mode switch setting during operation is ineffective.
- Page 7 5. ASSIGNMENT ON COMPUTER Computer I/O address Assignment (hexadecimal) Bank change-over response register (HML) 00 (Initial value) Data Control board product S-LINK unit connection Address where Error 4 Area S-LINK input/output units information occurs address (version etc.) (HML) (HML 1) 0 Flag Under normal condition: number of connected S-LINK I/O units (HML 1) 1...
- Page 8 (HML) 0 to (HML) F: Data area Relationship between ‘Computer I/O address’ and ‘S-LINK address’ Computer I/O S-LINK address address bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0 (hexadecimal) (HML) 0 (HML) 1 (HML) 2 (HML) 3 (HML) 4...
- Page 9 (HML 1) 0: Flag It indicates the operation condition of the S-LINK system. Assignment Confirmation of communication frame completion (Output data communication completed with ‘0’ after writing in ‘1’) System set (1: Read condition of S-LINK I/O unit connection) Unusable (=0) Condition of S-LINK communication (1: Communicating) Error 4 (1: Wire disconnection or abnormal I/O unit) Error 3 (1: Abnormal voltage level between D and G)
- Page 10 (HML 1) 2: I/O setup of S-LINK It sets up or indicates the I/O assignment of S-LINK system. Immediately after power supply or reset of the computer, it indicates the setup condition of I/O setting switch (I/O SET 0 to 3) of ‘4. FUNCTIONAL DESCRIPTION Mode switch’.
- Page 11 (HML 1) B: Address of SL-BS1A where operation stops (HML 1) C: Address of connected SL-BS1A Booster SL-BS1A’s connection and operation conditions are indicated. Operation stop address Connection address SL-BS1A address Assignment Assignment ON (=1): Stop, abnormal ON (=1): Connected OFF (=0): Operating OFF (=0): Not connected Note: Not valid if booster SL-BS1A is not used.
- Page 12 S-LINK http://www.s-linksystem.net...
