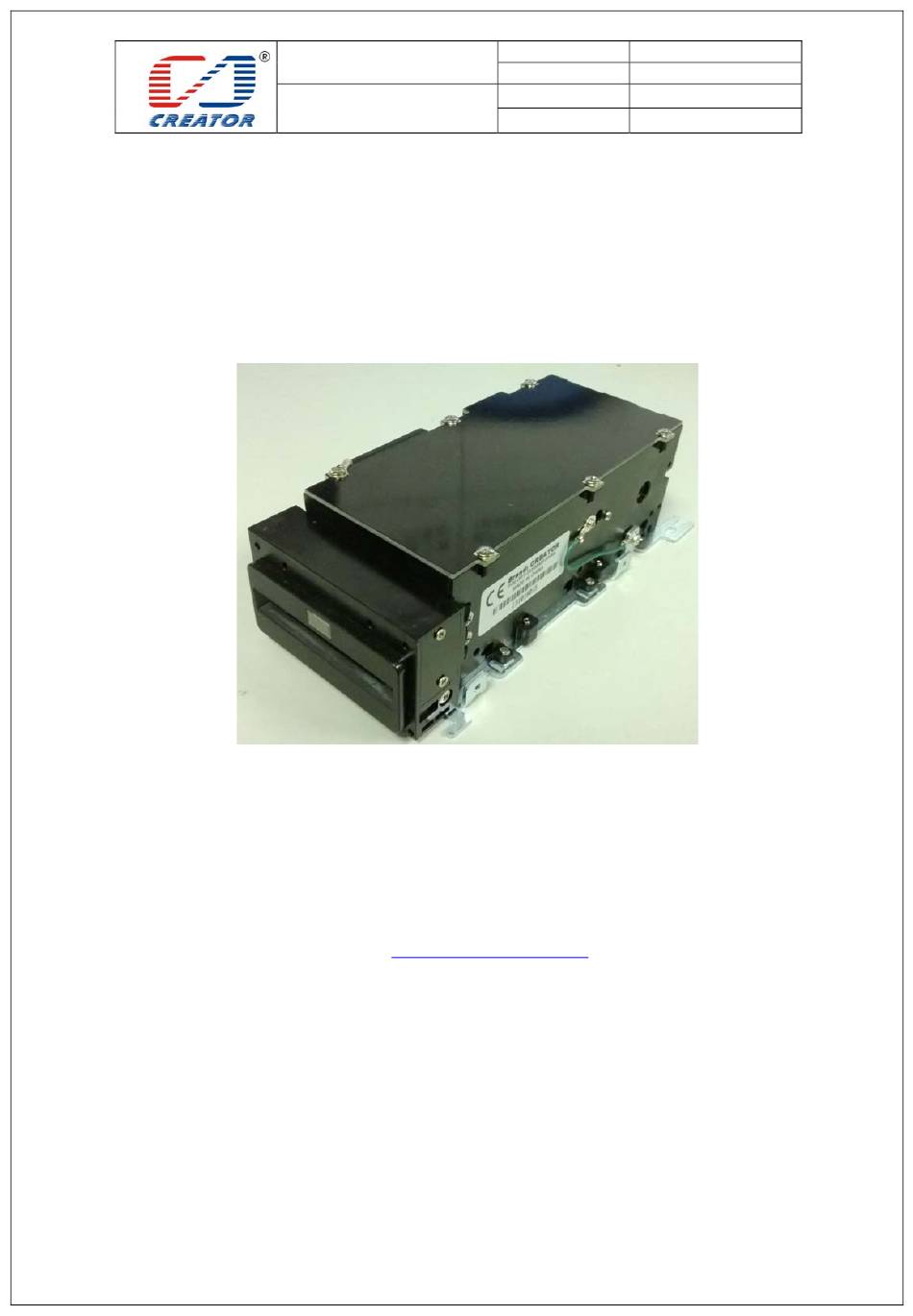

CRT-310-NR01
Model No.
SPECIFICATION
Date
2013/12/9
1.0
Ver.
Motorized Card Reader
1/16
Page
CRT-310-NR01 Motorized Card Reader Manual
CREATOR (CHINA) TECH CO., LTD
Add: 2F, M-10 Building, Center Area, Hi-tech Industrial Park, Shenzhen, China
TEL: +86 755 26710691
FAX: +86 755 26710105
Email：sales@china-creator.com
Http://www.china-creator.com/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRT-310-NR01 and is the answer not in the manual?

Questions and answers

Related Manuals for Creator CRT-310-NR01

Summary of Contents for Creator CRT-310-NR01

  • Page 1 SPECIFICATION Date 2013/12/9 Ver. Motorized Card Reader 1/16 Page CRT-310-NR01 Motorized Card Reader Manual CREATOR (CHINA) TECH CO., LTD Add: 2F, M-10 Building, Center Area, Hi-tech Industrial Park, Shenzhen, China TEL: +86 755 26710691 FAX: +86 755 26710105 Email：sales@china-creator.com Http://www.china-creator.com/...

  • Page 2: Revision Record

    CRT-310-NR01 Model No. SPECIFICATION Date 2013/12/9 Ver. Motorized Card Reader 2/16 Page Revision record Version Date Content 2013.12.09 First time release...
  • Page 3 Date 2013/12/9 Ver. Motorized Card Reader 3/16 Page ● Welcome to use Creator’s product ● Please read the manual carefully before you use our product Basic component： 1-----------Bezel (optional) 2-----------Pulley and card read parts 3-----------RS-232 communication interface connector 4-----------4PIN interface connector of power supply...
  • Page 4 CRT-310-NR01 Model No. SPECIFICATION Date 2013/12/9 Ver. Motorized Card Reader 4/16 Page Content 1、Product Overview ............................. 6 2、Specification ............................6 3、Technical Parameter ..........................6 4、Sensor location instruction： ......................9 7、Card moving status： ........................... 10 8、Operation mode ............................10 8.1 Card insertion of activities： ..................... 10 1) ICRW automatically reads the magnetic stripe card after the card enters in，then moves...
  • Page 5 Model No. SPECIFICATION Date 2013/12/9 Ver. Motorized Card Reader 5/16 Page 12、Other relevant documents ......................... 15 1) DLL：CRT-310-NR01 DLL Specification .PDF..................15 2) DLL SOURCE CODE：DLL sample source code..................15 3) Communication Protocol：CRT-310-NR01 Protocol .PDF..............15 13、Structure dimensions ......................... 15...

  • Page 6: Product Overview

    6/16 Page 1、Product Overview CRT-310-NR01 is a motorized card reader with card captured/ ejected and 3-card in one function. Product main feature： 1） 3-card in one：Mag-card read, IC card read & write, contactless IC card read & write. 2） Electromagnetic controlled shutter, the commands support Mag/switch controlled open.
  • Page 7 CRT-310-NR01 Model No. SPECIFICATION Date 2013/12/9 Ver. Motorized Card Reader 7/16 Page 5) Card specification Width:53.92～54.18 mm， Length：85.47～85.90 mm Thickness: 0.4mm～1.2mm（ex-work:0.8mm） 6) Net Mass Approximately 410g（not including accessories and package） 7) Amount dimension Refer to structure outline drawing 8) Performance of reading Mag-Card Pass the test of the standard/Q card（TC-JI 15% BB...
  • Page 8 CRT-310-NR01 Model No. SPECIFICATION Date 2013/12/9 Ver. Motorized Card Reader 8/16 Page ISO14443-4（TYPE A CPU： mifare plus， mifare desfire etc） （TYPE B CPU） 20）Magnetic stripe card standard Physical feather: ISO7810 and 7811 Card dimension: ISO7810ID-1-magnetic stripe card standard Embossed card：ISO7811-1 and ISO7811-3...
  • Page 9 CRT-310-NR01 Model No. SPECIFICATION Date 2013/12/9 Ver. Motorized Card Reader 9/16 Page 4、Sensor location instruction：...

  • Page 10: Operation Mode

    CRT-310-NR01 Model No. SPECIFICATION Date 2013/12/9 Ver. Motorized Card Reader 10/16 Page 7、Card moving status： The card holding position at front side Inner position IC card operation position 8、Operation mode 8.1 Card insertion of activities： 1) ICRW automatically reads the magnetic stripe card after the card enters in，then moves the card to the inner specific position；...
  • Page 11 9、 power supply connection illustrating CRT-310-NR01 with two methods： 1） Single main power connection（shown as following picture 1） Red & yellow mixed wire connected to ＋12V，black wire connected to －12V 2）Main power + back-up capacitor (for card ejected after power down) connection method （shown as following picture 2）...
  • Page 12 CRT-310-NR01 Model No. SPECIFICATION Date 2013/12/9 Ver. Motorized Card Reader 12/16 Page 接红 线 接黄 线 主电源 CON4 接黑 线 接黑 线 图 1 ：无掉电弹卡功能接线 接红 线 主电源 接黑 线 接黄 线 CB 1 CB 2 CB 3 CB 4...

  • Page 13: Cautions For Use

    CRT-310-NR01 Model No. SPECIFICATION Date 2013/12/9 Ver. Motorized Card Reader 13/16 Page 10、Preventive and Maintenance The reader should be maintained after the appropriate interval of use: 1） When the transportation roller is dirt, please use cleaning card with alcohol 2） Dip the cleaning card into alcohol and execute card transportation command to clean the internal area.
  • Page 14 CRT-310-NR01 Model No. SPECIFICATION Date 2013/12/9 Ver. Motorized Card Reader 14/16 Page 6）Insertion direction for IC card: See the following picture. Shown as following (Picture 3) IC position 图四 IC 卡的进卡方向 Picture 3 IC card entry direction 7）Insertion direction for Magnetic card: Magnetic strip is on the right side of reader; please refer to the...

  • Page 15: Other Relevant Documents

    CRT-310-NR01 Model No. SPECIFICATION Date 2013/12/9 Ver. Motorized Card Reader 15/16 Page 12、Other relevant documents 1) DLL：CRT-310-NR01 DLL Specification .PDF 2) DLL SOURCE CODE：DLL sample source code 3) Communication Protocol：CRT-310-NR01 Protocol .PDF 13、Structure dimensions...
  • Page 16 CRT-310-NR01 Model No. SPECIFICATION Date 2013/12/9 Ver. Motorized Card Reader 16/16 Page...
