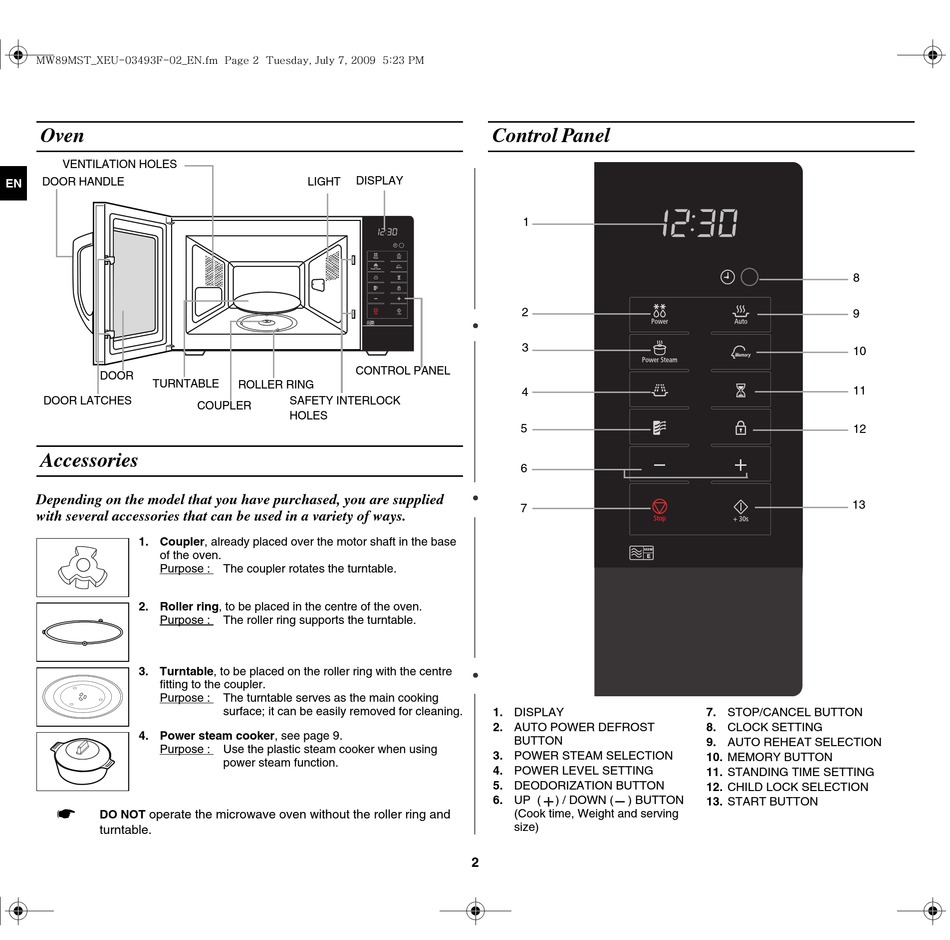

Oven

VENTILATION HOLES
DOOR HANDLE
EN
DOOR
TURNTABLE
DOOR LATCHES

Accessories

Depending on the model that you have purchased, you are supplied
with several accessories that can be used in a variety of ways.
1. Coupler, already placed over the motor shaft in the base
of the oven.
Purpose :
2. Roller ring, to be placed in the centre of the oven.
Purpose :
3. Turntable, to be placed on the roller ring with the centre
fitting to the coupler.
Purpose :
4. Power steam cooker, see page 9.
Purpose :
DO NOT operate the microwave oven without the roller ring and
turntable.
DISPLAY
LIGHT
850W
E

CONTROL PANEL

SAFETY INTERLOCK
COUPLER
HOLES
The coupler rotates the turntable.
The roller ring supports the turntable.
The turntable serves as the main cooking
surface; it can be easily removed for cleaning.
Use the plastic steam cooker when using
power steam function.
Control Panel
1
2
3
4
5
6
7
850W
E
1. DISPLAY
2. AUTO POWER DEFROST
BUTTON
3. POWER STEAM SELECTION
4. POWER LEVEL SETTING
5. DEODORIZATION BUTTON
6. UP ( ) / DOWN ( ) BUTTON
(Cook time, Weight and serving
size)
2
8
9
10
11
12
13
7. STOP/CANCEL BUTTON
8. CLOCK SETTING
9. AUTO REHEAT SELECTION
10. MEMORY BUTTON
11. STANDING TIME SETTING
12. CHILD LOCK SELECTION
13. START BUTTON
