Preparation; Connecting To The Canport Network; Programming; Yes 2.8 Series Connector - Whelen Engineering Company CenCom Core Installation Manual

NOTE: The CANport Communication Board is optional and replaces
the Input Remote Module on Carbide systems.
CenCom™ Core Main Control Box
J18 J19 J20
TO VEHICLE

Preparation:

The following procedure should
be performed with the vehicle
off.

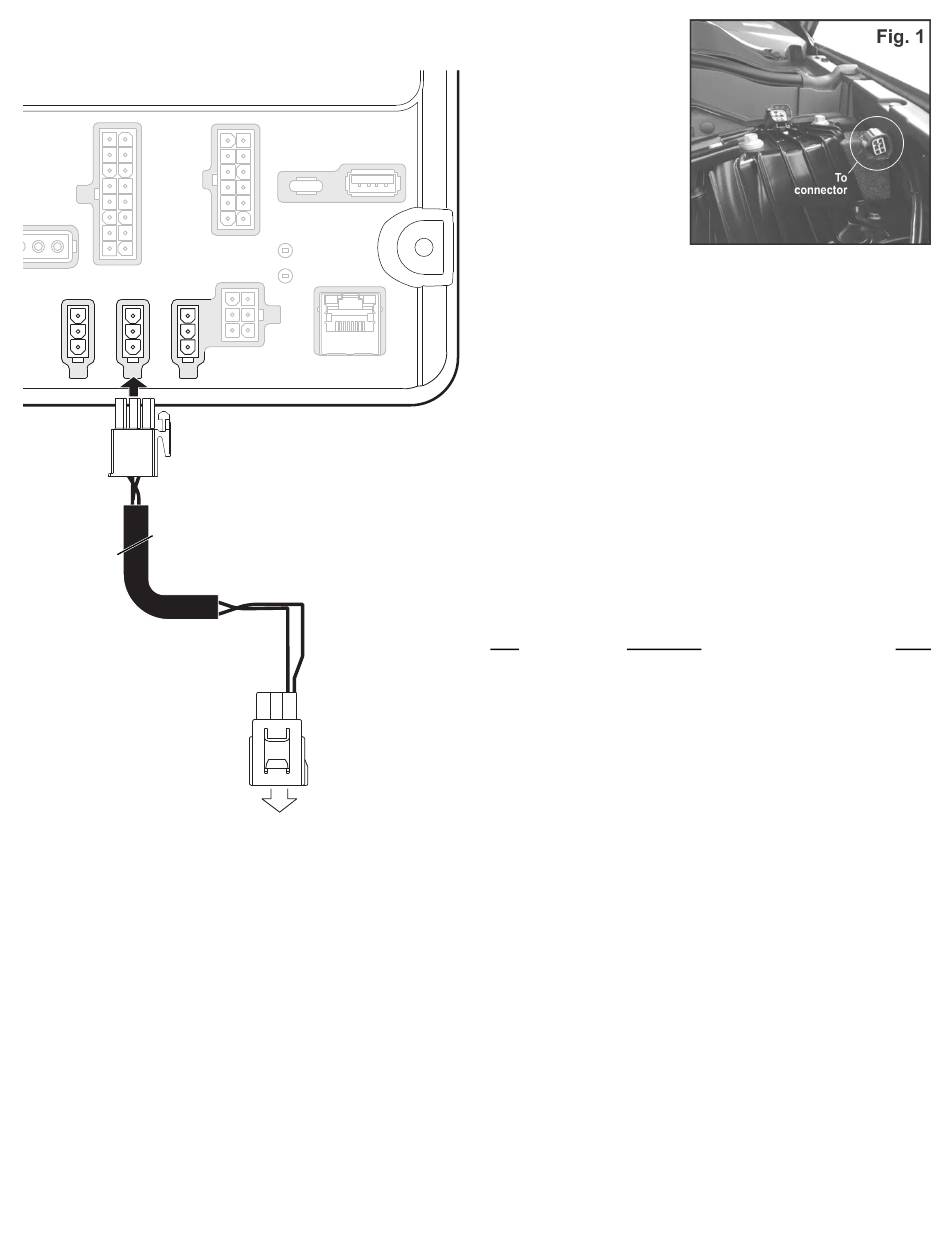

1. Locate your vehicle's CAN
port. Typically located on the
driver side fender
hood (Fig. 1).
2. Locate the CAN
Interface Cable (included).
This cable allows
CenCom™ Core system to
communicate with
vehicle's CAN network.
The interface cable is comprised of the following connectors:
• One 6-position YES 2.8 Series Connector male
• One 3 position connector

Connecting to the CANport network:

3. Plug the male YES 2.8 Series Connector onto the vehicle's CAN port.
4. Plug the interface cable's 3-position connector into the CAN2 port on
your CenCom™ Core.
The CenCom™ Core system is now connected to the vehicle's CAN
network. The vehicle's emission and diagnostic data may now be
accessed via the Male Yes 2.8 connector installed earlier in this
installation.

Programming:

Configuring the CenCom Core system to interact with the CANport
network requires a Windows®-based laptop computer. This connection
requires a USB cable and is only needed during the programming
process.

YES 2.8 Series Connector

POS Description
1..................................Signal - High (CAN 1).......................................BLU
2..................................Signal - Low (CAN 1)....................................... GRY
3..................................N/A
4..................................N/A
5..................................N/A
6..................................N/A

3 Position Connector:

1..................................Signal - High (CAN 1).......................................BLU
2..................................SHIELD .............................................................N/A
3..................................Signal - Low (CAN 1)....................................... GRY
