NanoPi NEO Plus2
wiki.friendlyarm.com
Introduction
The NanoPi NEO Plus2 is another Allwinner based
ARM board developed by FriendlyElec. It uses
Allwinner's 64-bit quad-core A53 SoC with hexa-
core Mali450 GPU and features 1GB of DDR3 RAM
and 8GB eMMC.
With a small size of only 40 x 52mm the NanoPi
NEO Plus2 has rich on-board resources: AP6212A
WiFi & Bluetooth module, Gbps Ethernet and two
USB hosts. It supports system-boot from a MicroSD
card.
The NanoPi NEO Plus2 has a carefully designed
power system and 6-layer PCB layout. These
features enhance the board's heat dissipation.
The NanoPi NEO Plus2 meets popular IOT
applications requirements for small size, high-speed
and large throughput data transmission and high
performance computing.
Hardware Spec
SoC: Allwinner H5，Quad-core 64-bit high-
performance Cortex A53
DDR3 RAM:1GB
Storage: 8GB eMMC
Network: Gbps Ethernet
WiFi: 802.11b/g/n
Bluetooth: 4.0 dual mode
USB Host: 2 x Independent USB Host
MicroSD Slot: 1 x Slot. It supports system booting
or is used to hold a storage card
Audio Input/Output: 5-Pin, 2.0mm pitch pin-header
MicroUSB: power input
Debug Serial: 4Pin, 2.54mm pitch pin-header
GPIO1:24Pin, 2.54mm pitch double-row pin-header
containing UART, SPI, I2C and IO
GPIO2:12Pin, 2.54mm pitch pin-header containing
USB, IR receiver,I2S and IO
Power Supply: DC 5V/2A
PCB Dimension: 40 x 52mm
PCB Layer: 6-Layer
/wiki/index.php/NanoPi_NEO_Plus2

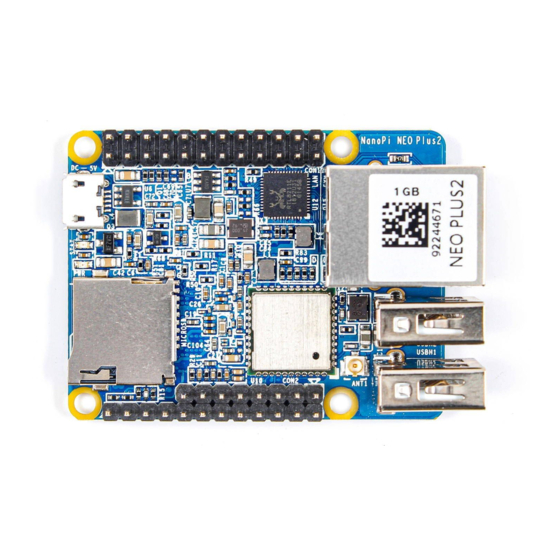

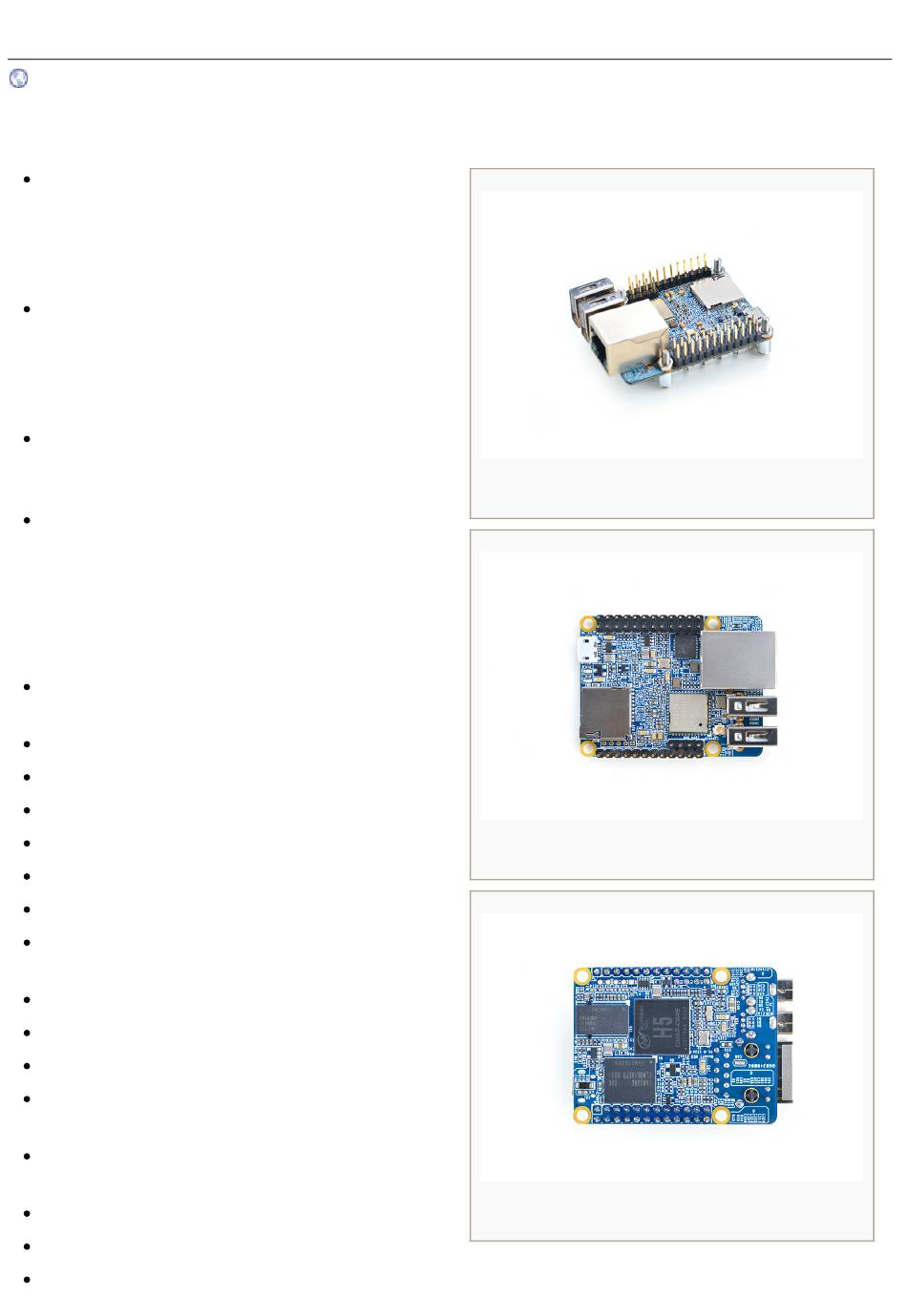

Overview
Front
Back
