Jung TRONIC 247 EB Operation Manual

Light Management
TRONIC amplifier, built-in
TRONIC amplifier, built-in
Art.-No.: 247 EB
Operationsmanual
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
The load is not electrically isolated from the mains even when the device is switched off.
Do not connect any electronic lamps, e.g. switchable or dimmable compact fluorescent
lamps or LED lamps. Device can be damaged.
These instructions are an integral part of the product, and must remain with the end
customer.

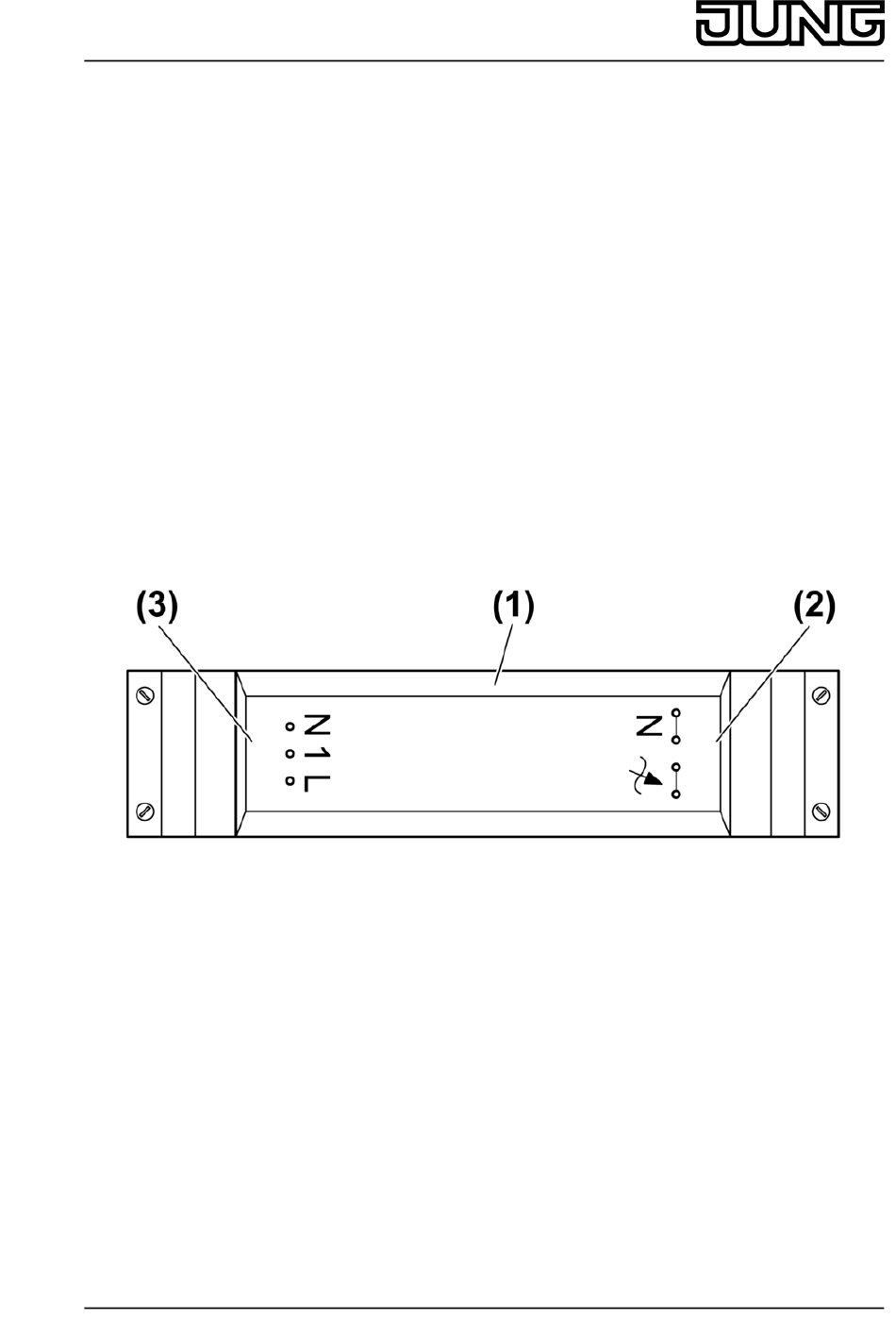

2 Device components
(1) Power extension
(2) Load connection
(3) Dimmer connection
3 Function
Intended use
- Output extension of TRONIC dimmers, which work according to the phase section
principle.
- Output extension of universal dimmers, which have detected an ohmic or capacitive basic
load.
Do not operate universal dimmers with an inductive load.
- Connection of filament lamps, HV halogen lamps and TRONIC transformers with halogen
lamps.
- Suitable for mixed operation up to the specified output (see chapter 5.1. Technical data)
- Do not operate the corresponding dimmers without a load.
- Installation in false ceilings or surface mounting
