Jung ULZ 1215 REG Operating Instructions Manual

Light Management
Universal amplifier for rail mounting 200-500 W
Universal amplifier for rail mounting 200-500 W
Art. No. ULZ 1215 REG
Operating instructions

1 Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
The load is not electrically isolated from the mains even when the device is switched off.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
Fire hazard. For operation with inductive transformers, each transformer must be fused
on the primary side in accordance with the manufacturer's instructions. Only safety
transformers according to EN 61558-2-6 may be used.
A minimum power of 10 kVA is required for operation on isolating transformer networks.
Otherwise it is not ensured that the dimmer will correctly recognise the dimming
principle suitable for the load. Device can be damaged.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components
(1) Power booster
(2) LED on/off: power booster on/off
3 Function
Intended use
- Power enhancement for the Tronic or universal dimmers contained in the reference list
(see section Technical data)
- Switching and dimming of incandescent lamps, HV halogen lamps and Tronic or dimmable
inductive transformers with halogen lamps.
82557263
J:0082557263

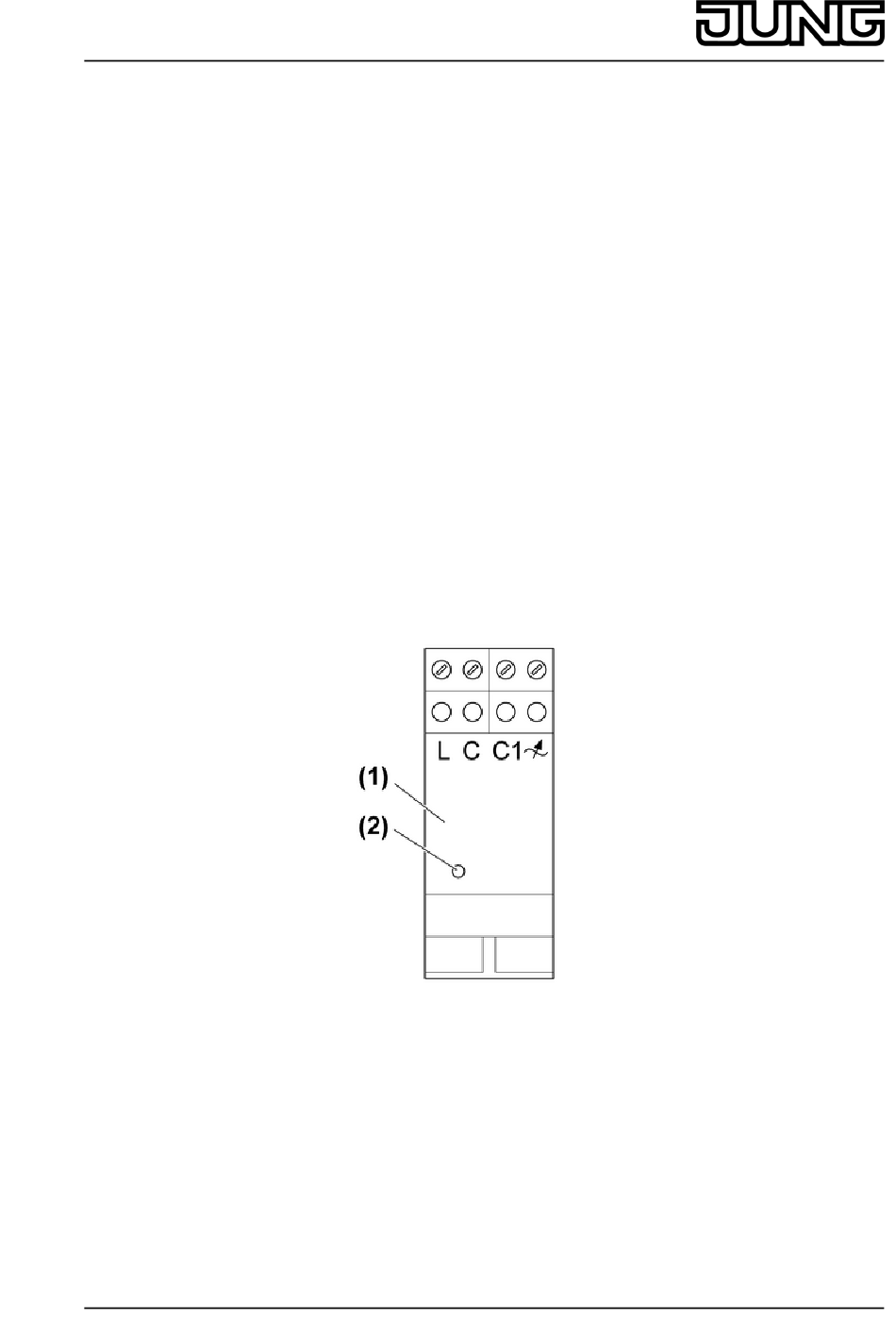

Figure 1: Device components
1/7 27.02.2013
