Owner's Manual & Safety Instructions
READ this Operator's Manual carefully before using this tool. Failure to understand and follow
the contents of this manual may result in electrical shock, fire and/or serious personal injury.
1-2 in. x 50 ft.

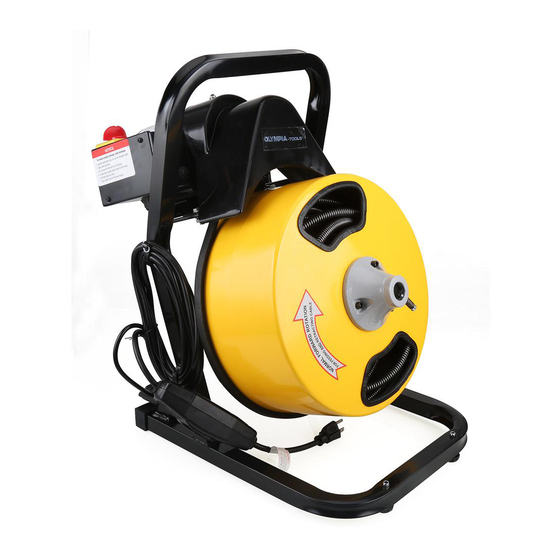

Electric Drain Cleaner
OLYMPIA TOOLS INTERNATIONAL, INC.
Tel. 626-336-4999 / Fax. 626-336-489 / Web. www.olympiatools.com
WARNING
• Do not use this drain cleaner on drain
lines smaller than one inch.
• Damage may occur to equipment
or pipes.
ITEM 86-337
Advertisement
Table of Contents
Related Manuals for Olympia Tools 86-337
Summary of Contents for Olympia Tools 86-337
- Page 1 Electric Drain Cleaner ITEM 86-337 WARNING • Do not use this drain cleaner on drain OLYMPIA TOOLS INTERNATIONAL, INC. lines smaller than one inch. Tel. 626-336-4999 / Fax. 626-336-489 / Web. www.olympiatools.com • Damage may occur to equipment or pipes.
-
Page 2: Safety Warnings
It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator. SAVE THESE INSTRUCTIONS OLYMPIA TOOLS INTERNATIONAL, INC. Page 1 Tel. 626-336-4999 / Fax. 626-336-489 / Web. www.olympiatools.com... -
Page 3: General Safety Rules
Eye protection must be ANSI- approved and breathing protection must be NIOSH- approved for the specific hazards in the work area. OLYMPIA TOOLS INTERNATIONAL, INC. Page 2 Tel. 626-336-4999 / Fax. 626-336-489 / Web. www.olympiatools.com... - Page 4 8. Do not allow the cutter to stop turning while the machine is running. This can overstress the cable and may cause twisting, kinking or breaking of the cable. Twisting, kinking or breaking cable may cause striking or crushing injuries. OLYMPIA TOOLS INTERNATIONAL, INC. Page 3...
- Page 5 In addition, people with pacemakers should adhere to the following: • Avoid operating power tools alone. • Properly maintain and inspect all tools before use to avoid electrical shock. OLYMPIA TOOLS INTERNATIONAL, INC. Page 4 Tel. 626-336-4999 / Fax. 626-336-489 / Web. www.olympiatools.com...
- Page 6 3. The tool must be plugged into an appropriate outlet, properly installed and grounded in accordance with all codes and ordinances. The plug and outlet should look like those in the preceding illustration. (See 3-Prong Plug and Outlet.) OLYMPIA TOOLS INTERNATIONAL, INC. Page 5 Tel. 626-336-4999 / Fax. 626-336-489 / Web. www.olympiatools.com...
-
Page 7: Ground Fault Circuit Interrupter (Gfci)
12 .1 -16 .0 16 .1 -2 0 .0 Based on limiting the line Voltage drop to five volts at150% of the rated TABLE A armperes OLYMPIA TOOLS INTERNATIONAL, INC. Page 6 Tel. 626-336-4999 / Fax. 626-336-489 / Web. www.olympiatools.com... -
Page 8: Machine And Work Area Set-Up
6. Make sure that switches and handles move smoothly between positions and lock in place, and that the bumpers at the bottom of the handle are present and firmly attached. OLYMPIA TOOLS INTERNATIONAL, INC. Page 8 Tel. 626-336-4999 / Fax. 626-336-489 / Web. www.olympiatools.com... -
Page 9: Work Area Set-Up
8. If necessary, remove fixture (water closet, sink, etc.) to allow access to the drain. Do not feed the cable through a fixture. This could damage the drain cleaner and the fixture. OLYMPIA TOOLS INTERNATIONAL, INC. Page 9 Tel. 626-336-4999 / Fax. 626-336-489 / Web. www.olympiatools.com... -
Page 10: Cable Size
Follow these operating instructions to reduce the risk of injury from twisted or broken cables,cable ends whipping around, machine tipping, chemical burns, infections and other causes. OLYMPIA TOOLS INTERNATIONAL, INC. Page 10... -
Page 11: Manual Feed
2. The Drain Cleaner motor will stop and cable and drum will turn backwards until tension in cable is released. WARNING! Do not remove hands from cable until all the tension is released. 3. Place Power Switch in OFF position. OLYMPIA TOOLS INTERNATIONAL, INC. Page 11 Tel. 626-336-4999 / Fax. 626-336-489 / Web. www.olympiatools.com... - Page 12 6. Release Feed Knob tension and pull remaining cable from drain by hand and feed into drain cleaner. If needed, change cutting tool and continue cleaning. OLYMPIA TOOLS INTERNATIONAL, INC. Page 12 Tel. 626-336-4999 / Fax. 626-336-489 / Web. www.olympiatools.com...
- Page 13 C-Cutter Finishing tool; works well with grease stoppages And cleaning walls of the pipe. Spade Cutter Finishing tool; used for scraping the inside edges of pipes OLYMPIA TOOLS INTERNATIONAL, INC. Page 7 Tel. 626-336-4999 / Fax. 626-336-489 / Web. www.olympiatools.com...
-
Page 14: Maintenance And Cleaning
1. Remove old cable by pulling cable completely out. Separate cable from drum-connecting cable. 2. Connect new cable to drum-connecting cable and feed cable back into drum. OLYMPIA TOOLS INTERNATIONAL, INC. Page 13 Tel. 626-336-4999 / Fax. 626-336-489 / Web. www.olympiatools.com... -
Page 15: Troubleshooting
“Reverse” or visa versa. The Foot Overloading of the motor may Press the Foot Pedal several times Pedal sticks Cause the Foot Pedal to stick. to release it. OLYMPIA TOOLS INTERNATIONAL, INC. Page 14 Tel. 626-336-4999 / Fax. 626-336-489 / Web. www.olympiatools.com... -
Page 16: Parts Lists
Bolts Drum Shaft Retaining Pin Collar & Set Screw Frame Retaining Pin Spring Rubber Foot Drum Shaft Retaining Pin Bolts Rubber Leg Tip Flat Washer Bolts OLYMPIA TOOLS INTERNATIONAL, INC. Page 15 Tel. 626-336-4999 / Fax. 626-336-489 / Web. www.olympiatools.com... - Page 17 OLYMPIA TOOLS INTERNATIONAL, INC. Page 16 Tel. 626-336-4999 / Fax. 626-336-489 / Web. www.olympiatools.com...
-
Page 18: Specifications
1/2” Dia. x 50’ Long Cable Type 5.08cm to 10.16cm I.D. Drain Pipe Capacity 33 cmx 16cm Drum Dimensions 100’ of 3/8” Cable 75’ of 1/2” Cable Drum Capacity OLYMPIA TOOLS INTERNATIONAL, INC. Page 18 Tel. 626-336-4999 / Fax. 626-336-489 / Web. www.olympiatools.com...
